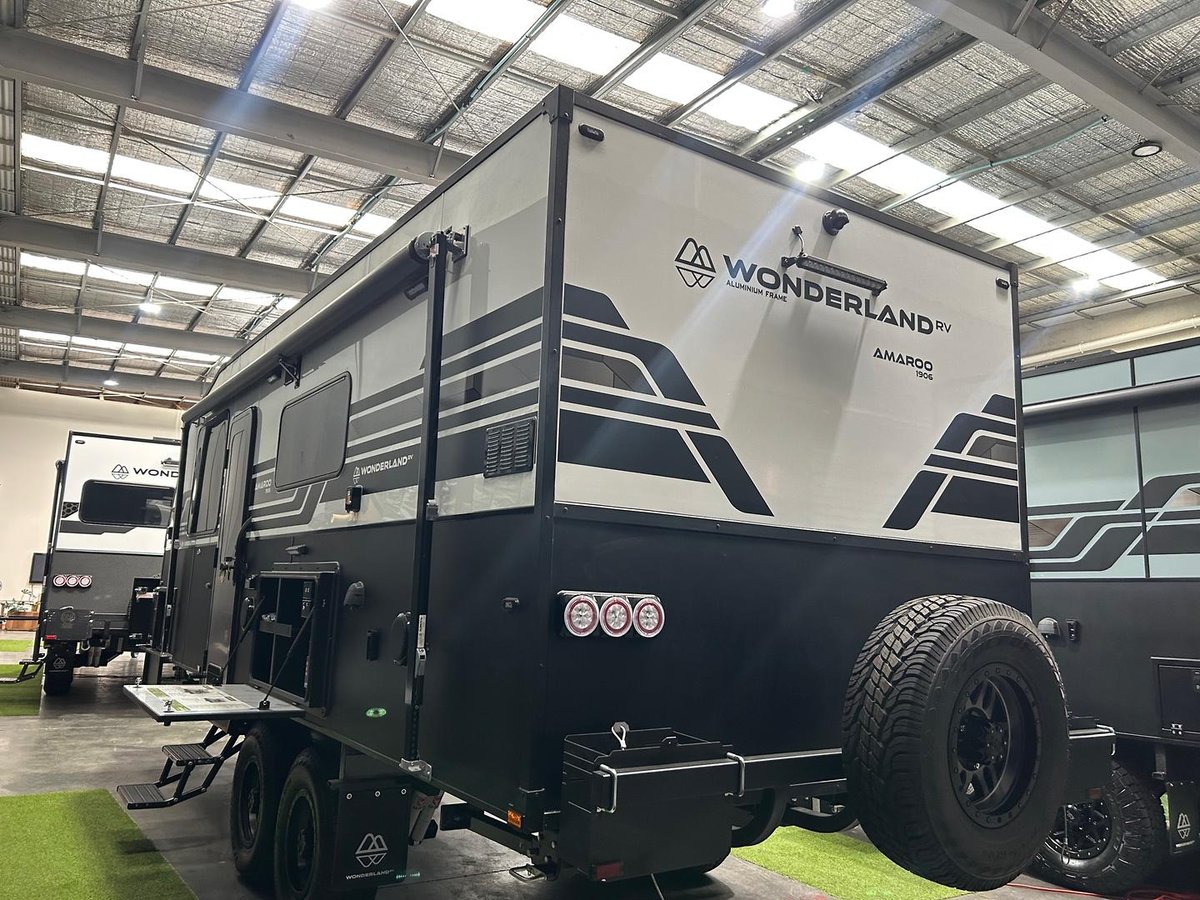

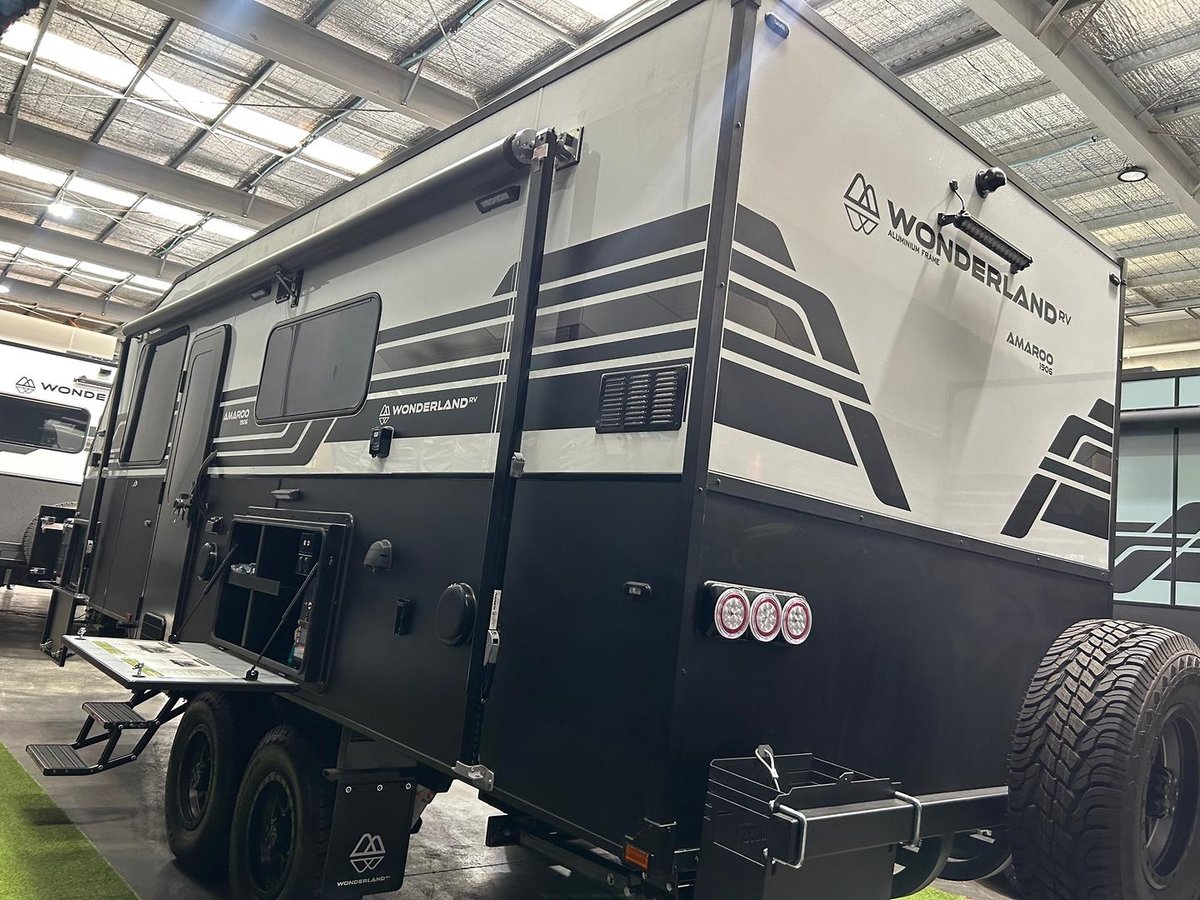

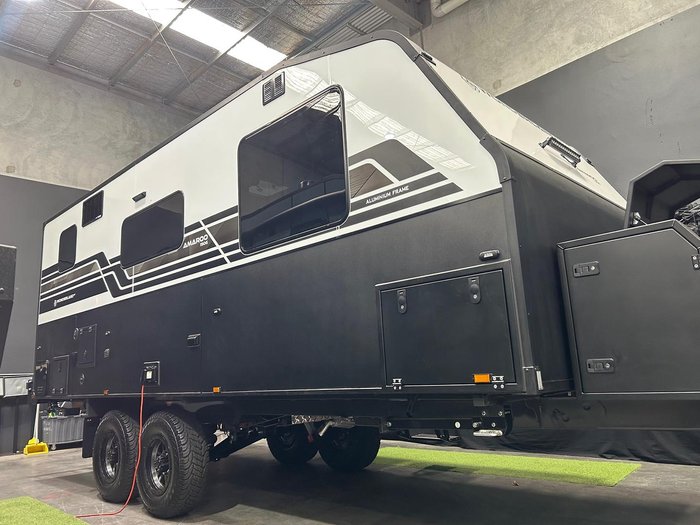

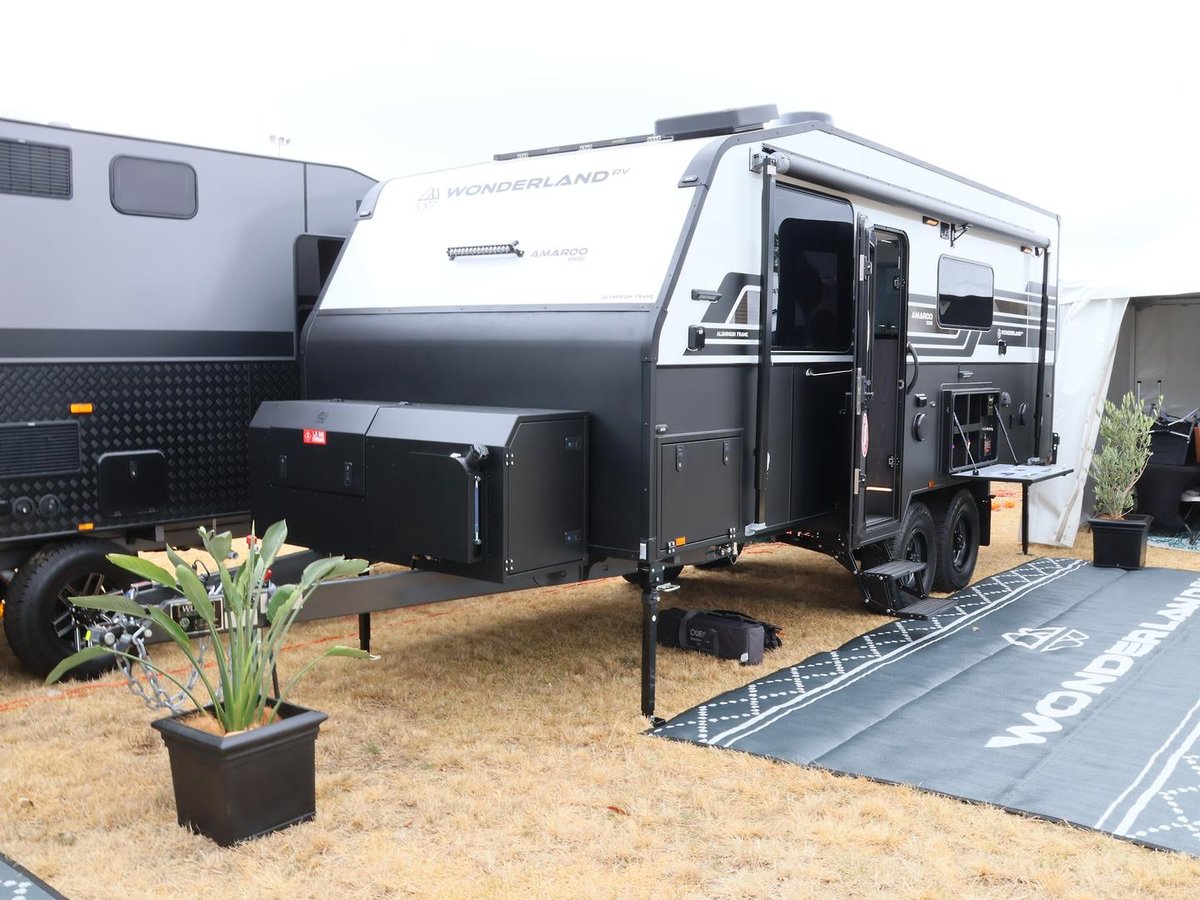

2026 Wonderland RV Amaroo 1906Q-M-C

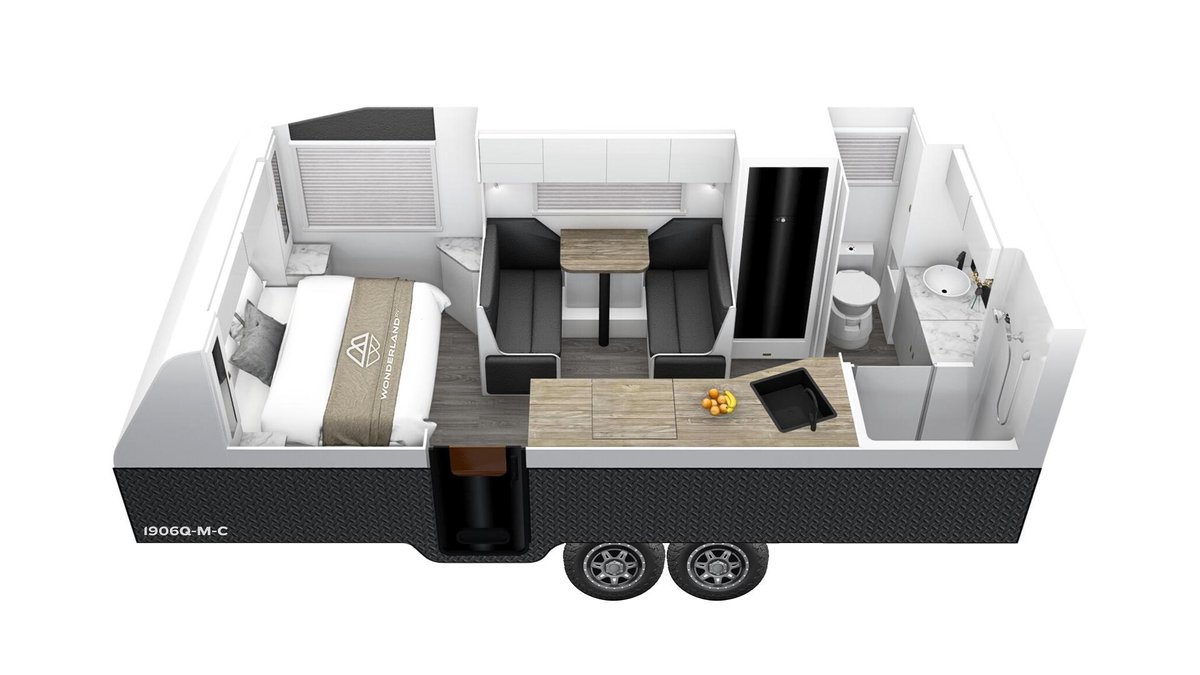

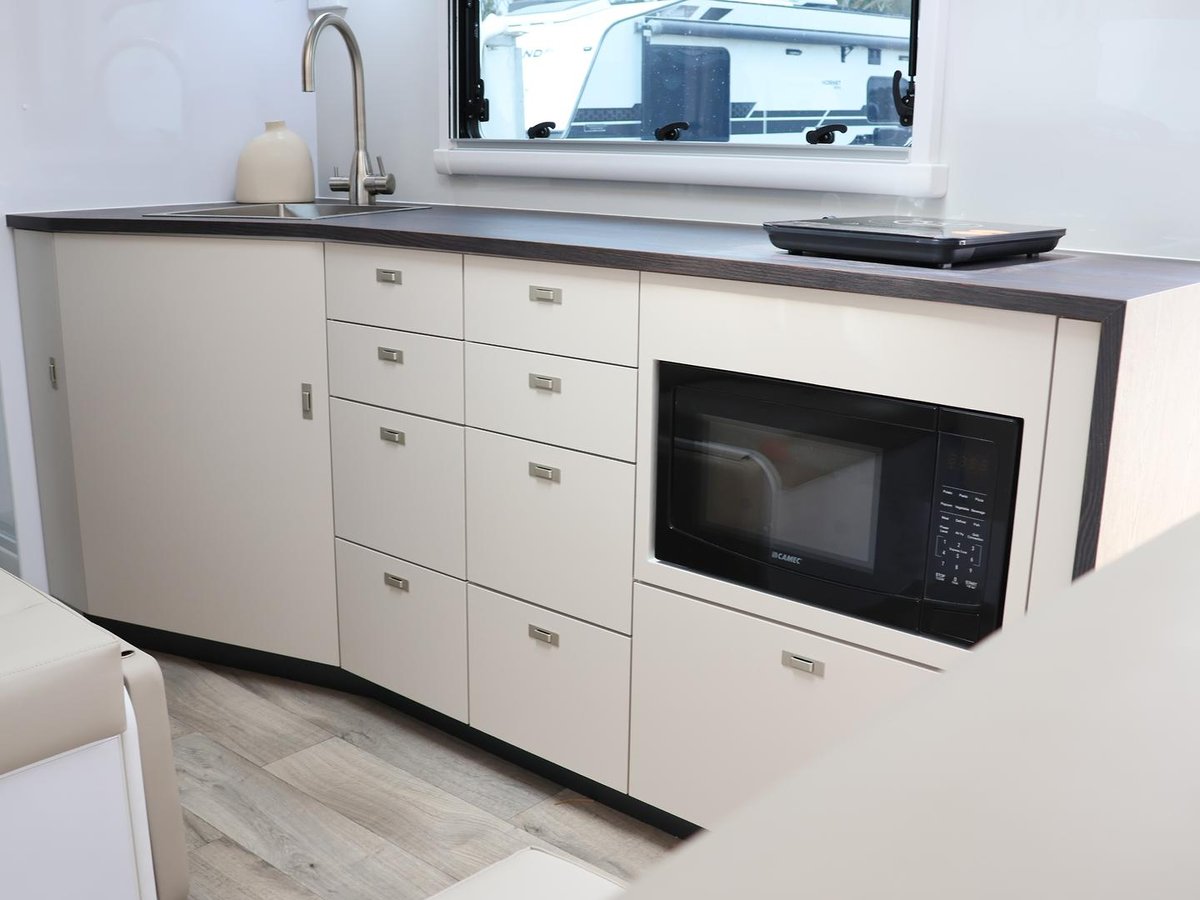

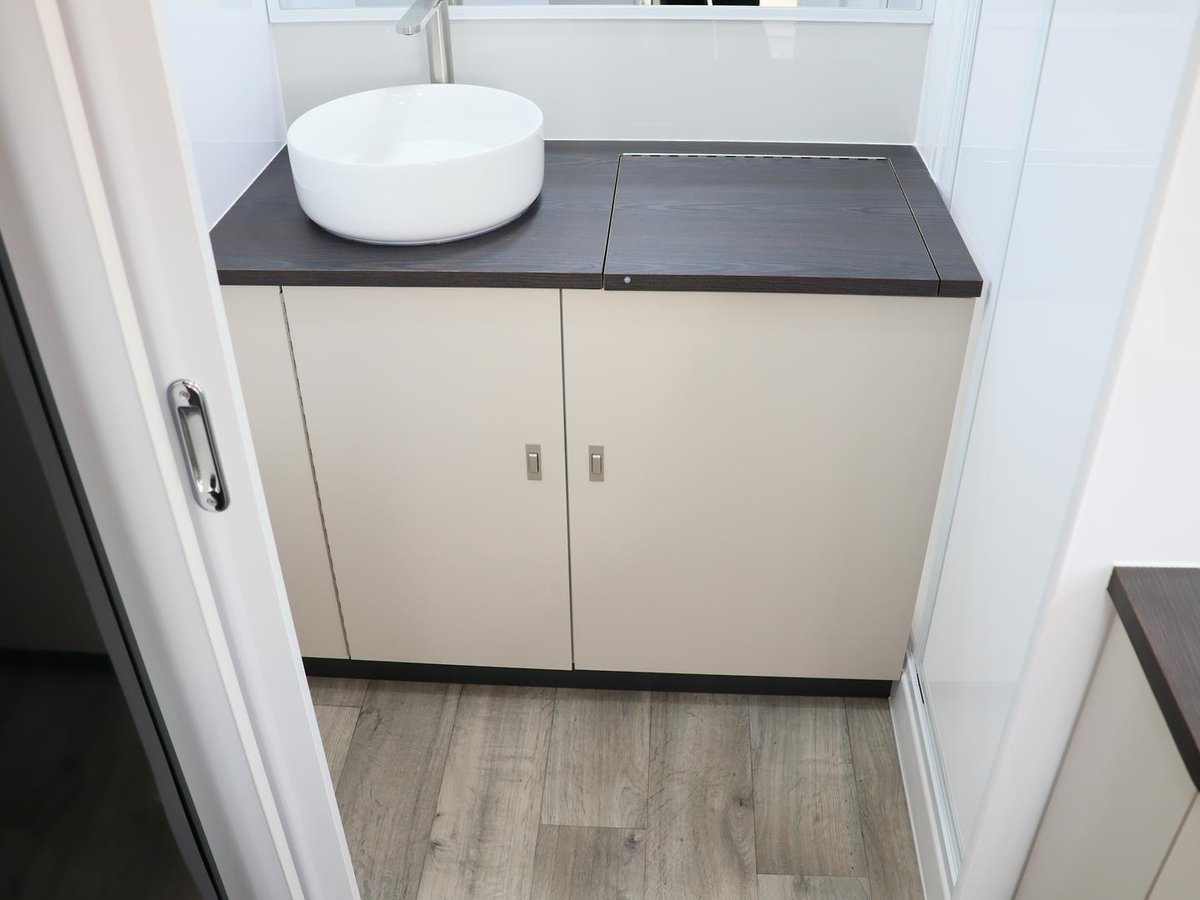

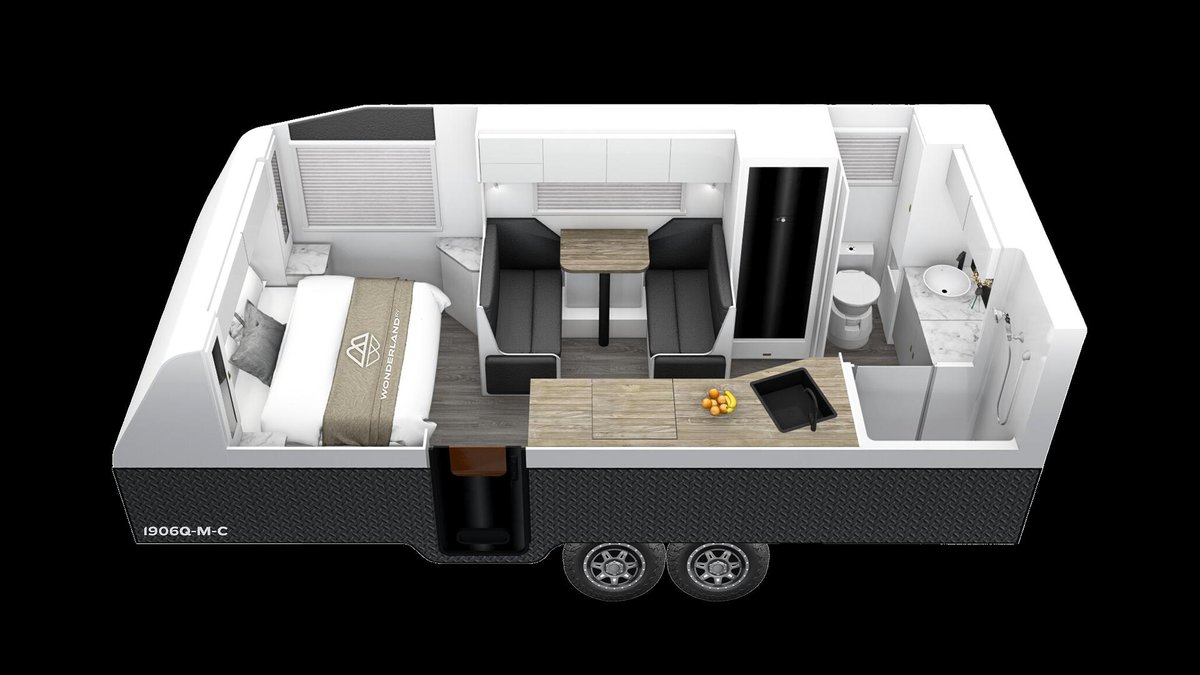

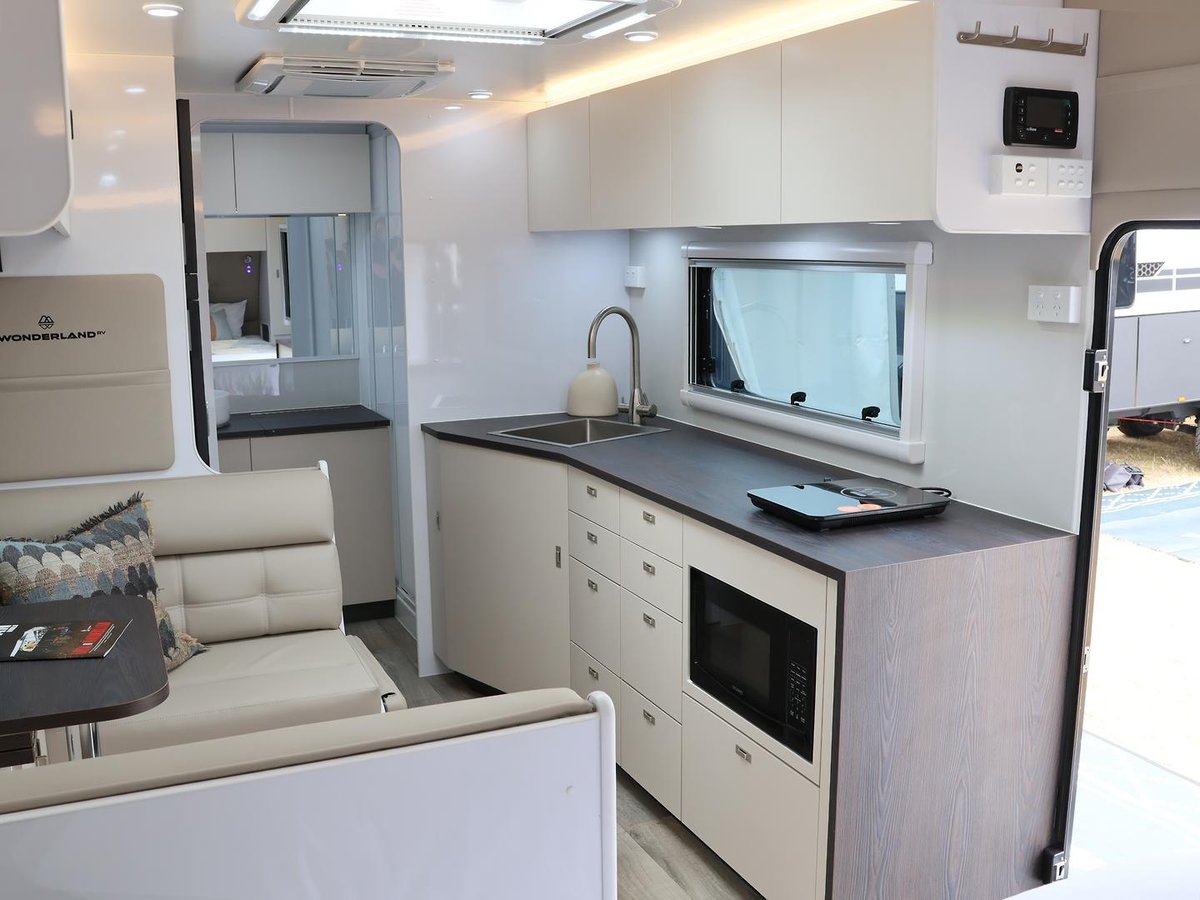

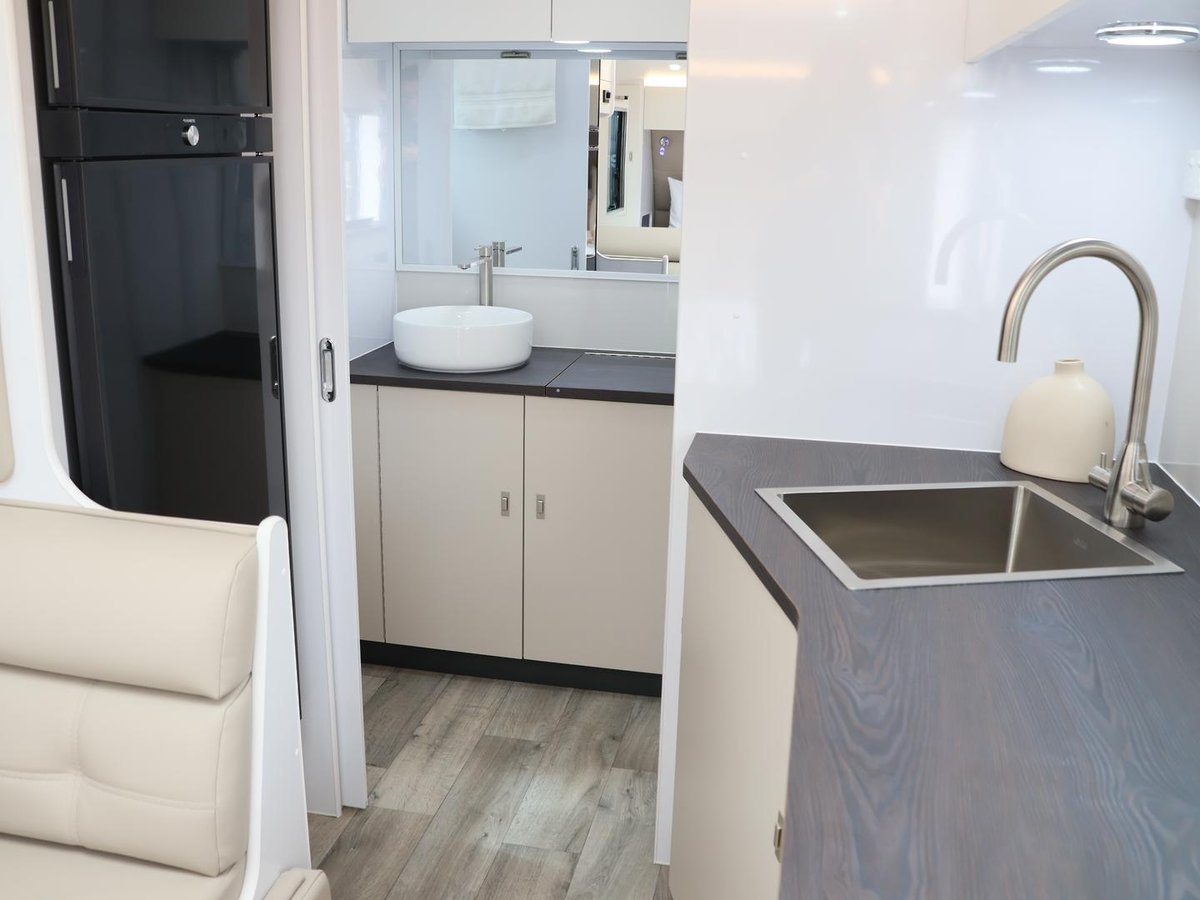

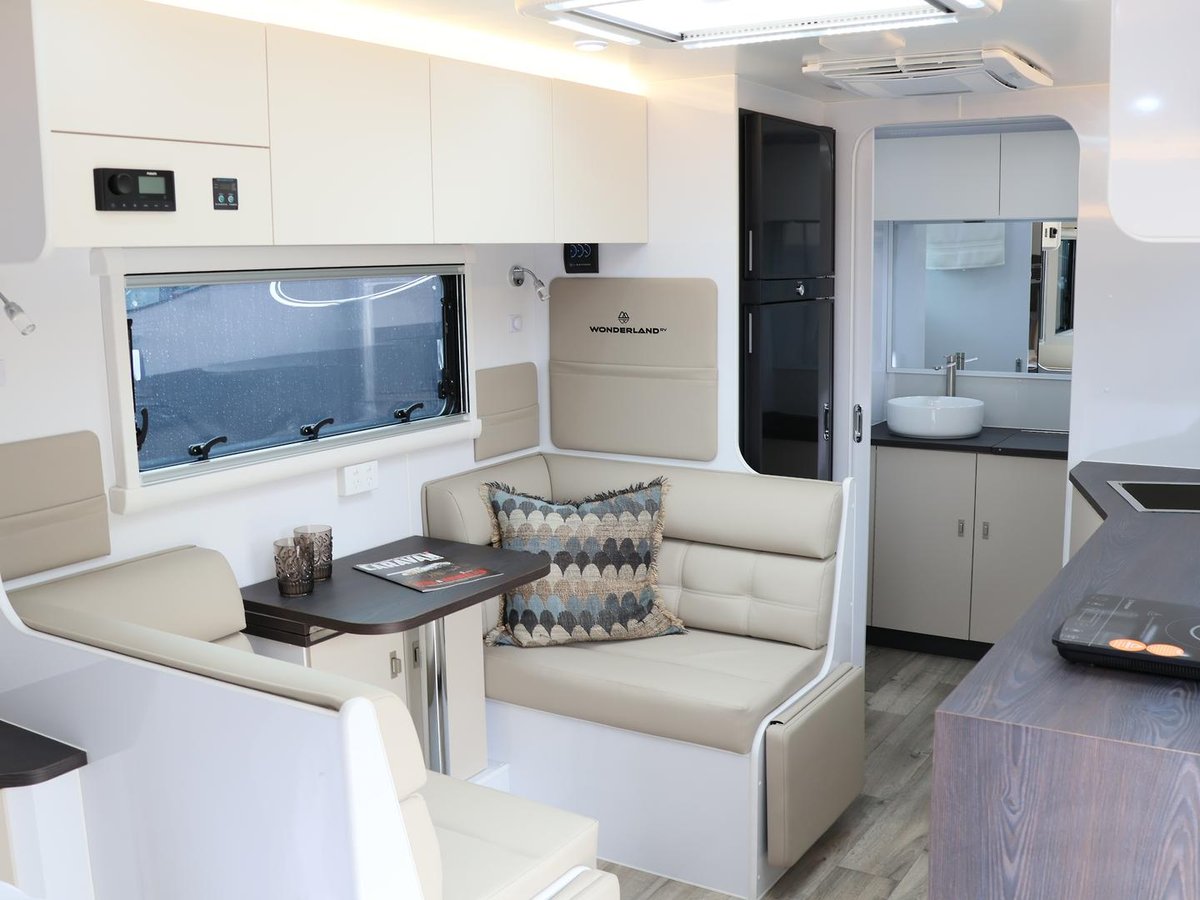

A classical layout, 19ft in size internally, with an angled kitchen, cafe style seating, large bathroom at rear of the van and queen bed up at the front.

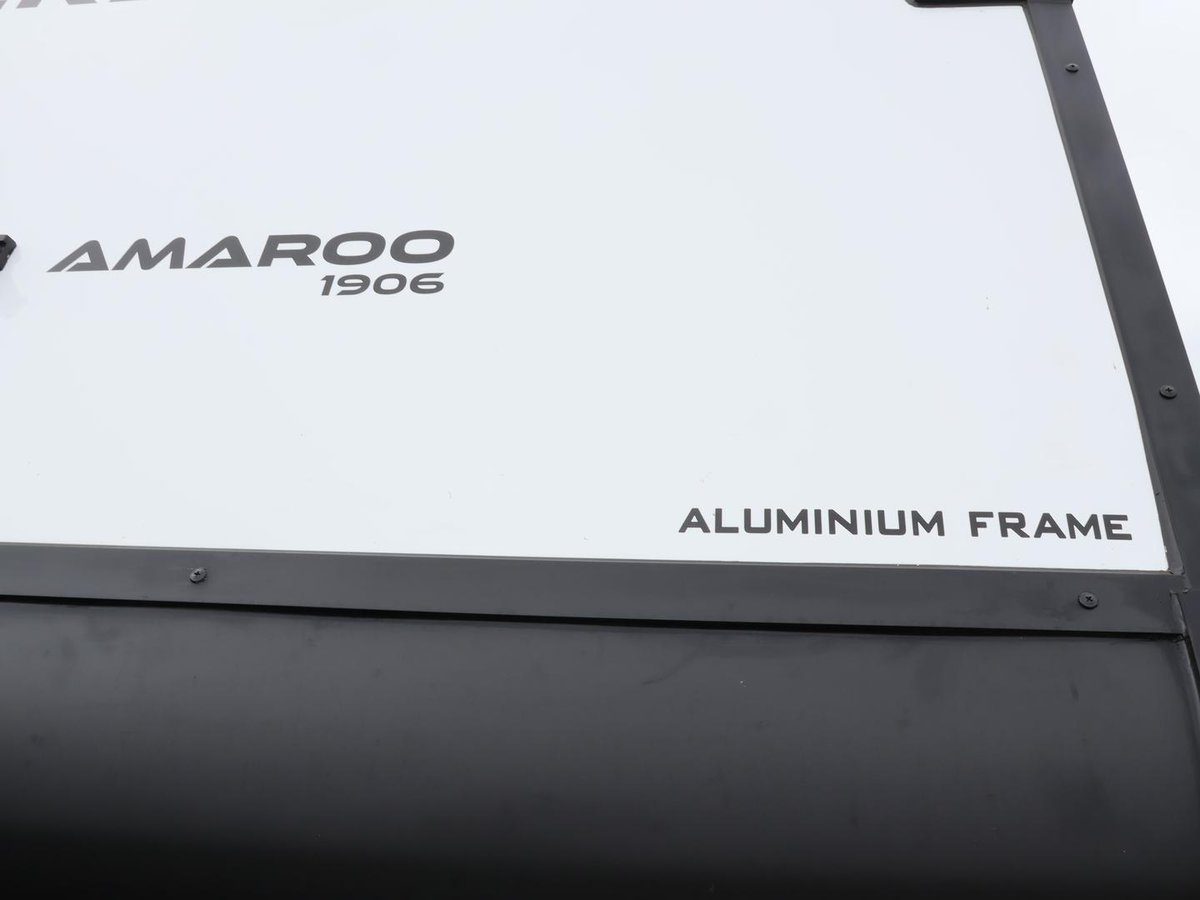

Aluminum Frame, XPS insulation, one piece composite sandwich panel roof honeycomb composite floor, dibond marine grade cladding.


Heavy-Duty Off-Road Chassis – made in Melbourne by S&M using Australian Made RHS Steel
6" A-Frame 1950mm
4" Chassis & 4" Riser

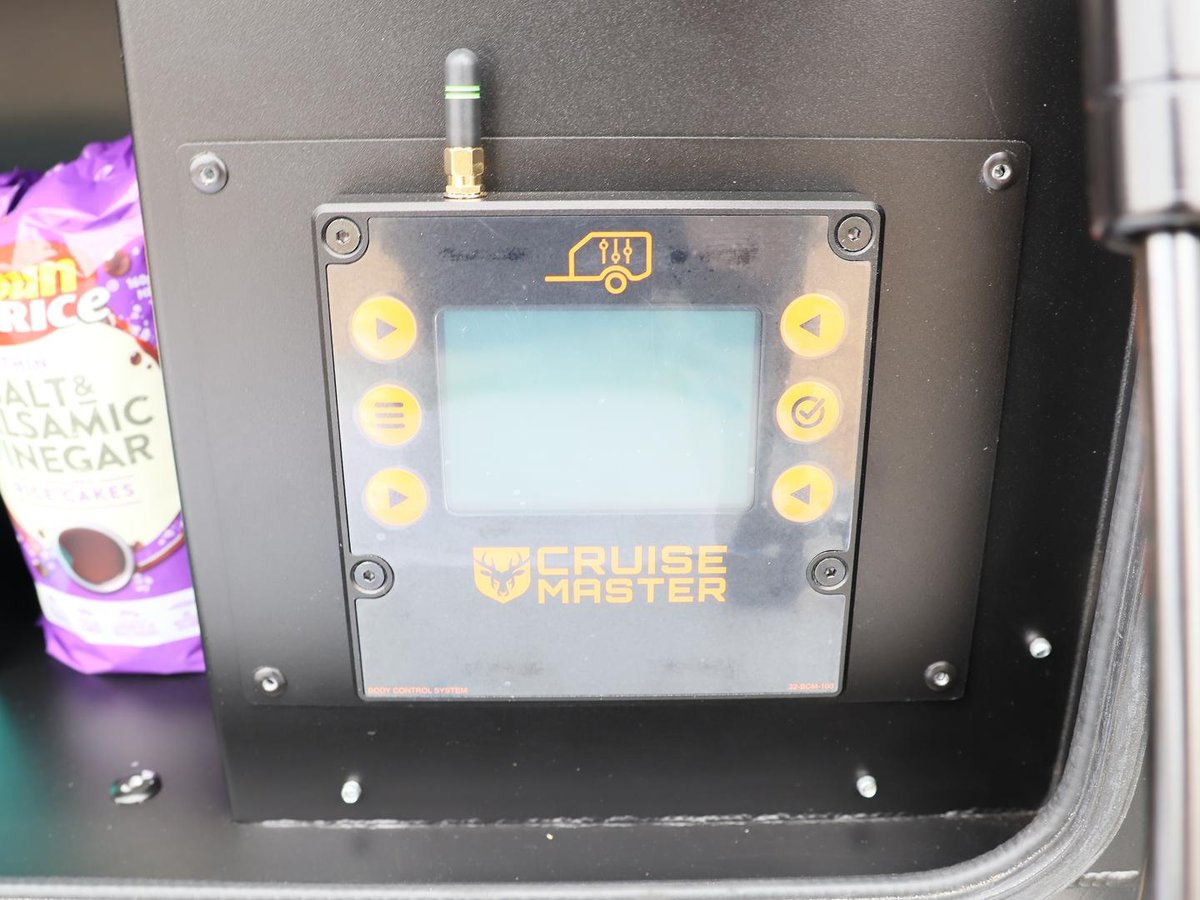

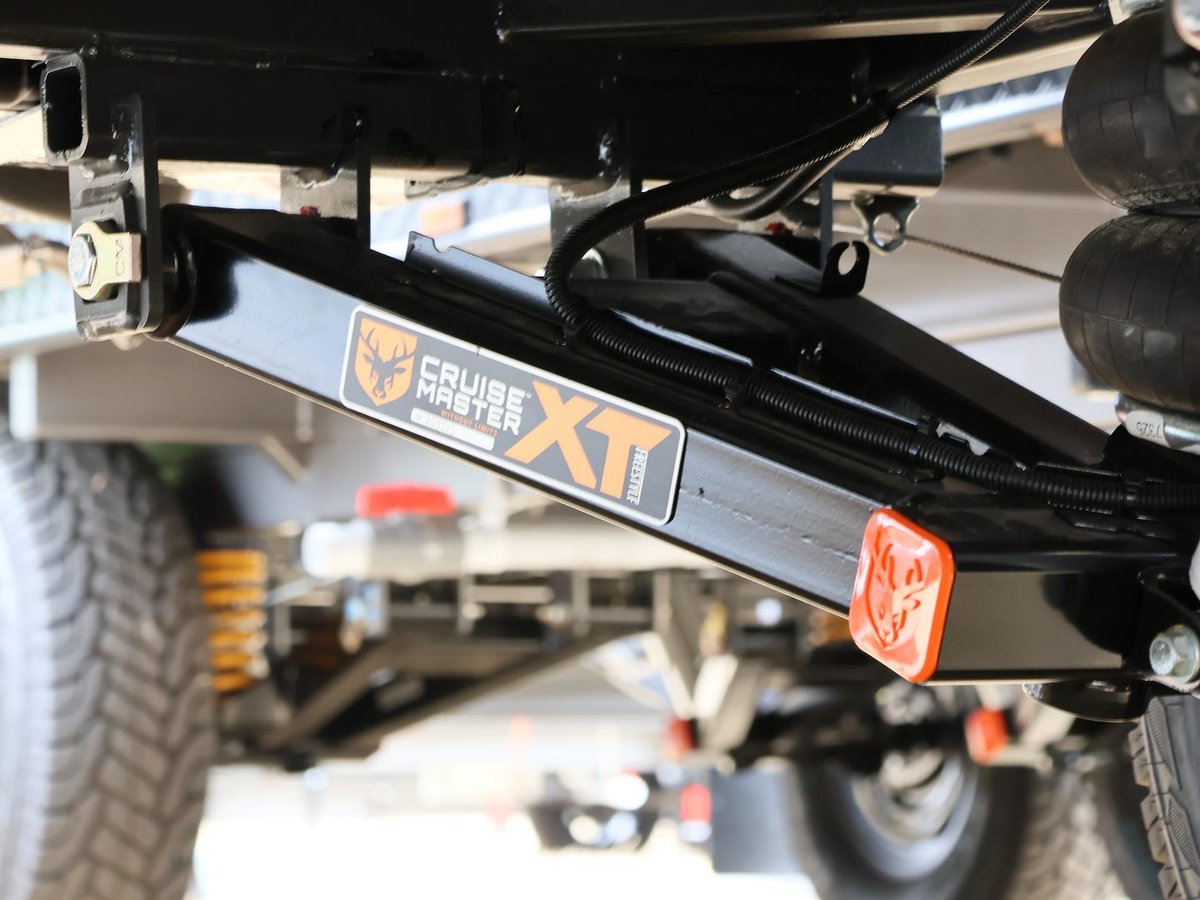

Cruisemaster XT Air bag suspension with BCS
12" Drum Breaks
Cruisemaster DO35 Hitch

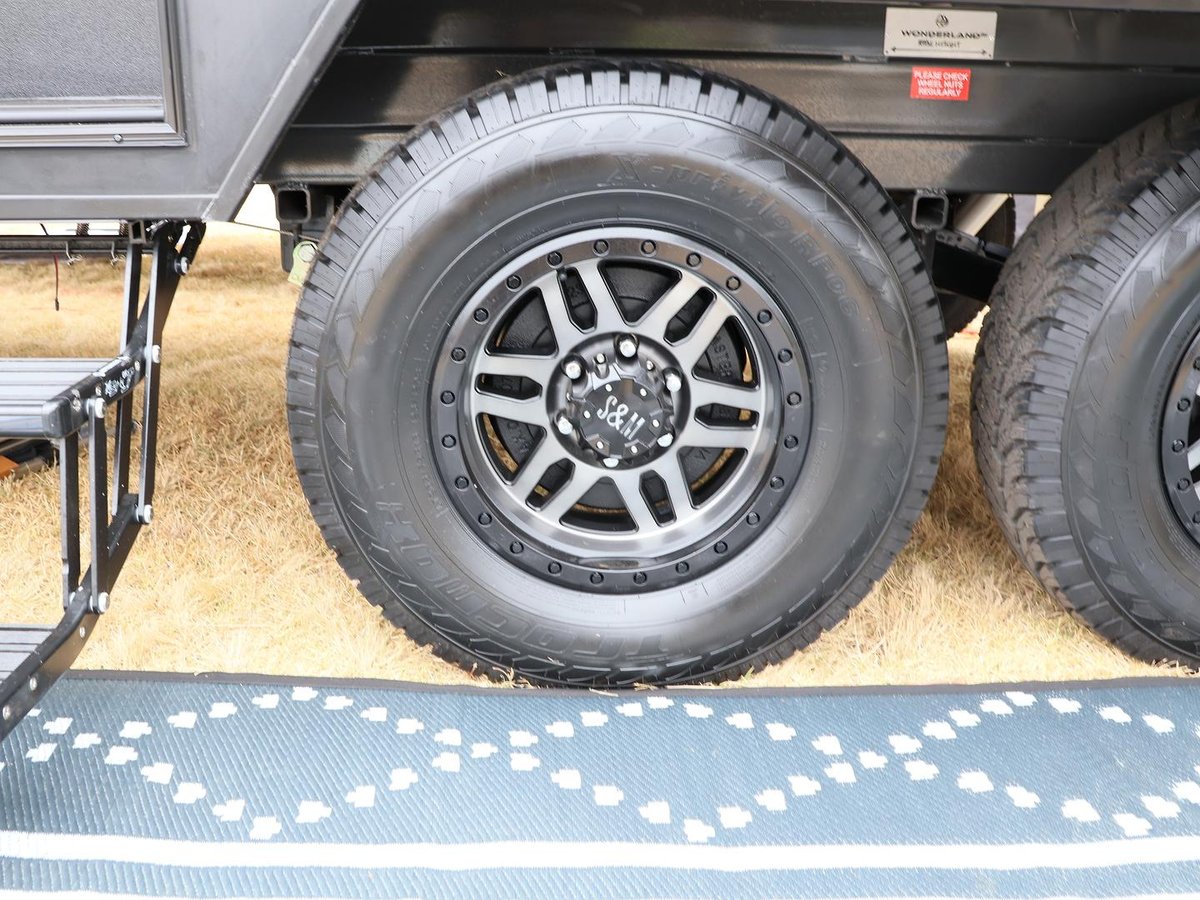

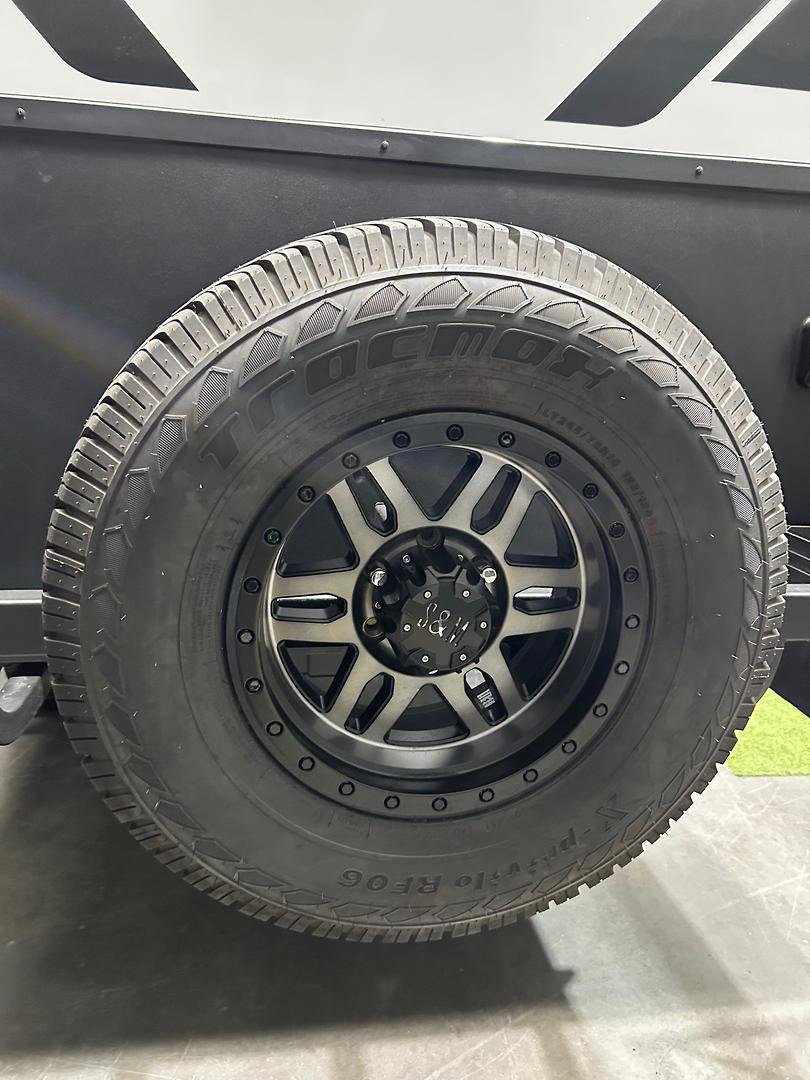

16" 265/75R16 MPC All Terrain 6x139 ET0

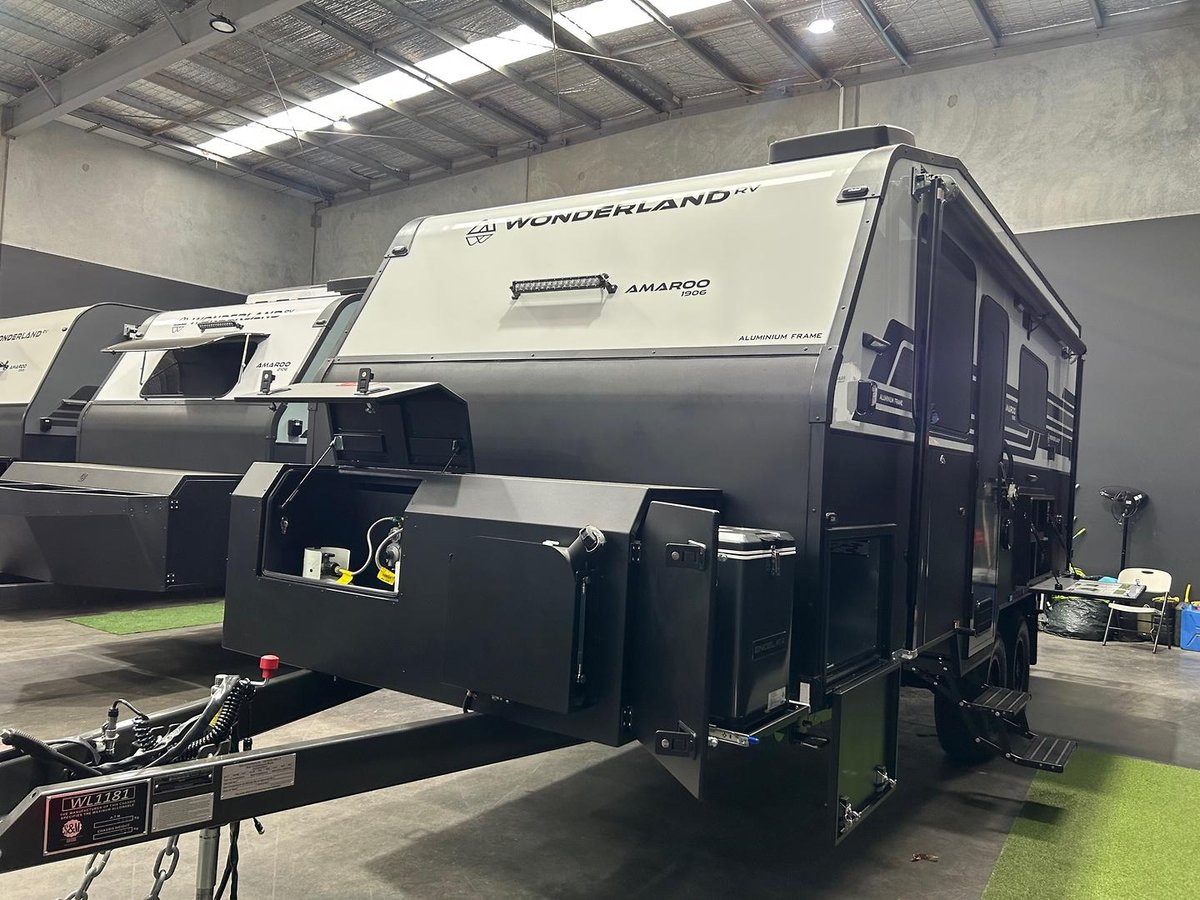

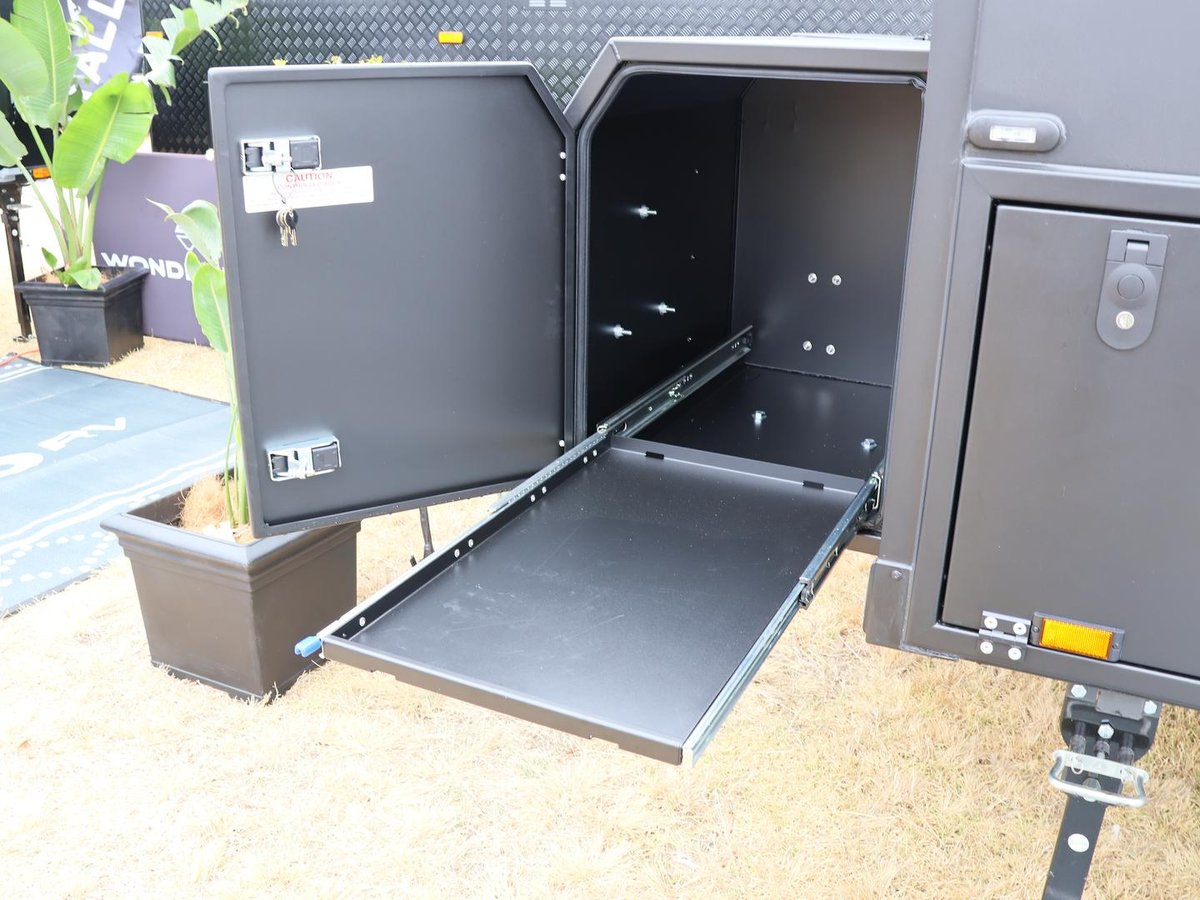

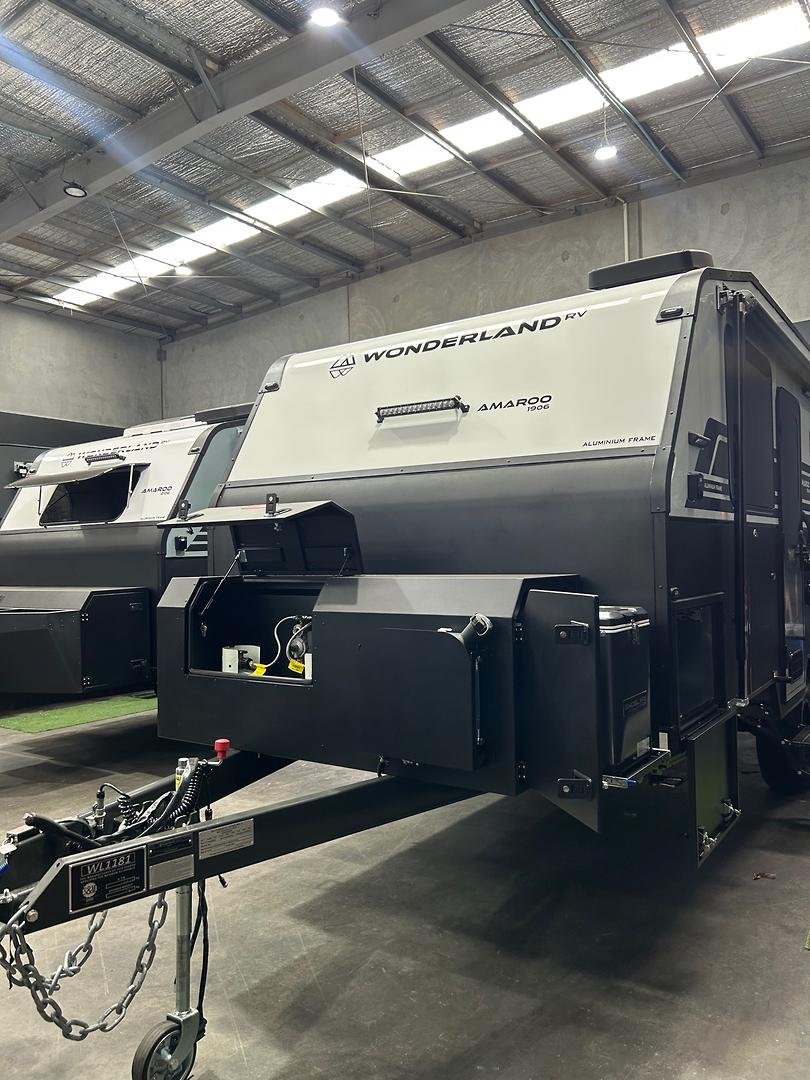

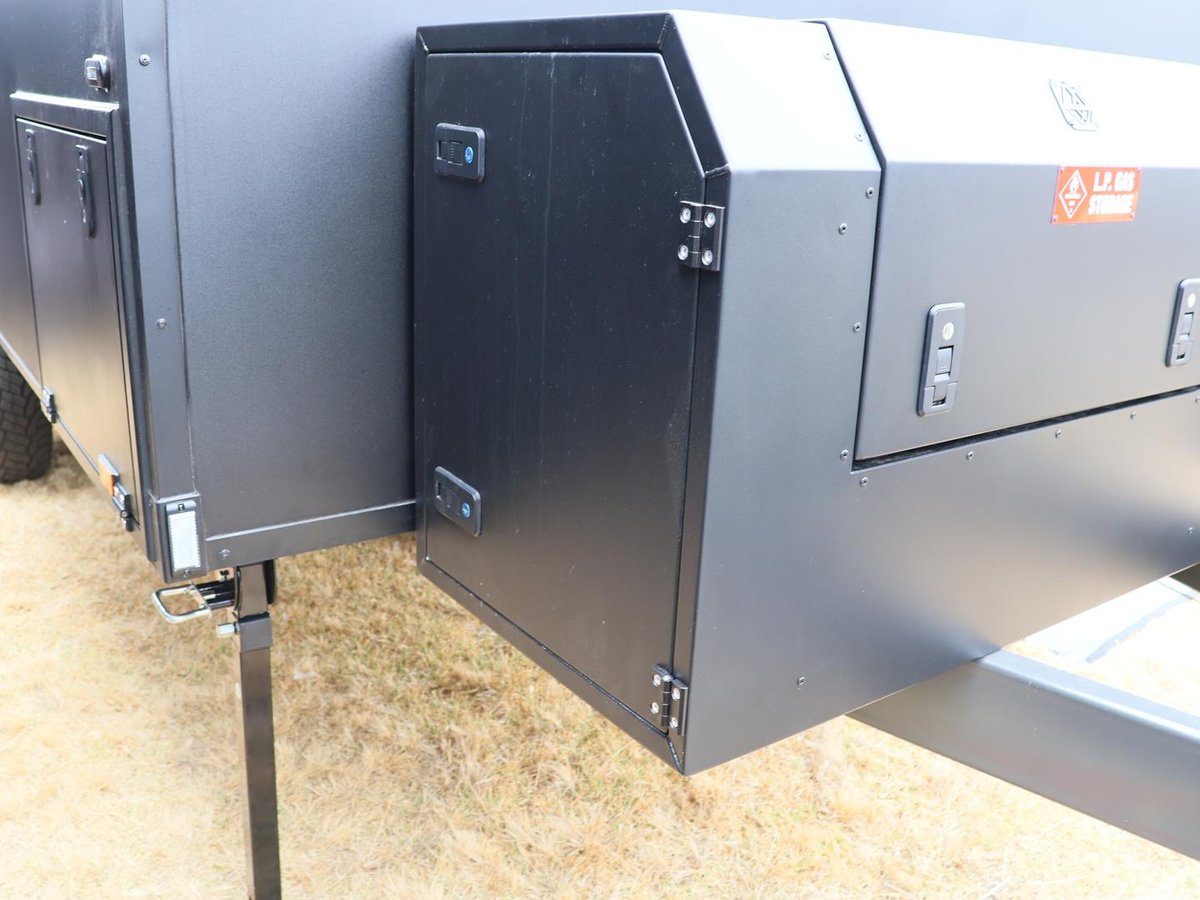

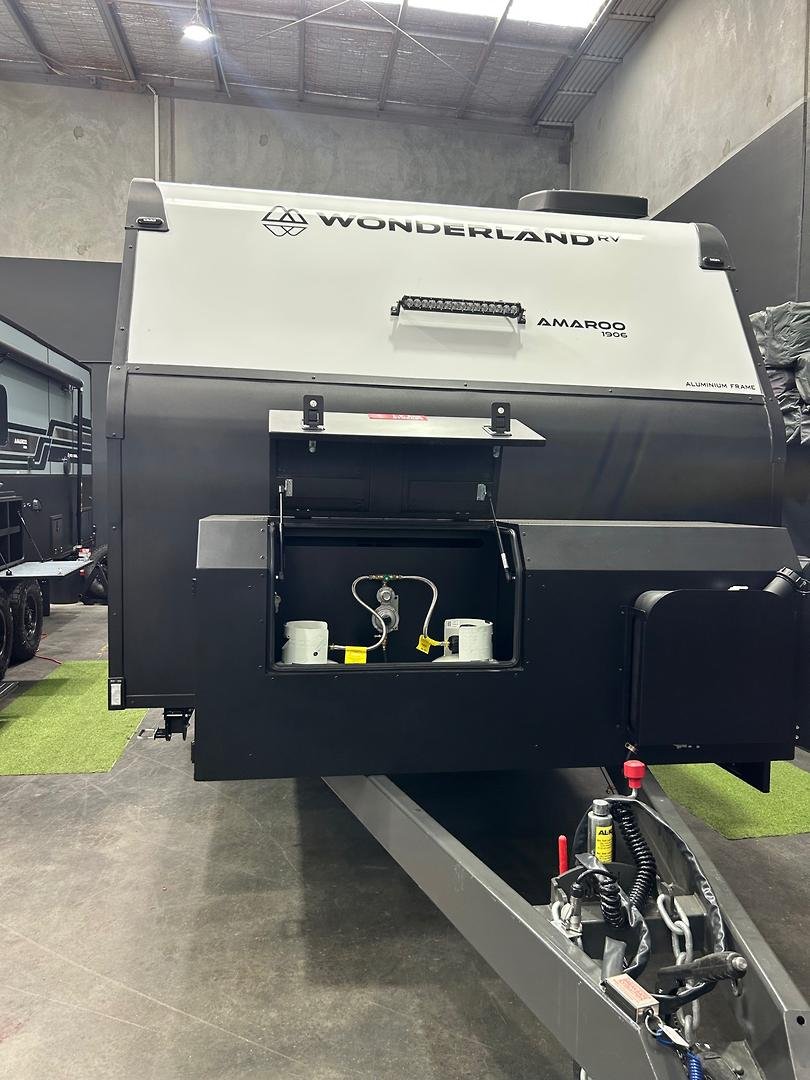

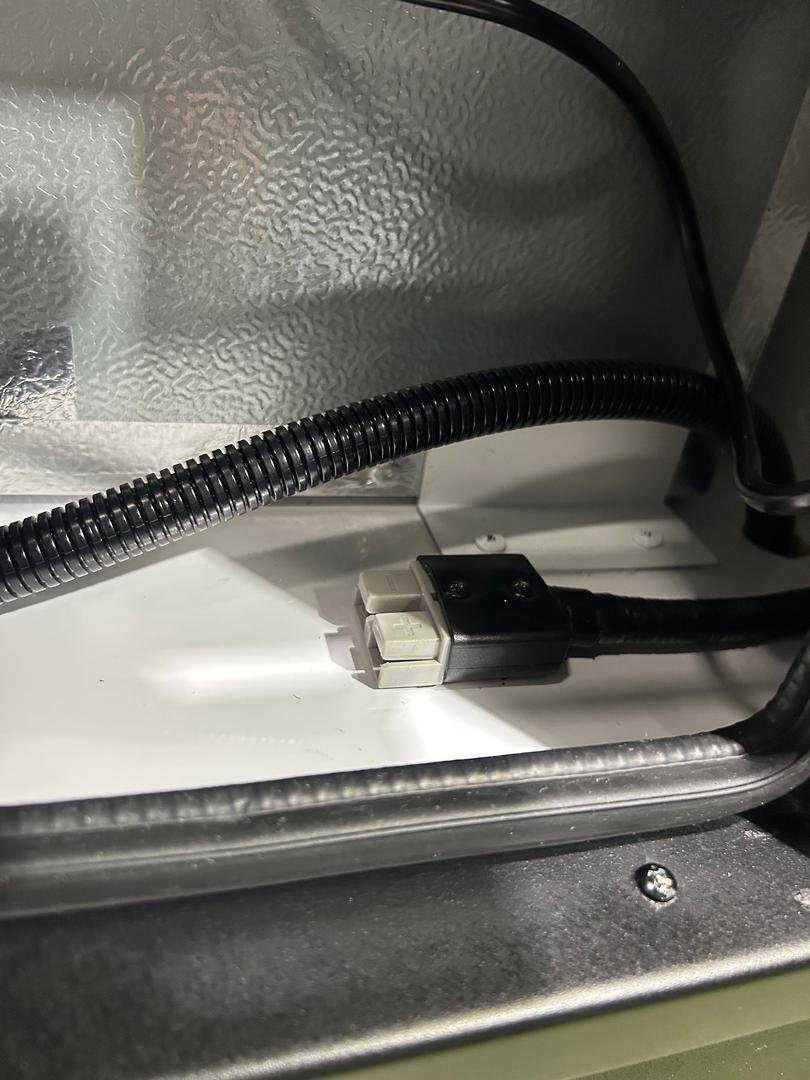

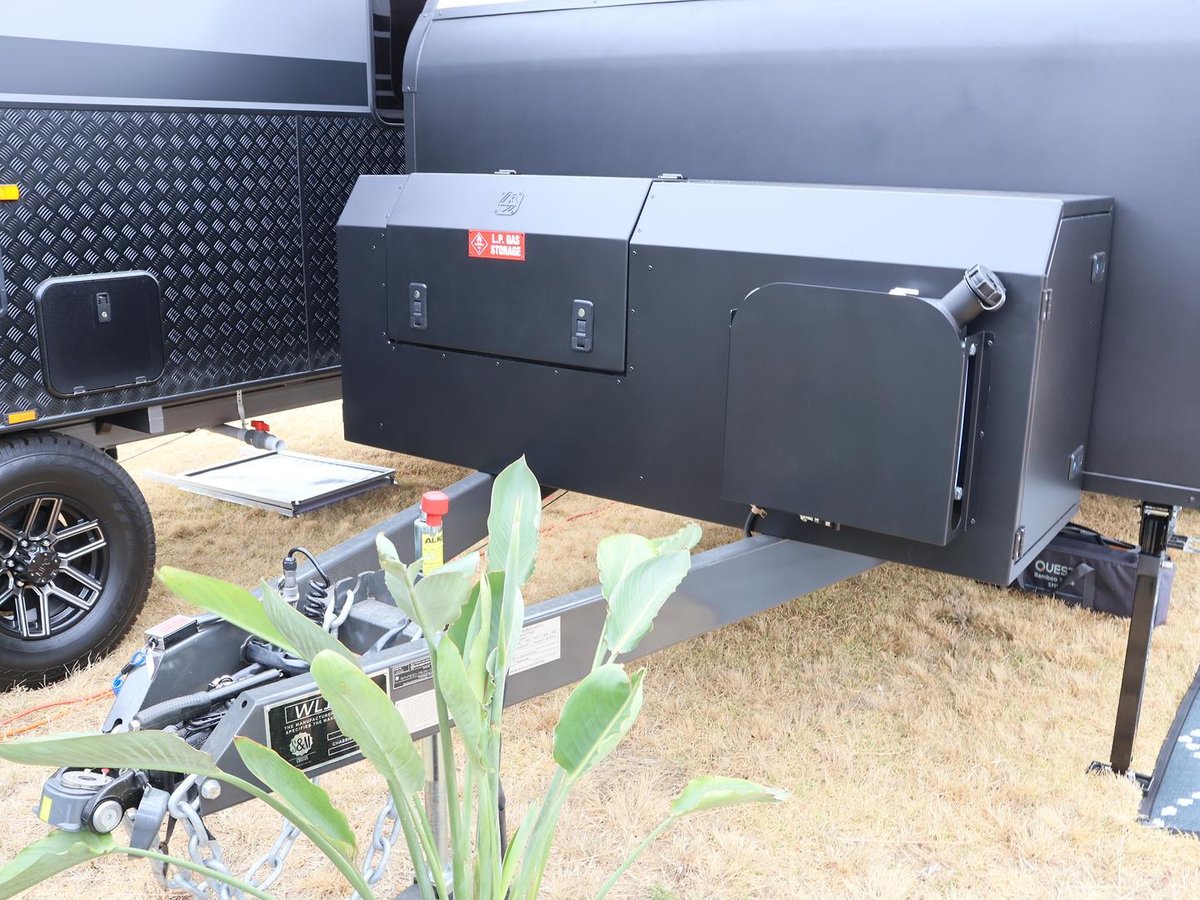

Large Toolbox with Dual Slides & 12v Anderson Plug or Large Toolbox with Slide, 12V Anderson Plug & Hinged Gas Cylinder Compartment
2 x Jerry Can Holder

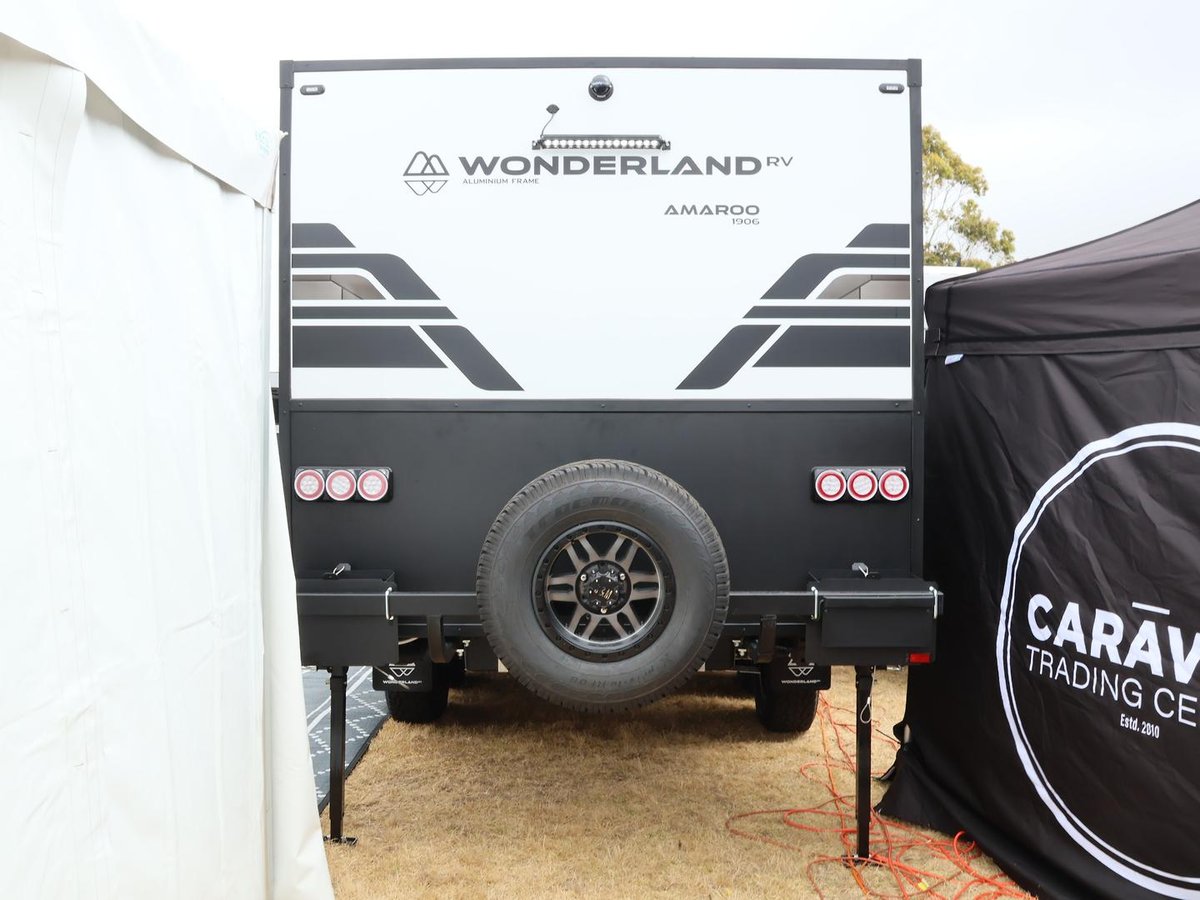

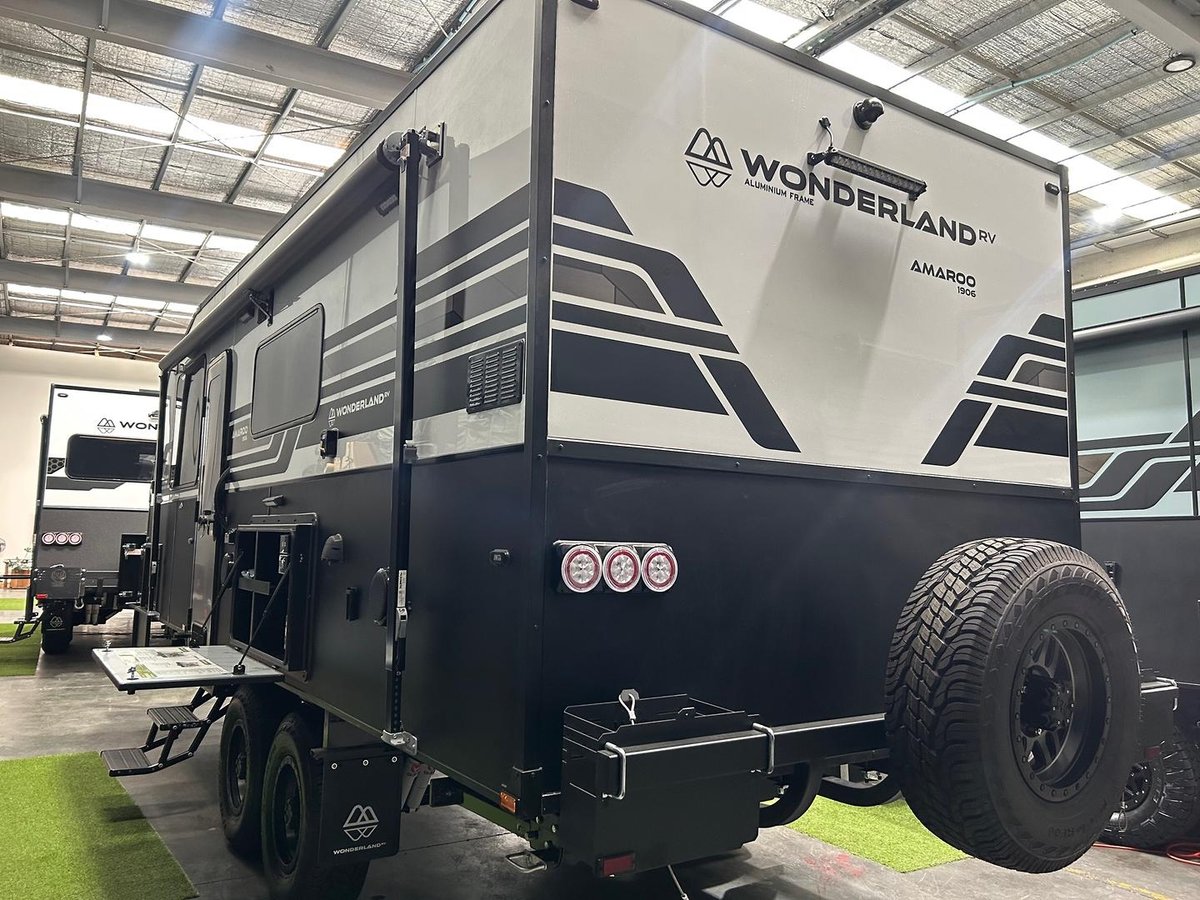

4-Arm Bumper Bar with Taillights
Double Aluminium Step

ELECTRICAL

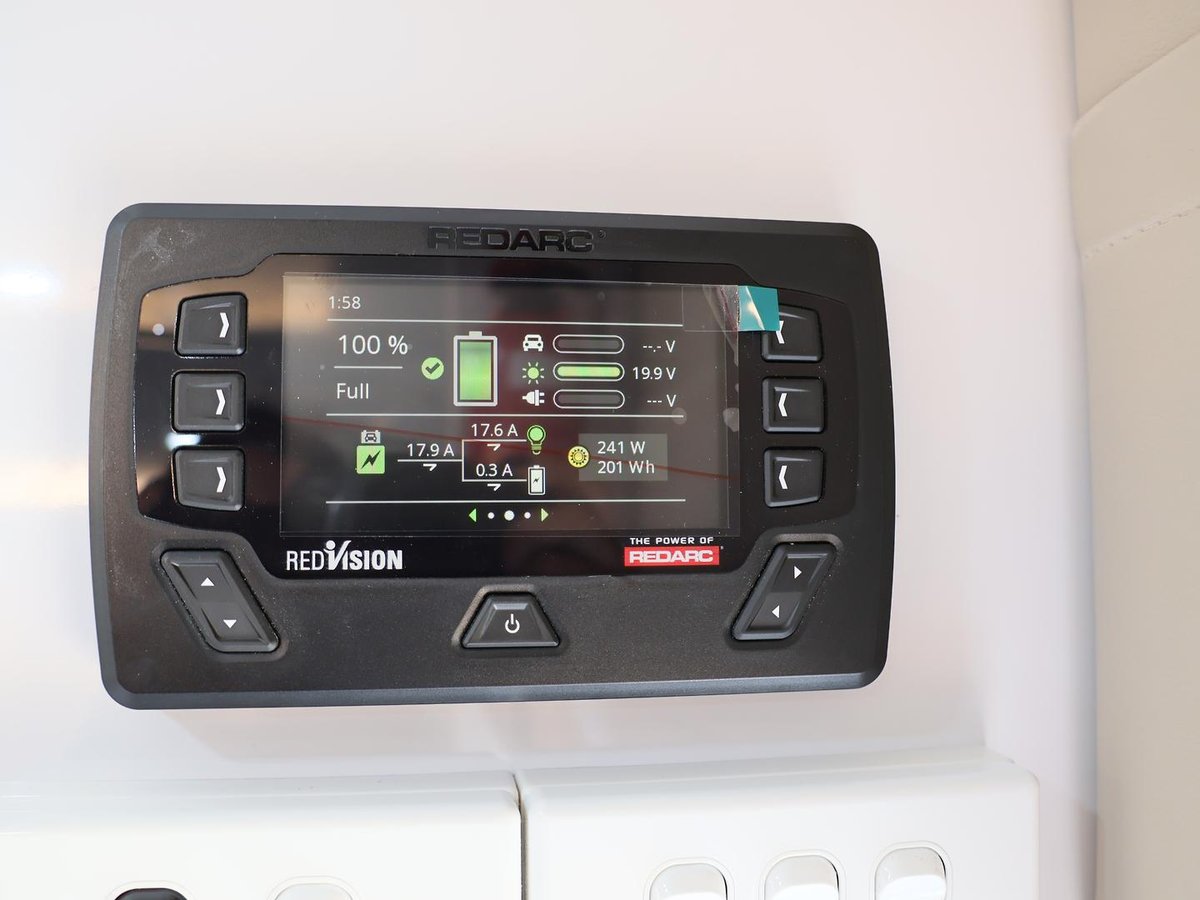

Redarc Alpha 50 Battery Management System
300Ah Of Lithium Battery
3 x 200W Solar Panels
2000W Inverter
1 x Grey Anderson Plug & 1 x 12v Grey or 24v Yellow or 48v Blue Portable Solar Input
Fusion Entertainment Unit & Speakers

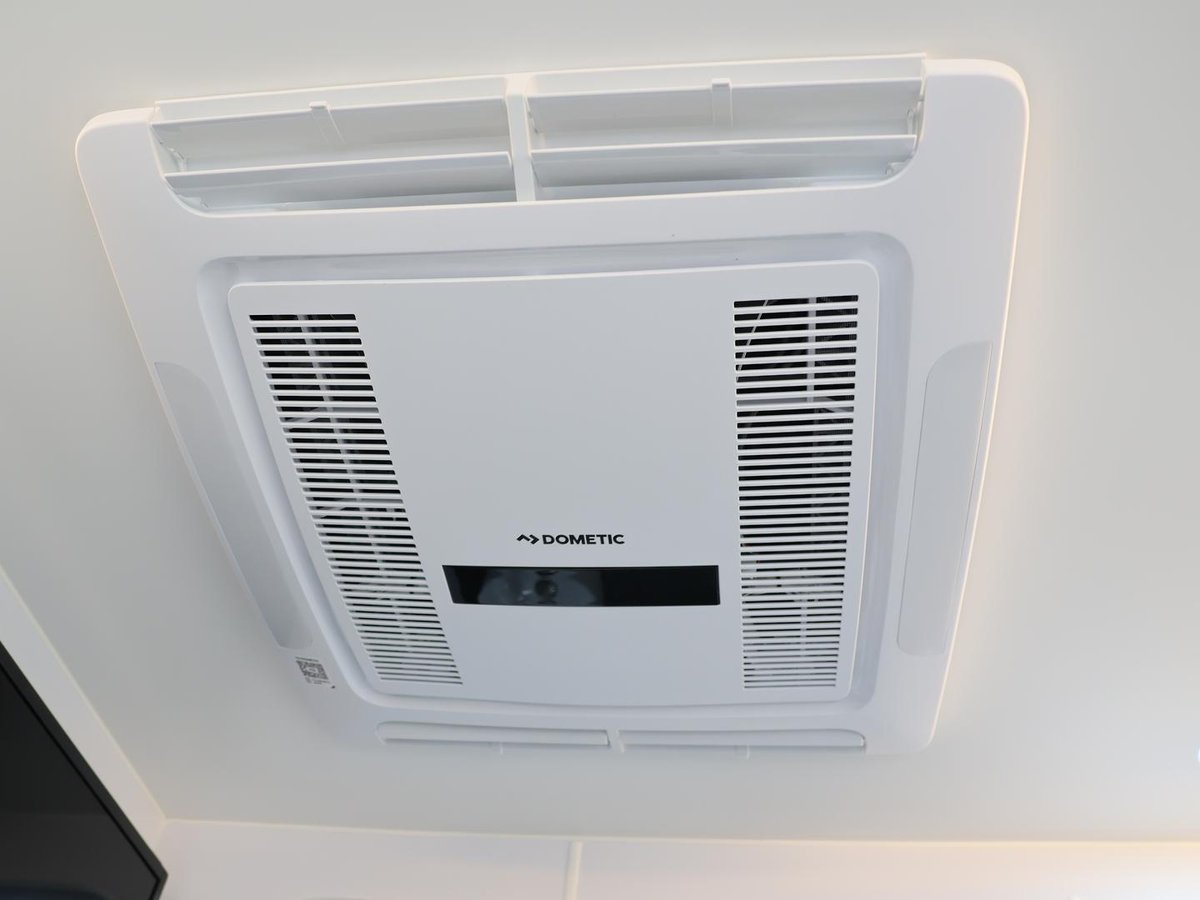

Dometic Freshjet 3kw Air Conditioner
Sirocco Fans x 2
Camic 3 In 1 Multicooker
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Windscreen Monitor
24" Smart TV / DVD
Omni Winegard or Cowfish TV Antenna
Multiple USB/USBC Outlets
TV Points 1 x External TV Bracket & 1 x Internal TV Bracket

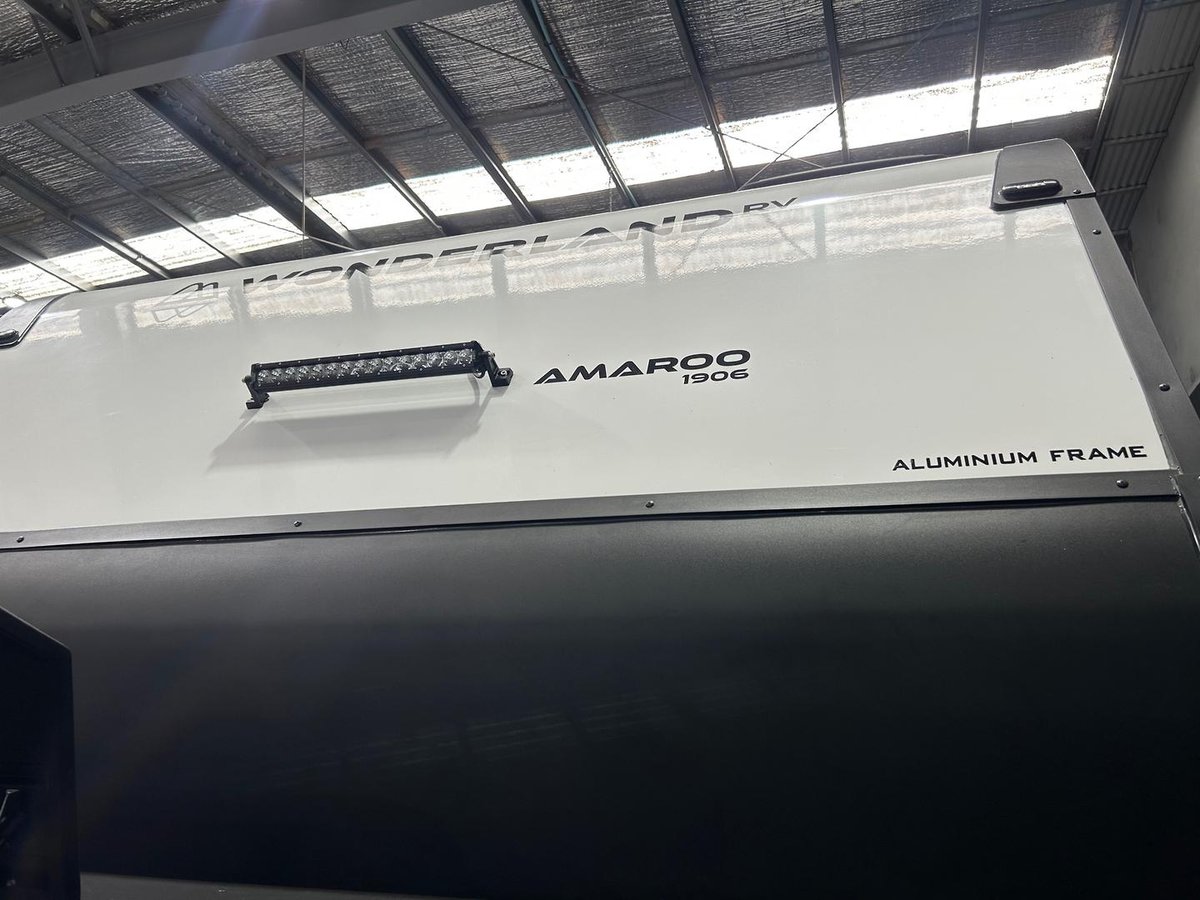

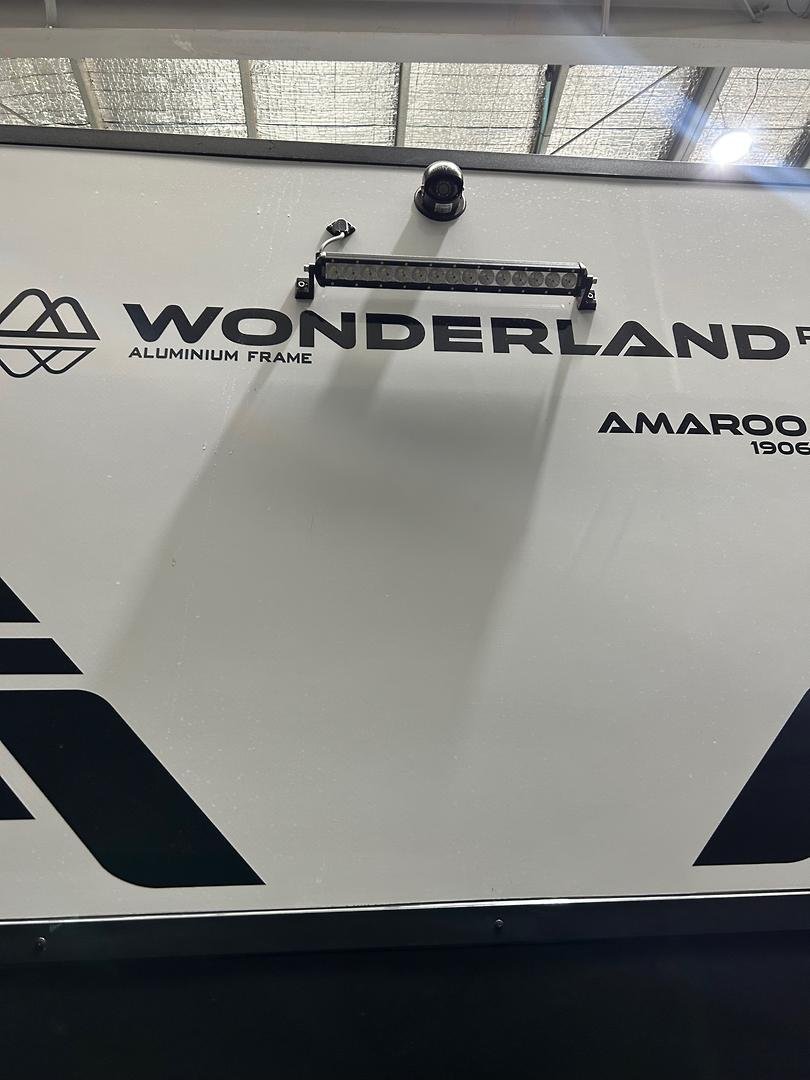

6 External Lights: 17" Lightbar Front & Rear, 3 x Insect Repellent 2 Stage LED Lights Doorside Inc Over BBQ & 1 Roadside
3" LED Downlights
LED Taillights
12 Pin Tow Plug

PLUMBING

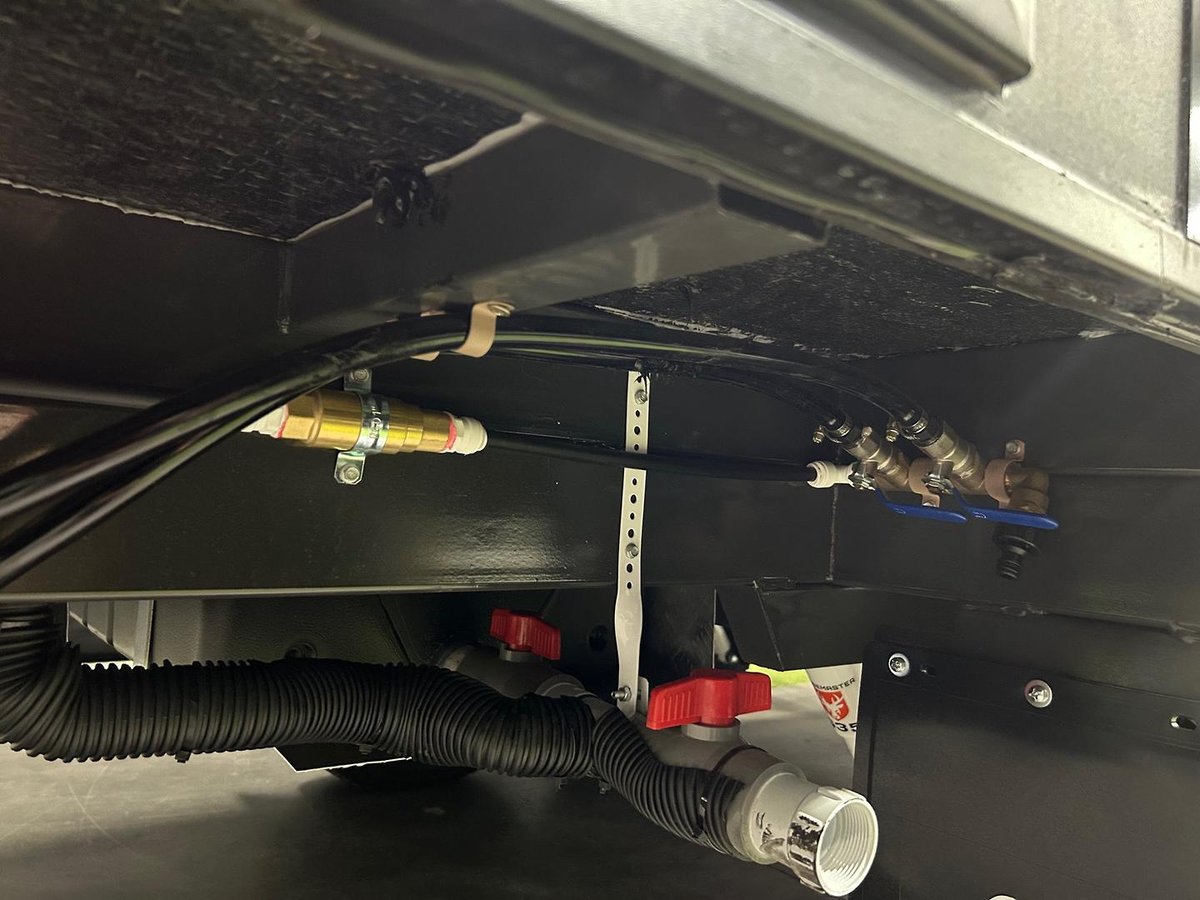

Roto Molded Poly Water Tanks With Brass Fittings
2 x 100L Fresh Water Tanks
1 x 100L Grey Water Tank with Grey Water Bypass
Gal Sheet Water Tanks & Plumbing Protection
Choice of Swift 4 Gas Burner Stove & Grill or Portable Induction Cooktop

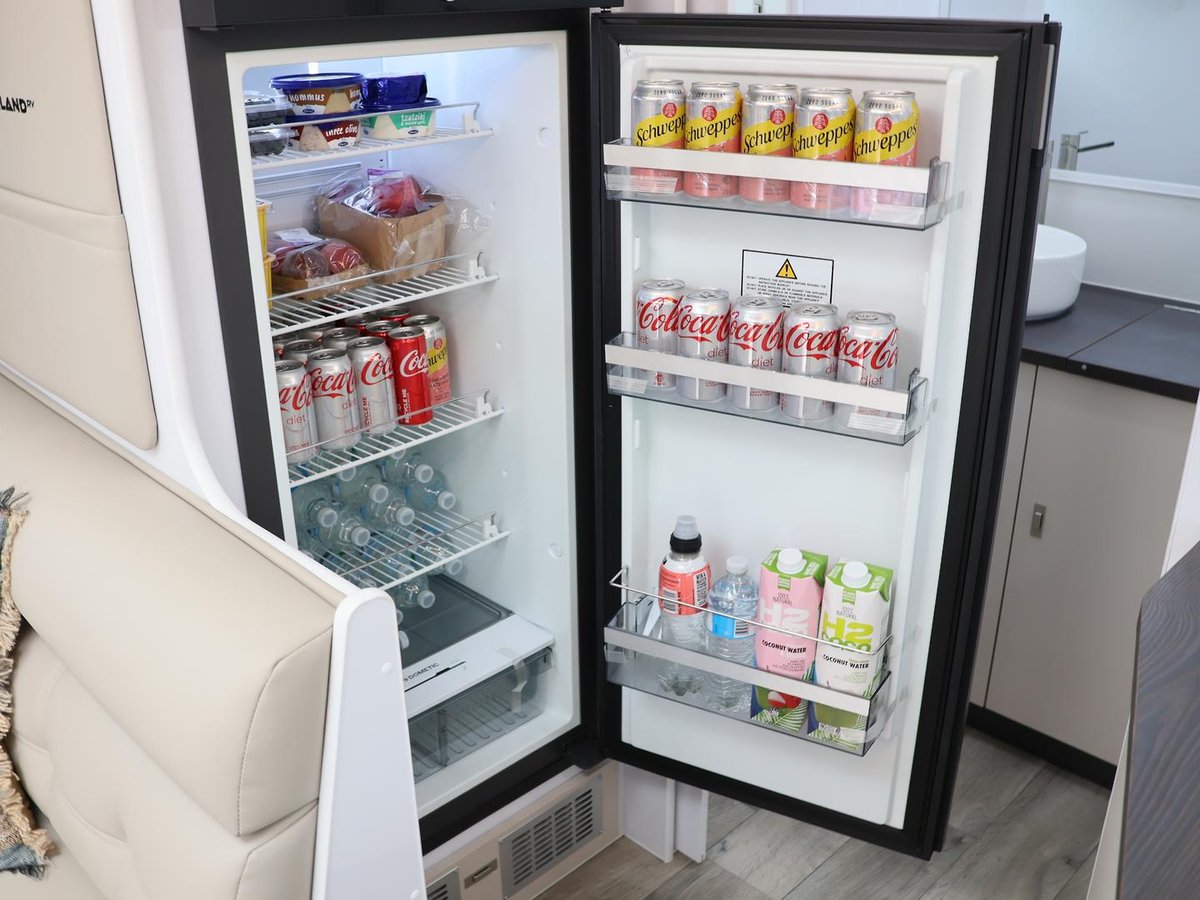

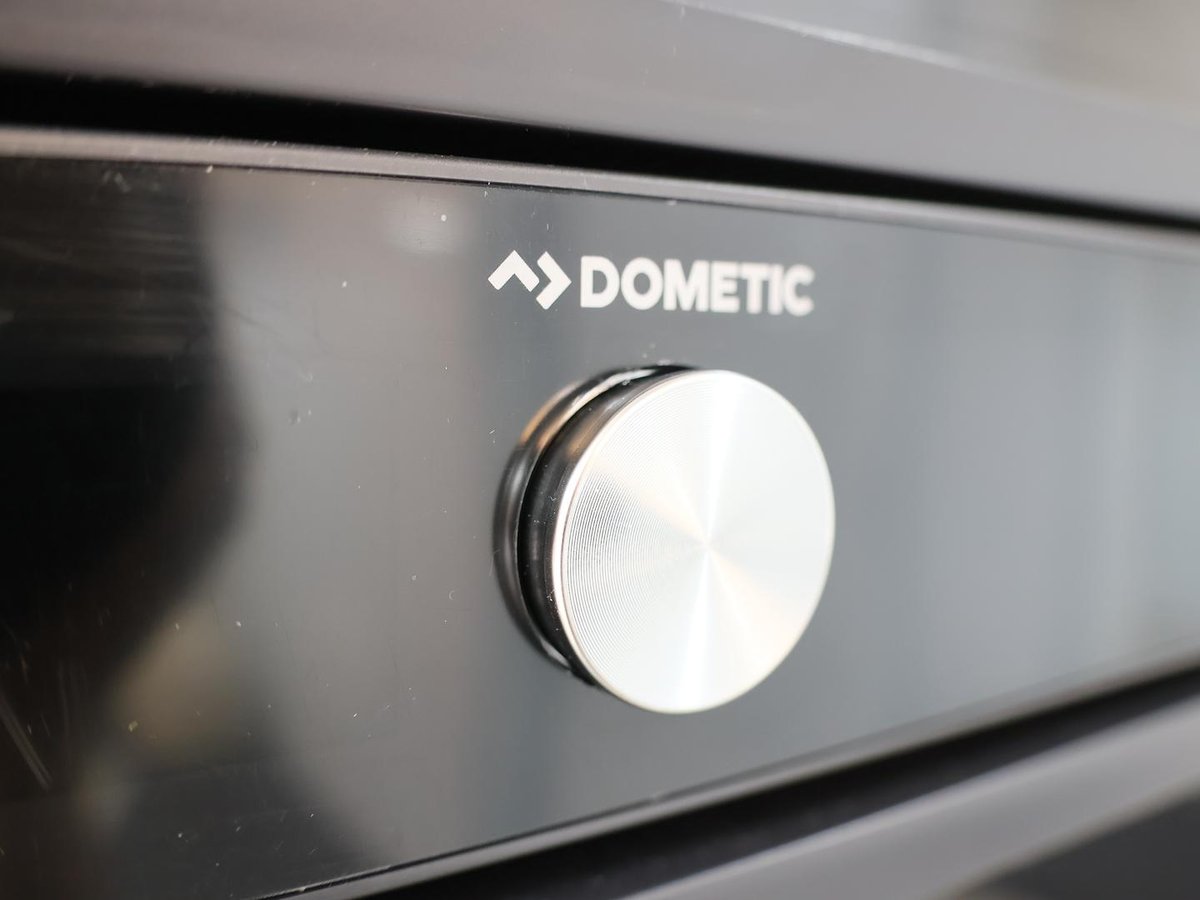

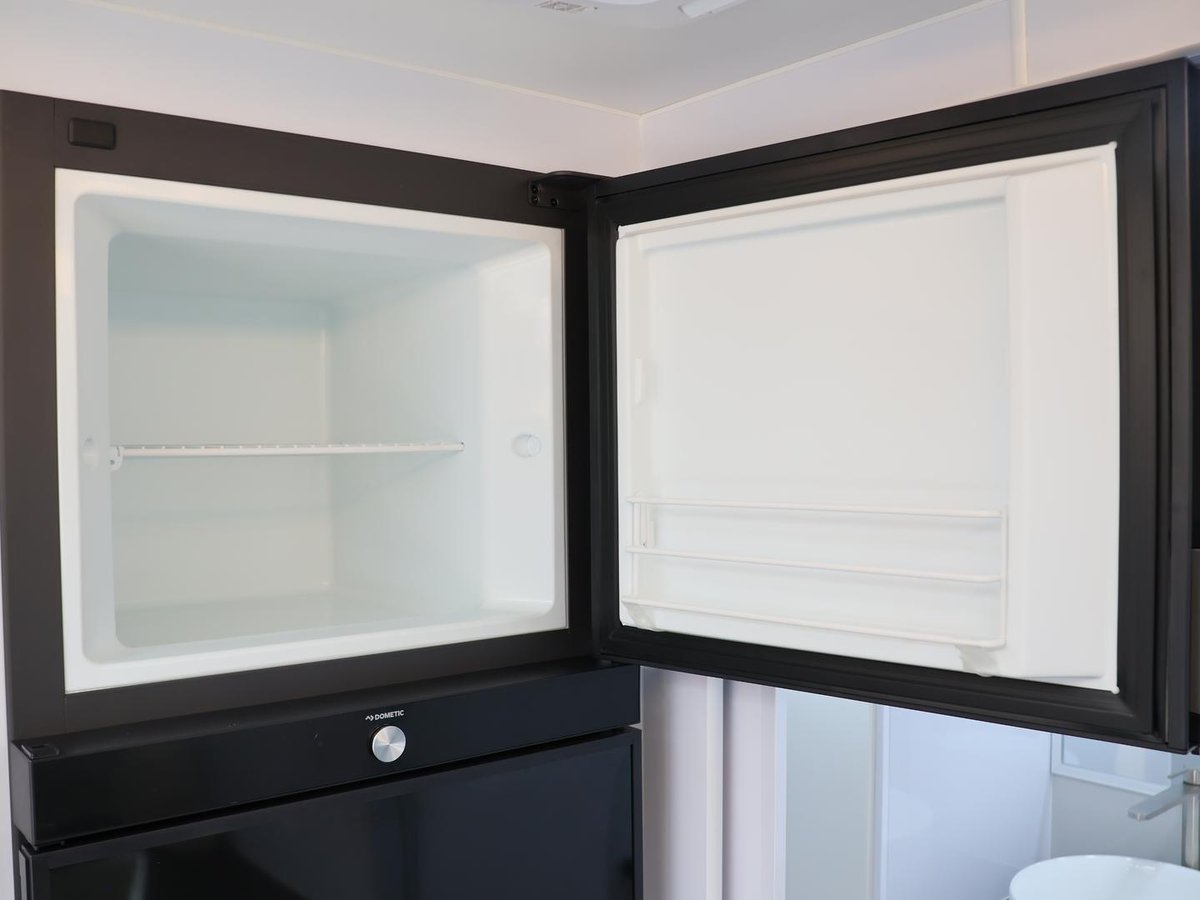

216L Dometic Compressor Fridge

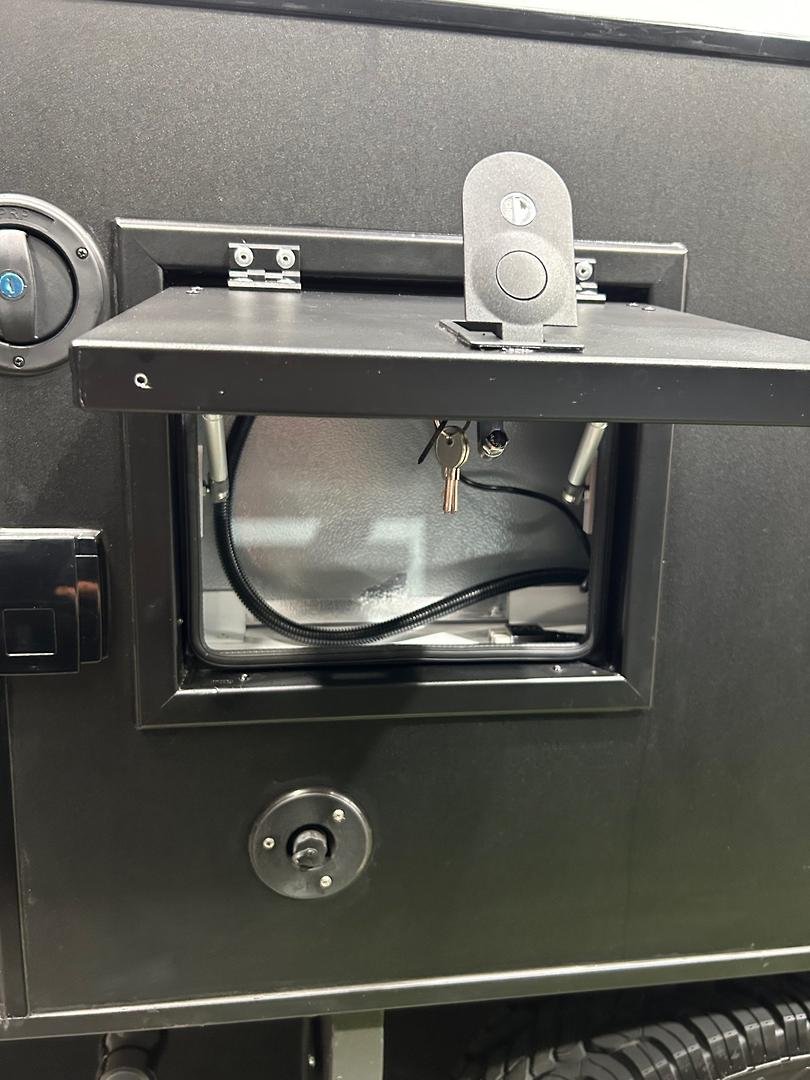

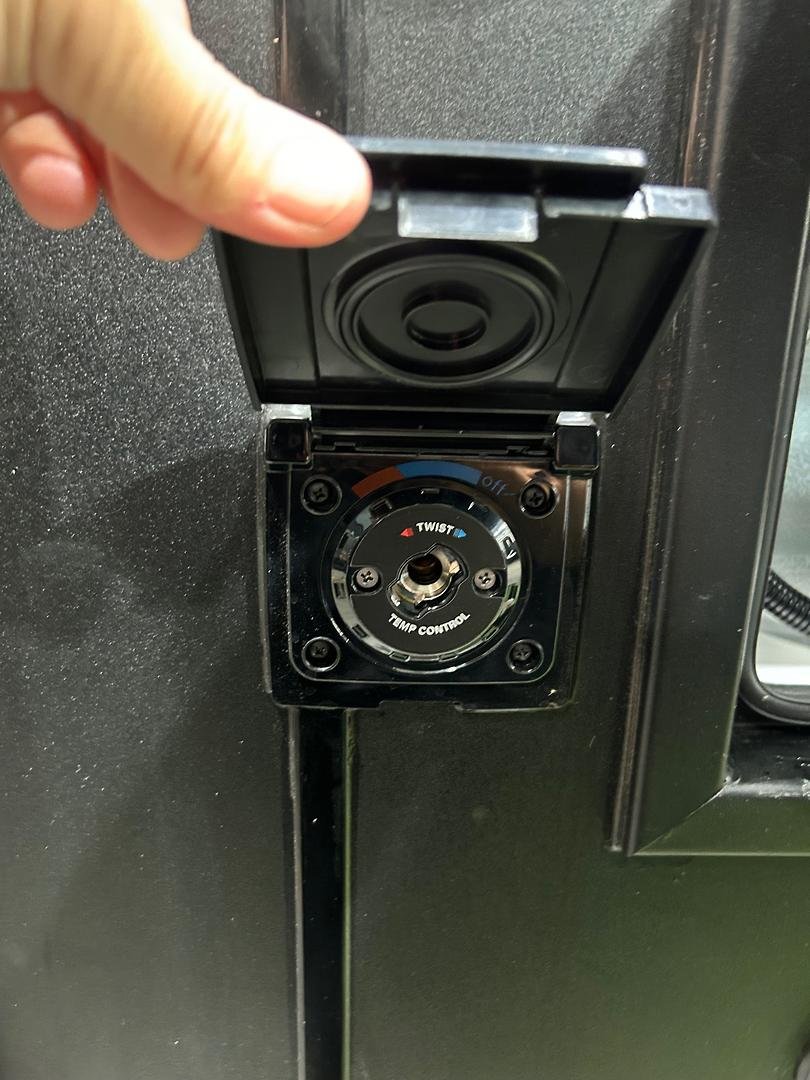

External Hot & Cold Shower
1 x Gas Bayonet

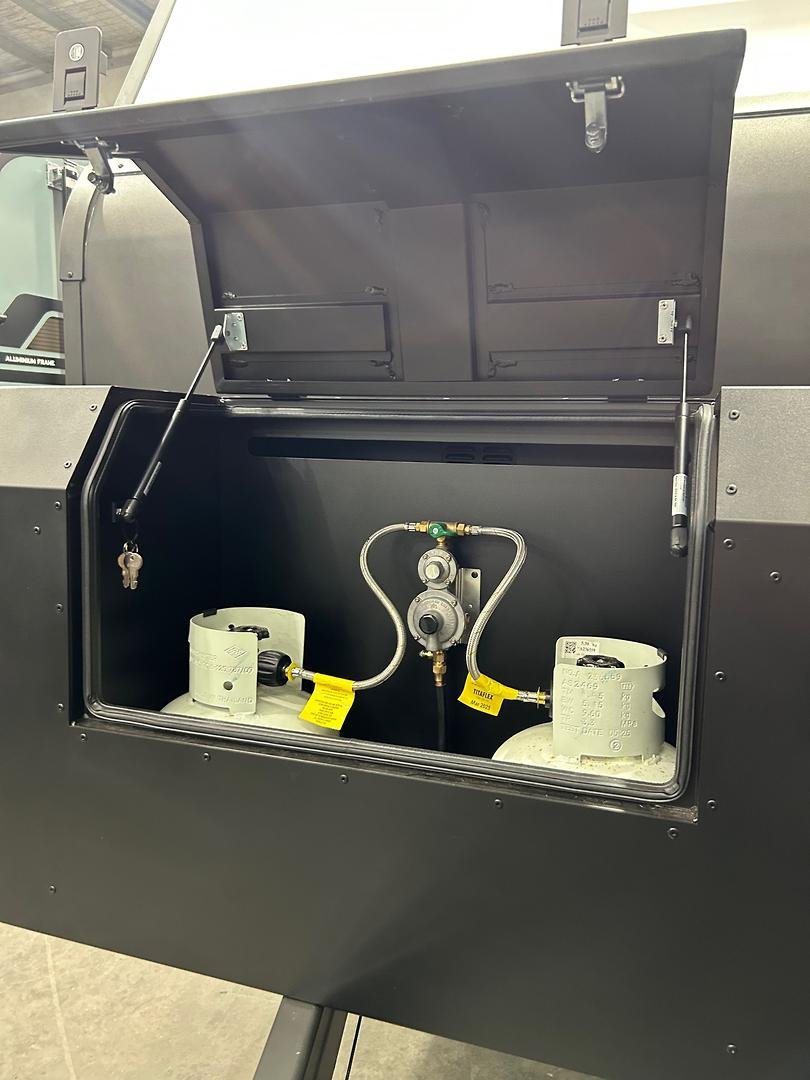

2 x 4kg Gas Bottles

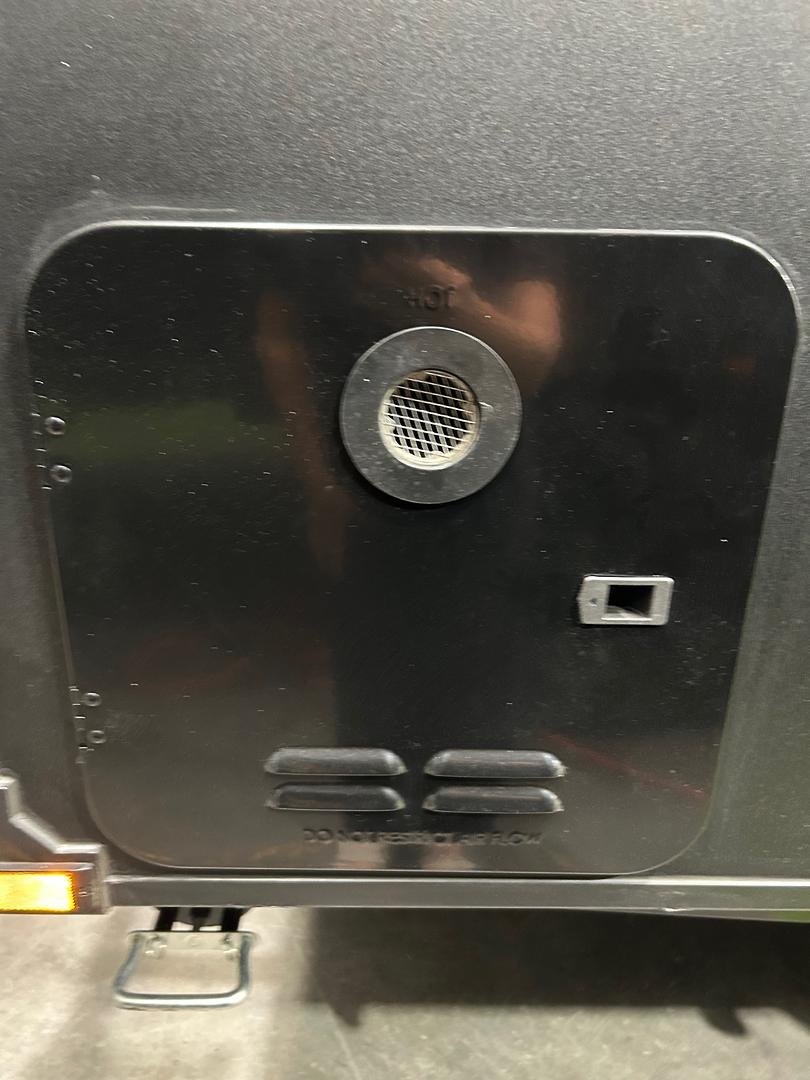

Instant Hot Water system
1 x Cold Tap On A-Frame

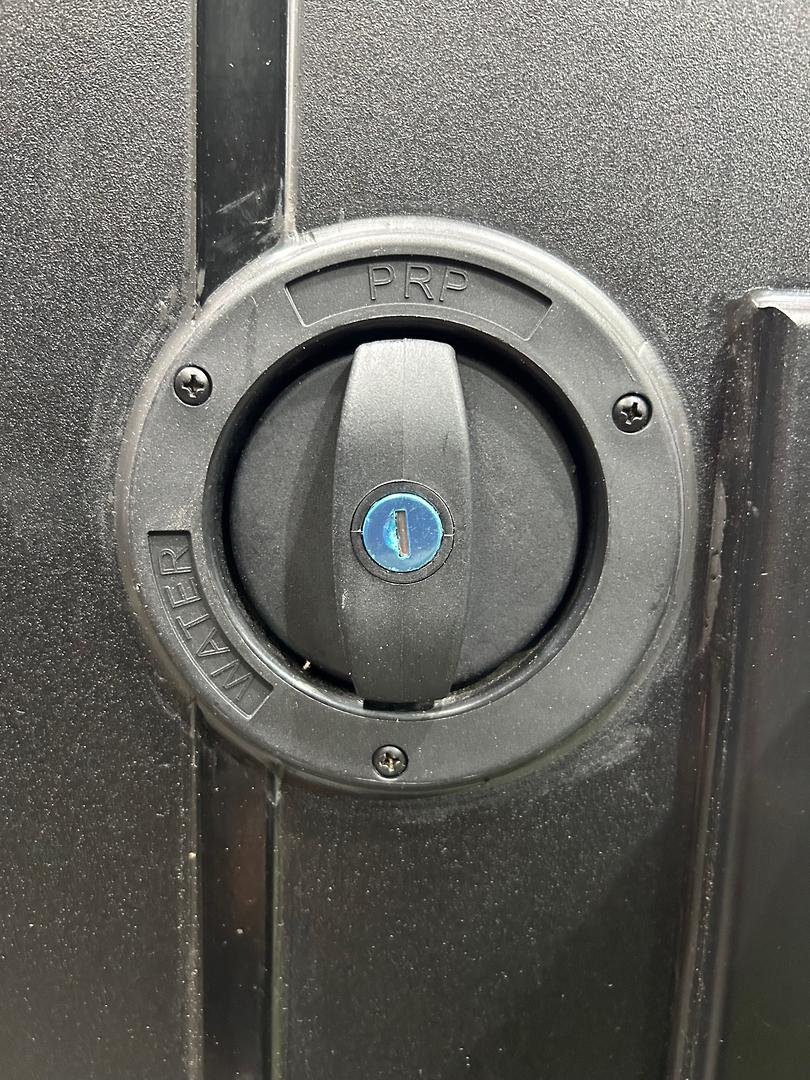

Quick Fill & Mains Connection & 1 Separate Filler & Cap

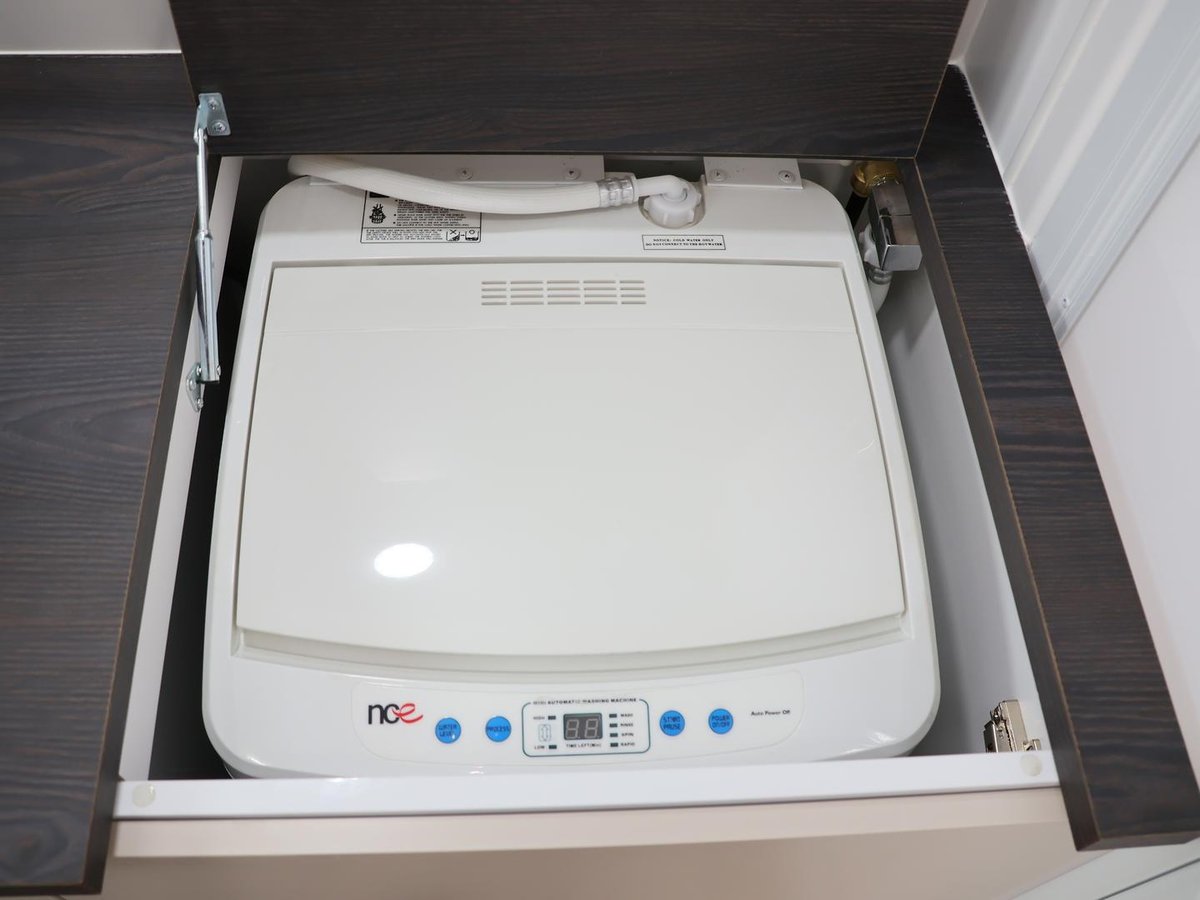

3 kg Washing Machine

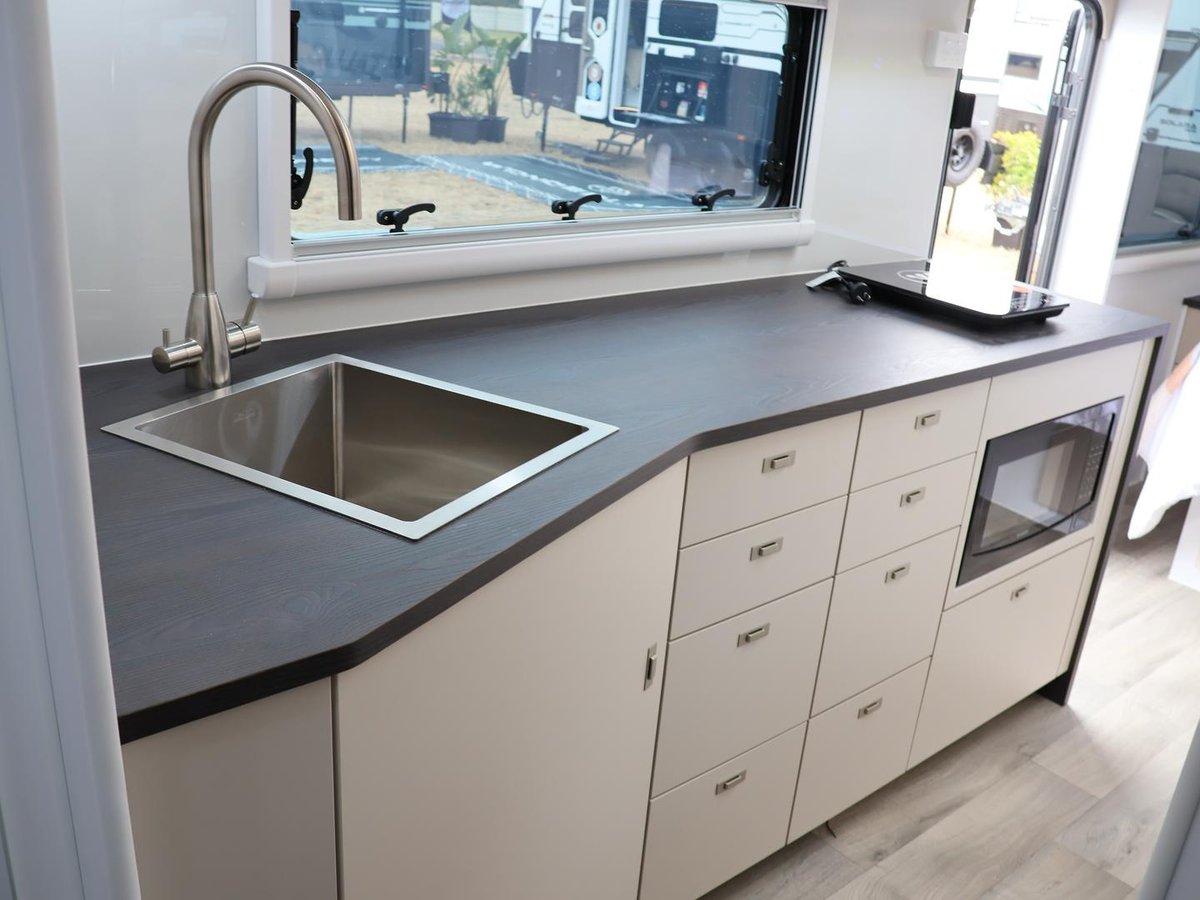

3 Way Tall Gooseneck Kitchen Tap with Filter

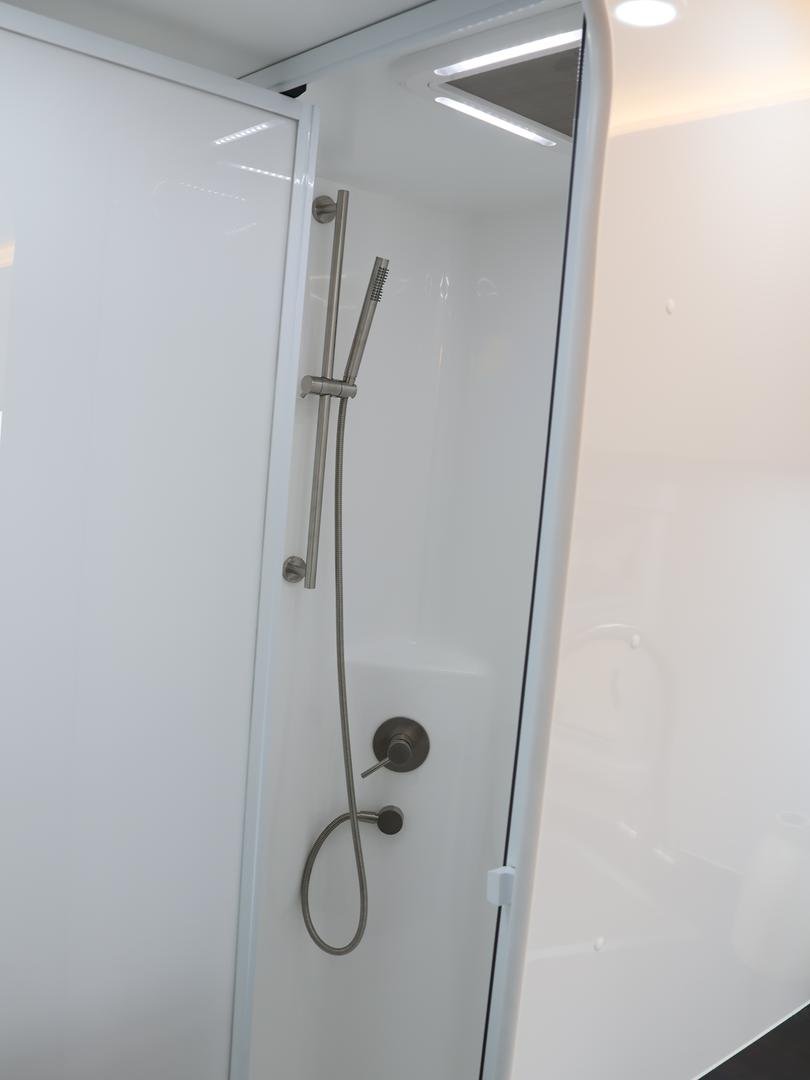

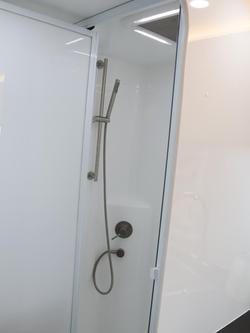

1 Piece Fibreglass Shower

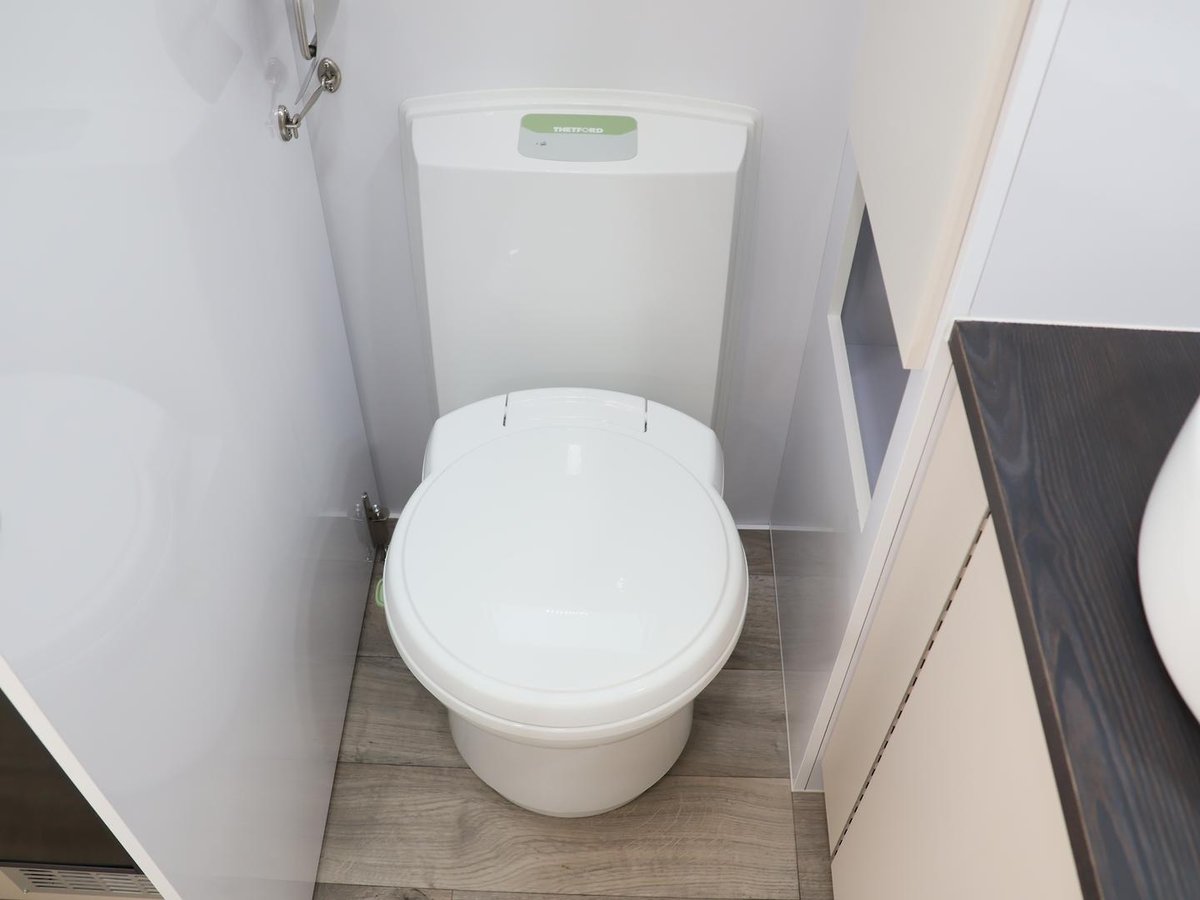

Thetford Separation Toilet

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm Protection Plate - flat finish
Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
External Pantry

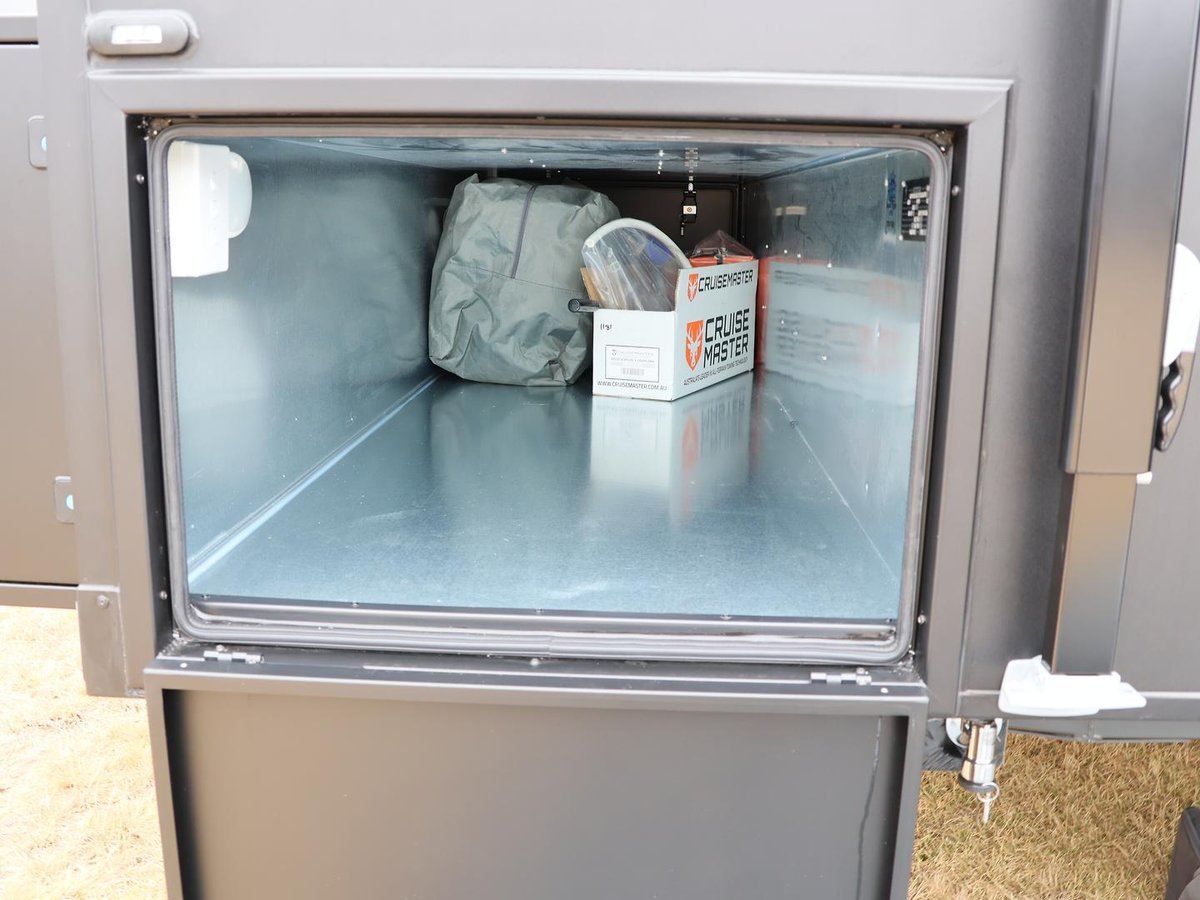

Fully Lined Gal Sheet Tunnel Boot
High Access Tunnel Boot Doors

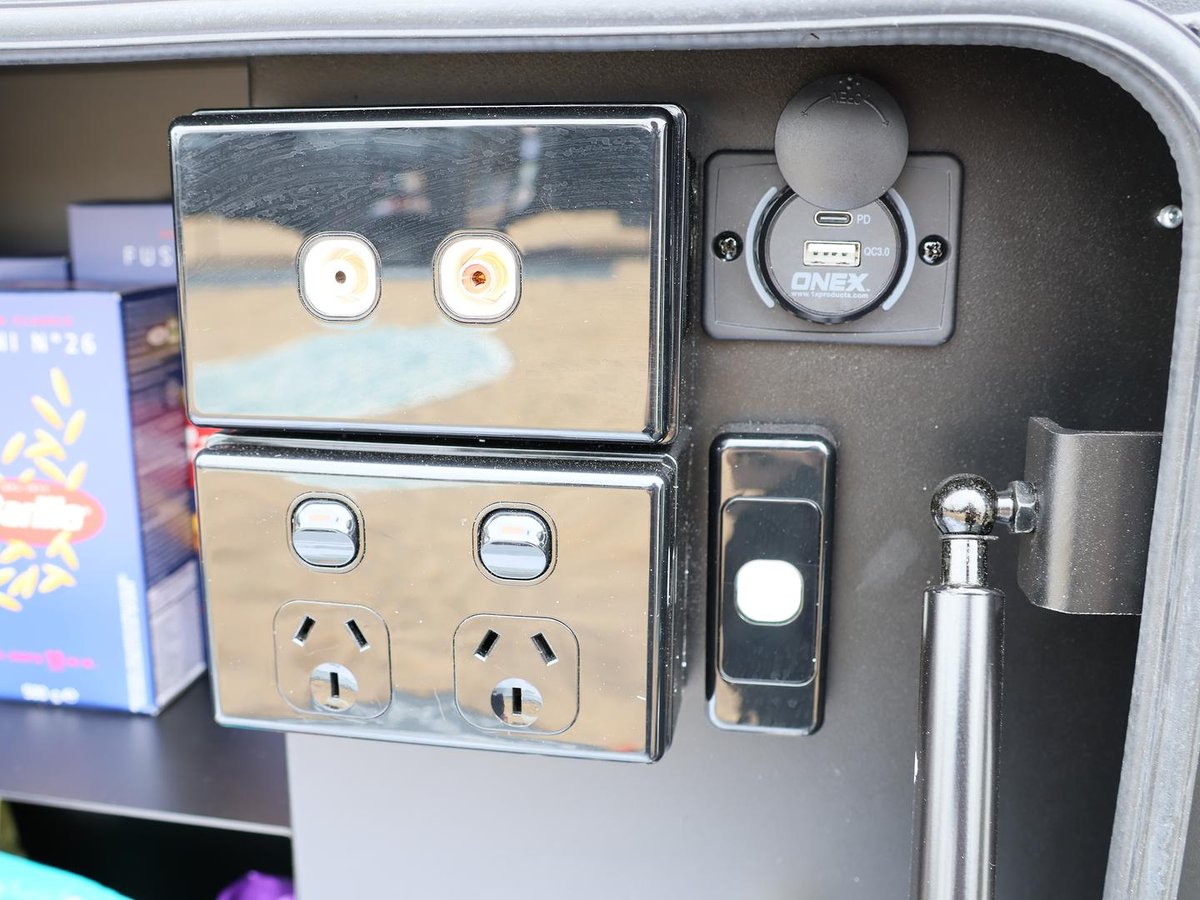

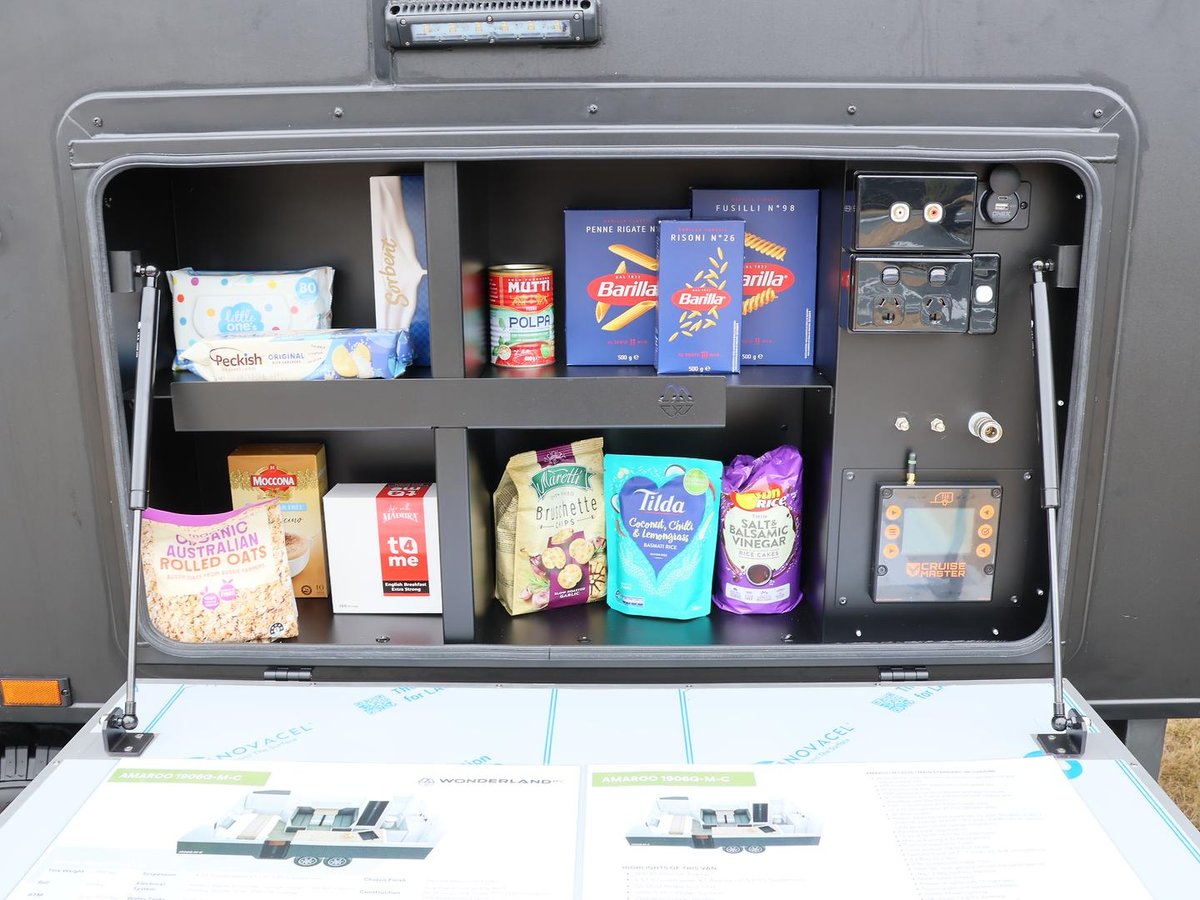

External Pantry with Light, GPO & USB

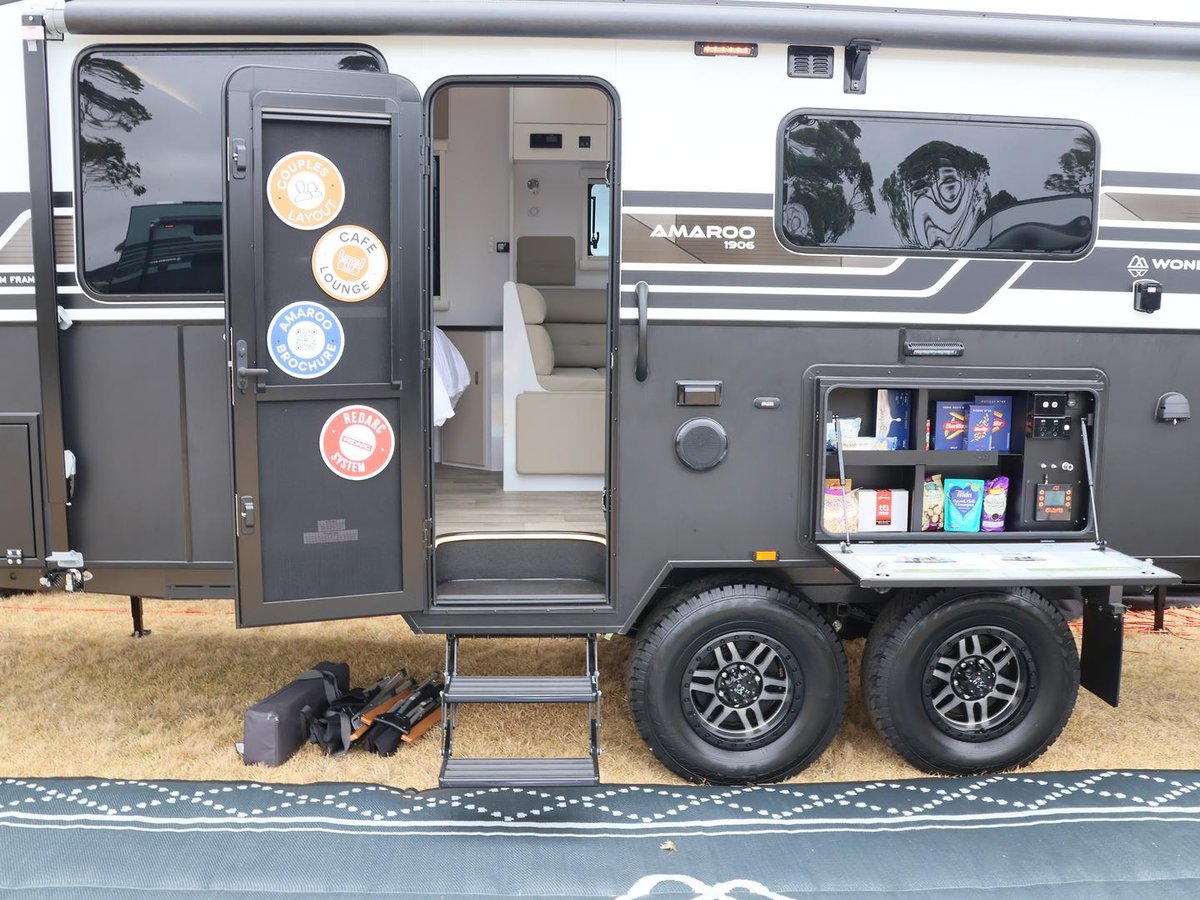

Aussie Traveller Black 1750x622 Entry Door with Security Screen & Triple Locking Mechanism
Large Double Glazed Windows with Dark Tint
Windows with Non Concertina Fly Screen & Block Out

INTERNAL
CNC Lightweight Ply Furniture - Precision Cut with No Gaps
Lightweight European Plywood Laminate Benchtops & Doors
Large Metal Sided Drawers Pot Drawer

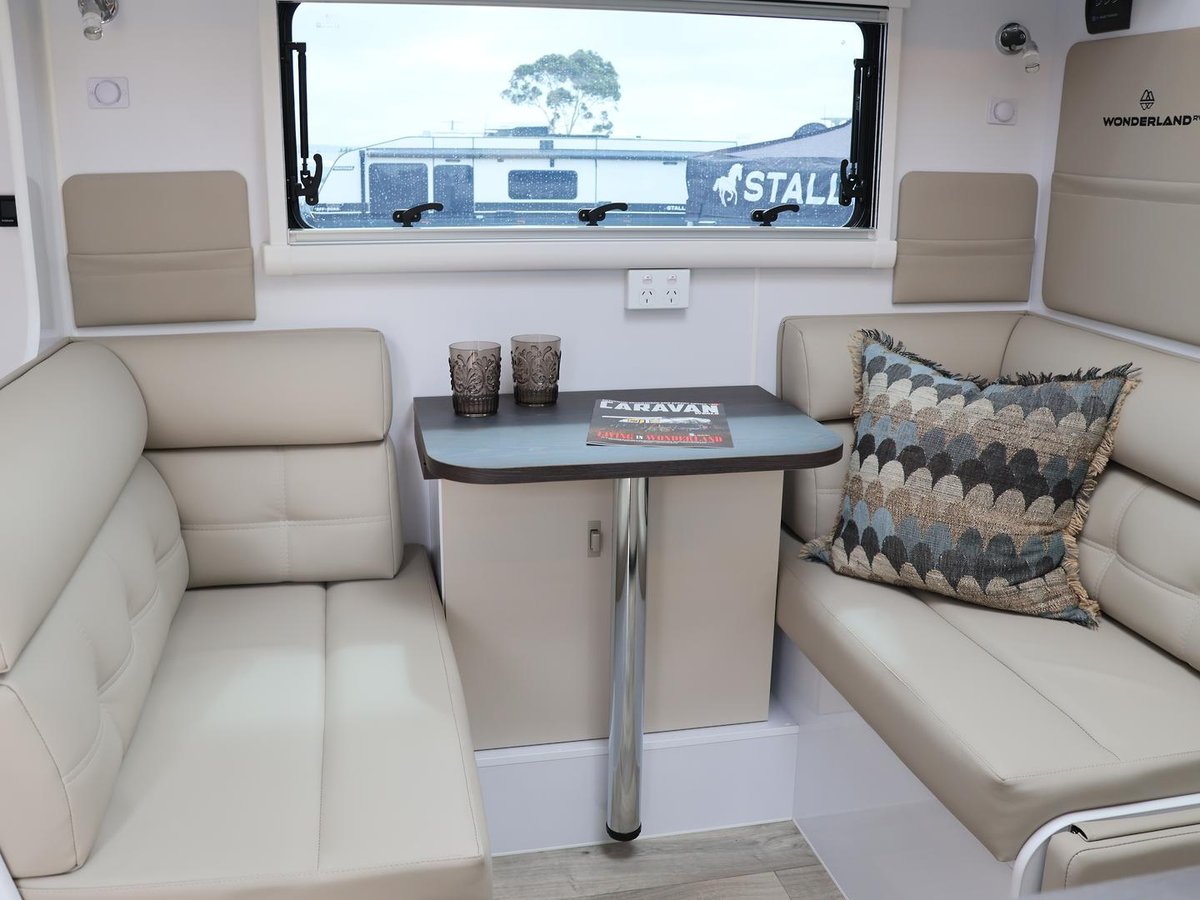

Firm Back Lounge Seating with Support & Footrest
Telescopic Table Leg

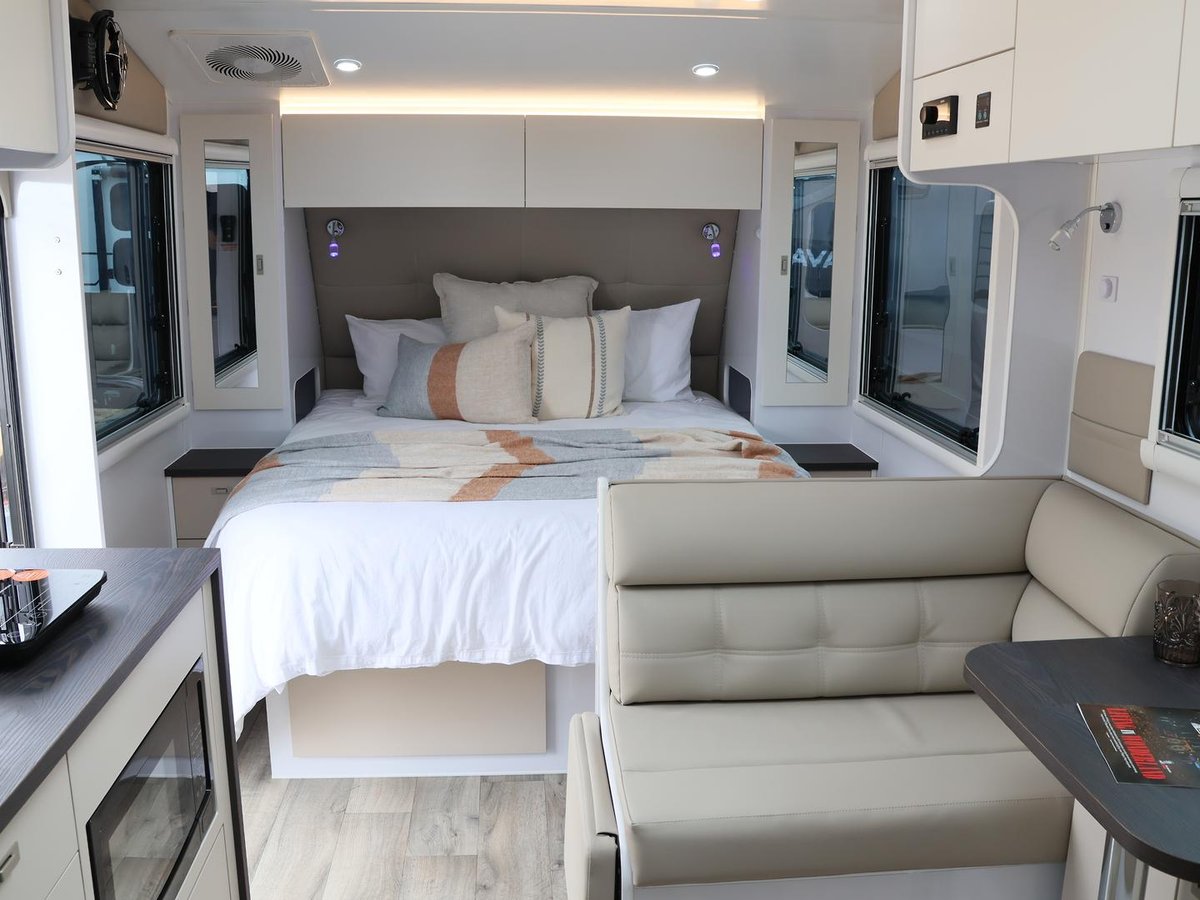

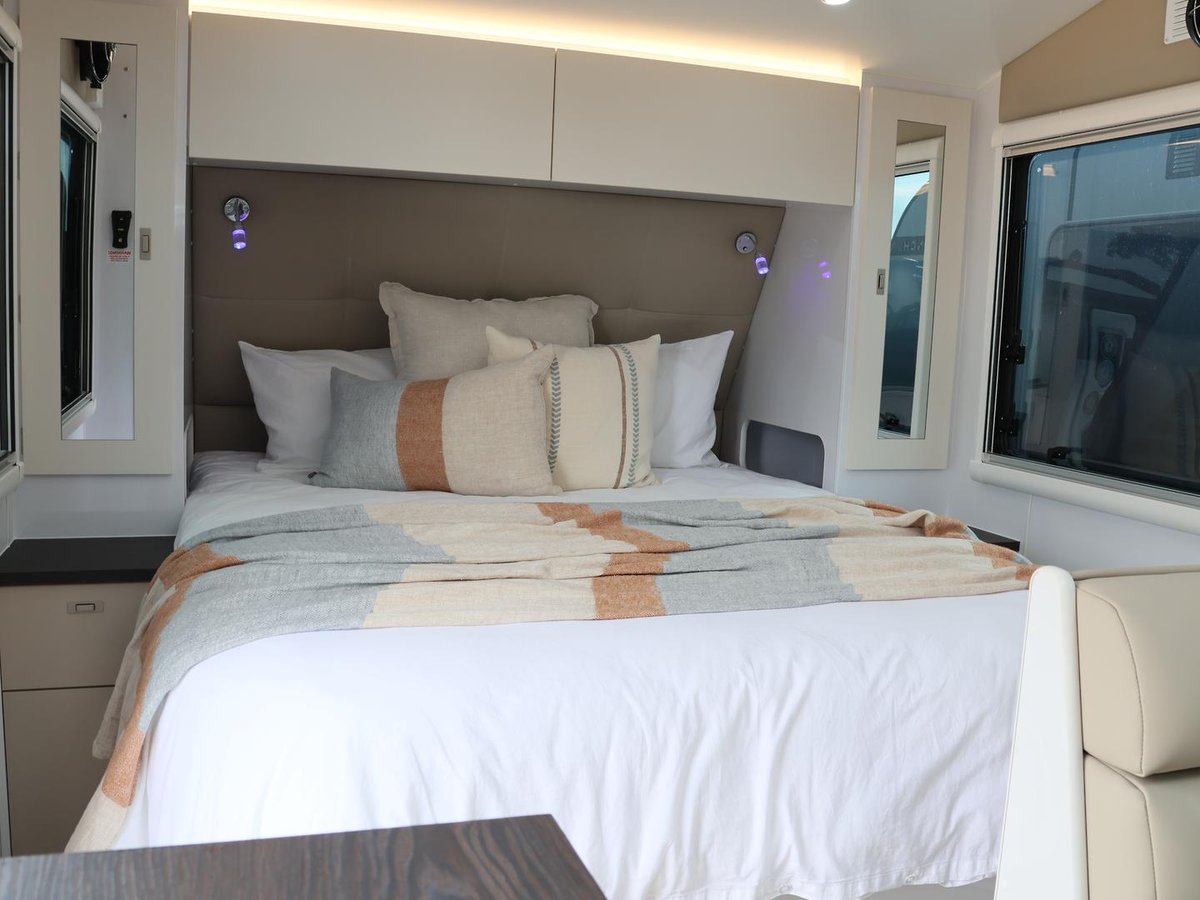

Pillowtop Mattress Queen 6’3"
Bedhead & Magazine Pockets
LED Hatches with Fans In Bathroom

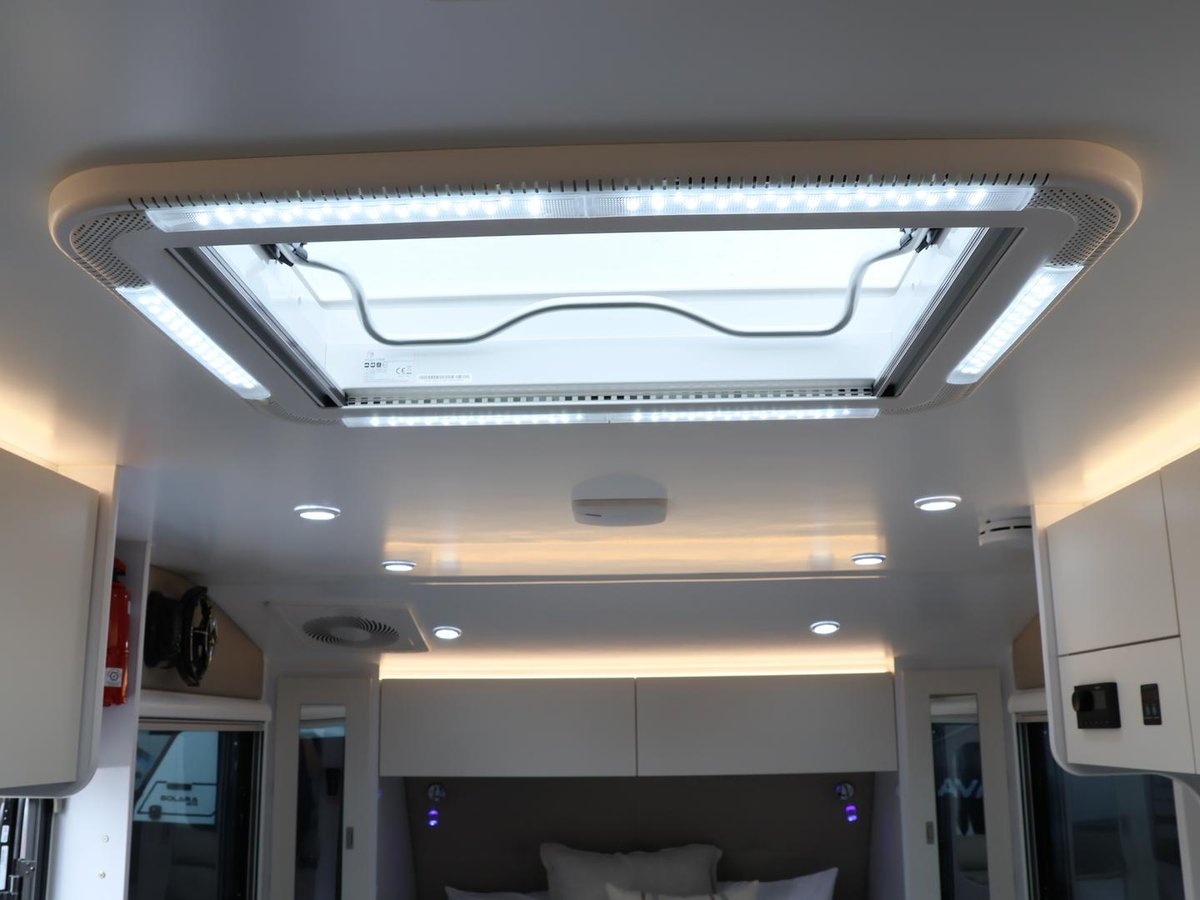

Large Roof Hatches
Roller Blind On Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher


TARE: 2680kg
ATM: 3500kg (can go up to 4500kg with a D0-45 hitch)
BALL: 220kg
Travel Length : 8.3m
