2025 Wonderland RV Amaroo 21'06 With 2 Rear Bunks

This hugely popular family layout with 2 rear bunks is now available for immediate delivery.

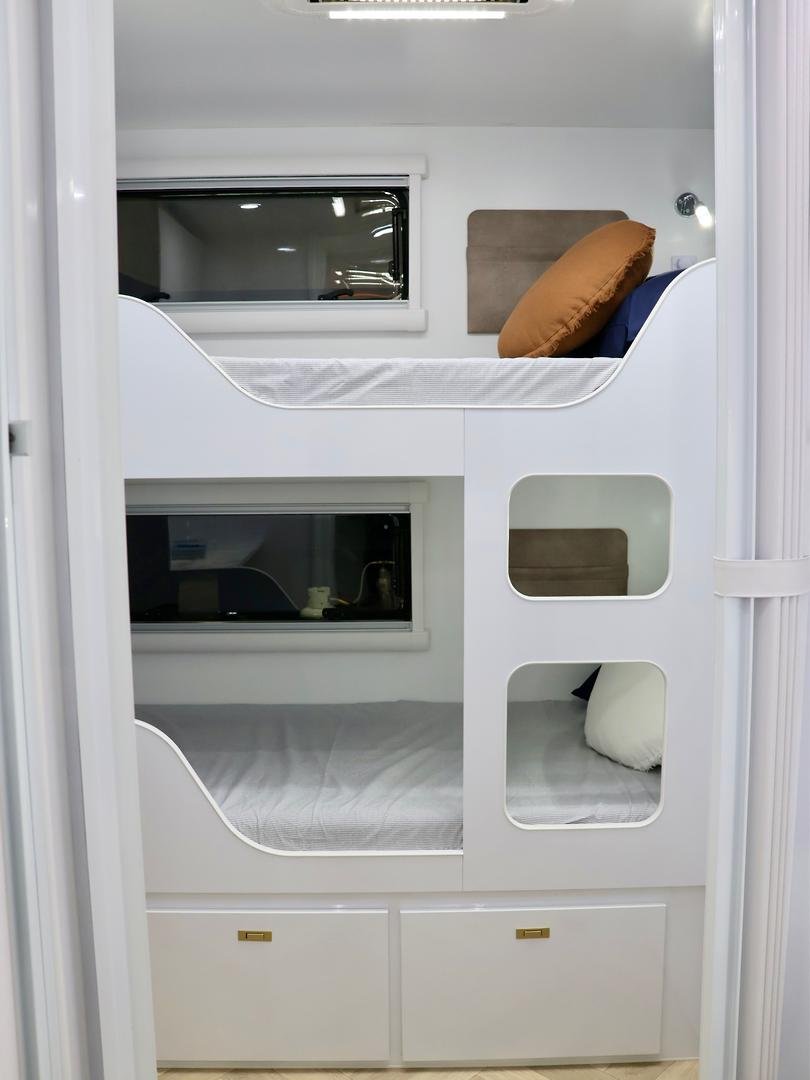

With 2 x 1.9m long bunks, 6'8 " long main bed in a East-West orientation, keeps the overall length down to under 22 ft!

This van has an upgraded electrical system allowing your family to go off-grid & stay off grid for longer periods.

Tuff-Ride coil suspension is airbag ready and for an additional cost can be fitted to this van.

CHASSIS
Heavy-Duty Off-Road Chassis – Australian Made RHS Steel
6" A-Frame 1900mm & 4" Chassis & 4" Riser
3.7t Tuff-Ride Coil - Airbag Ready Suspension & 12" Drum Breaks
Cruisemaster DO35 Hitch
16" 265/75R16 MPC All Terrain 6x139 ET0
Large Toolbox with dual slides & 12v Anderson Plug
2 x Jerry Can Holder
4-Arm Bumper Bar
Deflector Aluminium Stone Guard
Double aluminium step
Fully Lined Gal Sheet Tunnel Boot

ELECTRICAL
400 AMP Lithium Battery
Redarc Alpha 50 Battery Management System
800W Solar Panels
2600W Inverter
Fusion Entertainment Unit & Speakers
Dometic Freshjet Air Conditioner
23L Mirror Finish Flatbed Microwave
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Windscreen Monitor
24" Smart TV / DVD
Cowfish TV Antenna
Multiple USB/USBC Outlets
Starlink Provision
TV Points 1 x External TV Bracket & 1 x Internal TV Bracket
6 External Lights inc BBQ Light & Anti Bug Lights LED 3" Downlights LED Taillights
12 Pin Tow Plug

PLUMBING
Roto Molded Poly Water Tanks With Brass Fittings
2 x 100L Fresh Water Tanks
1 x 100L Grey Water Tank
Grey Water Bypass
Gal Sheet Water Tanks & Plumbing Protection
Portable Induction Cooktop
224L Dometic Compressor Fridge
External Hot & Cold Shower
1 x Gas Bayonet
2 x 4kg Gas Bottles
Swift Gas & Electric Hot Water system
1 x Cold Tap on A Frame
Quick Fill & Mains Connection & 1 Separate Filler & Cap
3 kg Wall Mounted Washing Machine
Gold 3 Way Tall Gooseneck Kitchen Tap with Filter
White Granite Sink
1 Piece Fibreglass Shower
Thetford Ceramic Bowl Cassette Toilet

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm Protection Plate
Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
Aluminium Access Tunnel Boot Doors
Black External Condiment/ Spice Rack
Black Picnic Table
Aussie Traveller Black 1750x622 Entry Door with security screen & triple locking mechanism
Large Double Glazed Windows with Dark Tint
Windows with non concertina fly screen & block out

INTERNAL
CNC Lightweight Ply Furniture- precision cut with no gaps
Lightweight European Plywood Laminate Benchtops & Doors
Waterfall Benchtops
Full Height Pantry with Soft Close Drawers
Large Metal Sided Drawers Pot Drawer
Firm back Lounge seating with support & footrest
Telescopic Table Leg
4 x Sirocco Fans
Pillowtop Mattress Queen 6’8"
Bedhead & Magazine pockets
LED Hatches with Fans in Bathroom
Large Roof Hatches
Roller Blind on Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

CONSTRUCTION
One piece 35mm Sandwich Panel Composite Roof which wraps around the Front & Back- NO JOINS
XPS Insulation
Honeycomb Floor – lightweight, waterproof & one piece
19mm structural Grade Ply CAD designed, CNC router cut, Interlocking Jigsaw Frame where the walls, furniture and cabinetry are all locked into each other for superior strength, durability and off-road performance.


WEIGHTS
ATM: 35000kg
Ball Weight: 220kg
TARE Weight: 2800kg
Travel height: 3200mm
Travel Length: 9000mm
