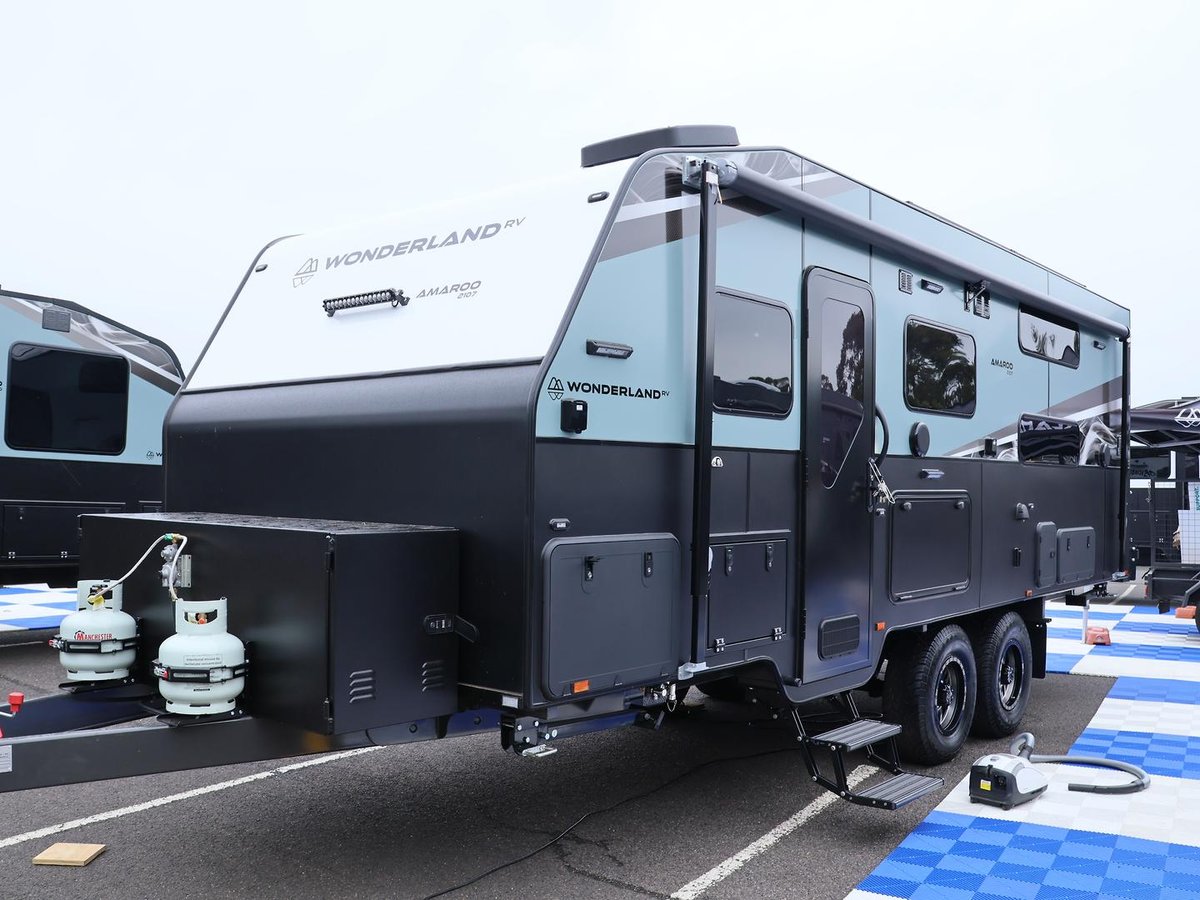

2025 Wonderland RV Amaroo 21FT Quad Bunk

This 21'07" Wonderland quad bunk van combines big electrical system to keep you off-grid for longer with a spacious, innovative layout designed for bigger families who want to travel smarter, tougher, and more comfortably than ever before.

AMAROO Tandem Axle
CHASSIS
Heavy-Duty Off-Road Chassis – Australian Made RHS Steel
6" A-Frame 1950mm & 4" Chassis & 4" Riser
3.7t Tuff-Ride Coil (Airbag Ready) Suspension
12" Drum Breaks with Dexter Sway Control
Cruisemaster DO35 Hitch
16" 265/75R16 MPC All Terrain 6x139 ET0
Large Toolbox with Dual Slides & 12v Anderson Plug
2 x Jerry Can Holder
4-Arm Bumper Bar
Double Aluminium Step
Fully Lined Gal Sheet Tunnel Boot

ELECTRICAL
400Ah of Lithium Battery
Victron Offgrid Touch 70 Battery Management System
5 x 200W Solar Panels
3000V Inverter
1 x Portable Solar Input
Fusion Entertainment Unit & Speakers
Dometic Freshjet Air Conditioner
12V Dust Reduction Unit
23L Mirror Finish Flatbed Microwave
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Windscreen Monitor
24" Smart TV / DVD
Cowfish TV Antenna
Multiple USB/USBC Outlets
6 x Sirocco Fans
TV Points 1 x External TV Bracket & 1 x Internal TV Bracket
External Entertainment Hatch
6 External Lights: Front, Rear & Roadside, 3 x 2 Stage LED Insect Repellent Lights Doorside inc Over BBQ
3" LED Downlights
LED Taillights
12 Pin Tow Plug

PLUMBING
Roto Molded Poly Water Tanks With Brass Fittings
2 x 100L Fresh Water Tanks
1 x 100L Grey Water Tank
1 x 70L Dedicated Drinking Water Tank
Gal Sheet Water Tanks & Plumbing Protection
Portable Induction Cooktop
224 Lt Dometic Compressor Fridge
External Hot & Cold Shower
1 x Gas Bayonet
2 x Gas Bottles
Endless Instant Hot Water system
1 x Cold Tap On A Frame
Quick Fill & Mains Connection & 1 Separate Filler & Cap

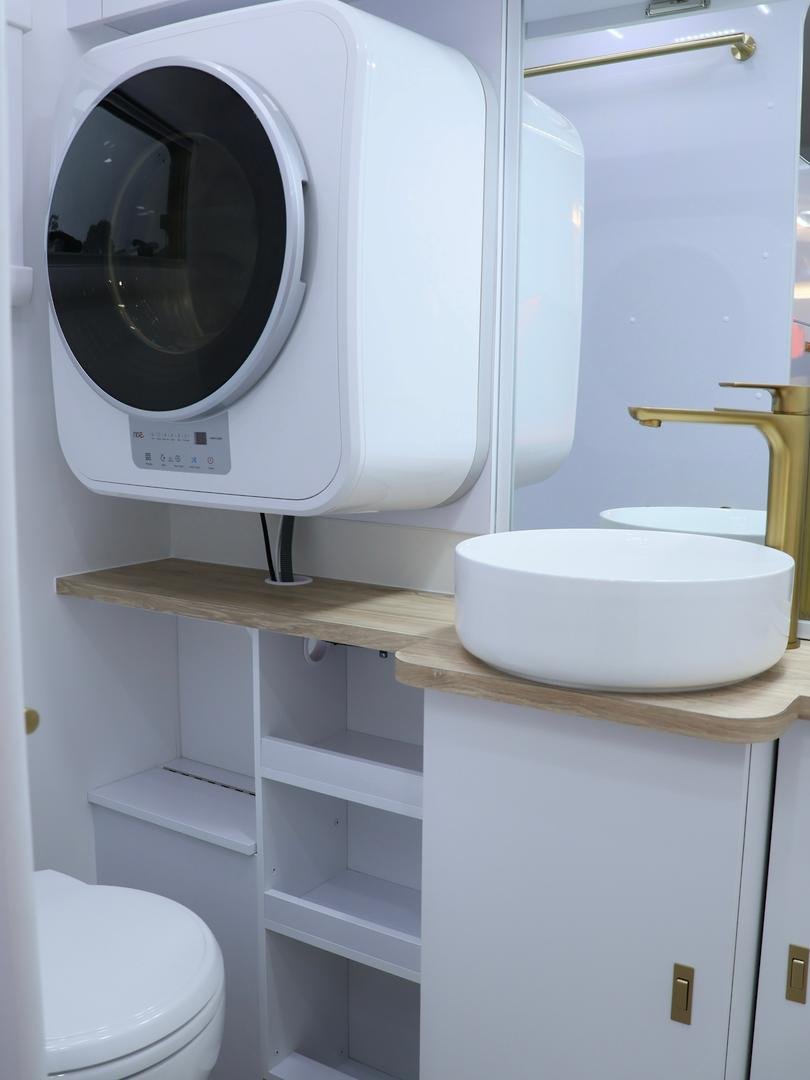

3 kg Wall Mounted Washing Machine

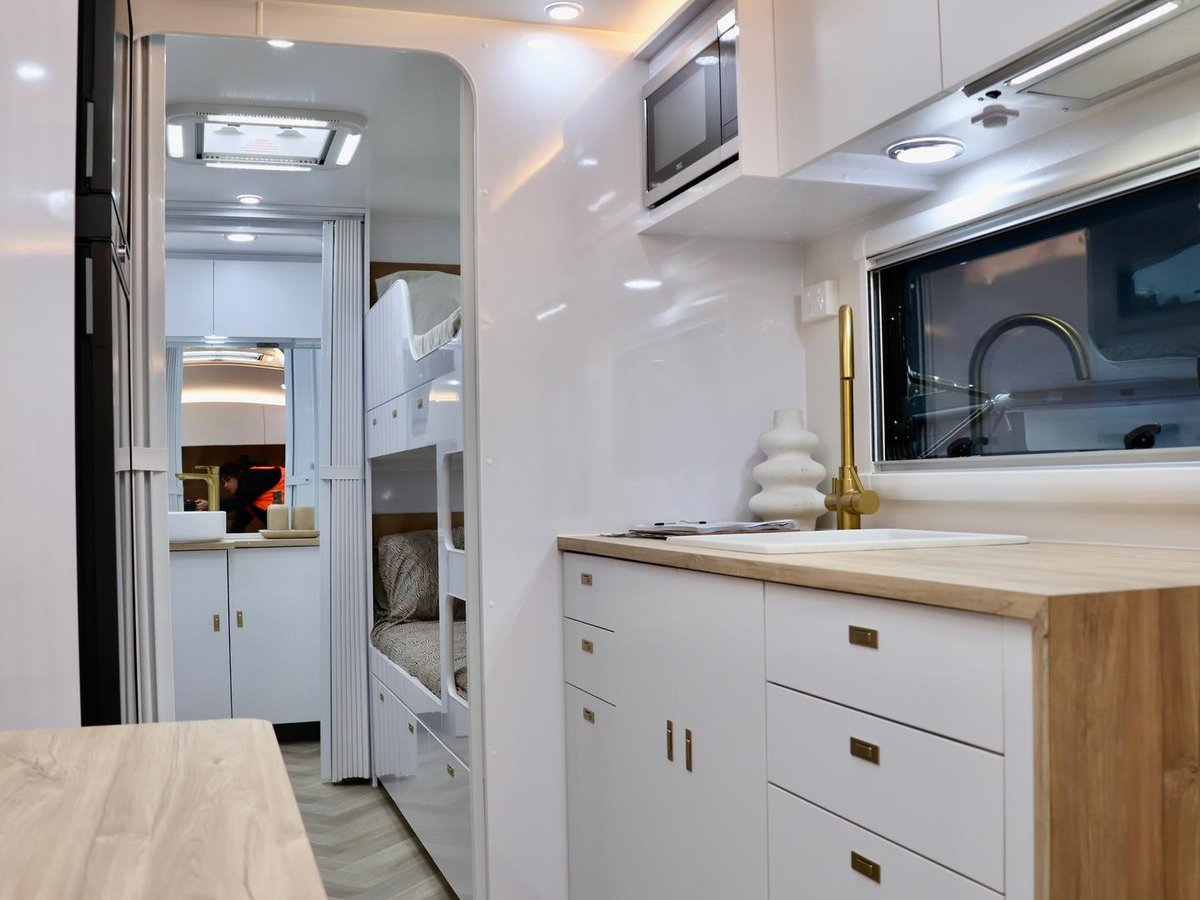

3 Way Tall Brass Gold Gooseneck Kitchen Tap with Filter
White Granite Kitchen Sink
White Ceramic Ensuite Sink
1 Piece Fibreglass Shower
Thetford Plastic Bowl Cassette Toilet

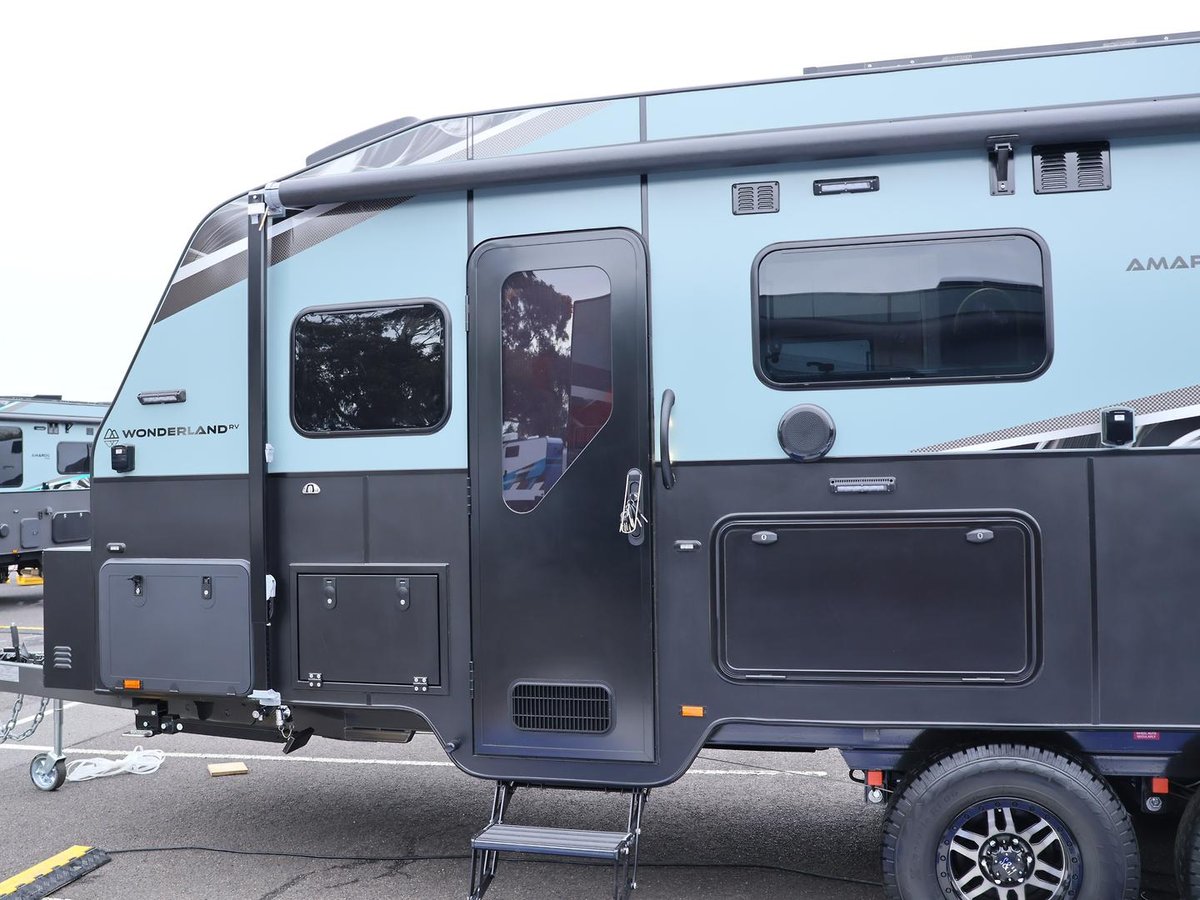

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm Protection Plate
Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
External Spice Rack
High Access Tunnel Boot Doors
Aussie Traveller Black 1750x622 Entry Door with Security Screen & Triple Locking Mechanism
Large Double Glazed Windows with Dark Tint
Windows with Non Concertina Fly Screen & Block Out

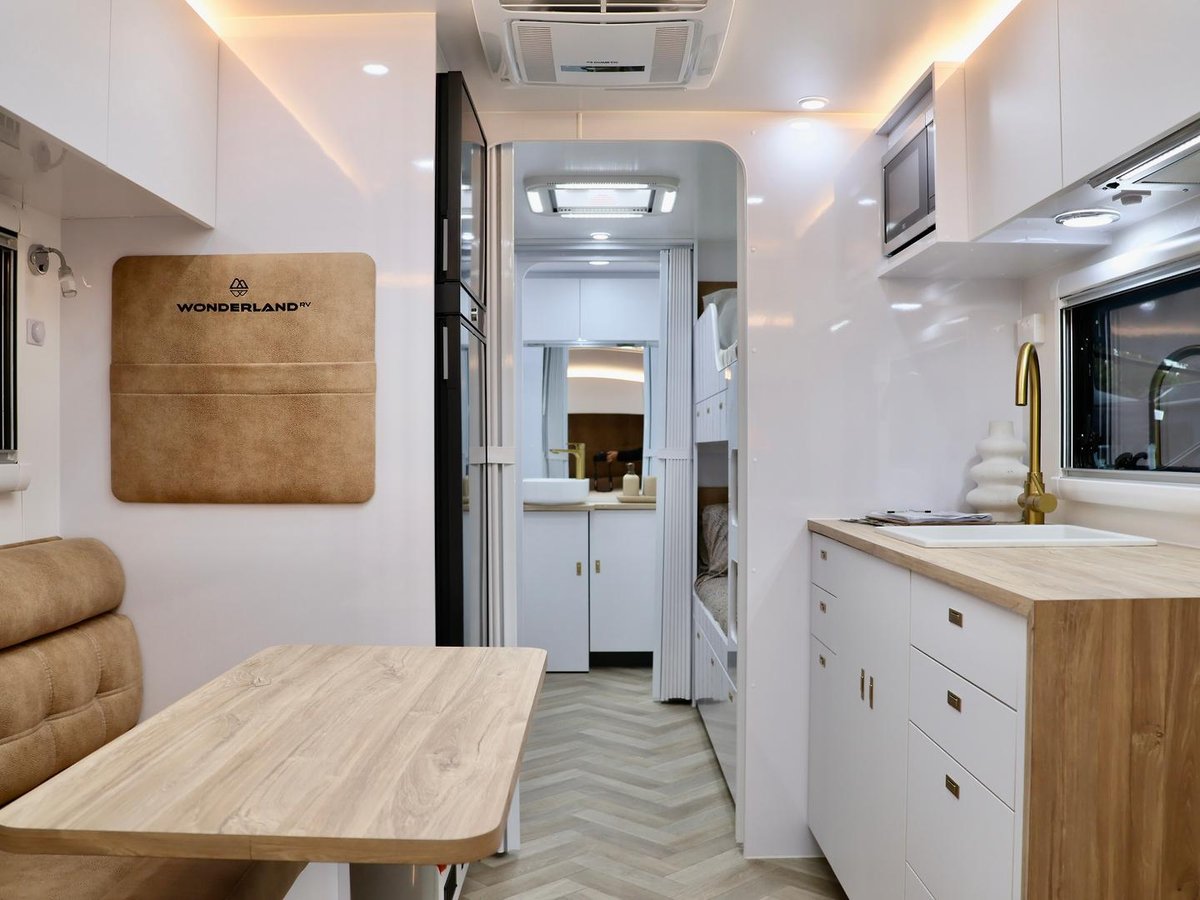

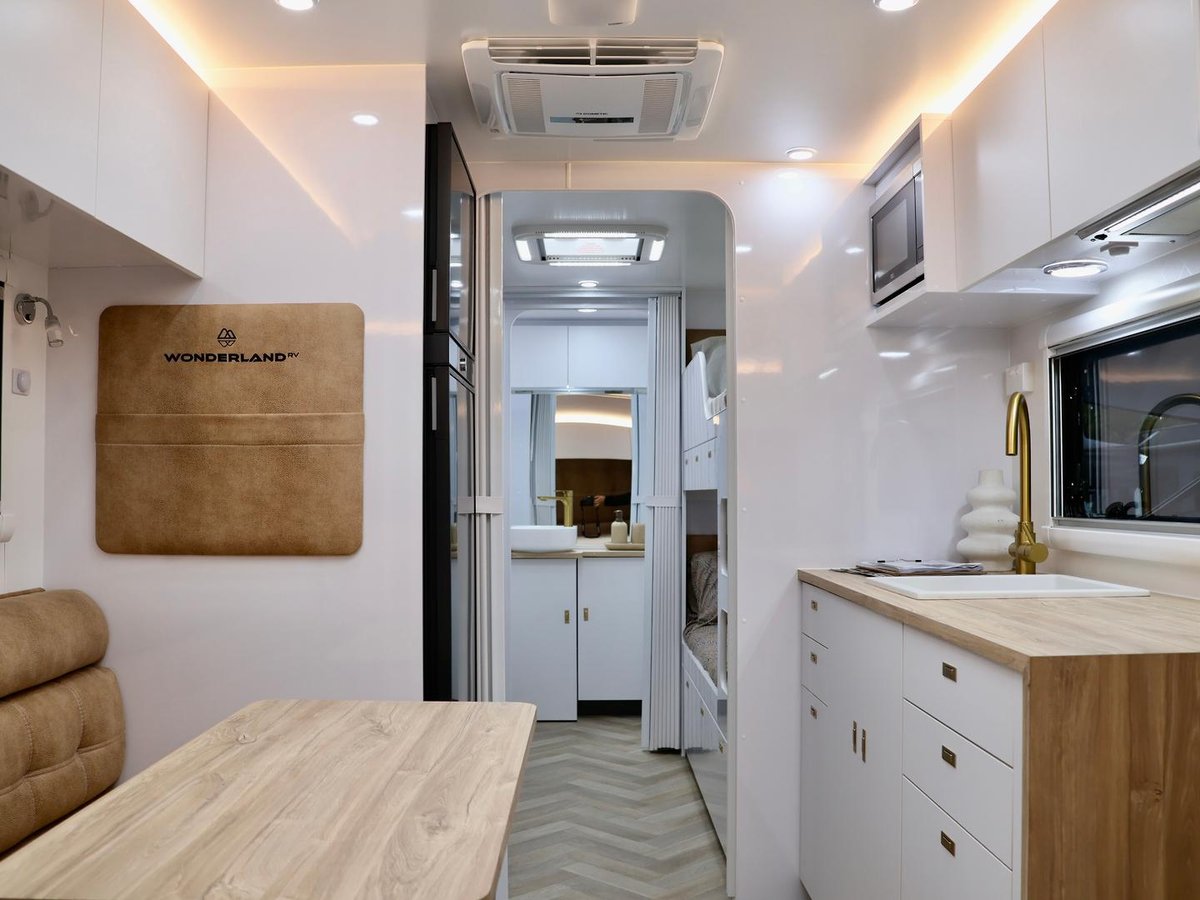

INTERNAL
CNC Lightweight Ply Furniture - Precision Cut with No Gaps
Lightweight European Plywood Laminate Waterfall Benchtops & Doors
Large Metal Sided Drawers Pot Drawer

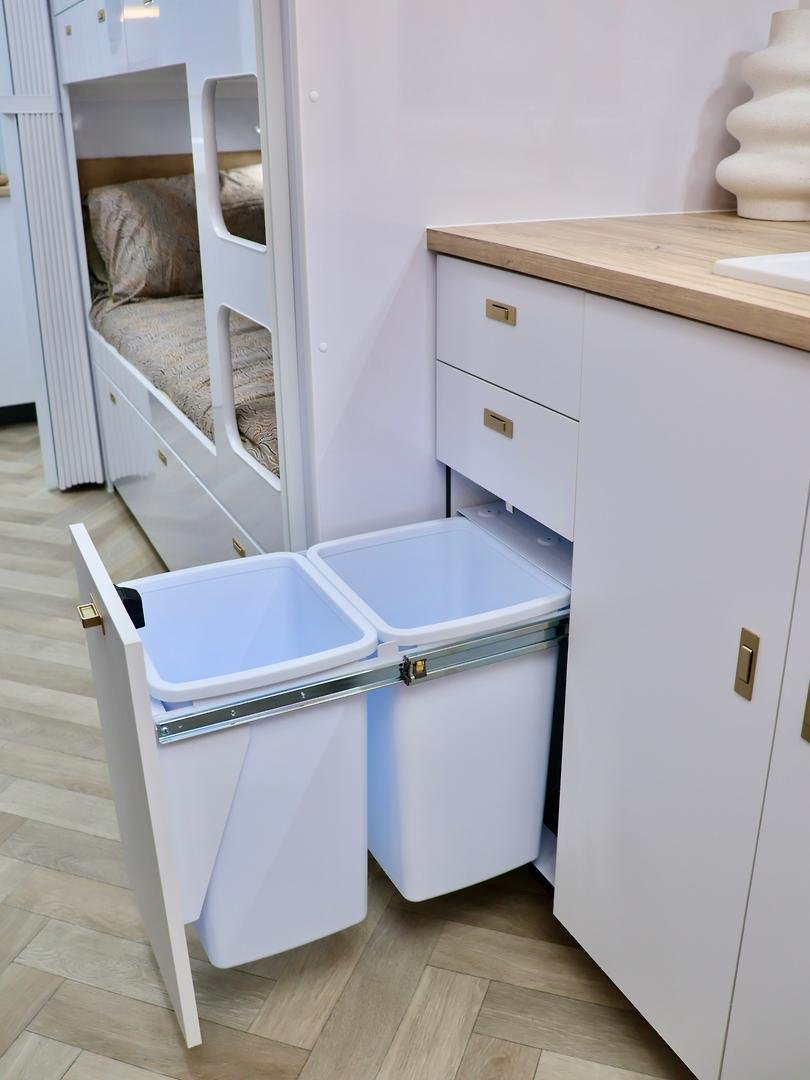

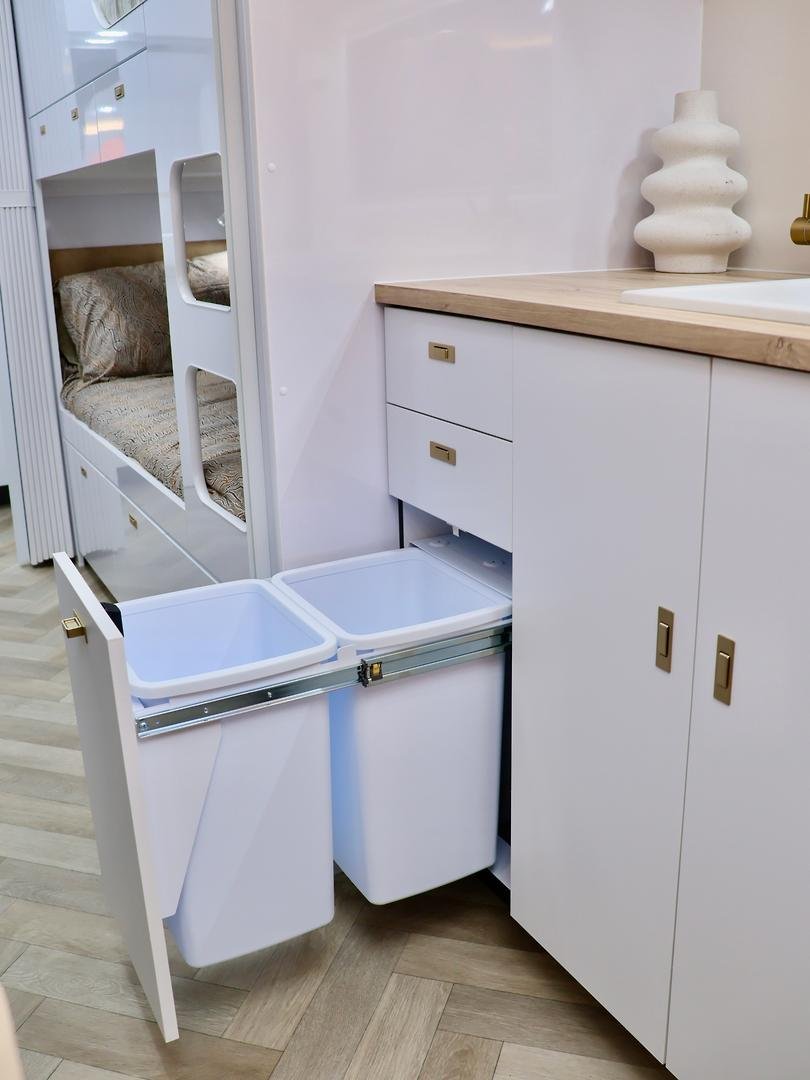

Pull Out Dual Bin

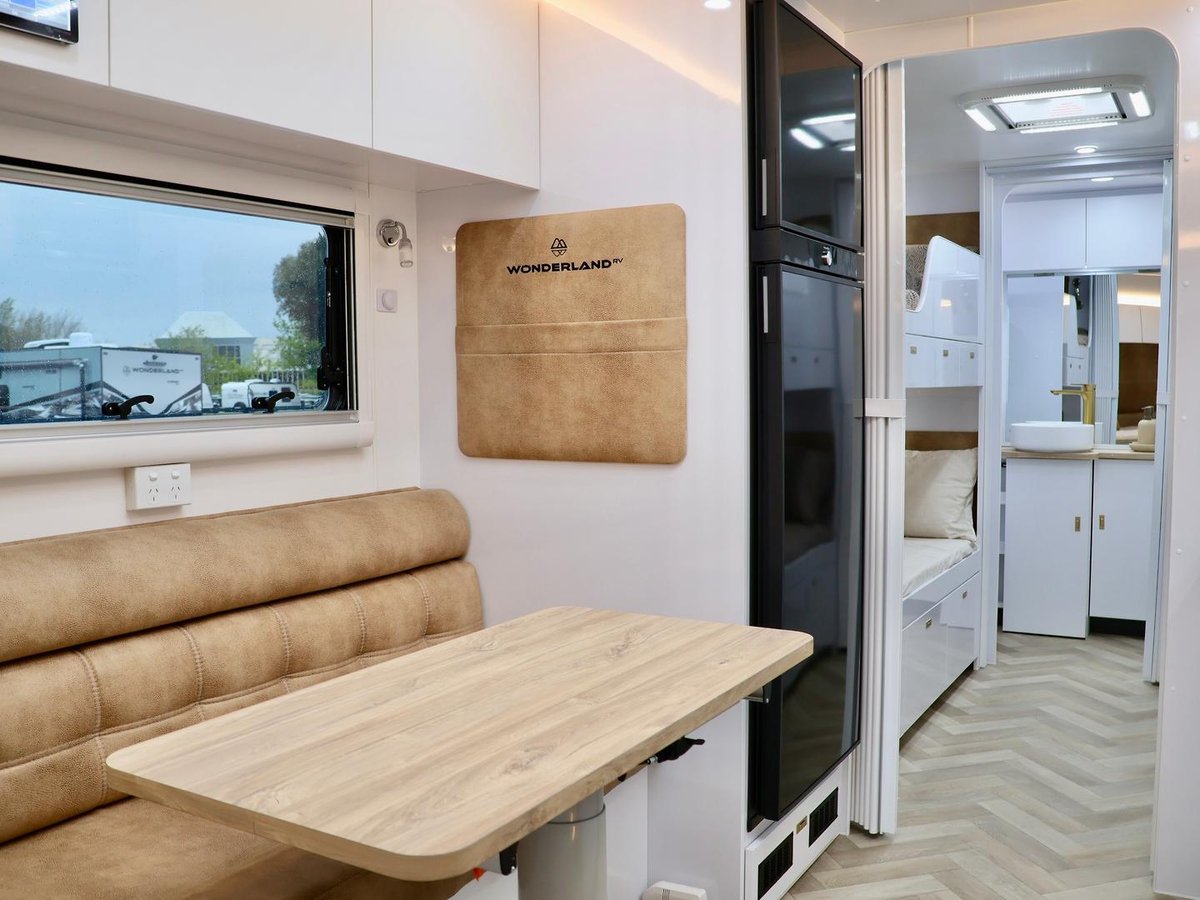

Firm Back Lounge Seating With Support & Footrest
Telescopic Table Leg

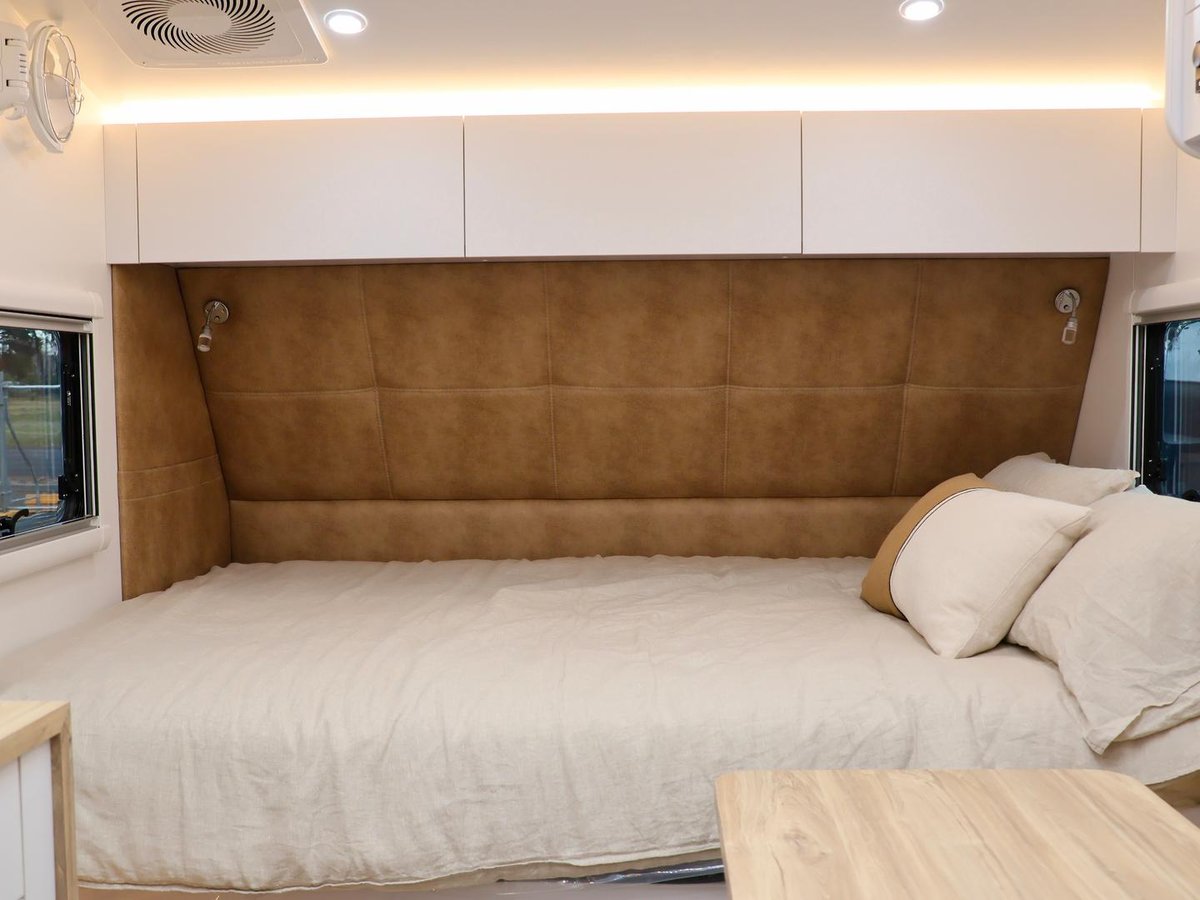

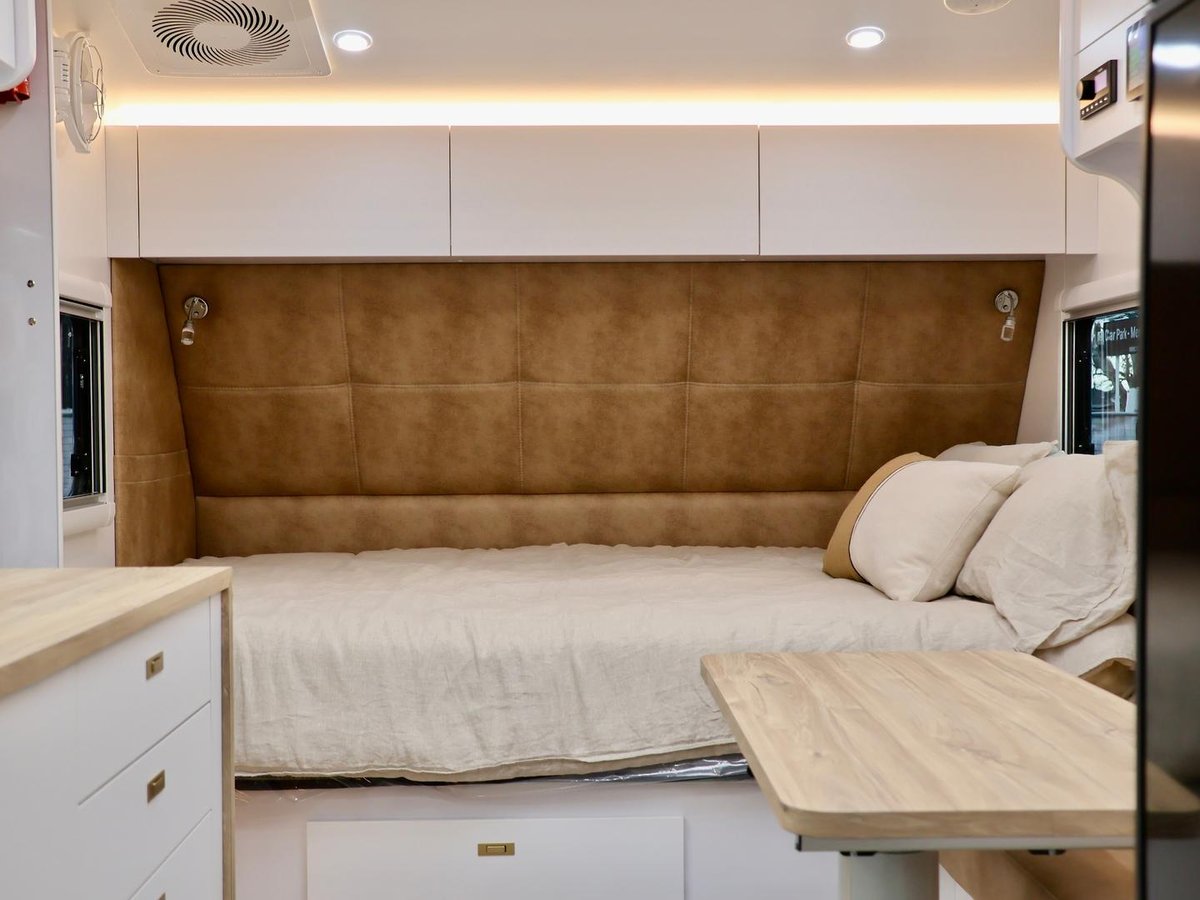

Pillowtop Mattress Queen 6’3"
Bedhead & Magazine Pockets
LED Hatches with Fans In Bathroom
Large Roof Hatches
Roller Blind On Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

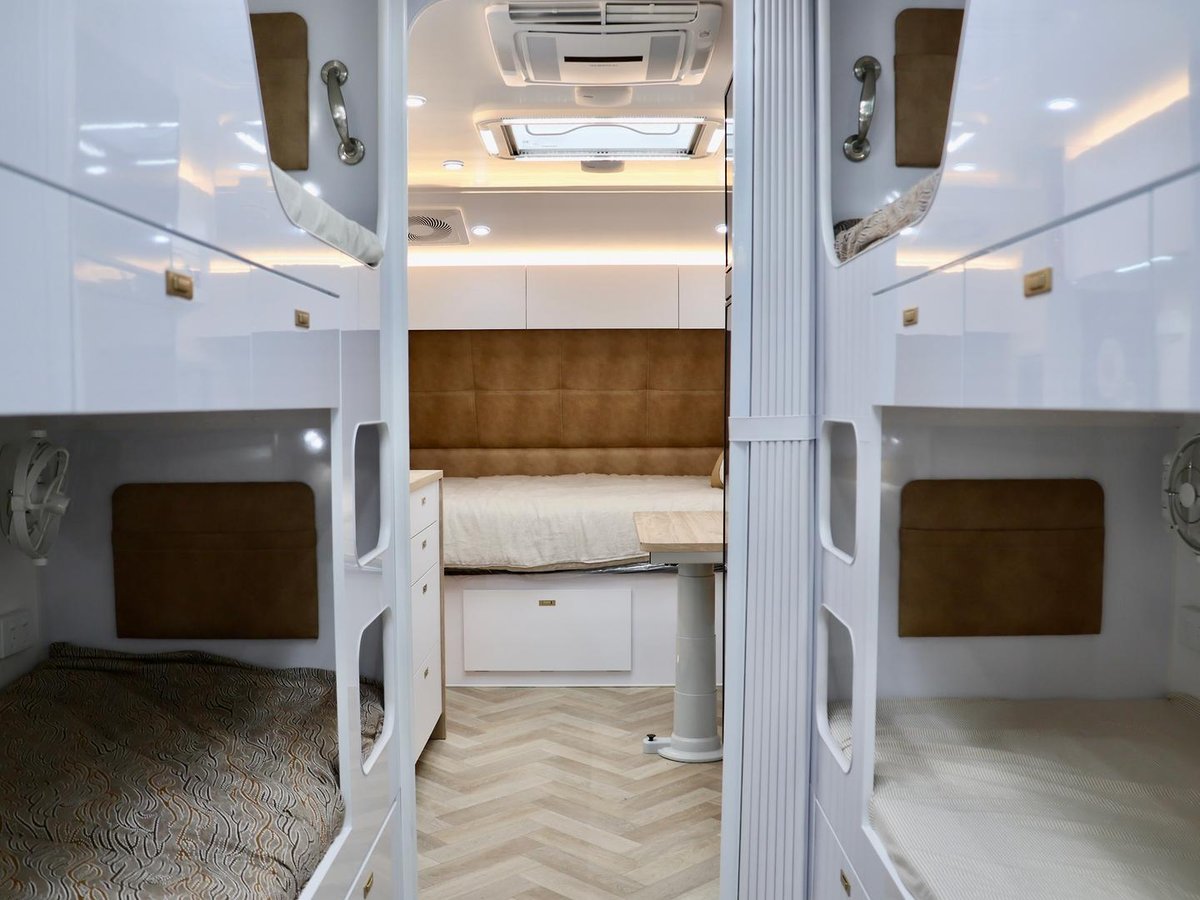

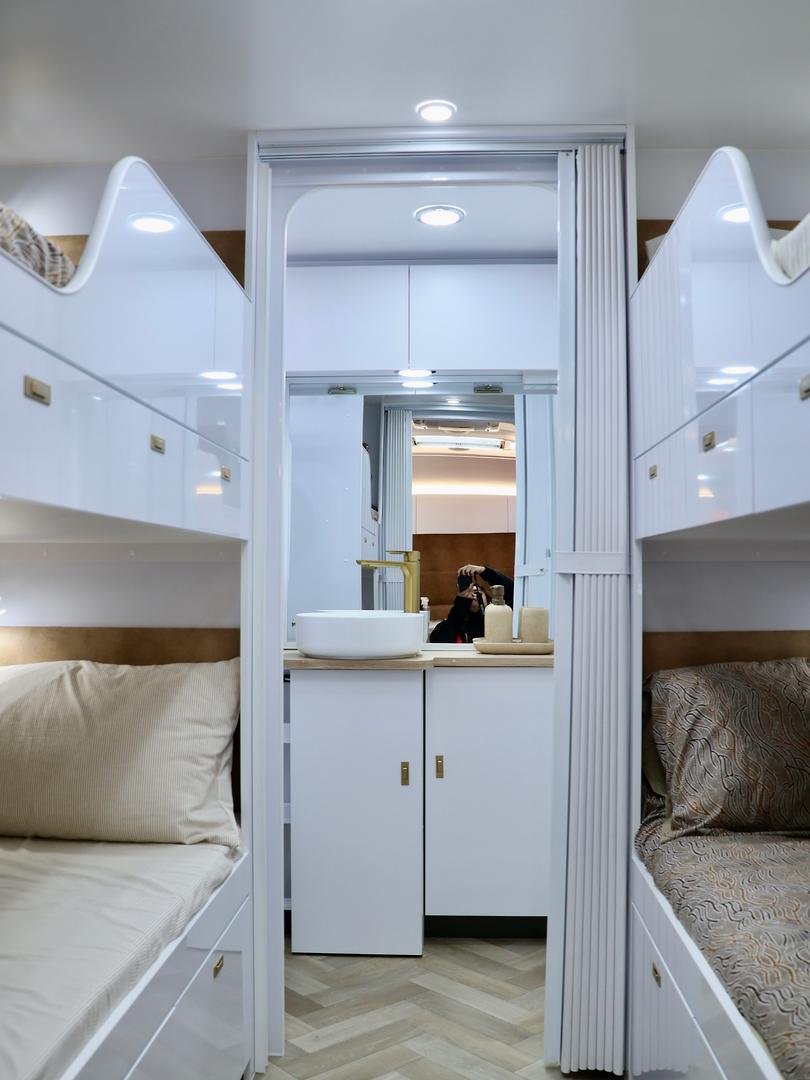

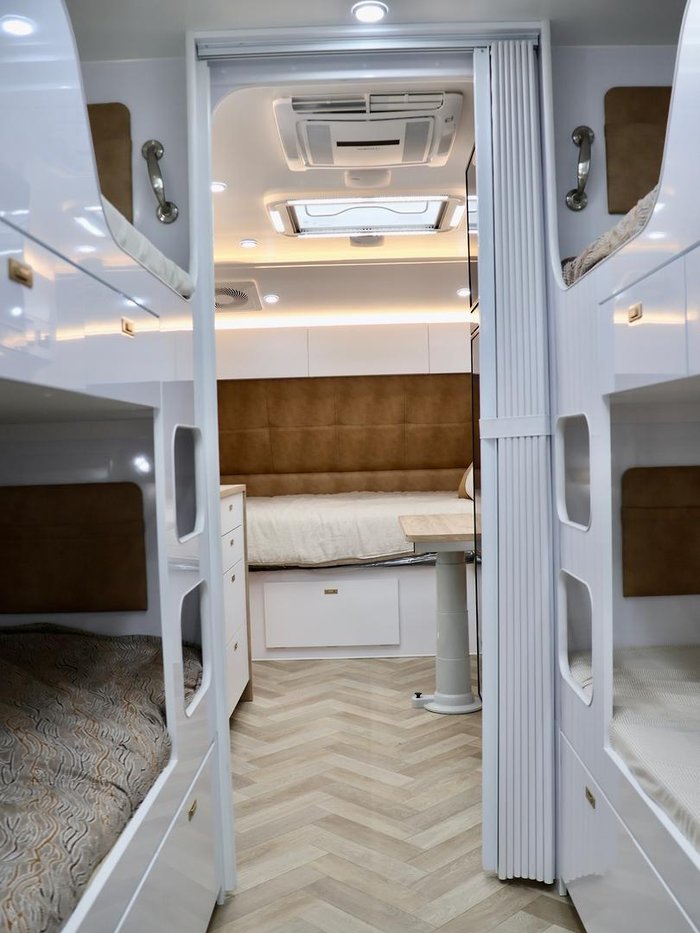

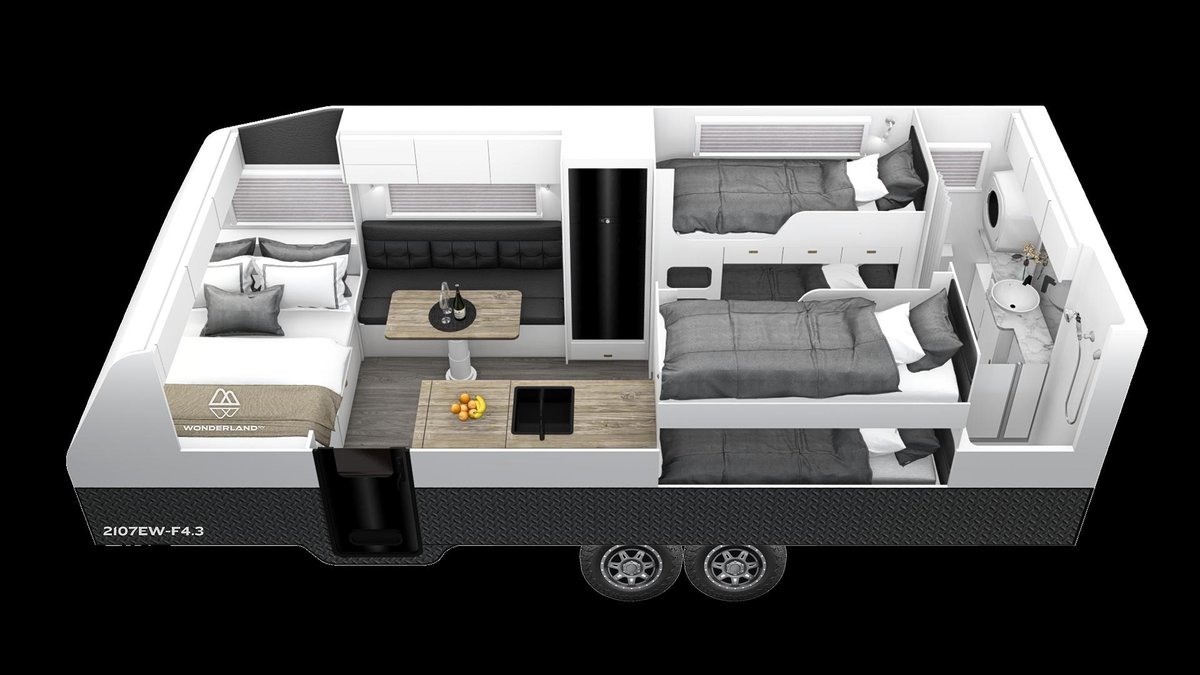

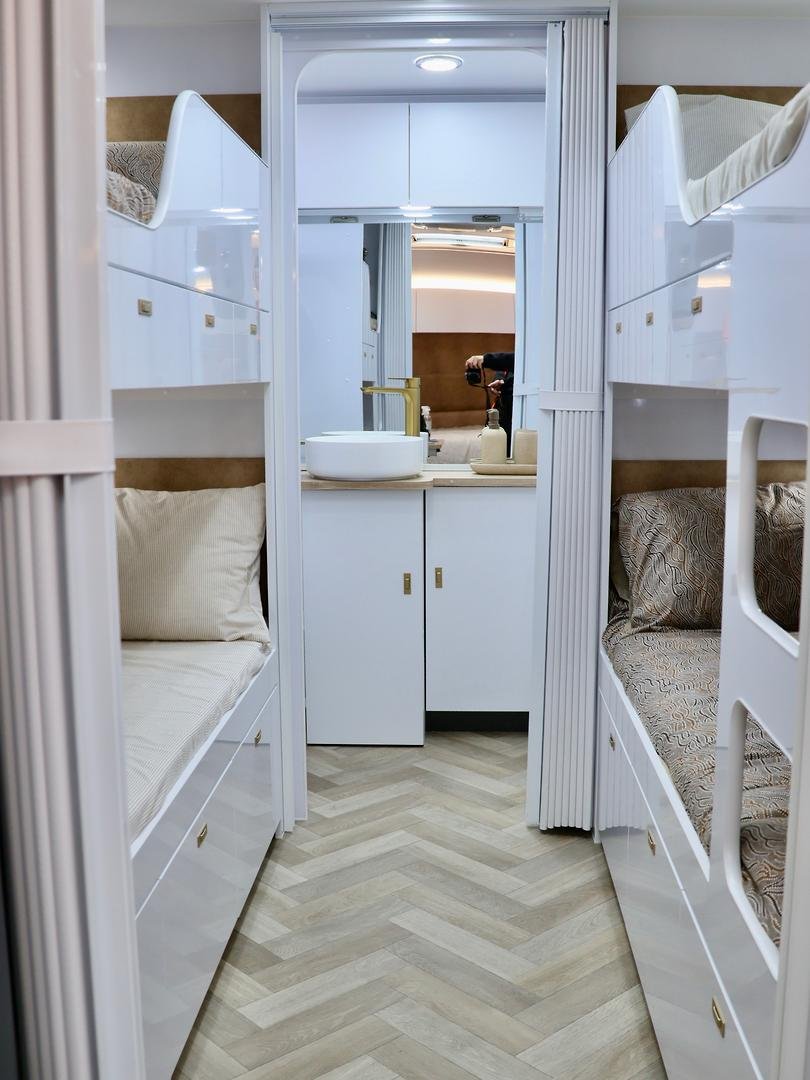

BUNK LAYOUTS
190cm Long x 76cm Wide Bunks
120 kg Bunk Loading Capacity
Bunks Come with Upholstered Bed Head, Reading Light, USB
Built In Ladder with Grab Handle
Choice of Concertina Door Into Bunk Area

CONSTRUCTION
19mm Structural Grade Ply CAD Designed, CNC Router Cut, Interlocking Jigsaw Frame Where The Walls, Furniture and Cabinetry Are All Locked Into Each Other For Superior Strength, Durability and Off-Road Performance.
One piece 35mm Sandwich Panel Composite Roof which wraps around the Front & Back- NO JOINS
XPS Insulation
Honeycomb Floor – Lightweight, Waterproof & One Piece

WEIGHTS
ATM: 3500kg
Ball Weight: 160kg
TARE Weight: 2800kg
Travel Height: 3200mm
Travel Length: 9002mm
