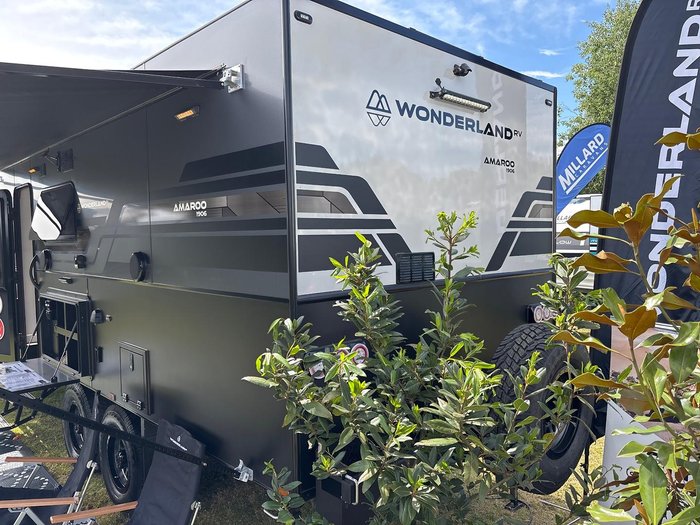

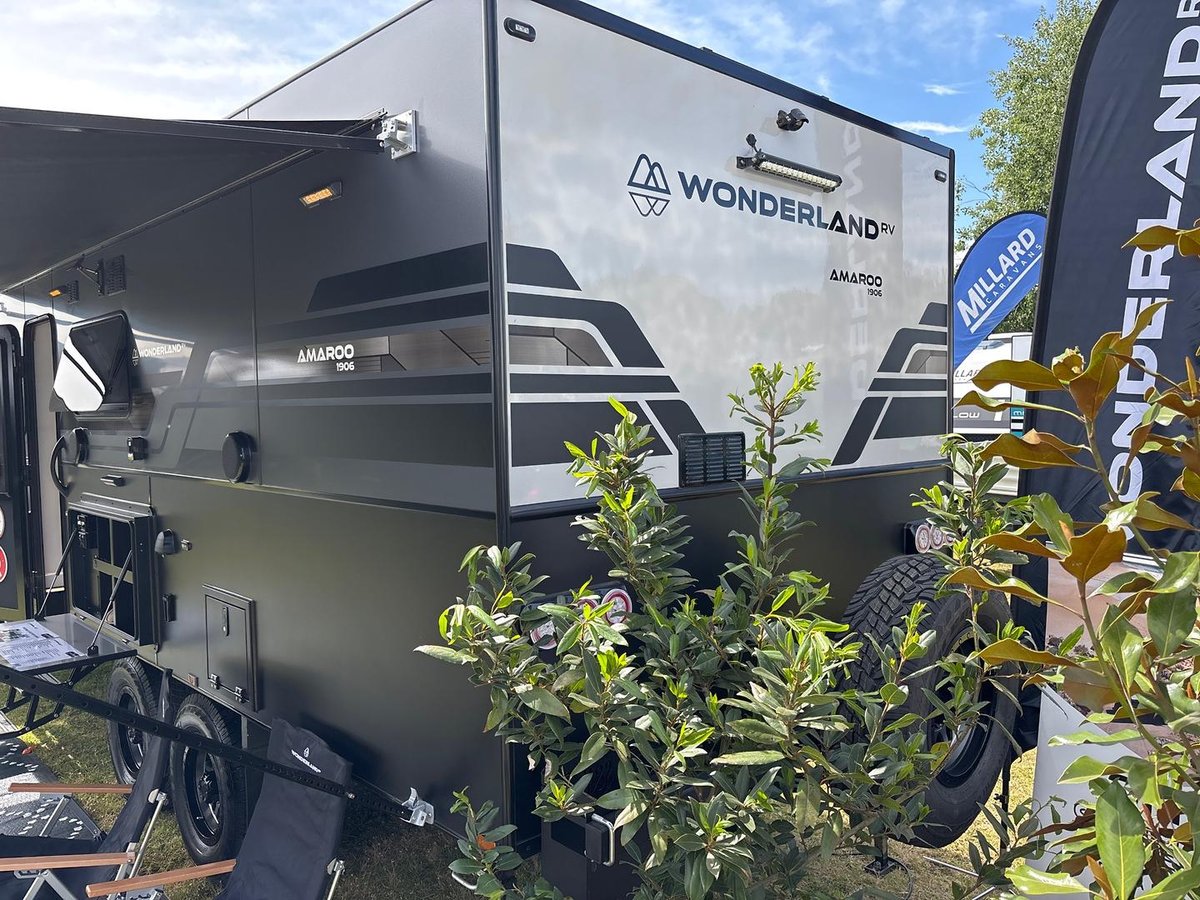

2025 Wonderland RV Amaroo 3 Bunk

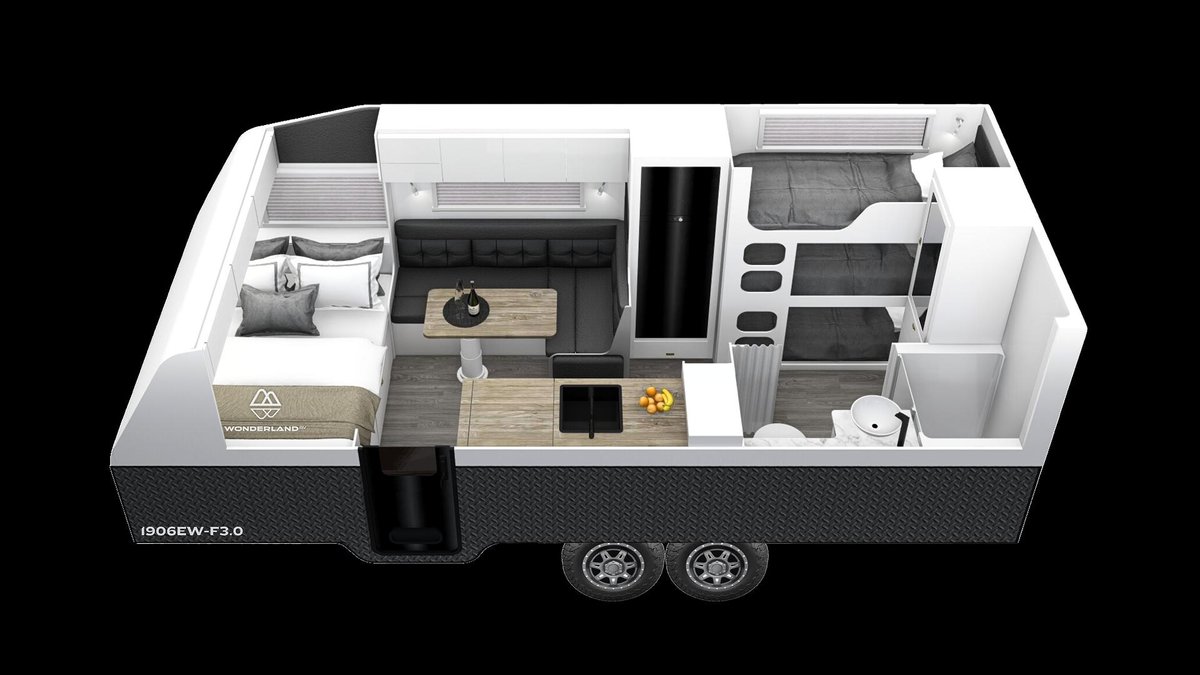

This compact 19ft layout is the perfect size to get you into those tight, hard to get into free camping spots

Made with Aluminium Riveted 25mm C-Section Interlocking Aluminium, Henrob Riveted
One piece 35mm Sandwich Pannel Composite Roof which wraps around the Front & Back- NO JOINS
XPS Insulation
Honeycomb Floor – Lightweight, Waterproof & One Piece


CHASSIS
Heavy-Duty Off-Road Chassis – Australian Made RHS Steel
6" A-Frame 1950mm & 4" Chassis & 4" Riser
3.7t Tuff-Ride Airbag Ready Coil Suspension & 12" Drum Breaks
Cruisemaster DO35 Hitch
16" 265/75R16 MPC All Terrain 6x139 ET0
Large Toolbox with Dual Slides & 12v Anderson Plug
2 x Jerry Can Holder
4-Arm Bumper Bar
Double Aluminium Step
Fully Lined Gal Sheet Tunnel Boot

ELECTRICAL
300Ah Of Lithium Battery
Redarc Alpha 50 Battery Management System
4 x 200W Solar Panels
2600W Inverter

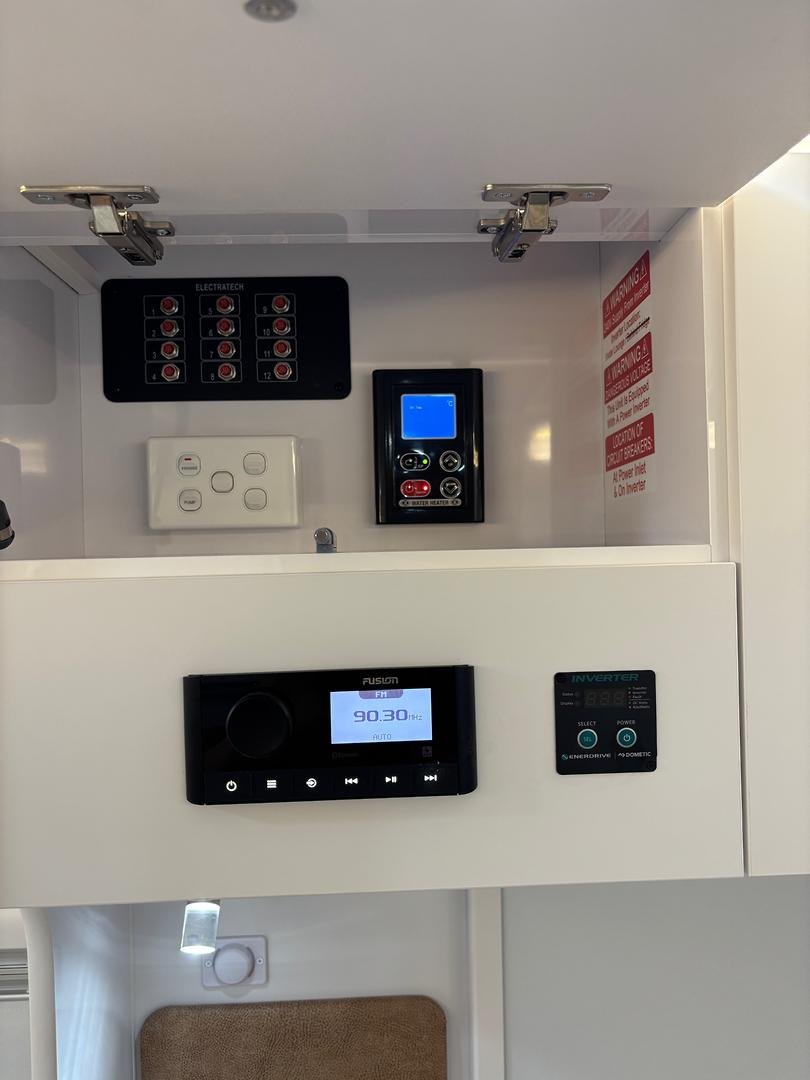

Fusion Entertainment Unit & Speakers

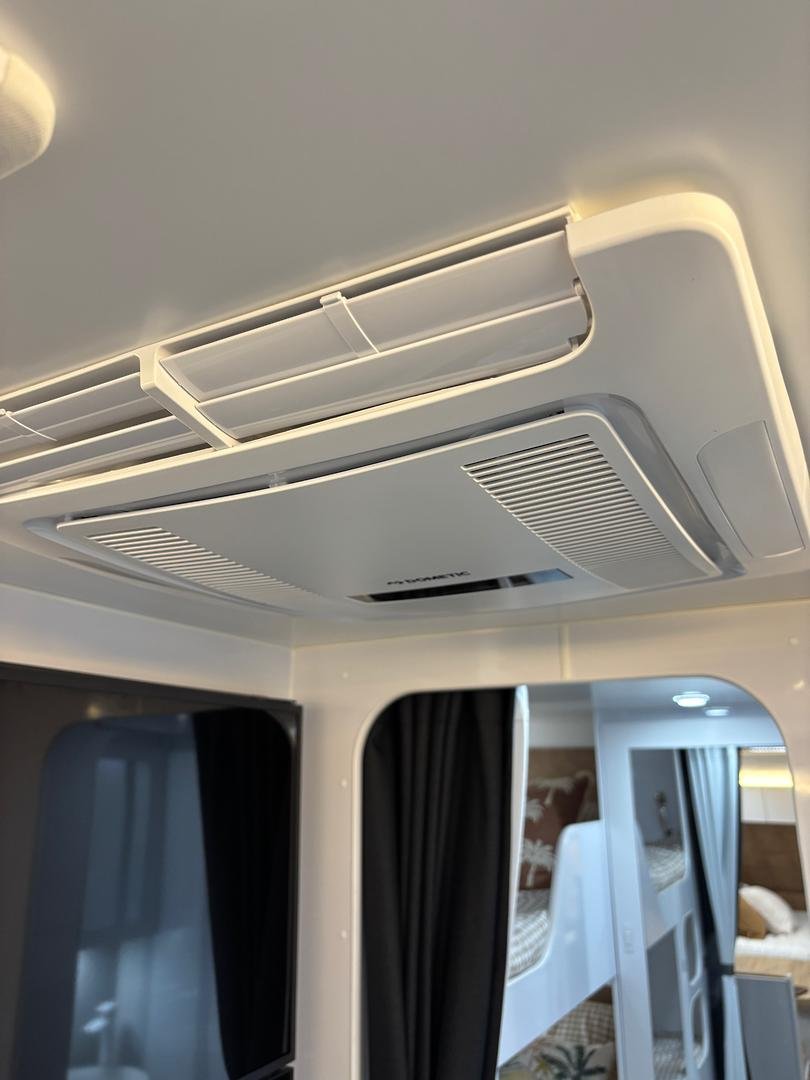

Dometic Freshjet 2.9kw Air Conditioner

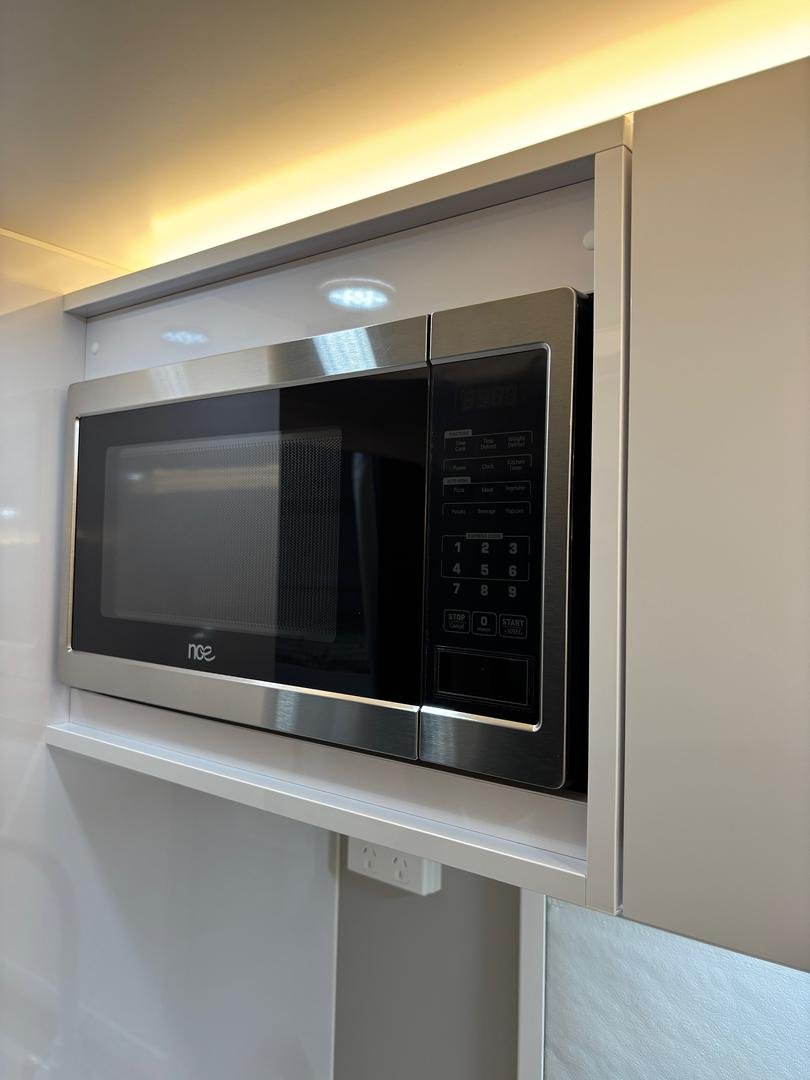

23L Mirror Finish Flatbed Microwave
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Windscreen Monitor
12v Powered Dust Reduction Unit
24" Smart TV / DVD
Cowfish TV Antenna
Starlink Provision
Multiple USB/USBC Outlets

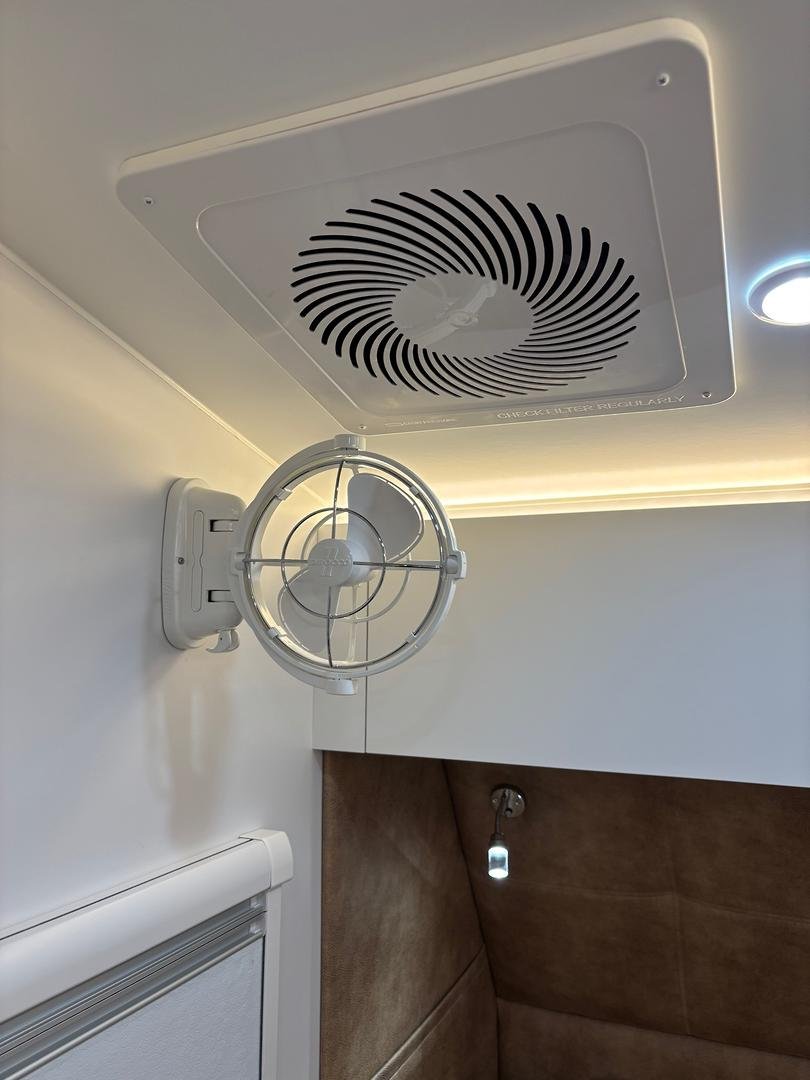

4 x Sirocco Fans
TV Points 1 x External TV Bracket & 1 x Internal TV Bracket
6 External Lights: Front, Rear & Roadside, 3 x 2 Stage LED Insect Repellent Lights Doorside inc Over BBQ
3" LED Downlights
LED Taillights
12 Pin Tow Plug

PLUMBING
Roto Molded Poly Water Tanks With Brass Fittings
2 x 100L Fresh Water Tanks
1 x 100L Grey Water Tank with Grey Water Bypass
Gal Sheet Water Tanks & Plumbing Protection
Portable Induction Cooktop

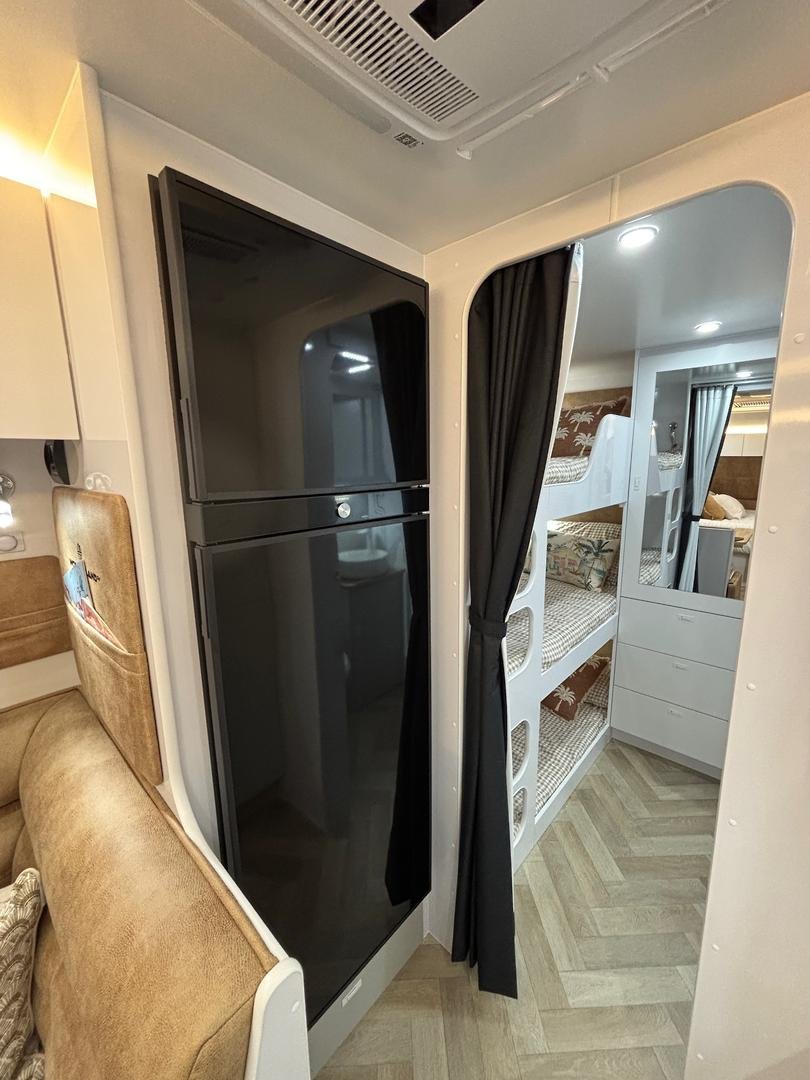

224L Dometic Compressor Fridge
External Hot & Cold Shower

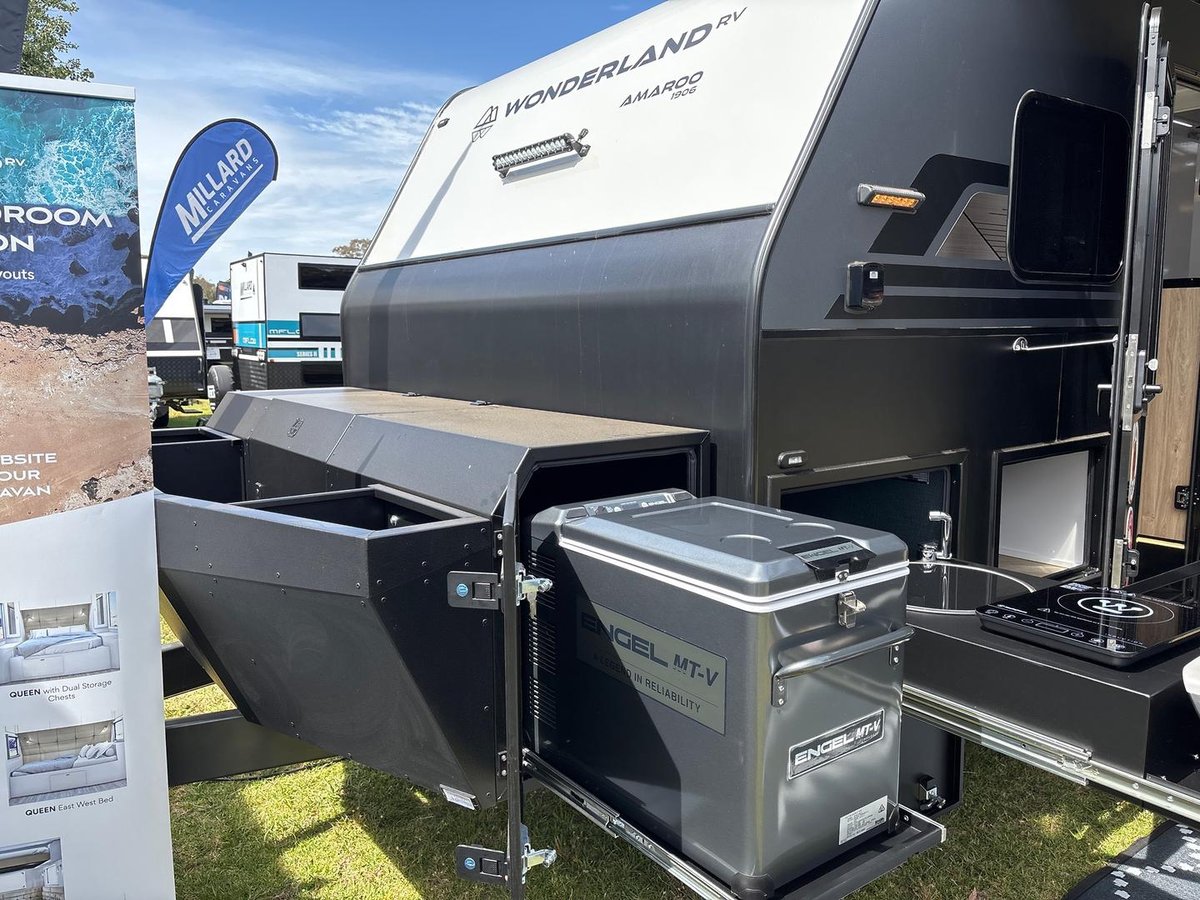

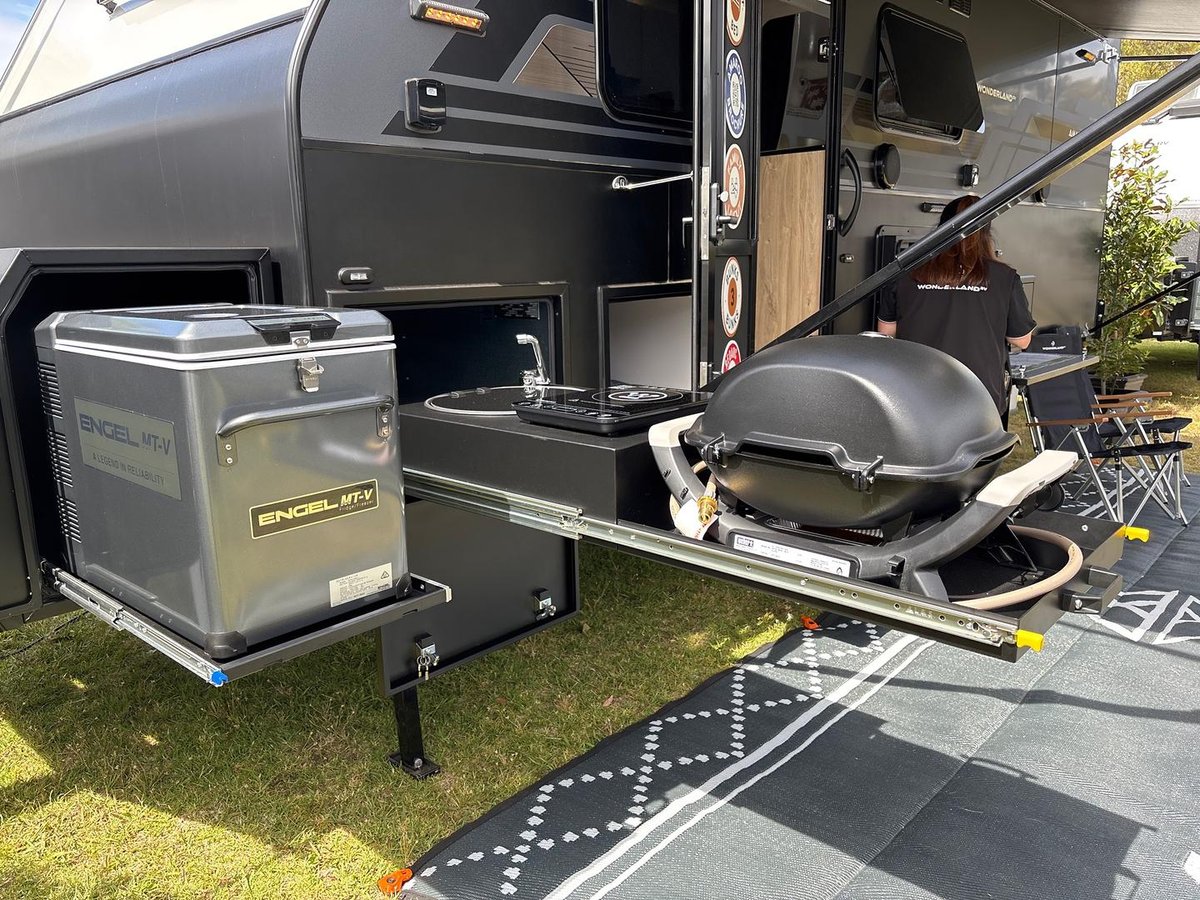

External Slide Out Kitchen with Sink, Portable Induction and BBQ Provision
1 x Gas Bayonet
2 x 4kg Gas Bottles
Gas Endless Hot Water System
1 x Cold Tap On A Frame
Quick Fill & Mains Connection & 1 Separate Filler & Cap

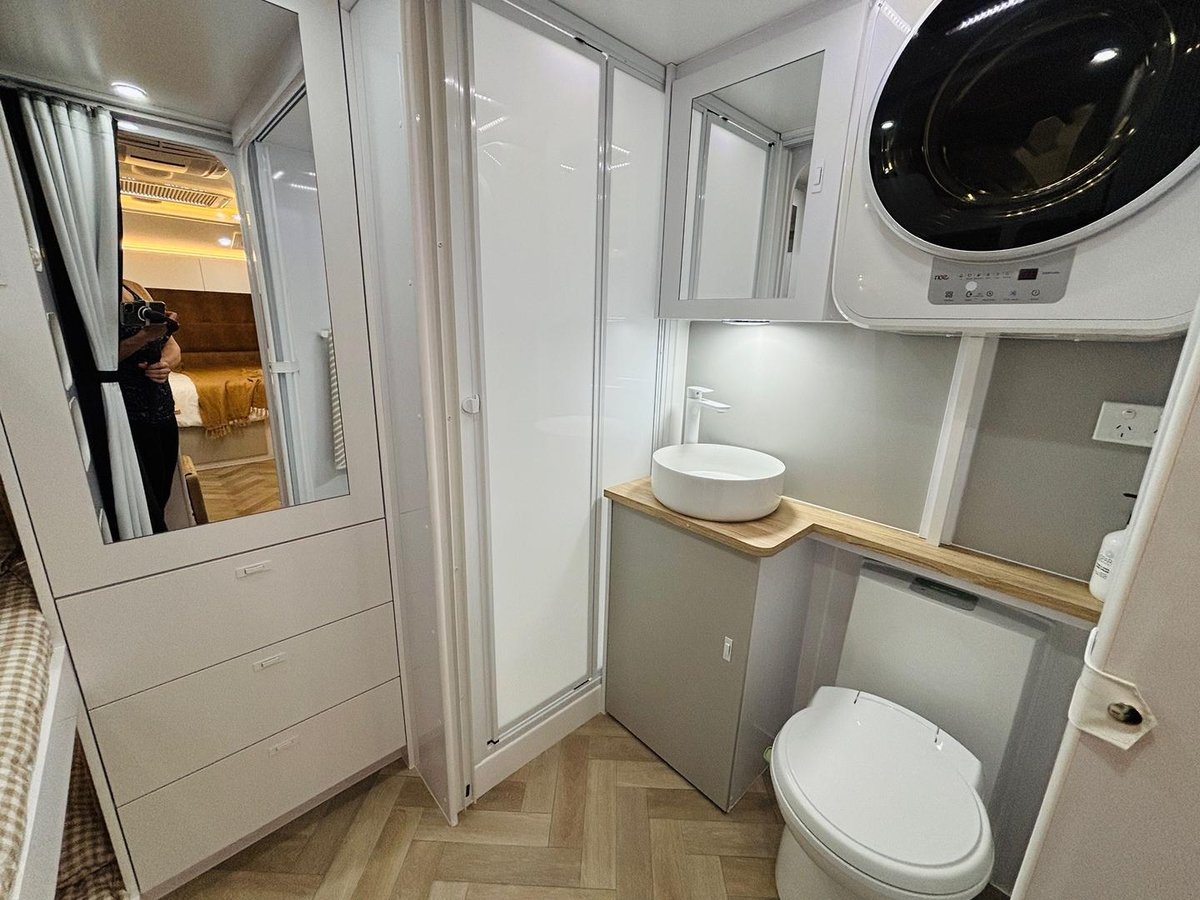

3kg Wall Mounted Washing Machine
3 Way White Tall Gooseneck Kitchen Tap with Filter

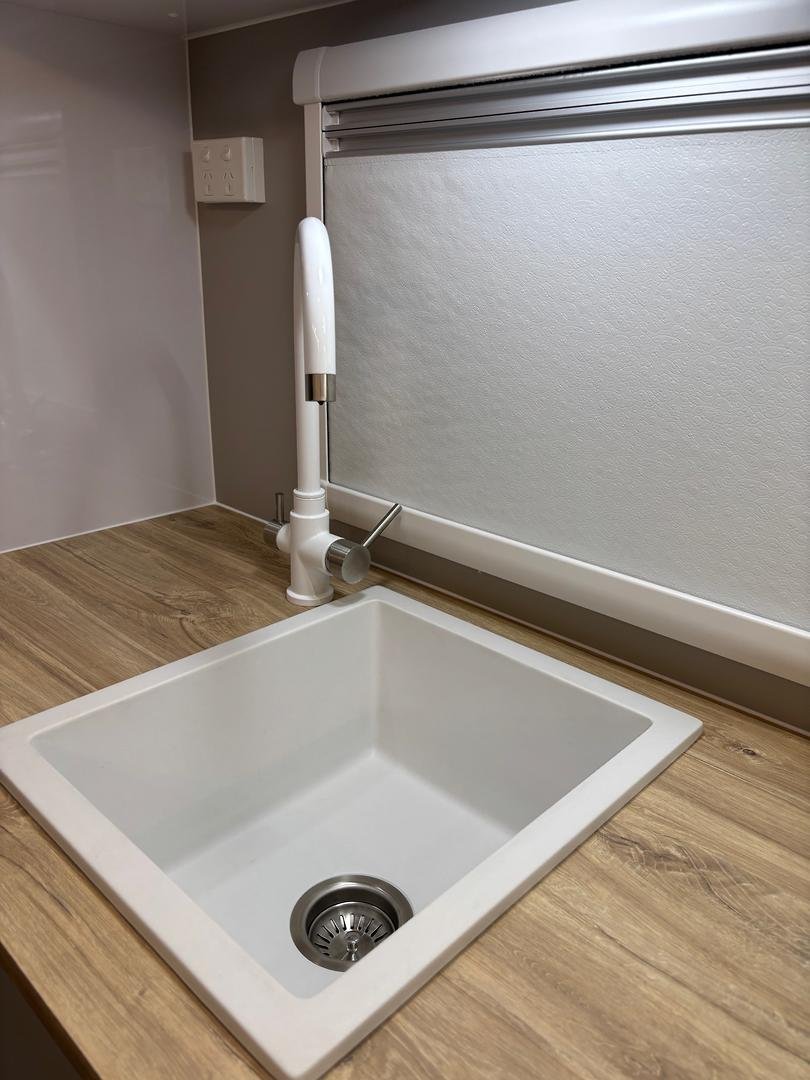

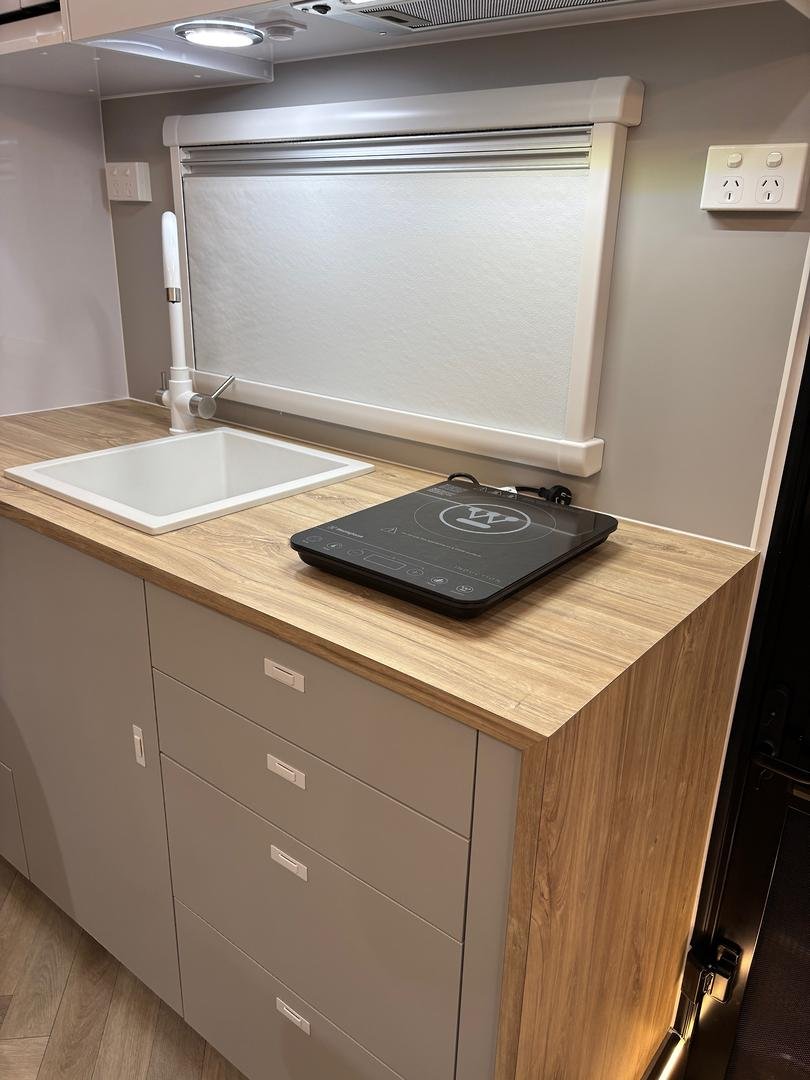

White Granite Kitchen Sink
White Ceramic Ensuite Sink
1 Piece Fibreglass Shower
Thetford Separation Toilet

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm Protection Plate

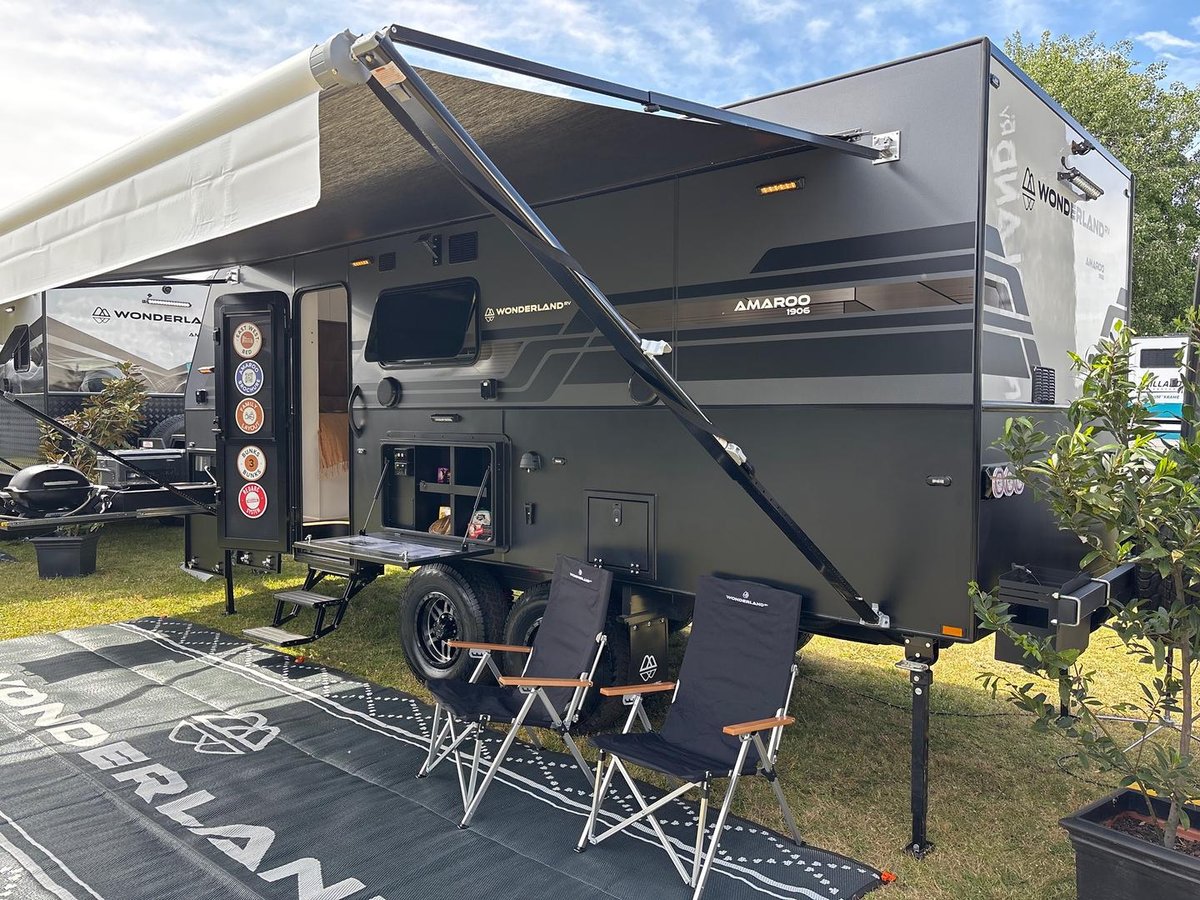

Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
Aluminium High Access Tunnel Boot Doors

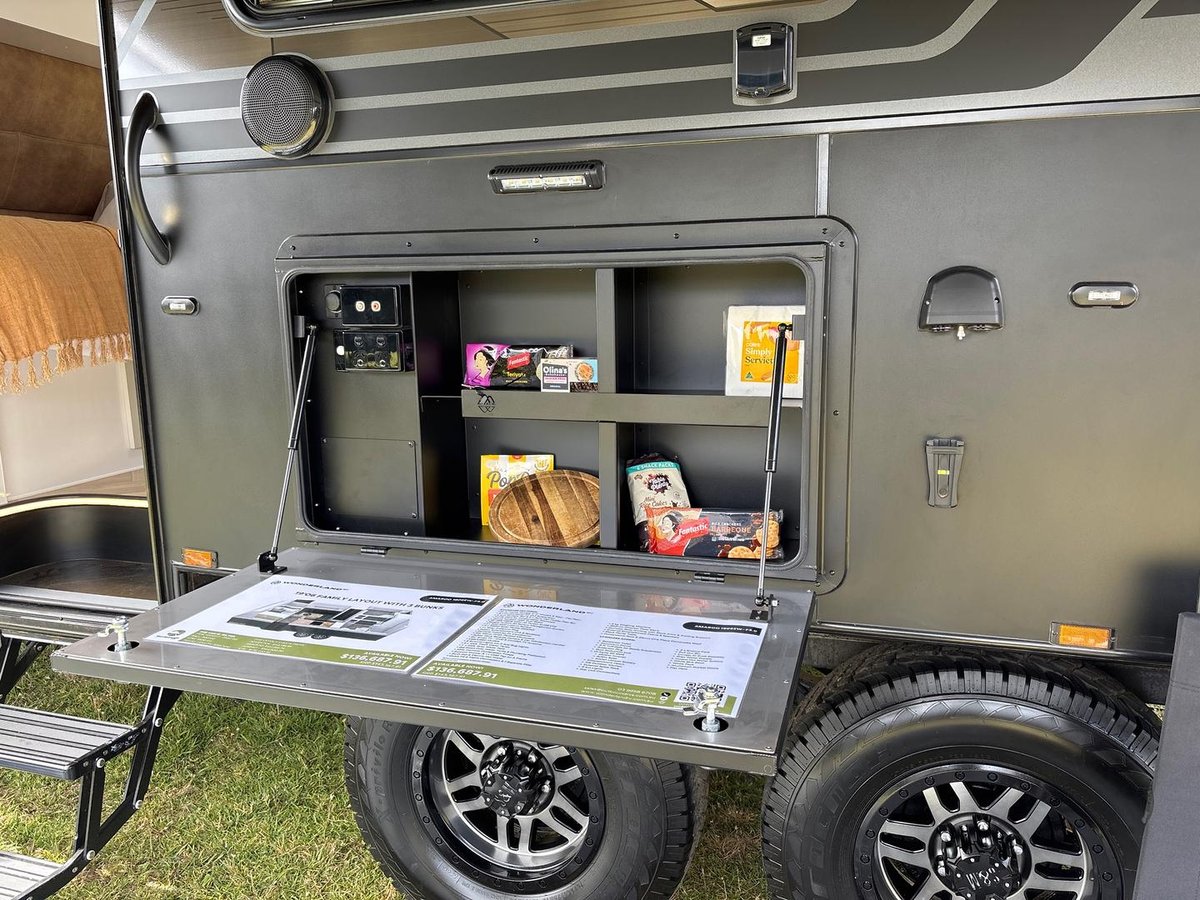

External Spice Rack & Picnic Table with GPO & USB
Aussie Traveller Black 1750x622 Entry Door with Security Screen & Triple Locking Mechanism
Large Double Glazed Windows with Dark Tint
Windows with Non Concertina Fly Screen & Block Out

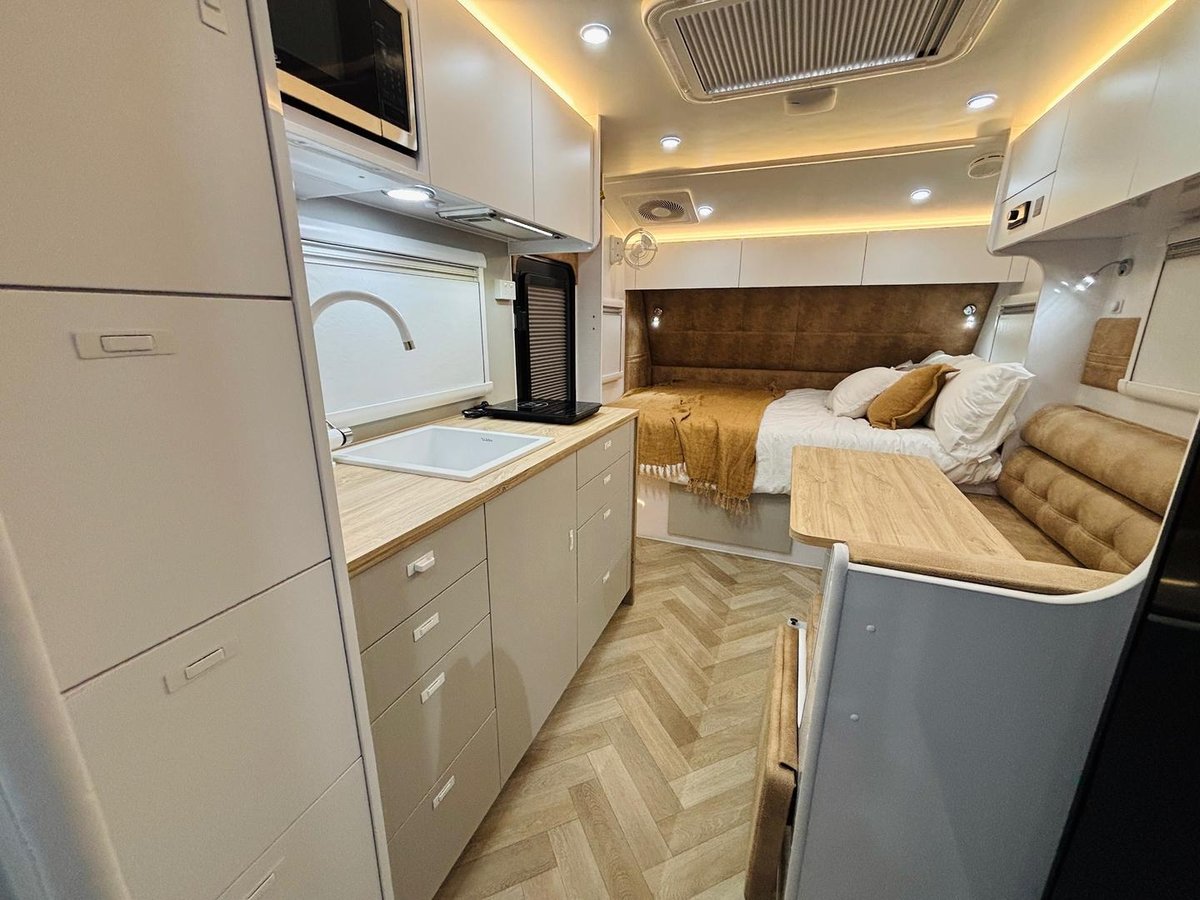

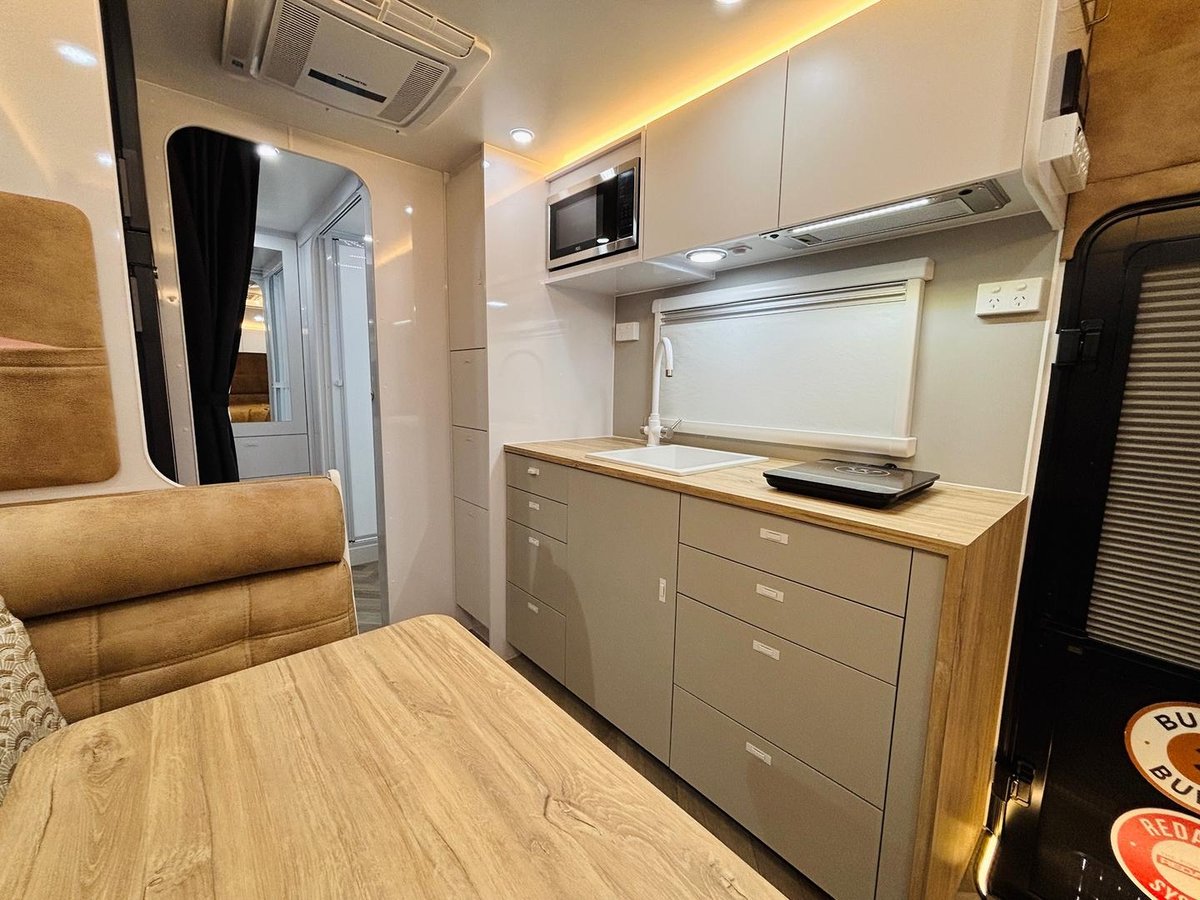

INTERNAL
CNC Lightweight Ply Furniture - Precision Cut with No Gaps
Lightweight European Plywood Laminate Benchtops & Doors
Pull Out Dual Bin
Large Metal Sided Drawers

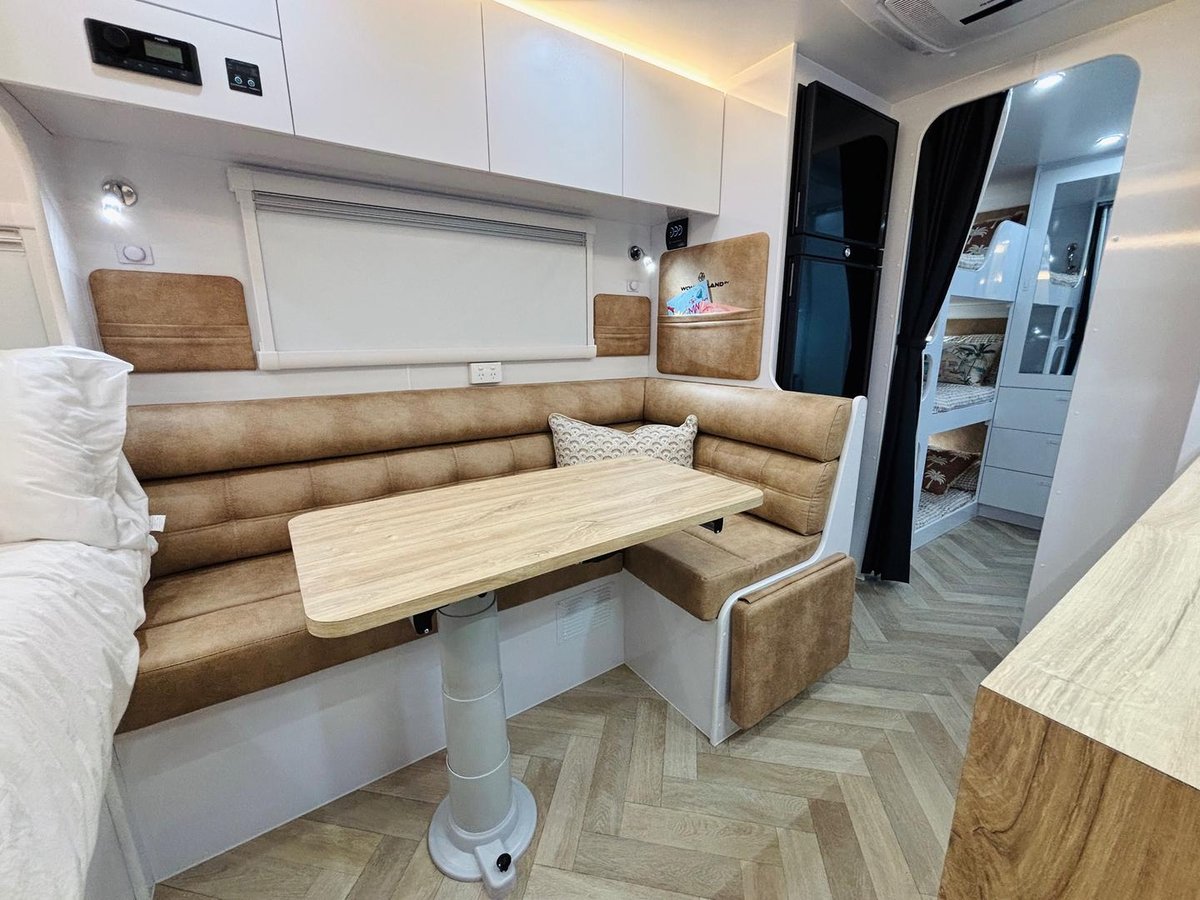

Firm Back Lounge Seating With Support & Footrest
Telescopic Table Leg

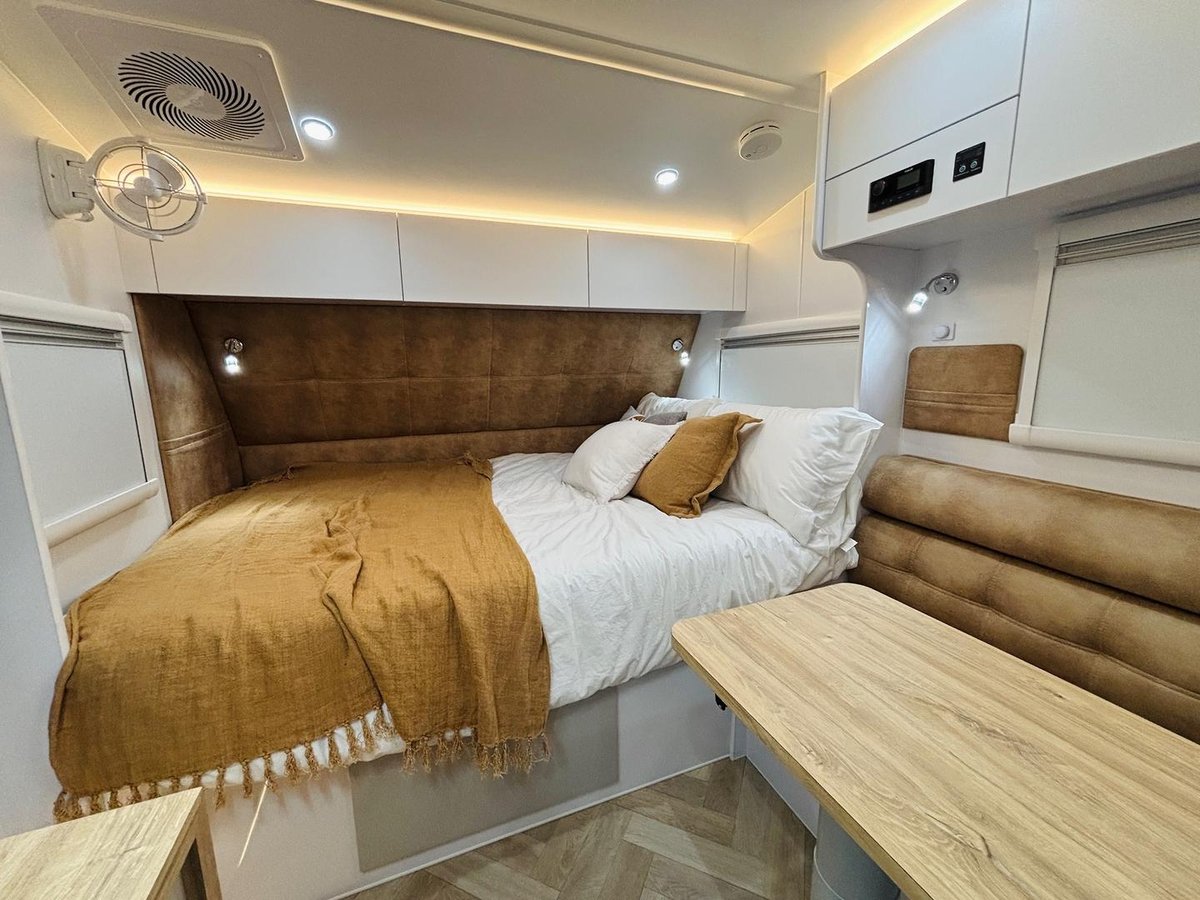

Pillowtop Mattress Queen 6’3"
Bedhead & Magazine Pockets
LED Hatches with Fans In Bathroom
Large Roof Skylight
Roller Blind On Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

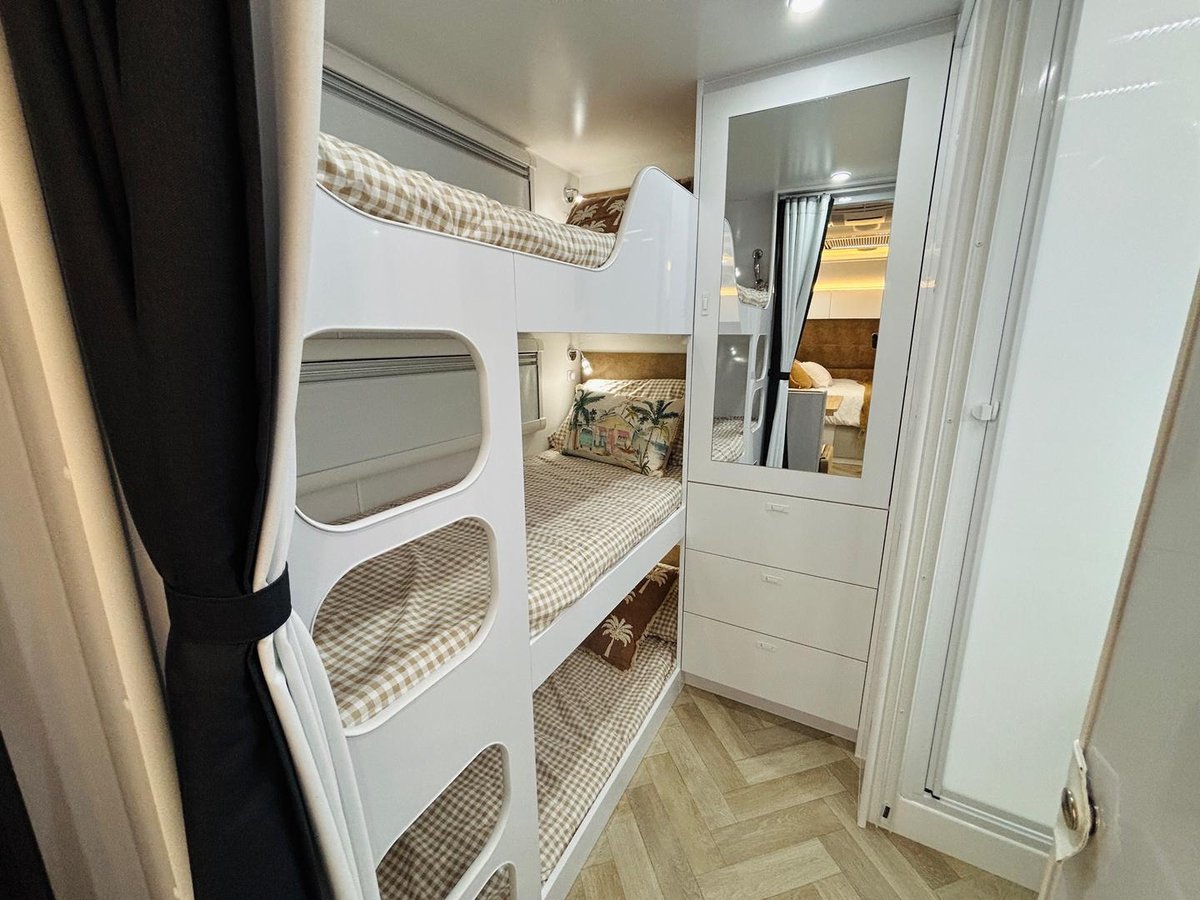

BUNK LAYOUTS
190cm Long x 76cm Wide Bunks
120 kg Bunk Loading Capacity
Bunks Come with Upholstered Bed Head, Reading Light, USB
Built In Ladder with Grab Handle
Curtain Into Bunk Area


WEIGHTS
ATM: 3500kg
Ball Weight: 200kg
TARE Weight: 2840kg
Travel Height: 3200mm
Travel Length: 8395mm
