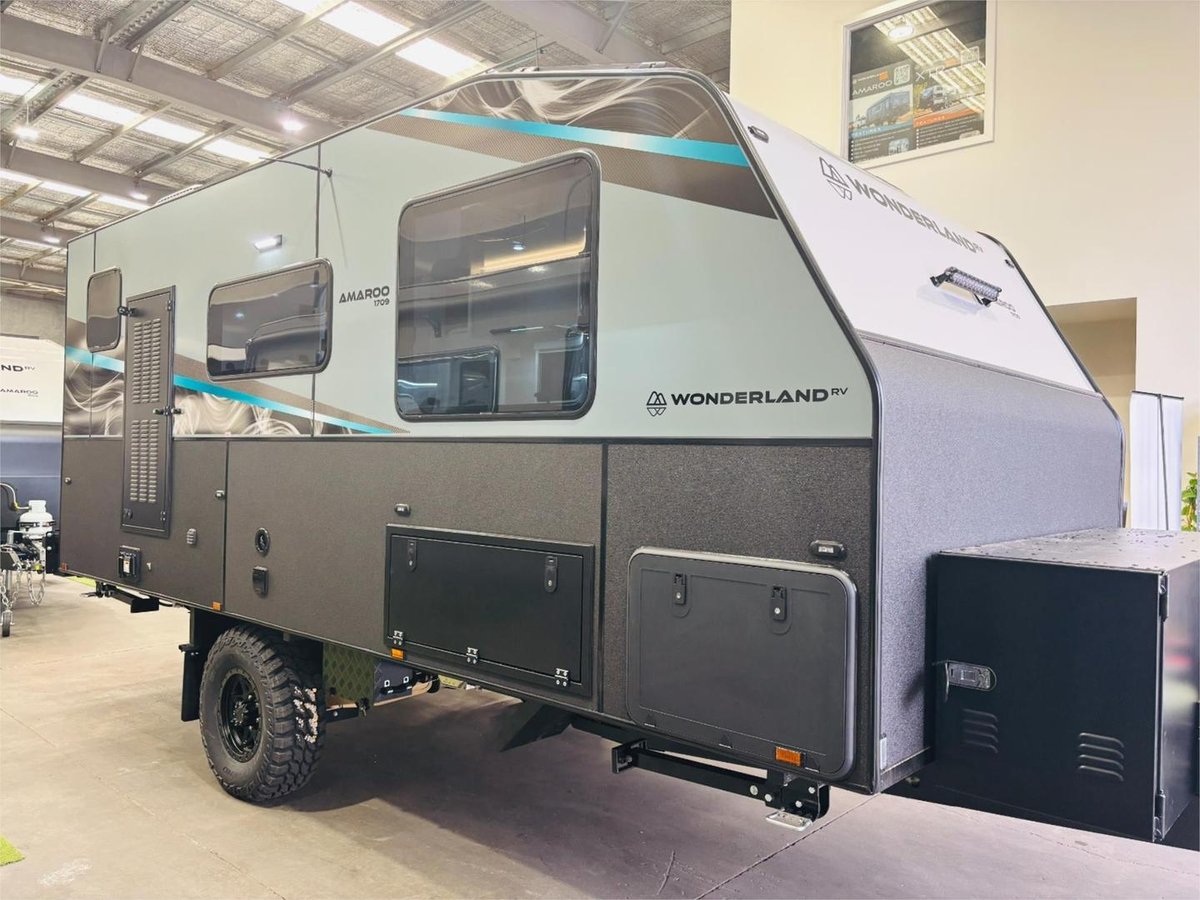

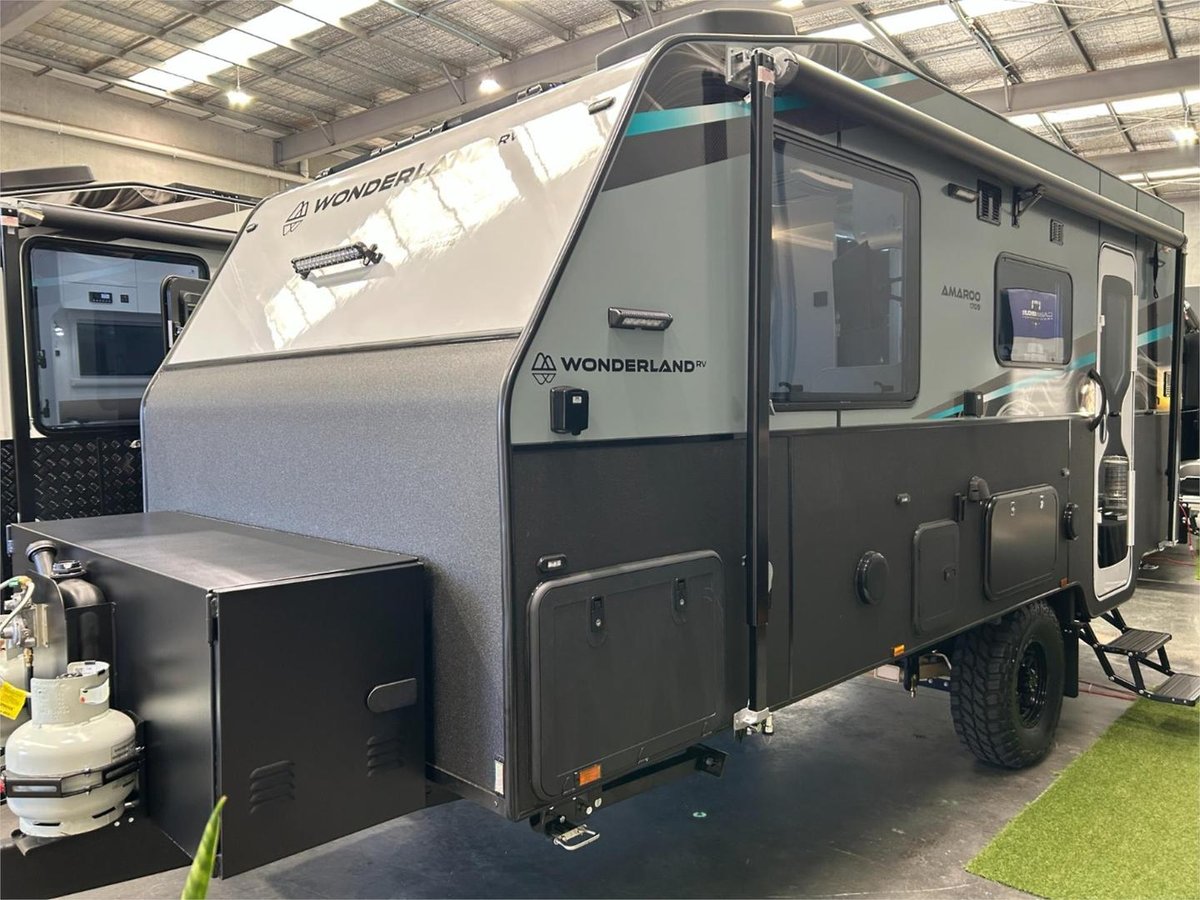

2024 Wonderland RV Amaroo

Compact in size but big on comfort, this 17'09" Wonderland couples van features a luxurious king bed, upgraded off-grid electricals, and airbag suspension — offering first-class style and functionality in a nimble, single axle package.

AMAROO SINGLE AXLE
CHASSIS
Heavy-Duty Off-Road Chassis – Australian Made RHS Steel
6" A-Frame 1950mm & 4" Chassis & 4" Riser

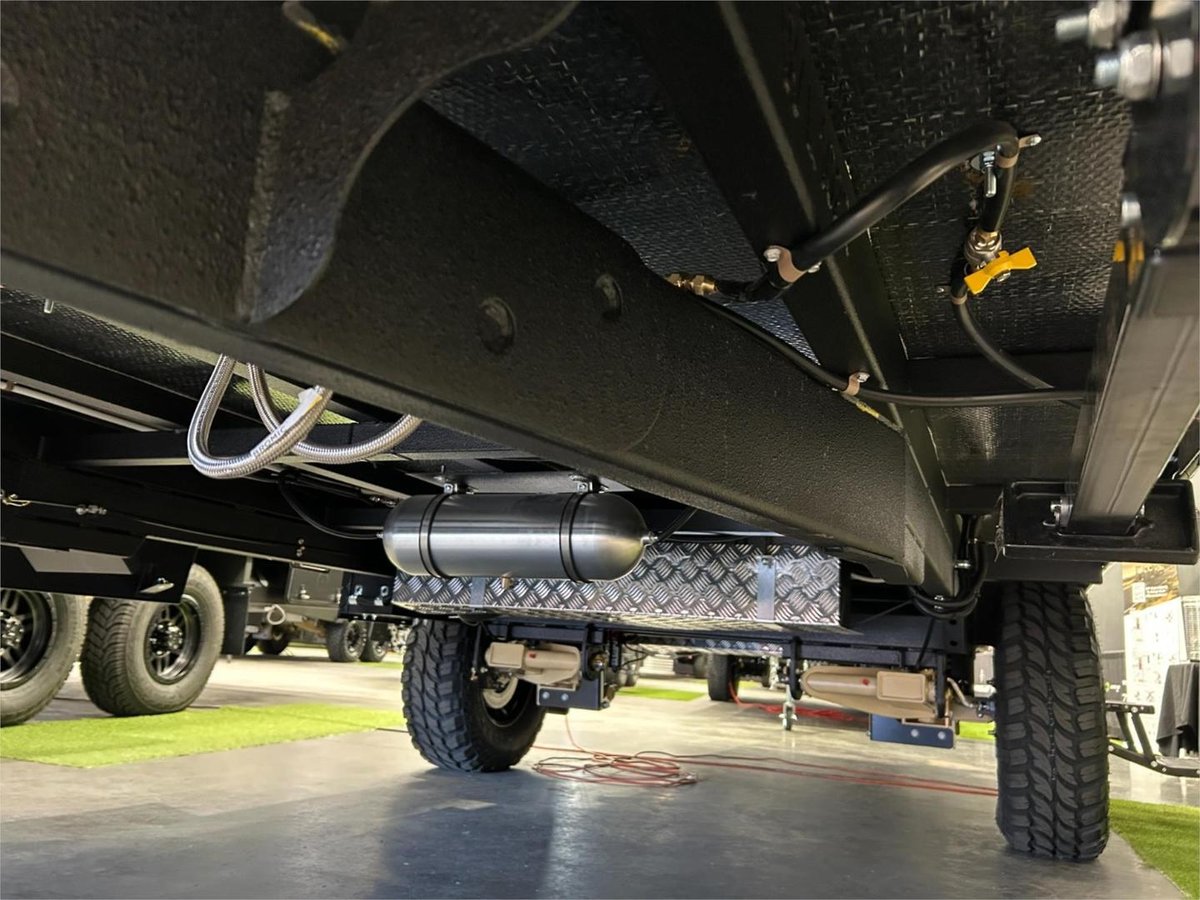

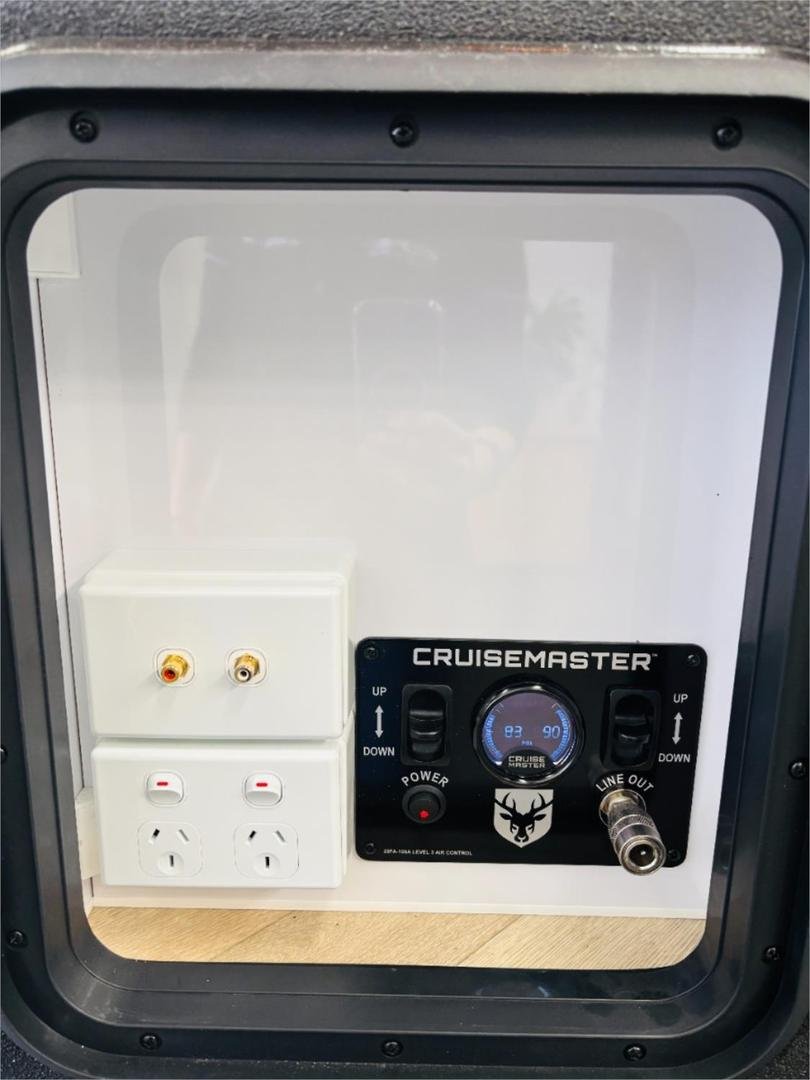

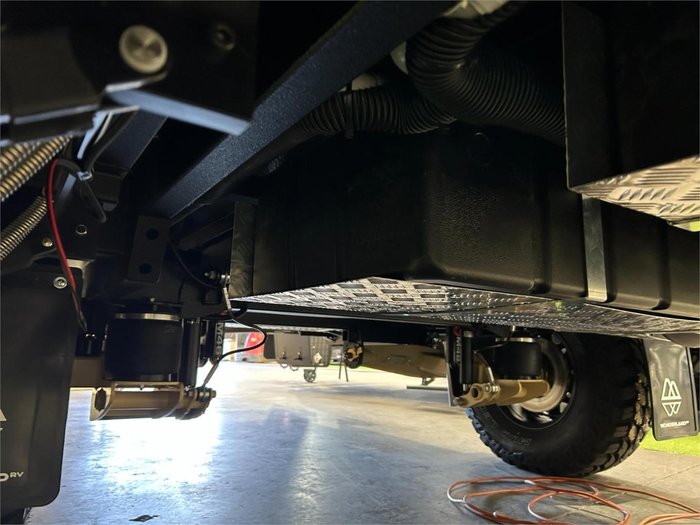

3T Cruisemaster ATX Lvl 3 Manual Airbag Suspension
Disc Brakes
Cruisemaster DO35 Hitch
16" 6 x 139 ETO & 285/75R16 Westlake MT 126 Index

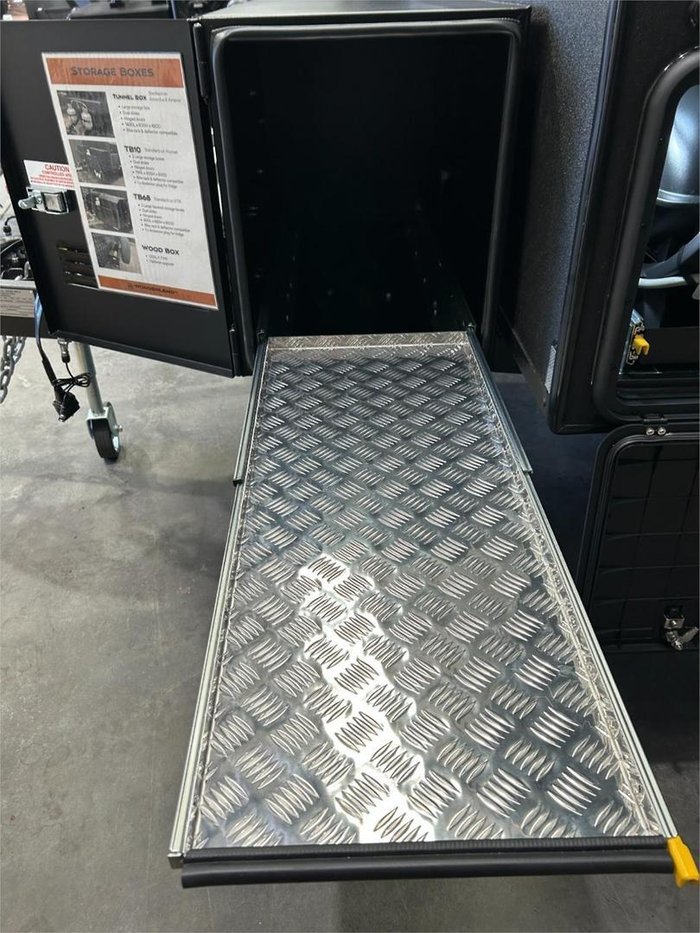

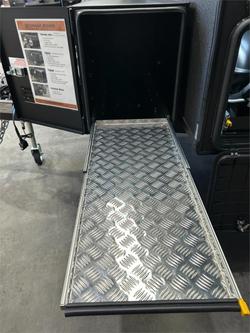

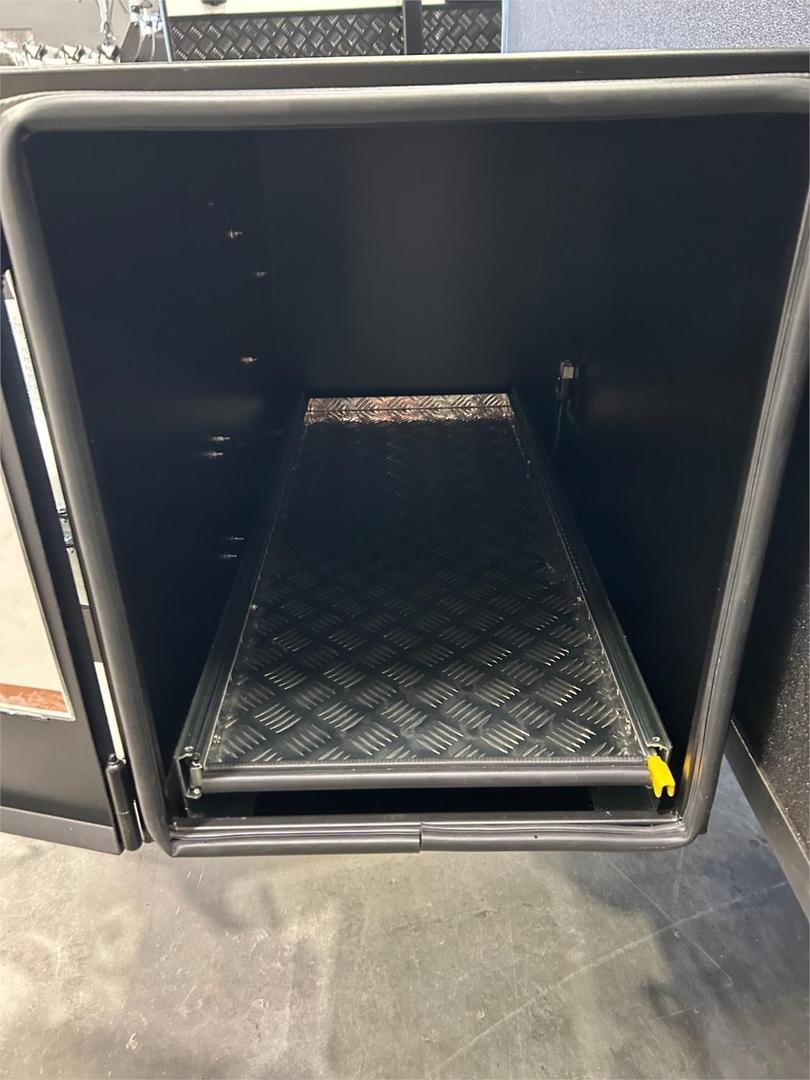

Large Toolbox with Dual Slides & 12v Anderson Plug
2 x Jerry Can Holder
4-Arm Bumper Bar
Double Aluminium Step

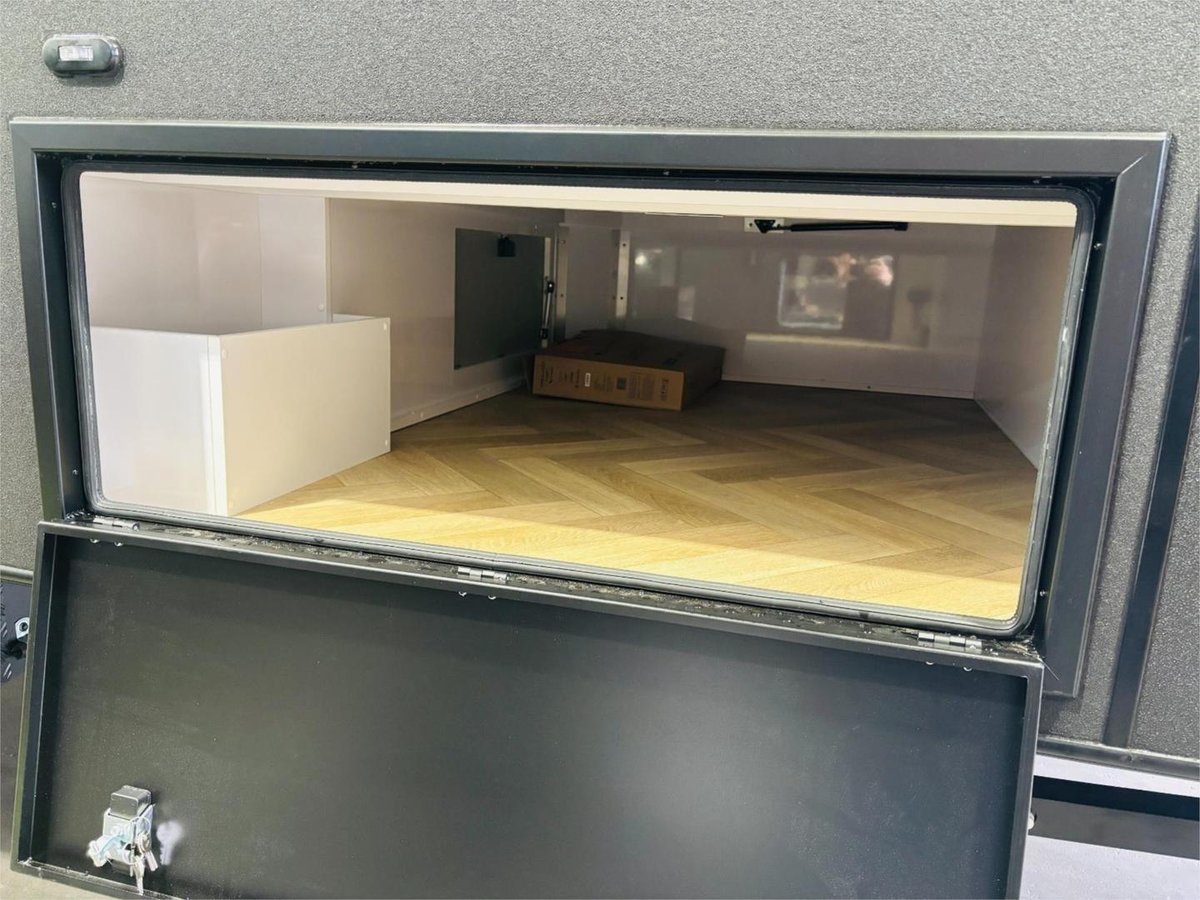

Fully Lined Gal Sheet Tunnel Boot

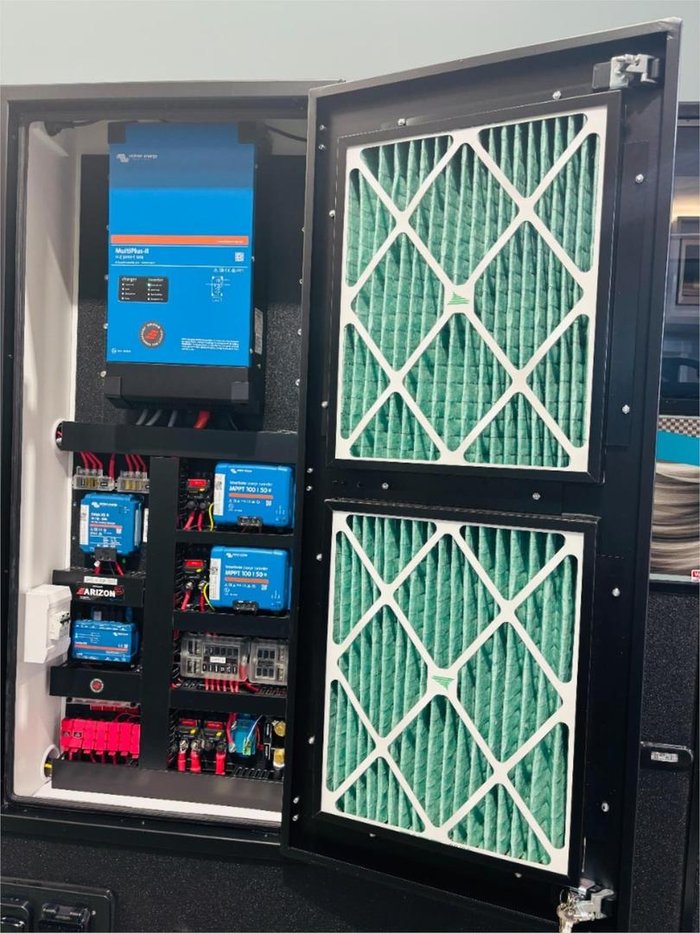

ELECTRICAL
400Ah of Lithium Battery

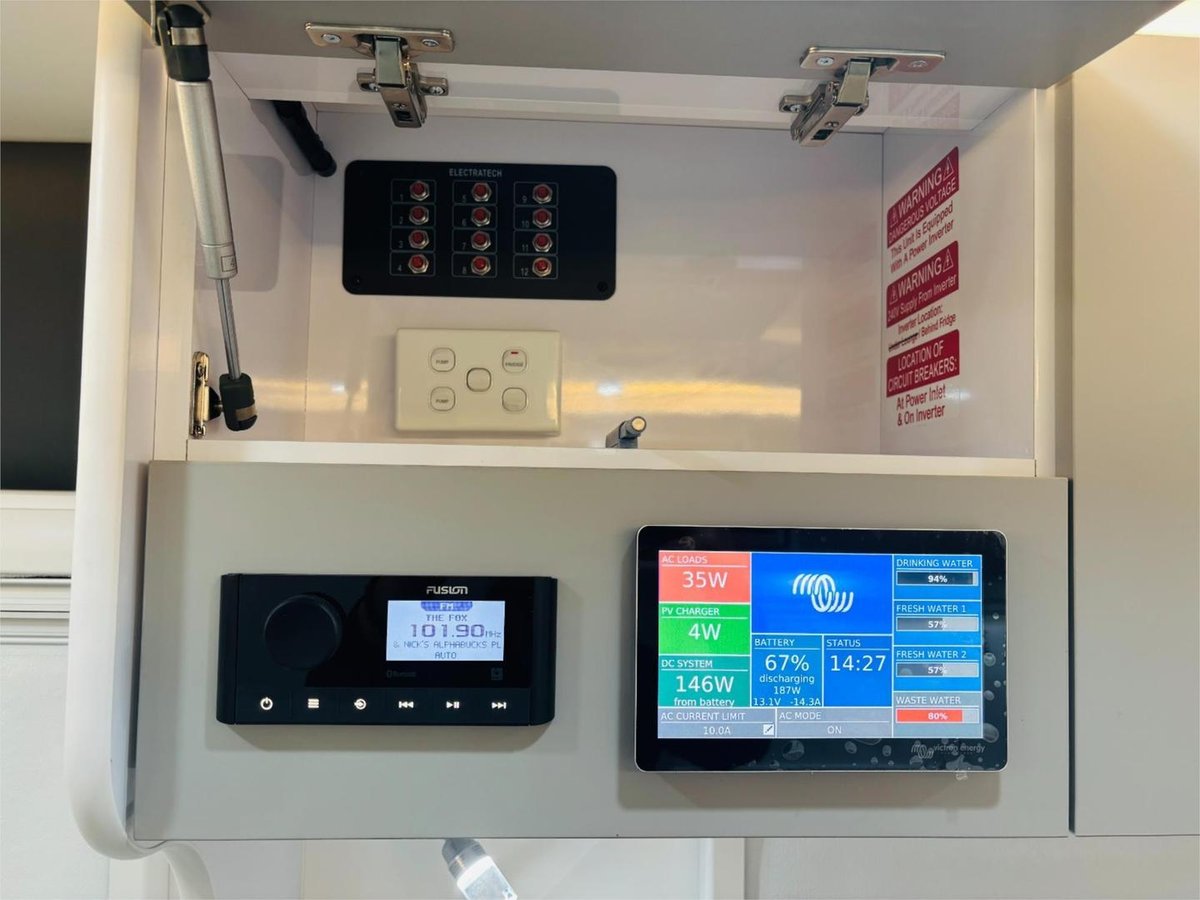

Victron Off-Grid Touch 50 Battery Management System

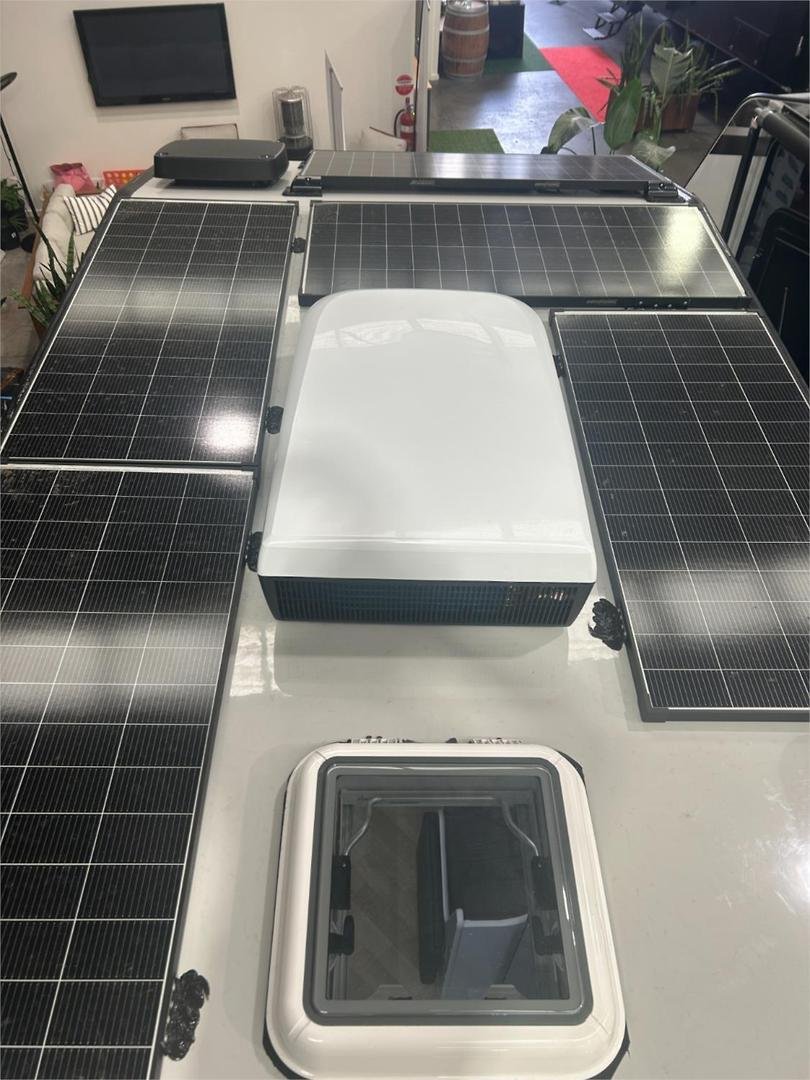

5 x 200W Solar Panels
3000V Inverter
Portable Solar Input
Fusion Entertainment Unit & Speakers

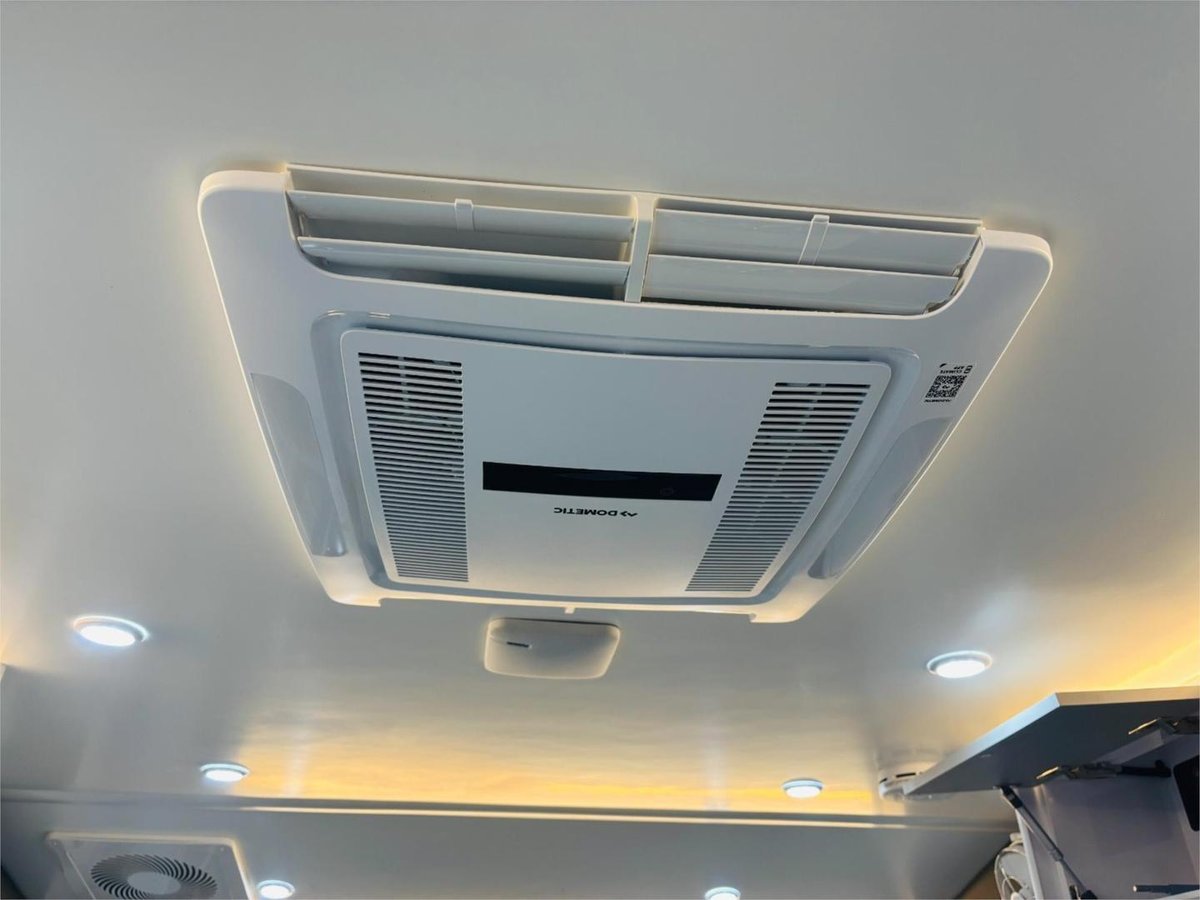

Dometic Freshjet 7 Series Plus 3.4kW Air Conditioner

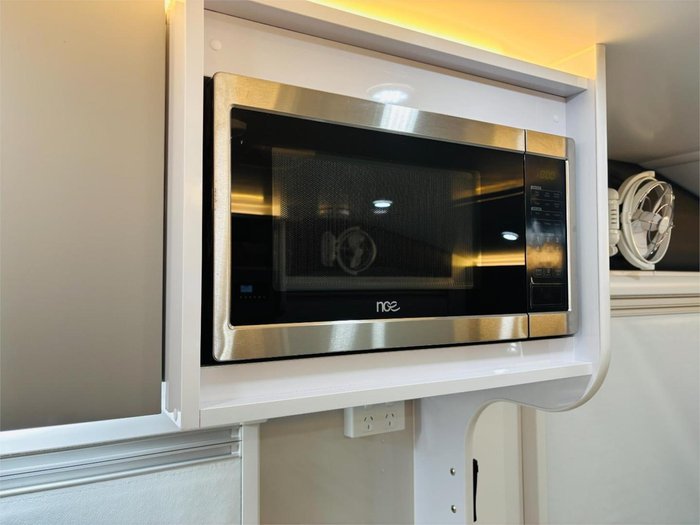

23L Mirror Finish Flatbed Microwave

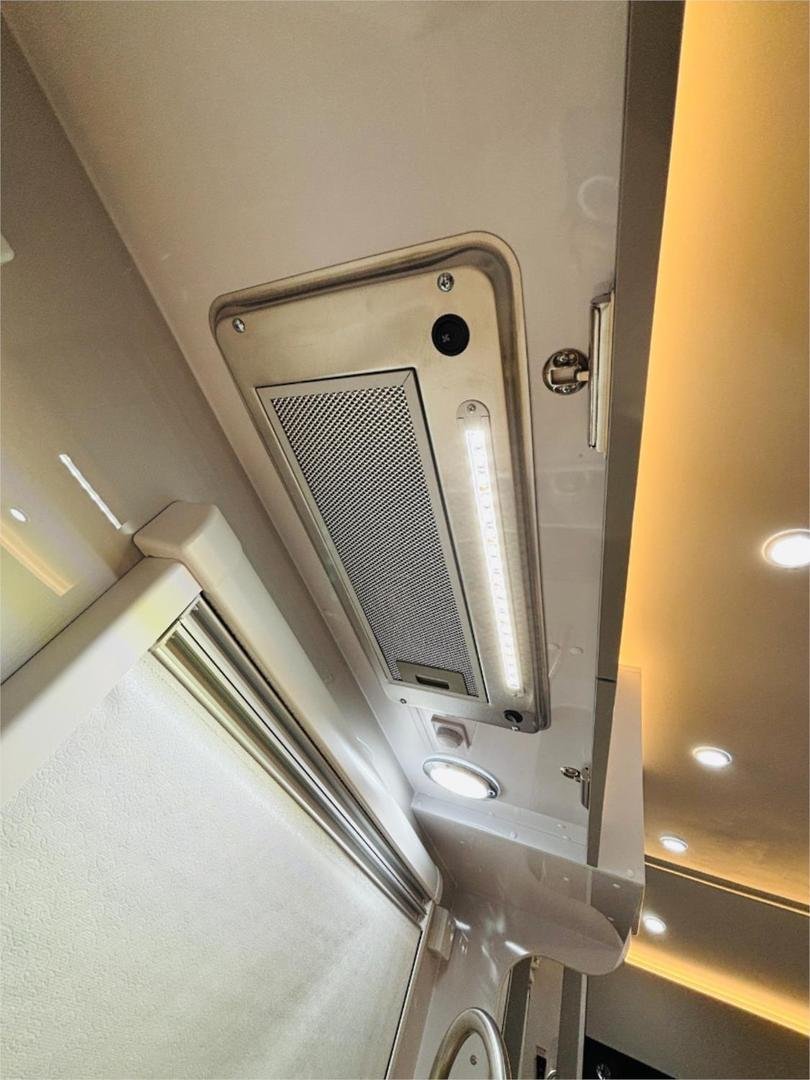

Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Windscreen Monitor
12v Powered Dust Reduction Unit
24" Smart TV / DVD
Cowfish TV Antenna

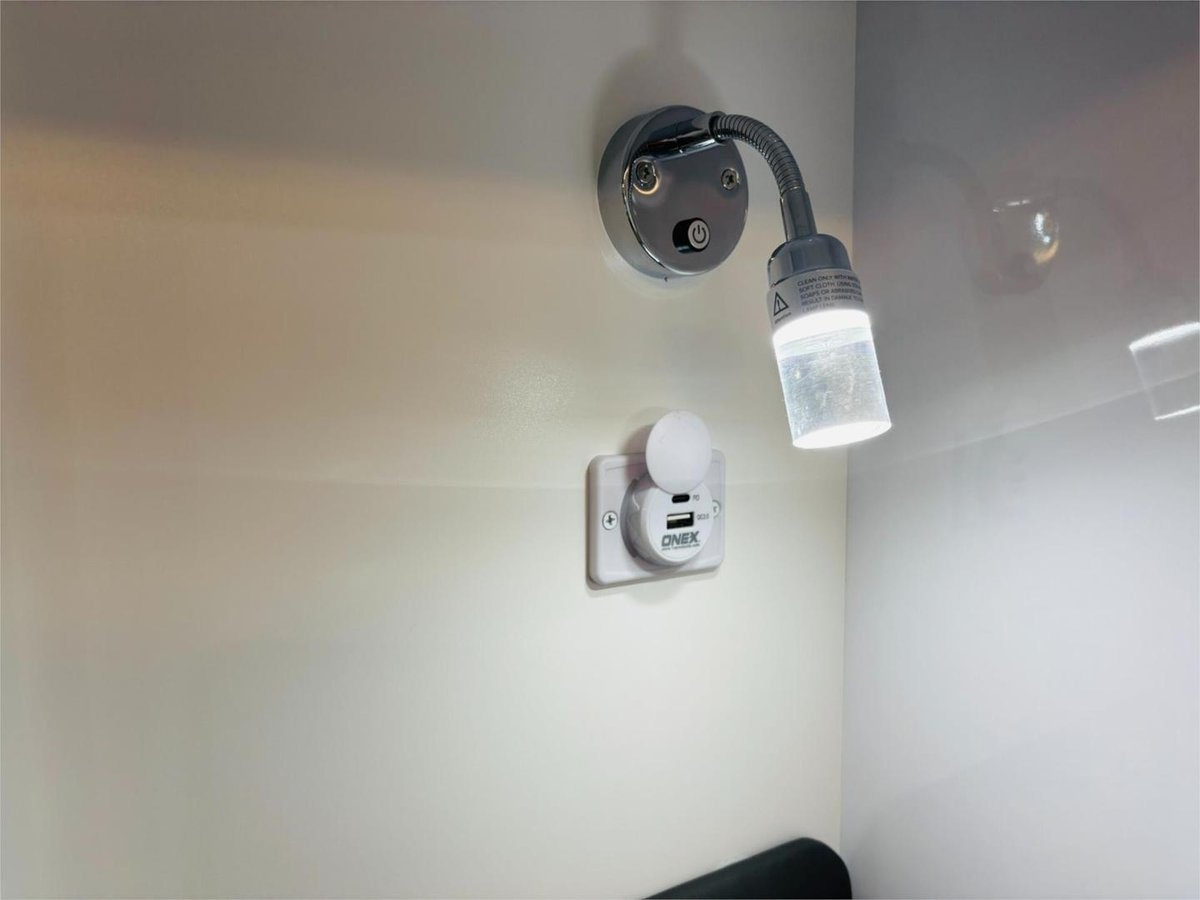

Multiple USB/USBC Outlets
Starlink Provision

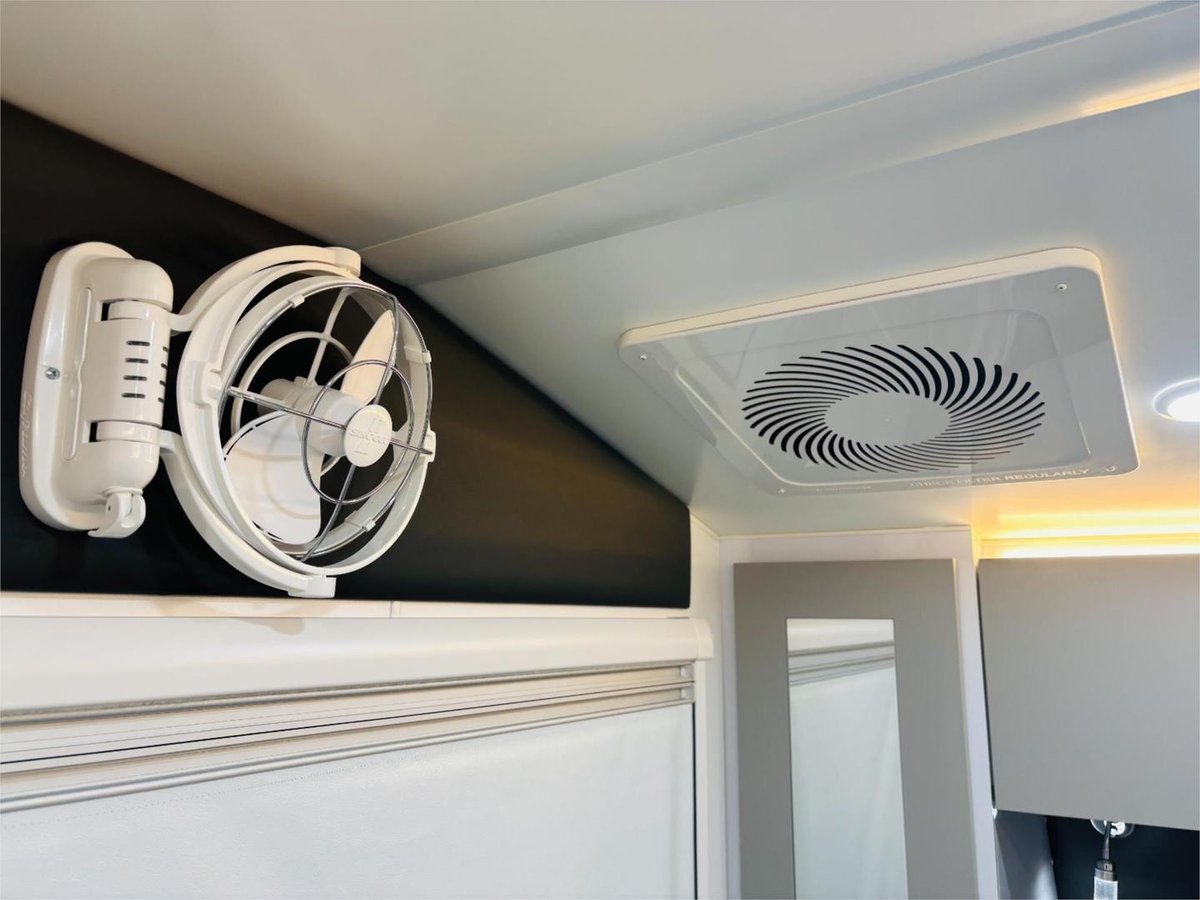

2 x Sirocco Fans
TV Points 1 x External TV Bracket & 1 x Internal TV Bracket

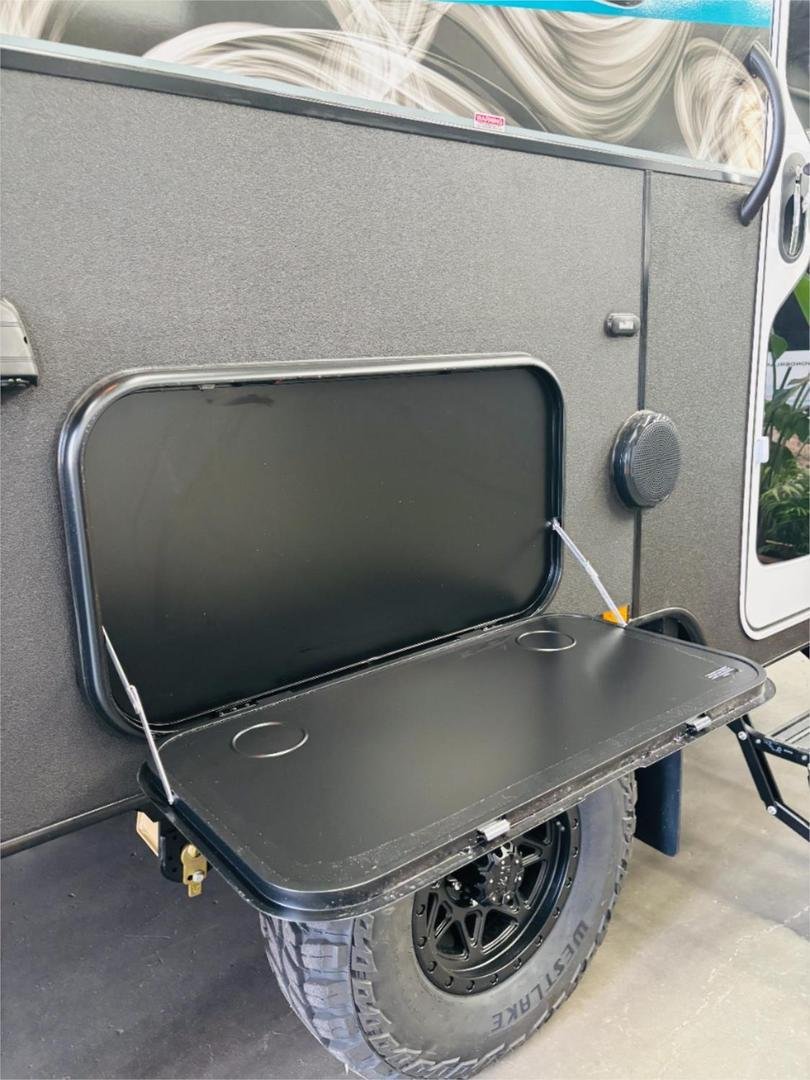

External Entertainment Hatch
6 External Lights: Front, Rear & Roadside, 3 x 2 Stage LED Insect Repellent Lights Doorside inc Over BBQ
3" LED Downlights

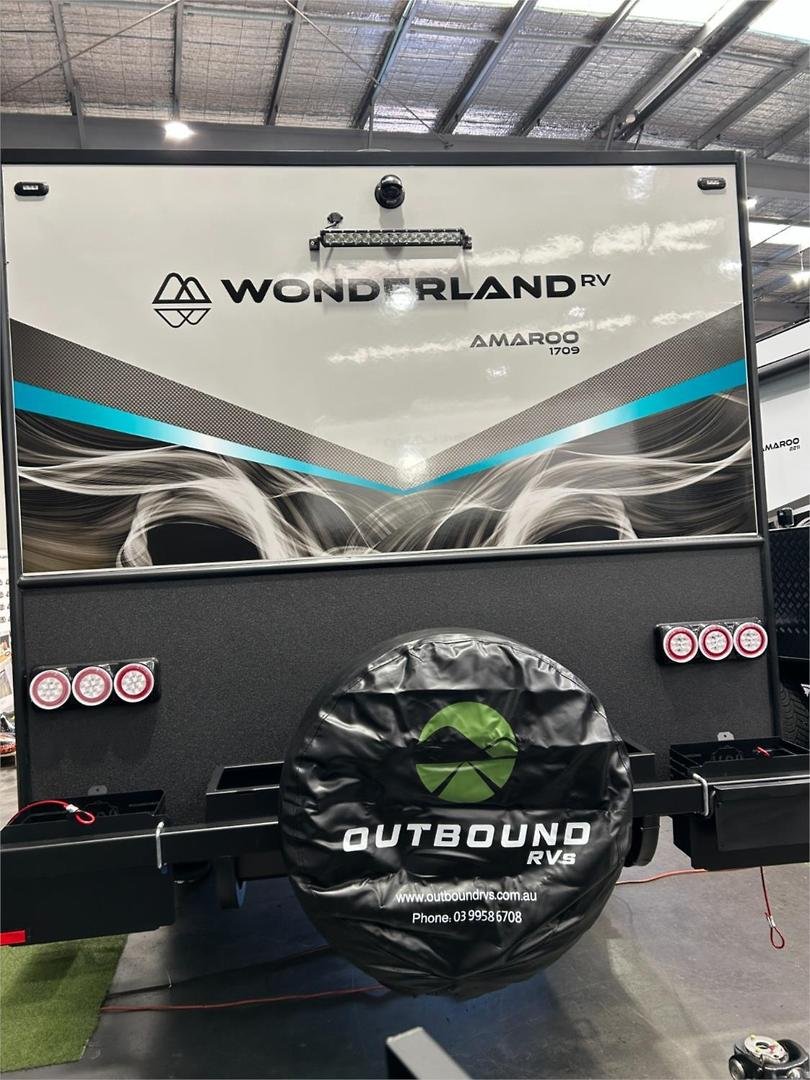

LED Taillights
12 Pin Tow Plug

PLUMBING
Roto Molded Poly Water Tanks With Brass Fittings
2 x 100L Fresh Water Tanks
1 x 100L Grey Water Tank
1 x 55L Drinking Water Tank
Grey Water Bypass
Gal Sheet Water Tanks & Plumbing Protection
Portable Induction Cooktop

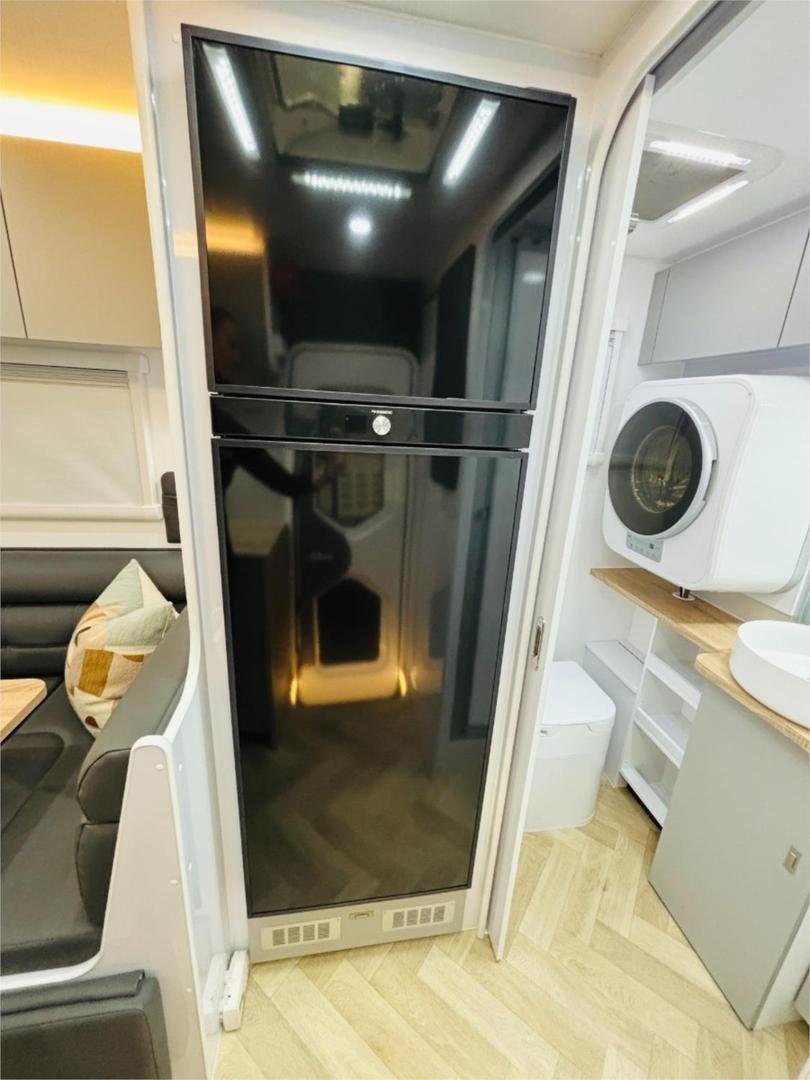

224 Lt Dometic Compressor Fridge
External Hot & Cold Shower
1 x Gas Bayonet

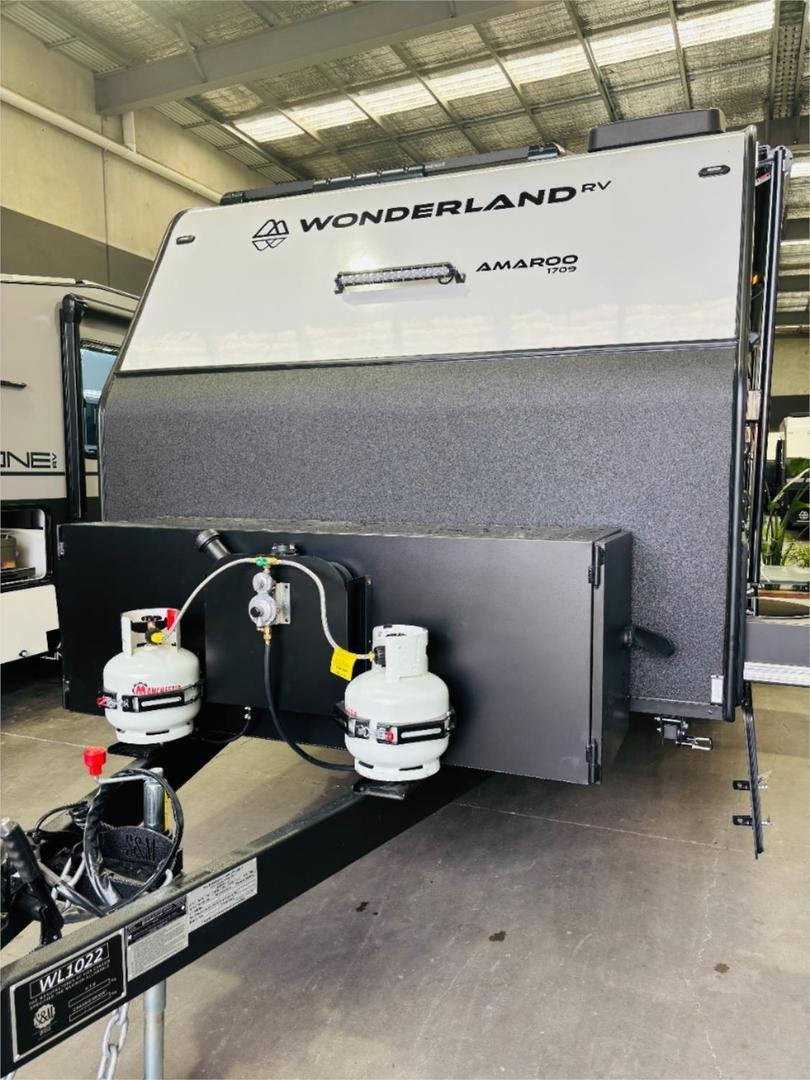

2 x 4kg Gas Bottles

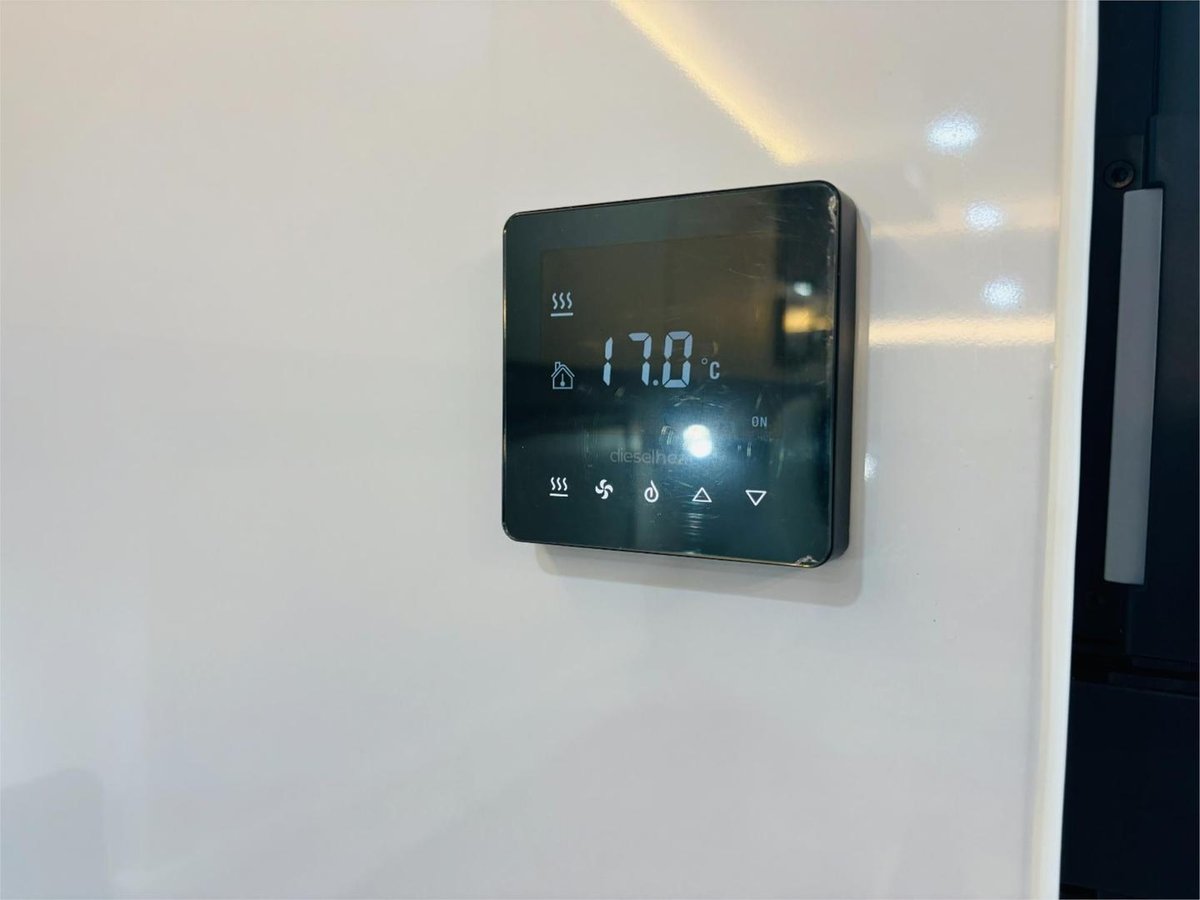

Hydronic Diesel Heater & HWS
1 x Cold Tap & 1 x Hot Tap On A Frame
Quick Fill & Mains Connection & 1 Separate Filler & Cap

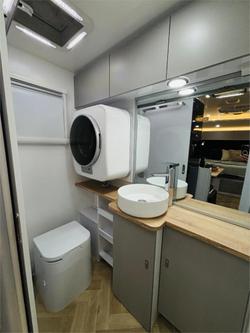

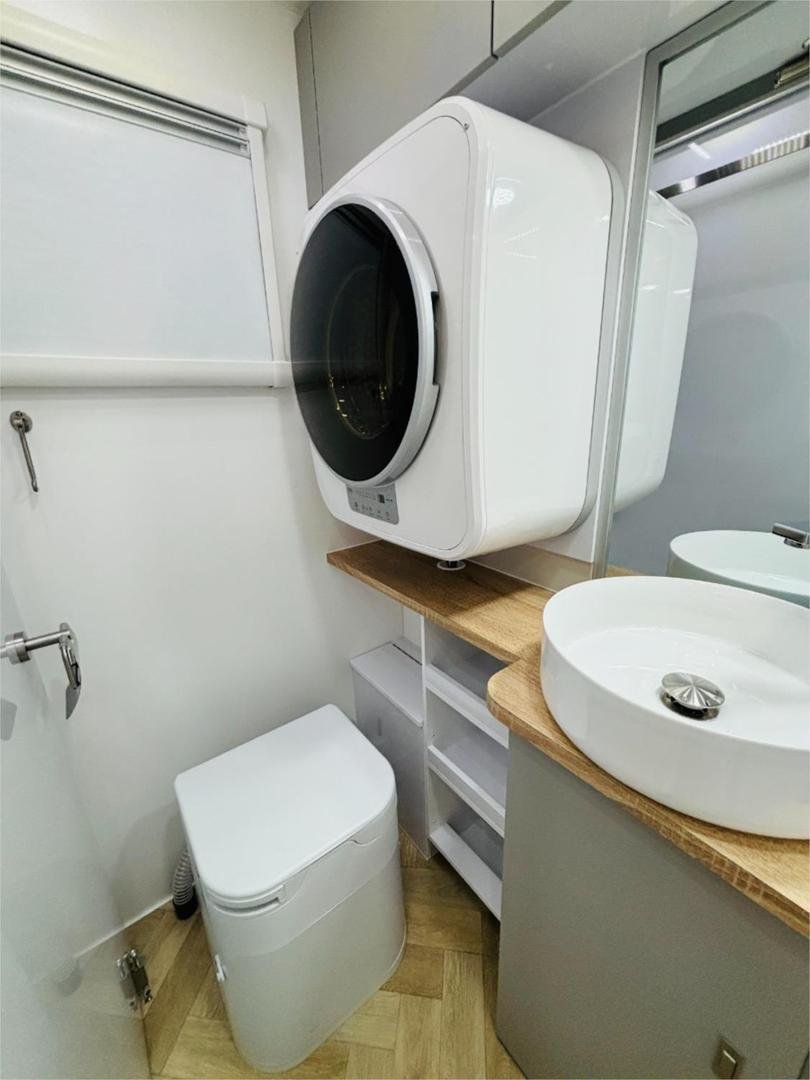

3 kg Wall Mounted Washing Machine

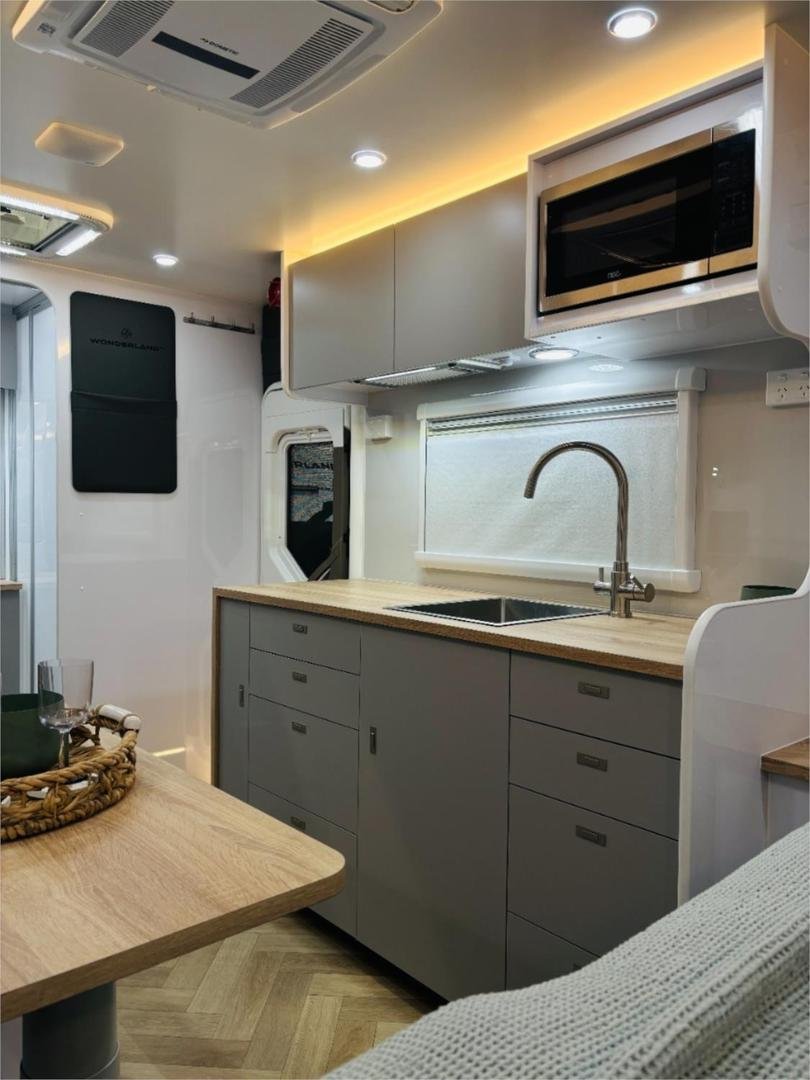

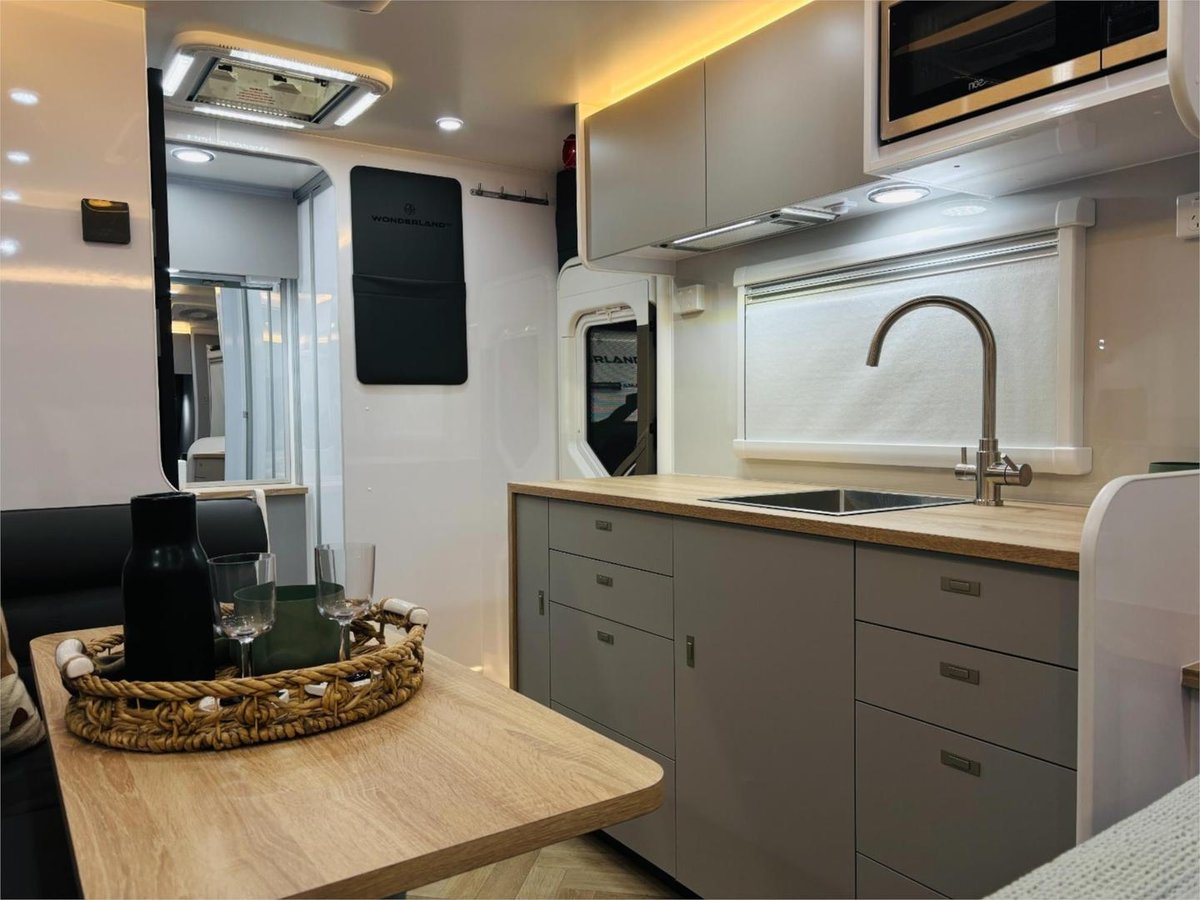

3 Way Tall Brushed Stainless Gooseneck Kitchen Tap with Filter

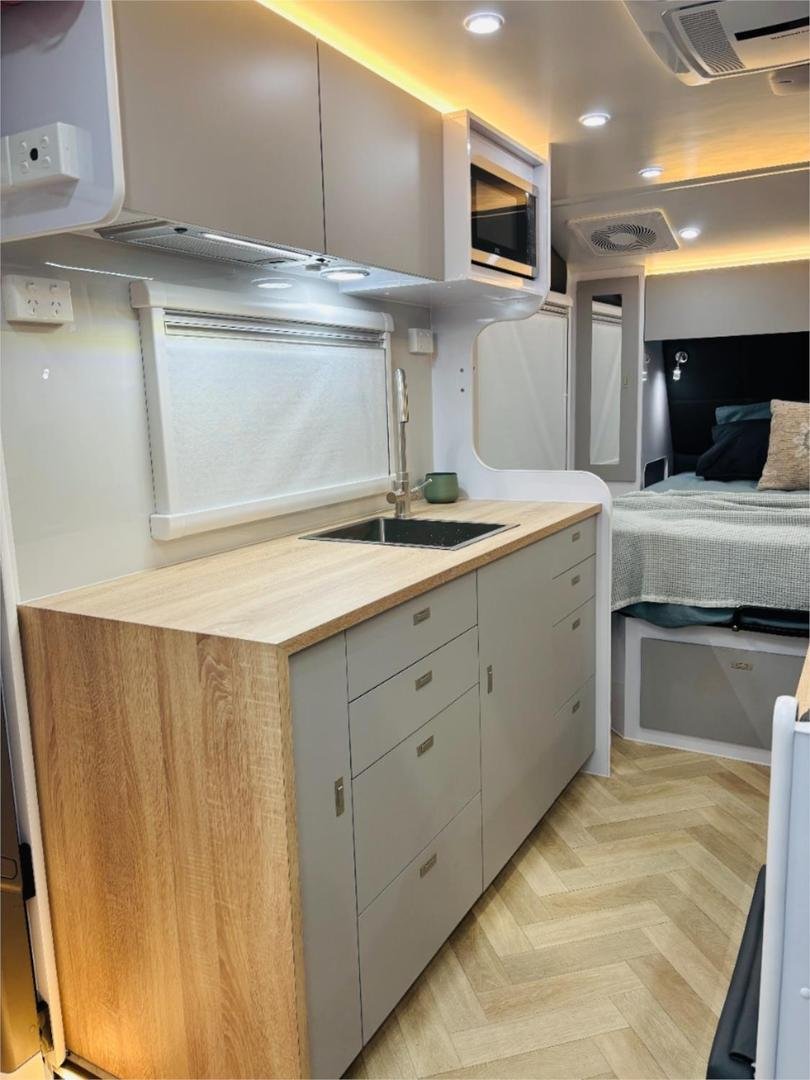

Stainless Steel Kitchen Sink

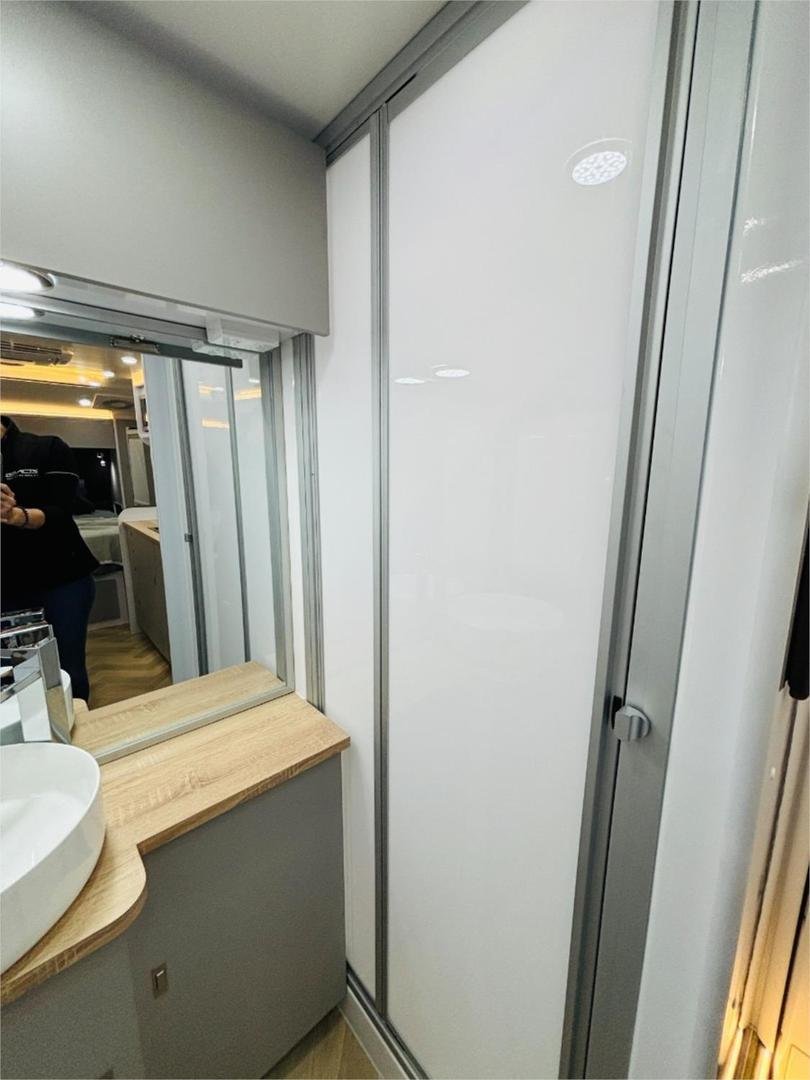

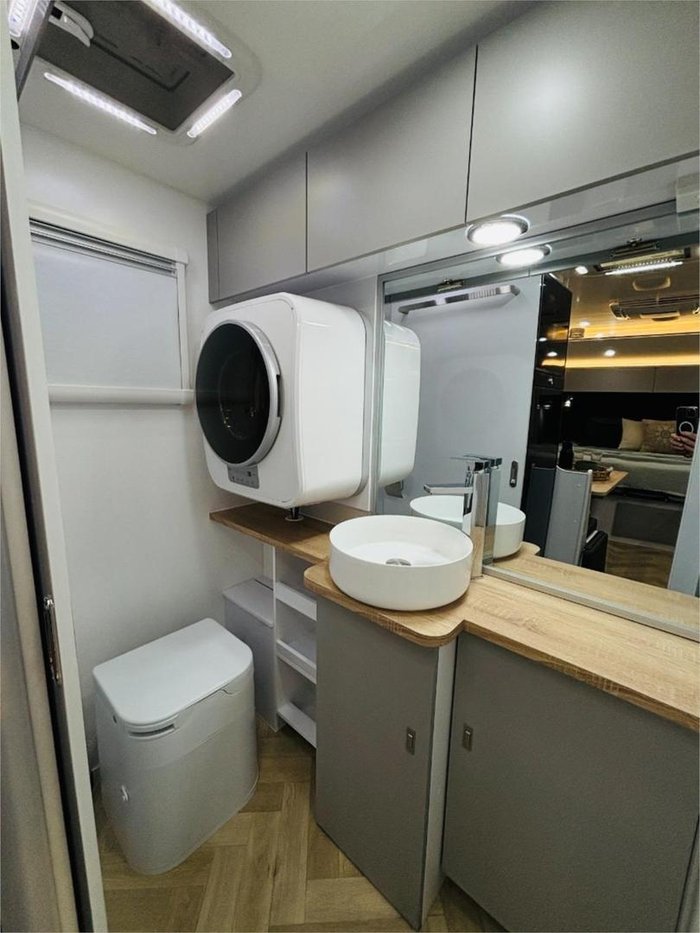

White Ceramic Ensuite Sink

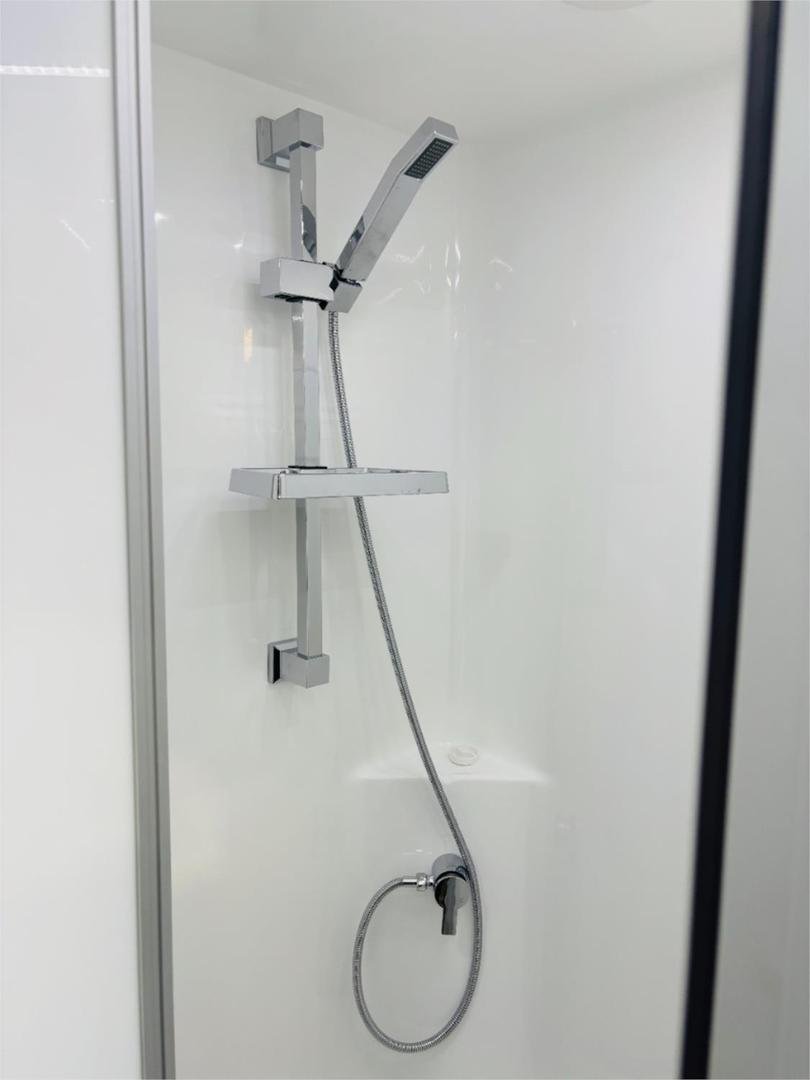

1 Piece Fibreglass Shower

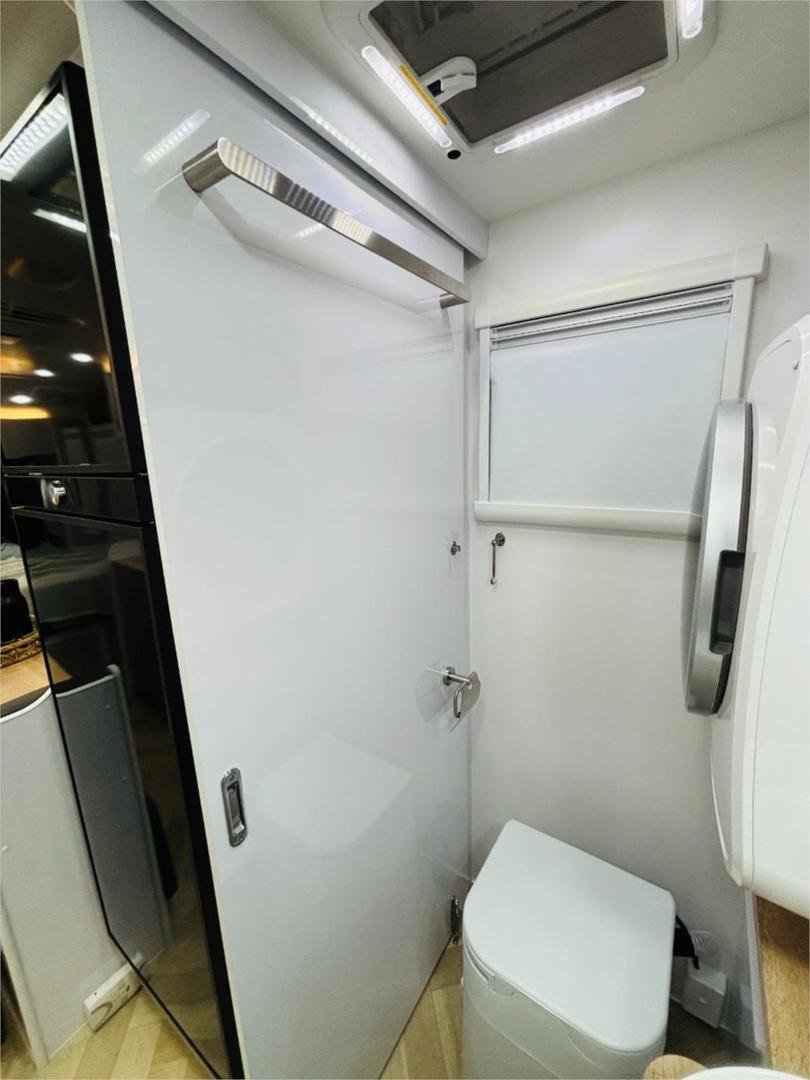

OGO Composting Toilet

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm X-Guard Protection Plate
Dometic Grey Awning with Black Arms & Awning Support
External Entertainment Points & Speakers
High Access Tunnel Boot Doors

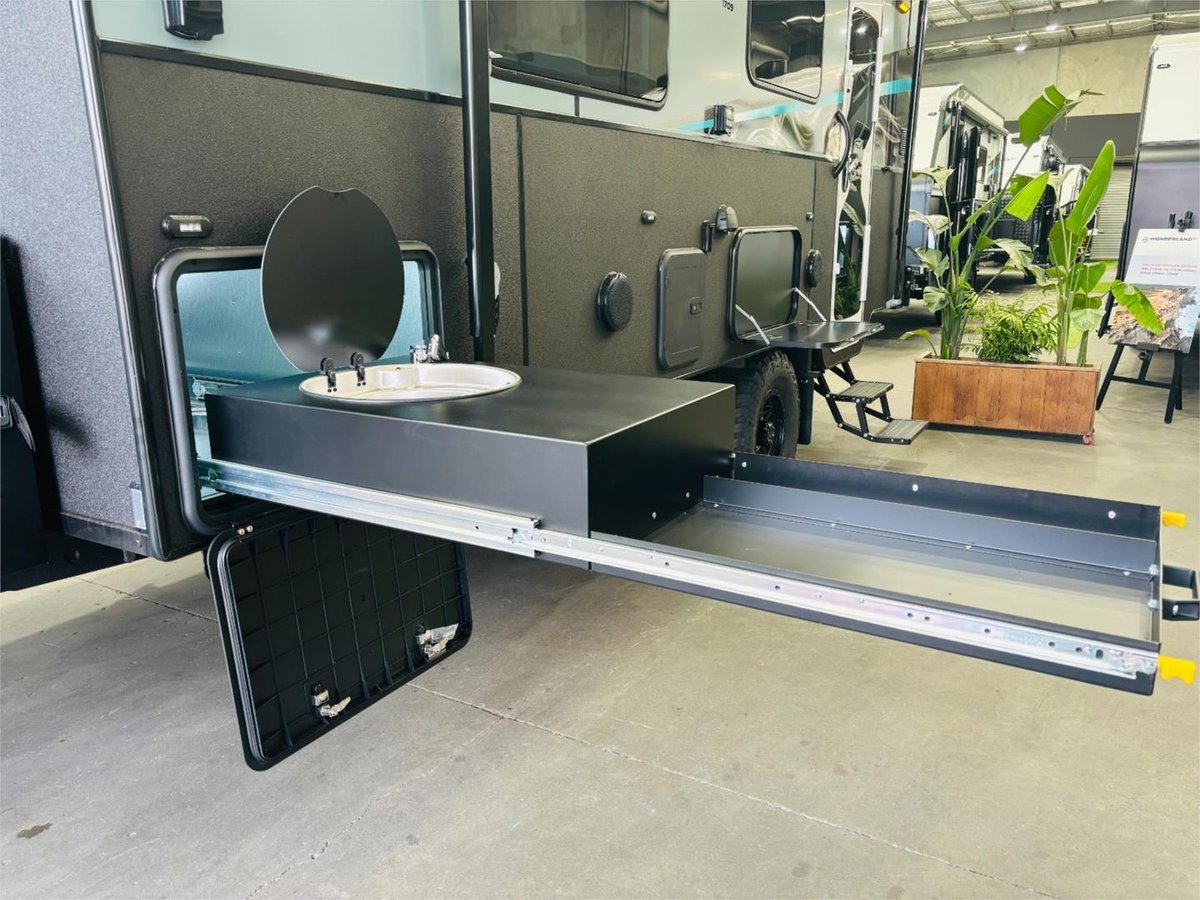

Outdoor Kitchen with Sink, Portable Induction Cooktop & BBQ Provision
Black Picnic Table

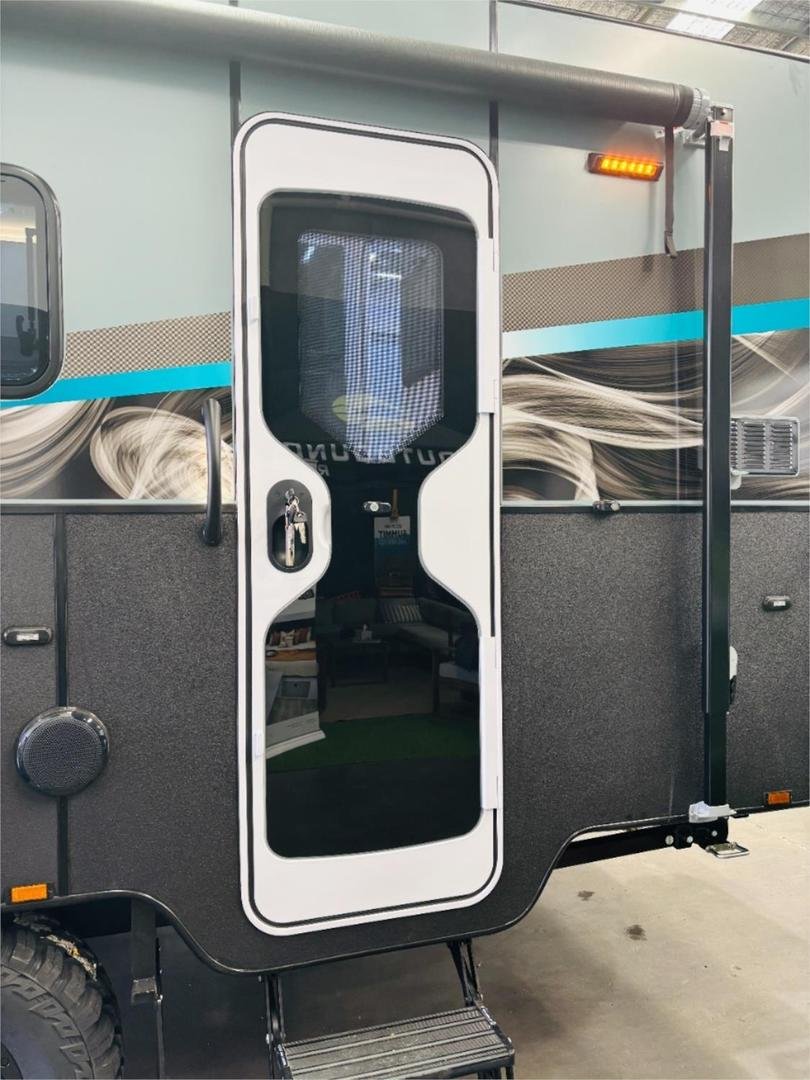

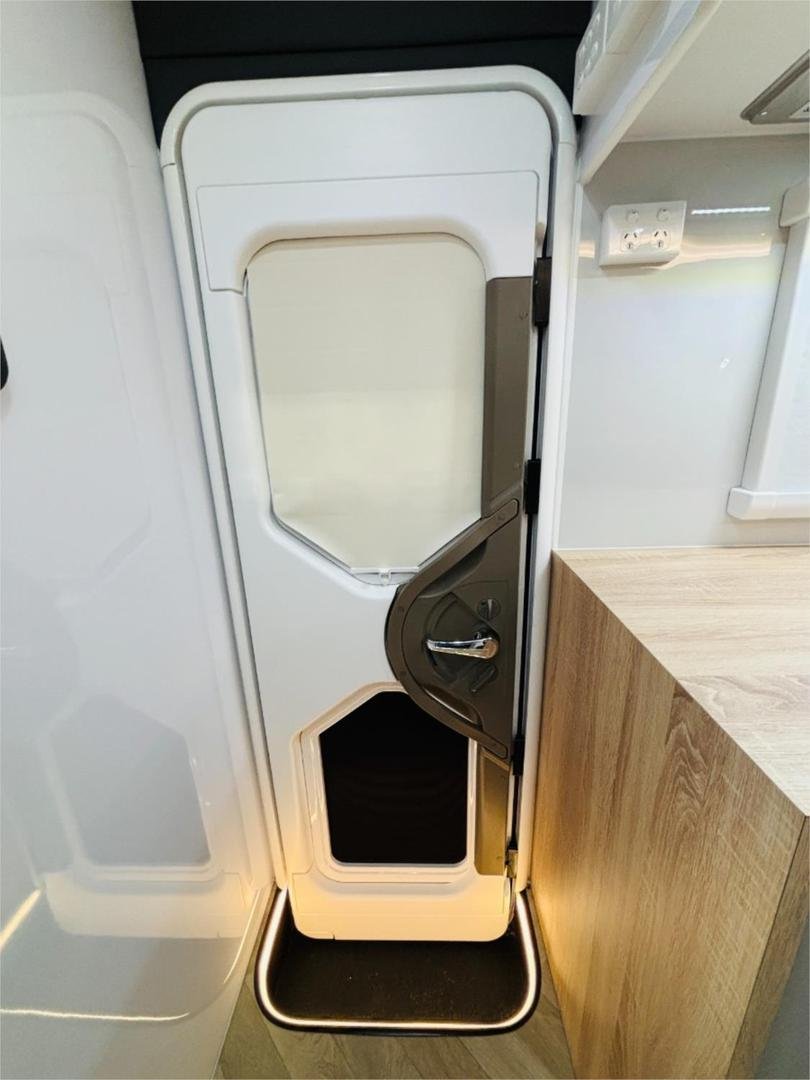

Dometic Cara-D Door
Large Double Glazed Windows with Dark Tint
Windows with Non Concertina Fly Screen & Block Out

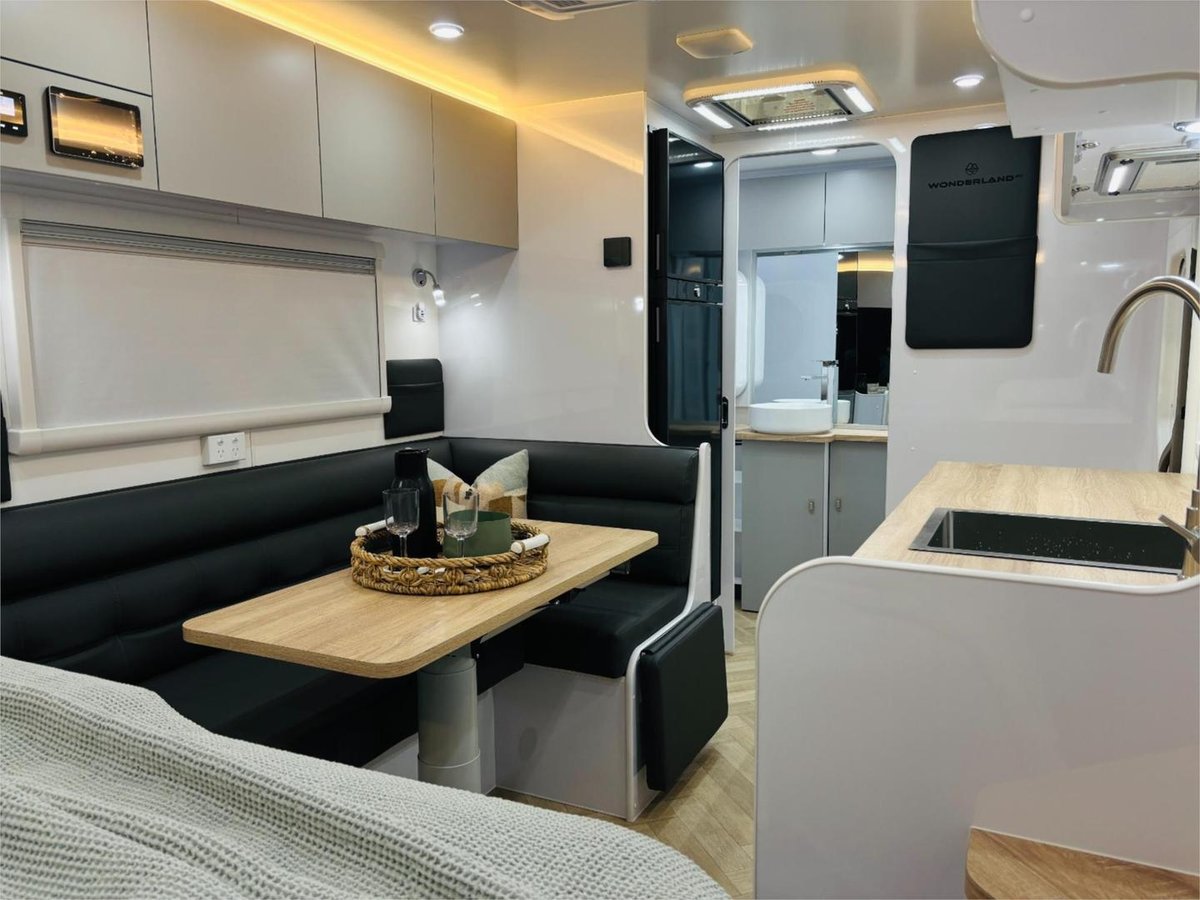

INTERNAL
CNC Lightweight Ply Furniture - Precision Cut with No Gaps
Lightweight European Plywood Laminate Benchtops & Doors
Large Metal Sided Drawers Pot Drawer

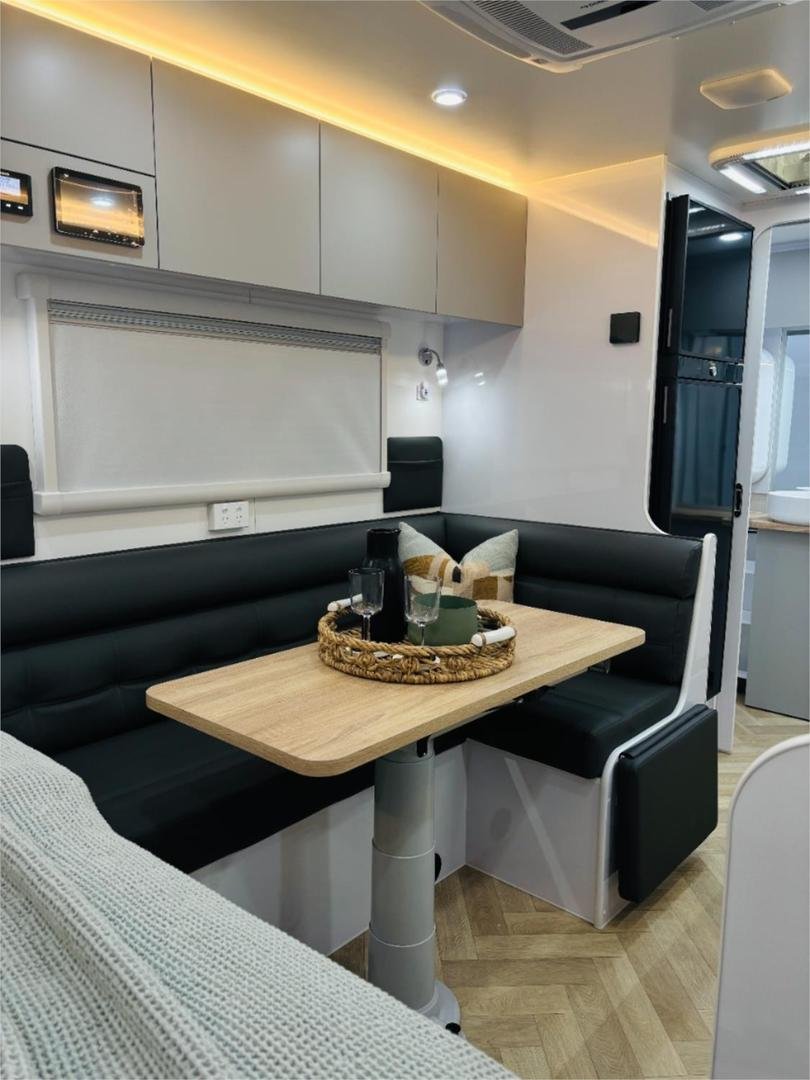

Firm Back Lounge Seating With Support & Footrest
Telescopic Table Leg

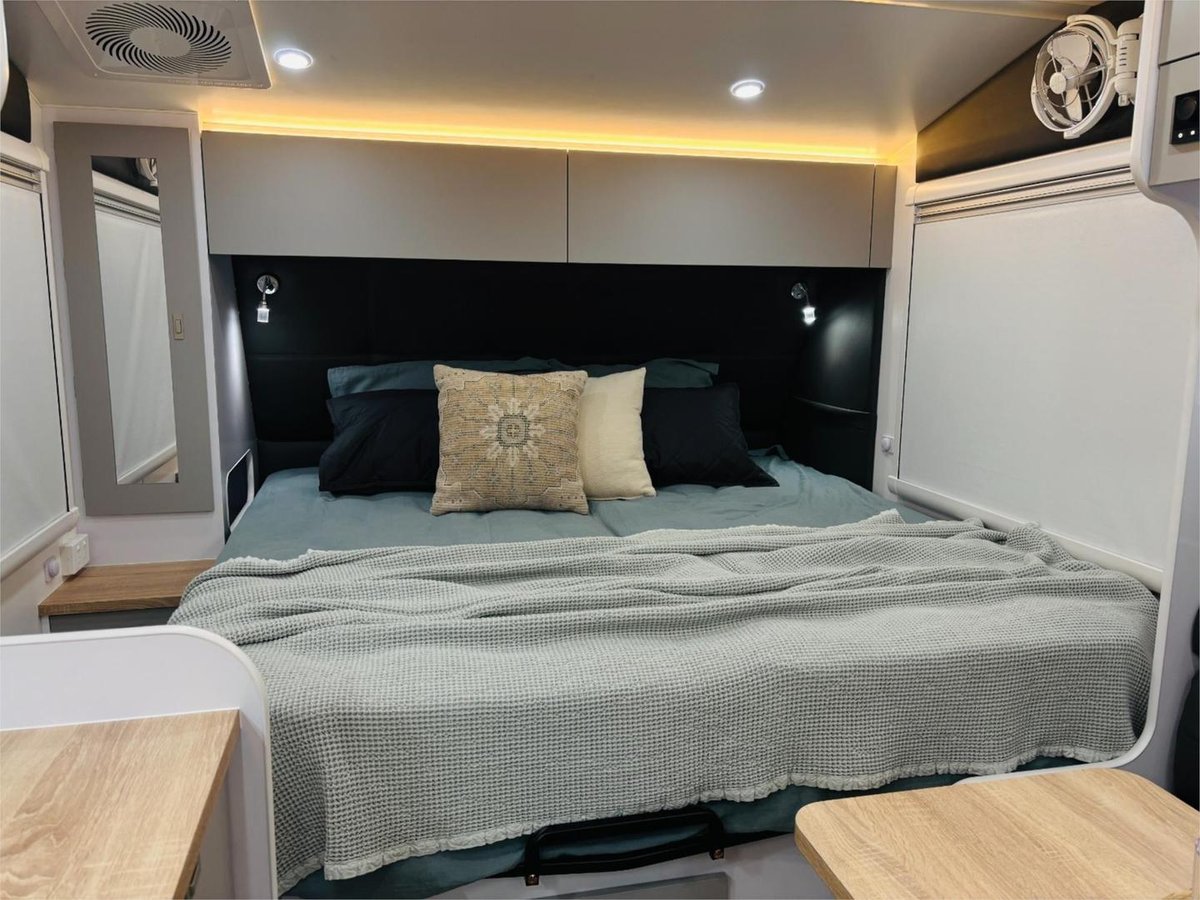

Pillowtop Mattress King Size 6'6"
Bedhead & Magazine Pockets

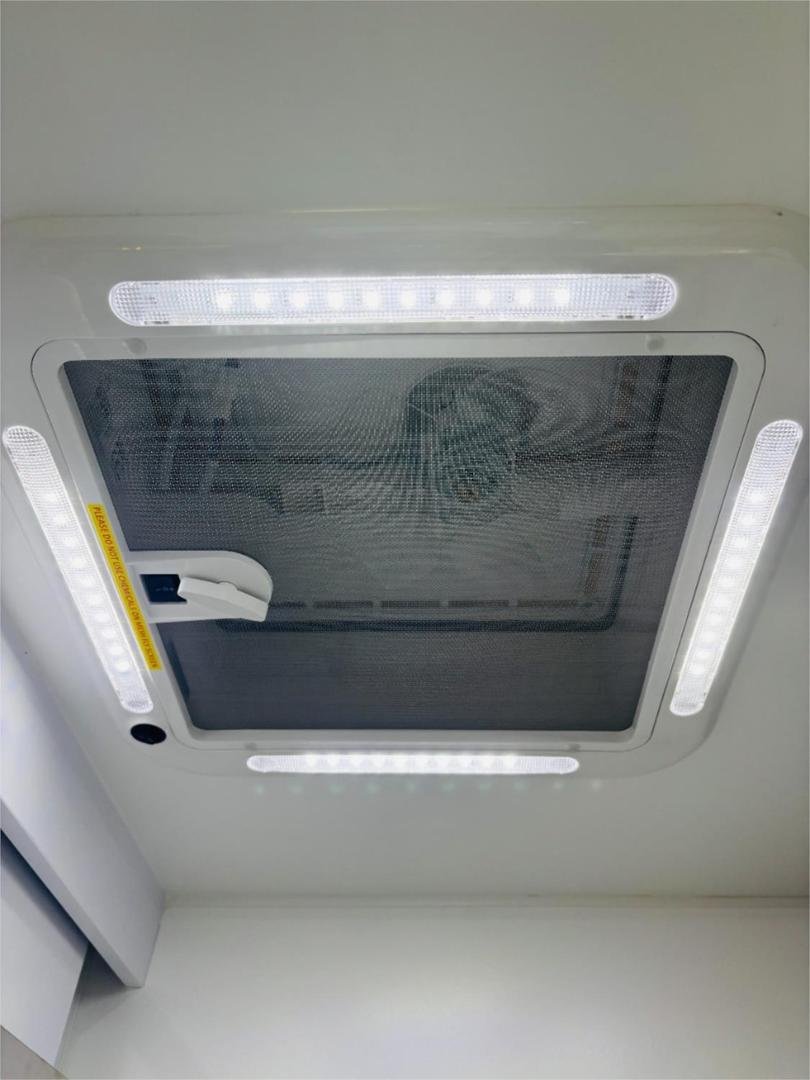

LED Hatches with Fans In Bathroom
Roller Blind On Entry Door

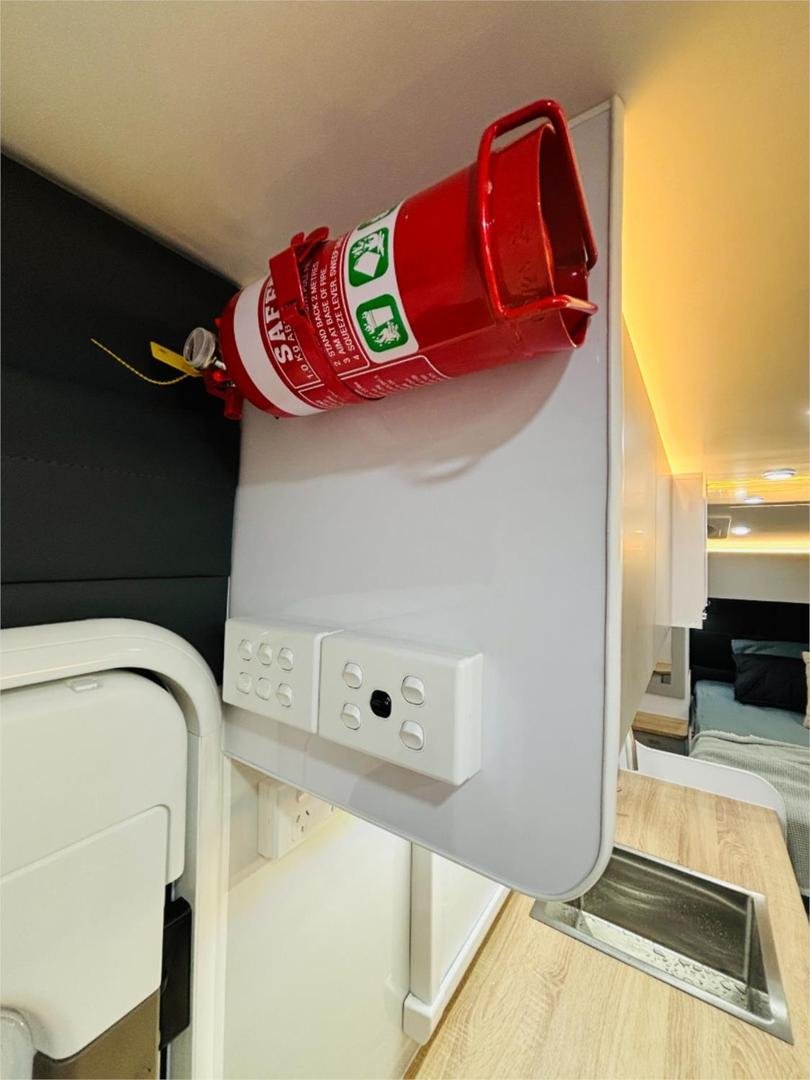

Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

CONSTRUCTION
19mm Structural Grade Ply CAD Designed, CNC Router Cut, Interlocking Jigsaw Frame Where The Walls, Furniture and Cabinetry Are All Locked Into Each Other For Superior Strength, Durability and Off-Road Performance.
One piece 35mm Sandwich Panel Composite Roof which wraps around the Front & Back- NO JOINS
XPS Insulation
Honeycomb Floor – Lightweight, Waterproof & One Piece

WEIGHTS
ATM: 3.0T
Ball Weight:
TARE Weight:
Travel Height: 3200mm
Travel Length: 7861mm
