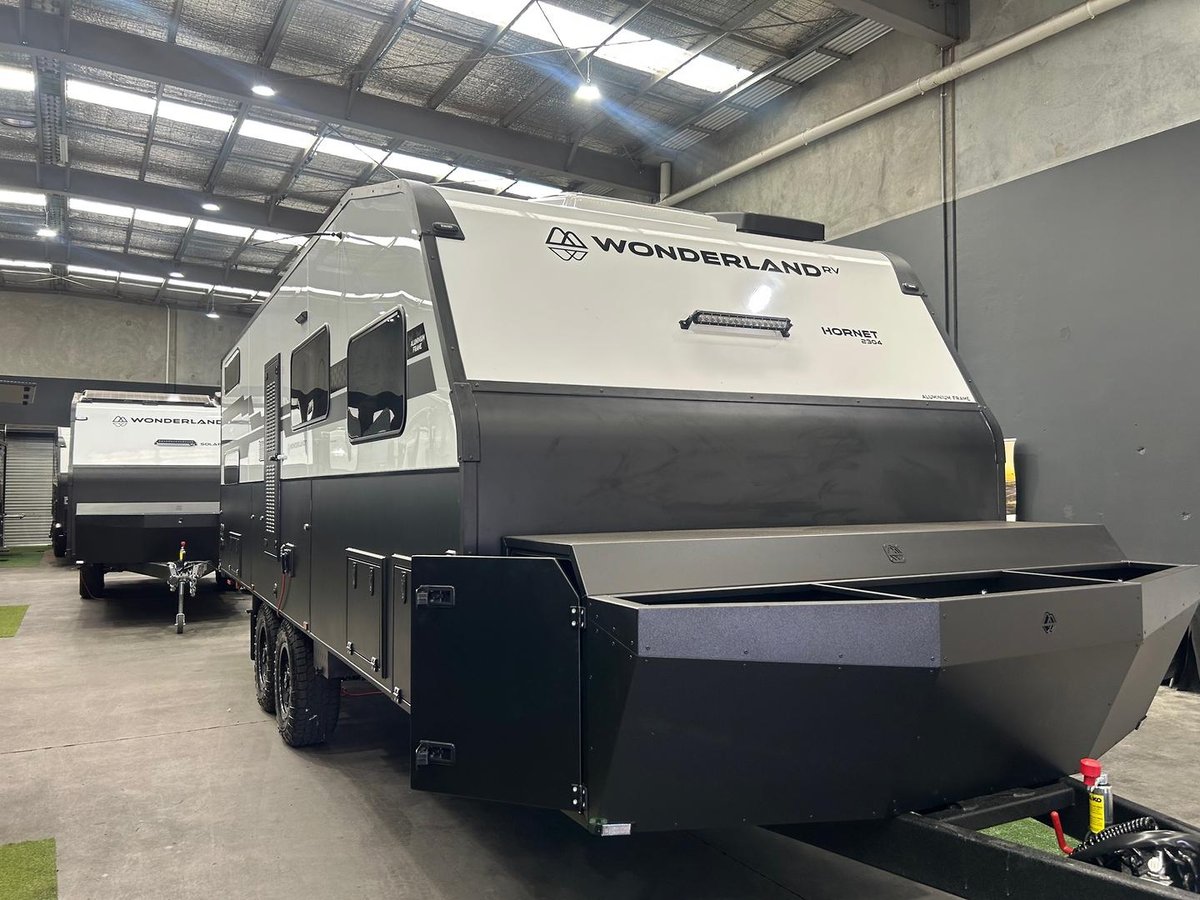

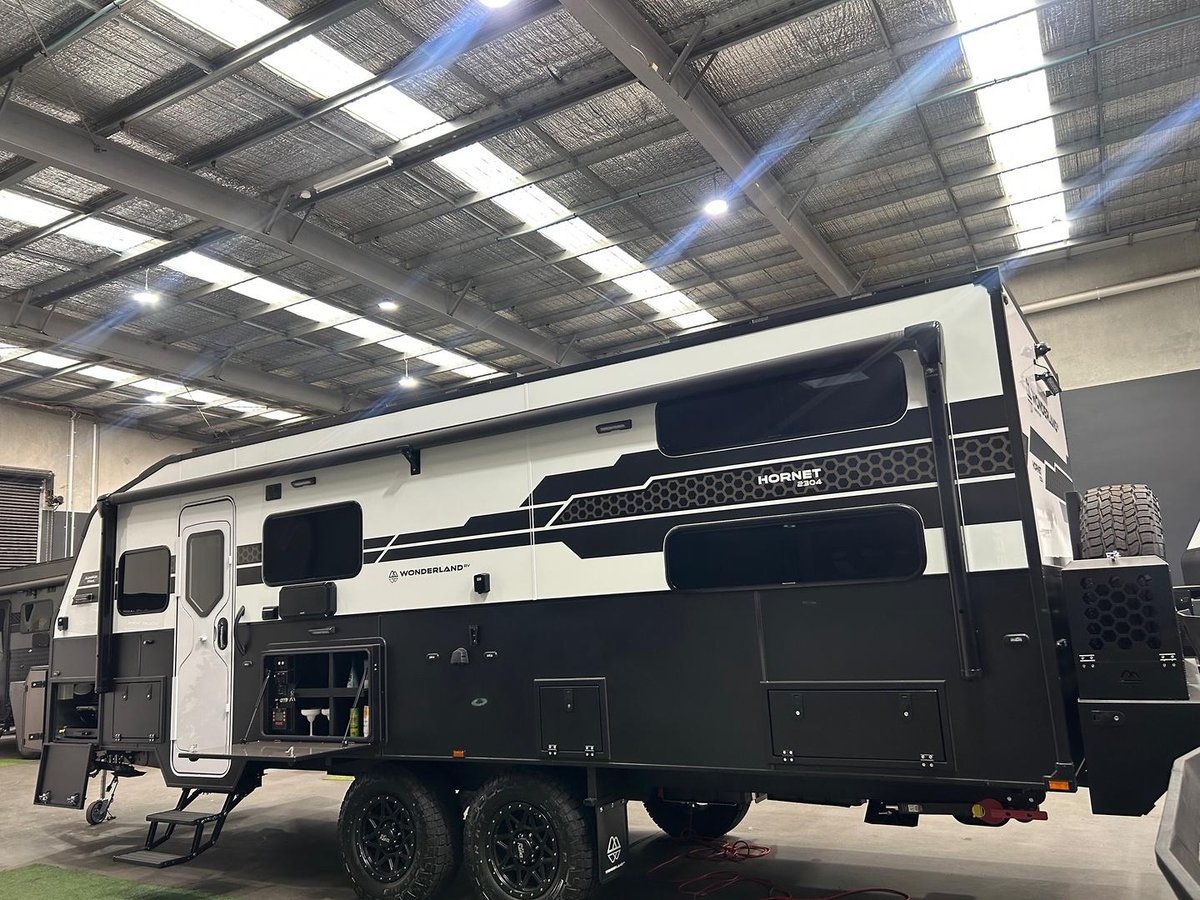

2026 Wonderland RV Hornet Quad Bunk

Hands down THE best layout for families that need a separate parent and kids quarters!

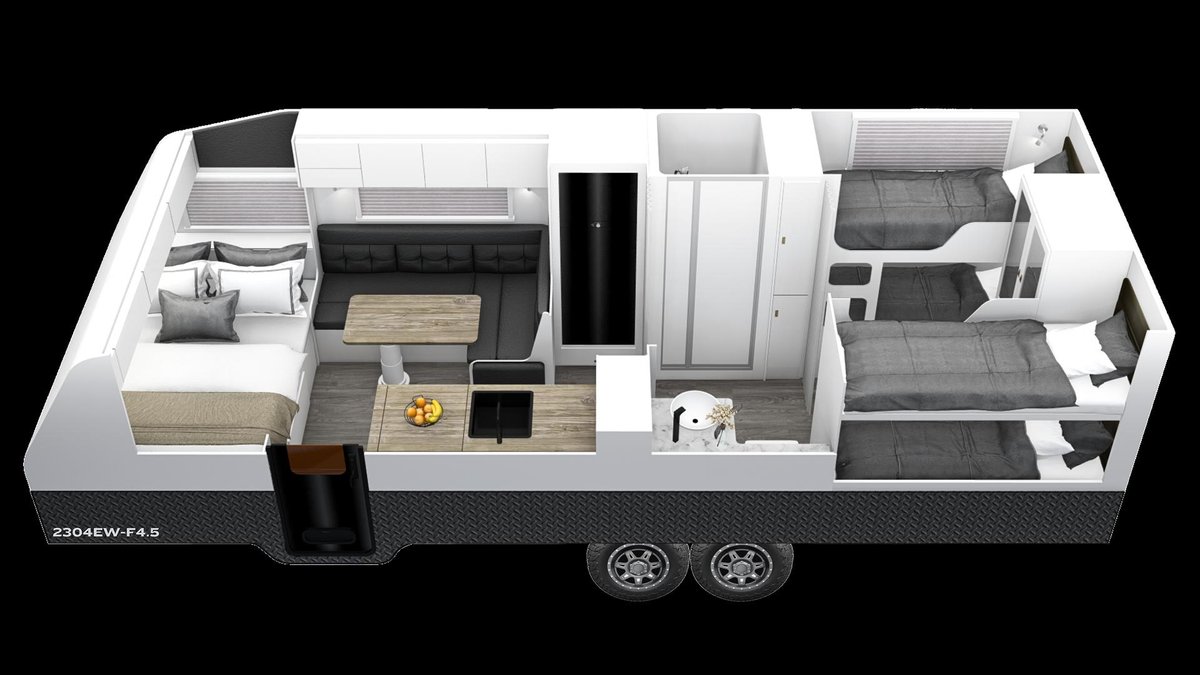

The bunk area in this floor plan is so versatile and comes with your choice of 1 to 6 bunks

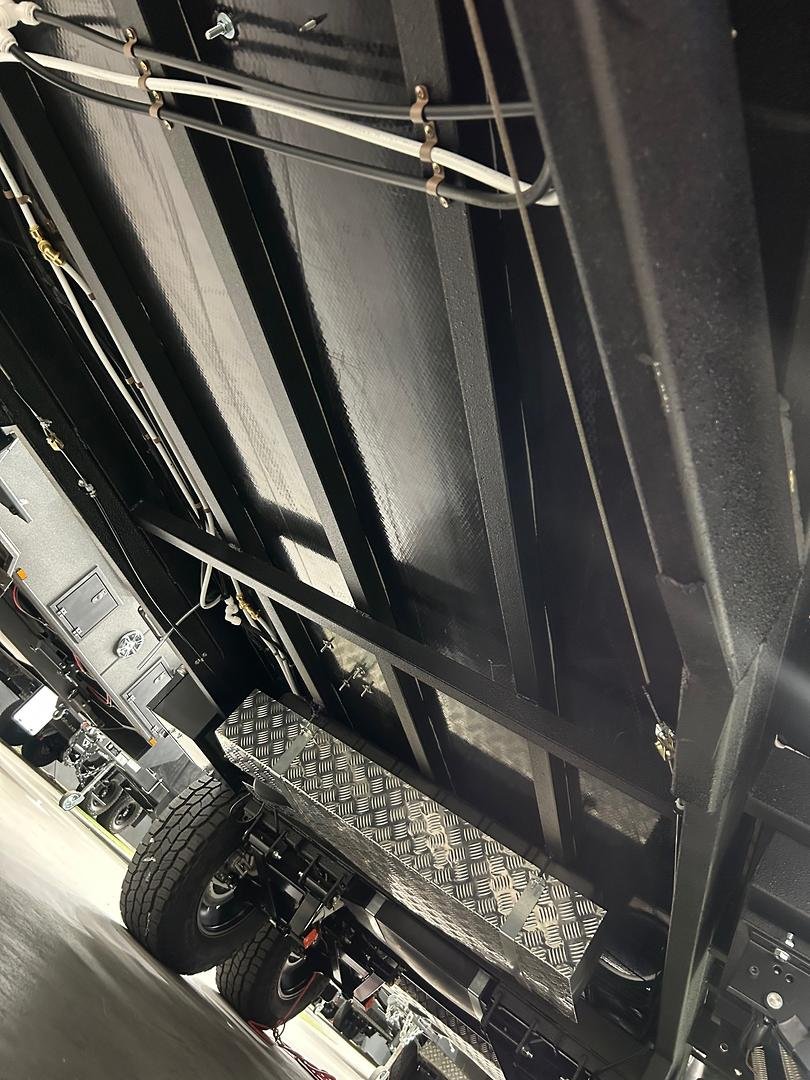

CHASSIS
Heavy-Duty off-Road Chassis – Australian Made RHS Steel
6" x 1950mm A-Frame & double 4+4"
4.5T Cruisemaster XT Lvl 5 BCS Suspension
Disc Brakes
Cruisemaster DO45 Hitch
MP Toughcoat
Aluminium Stone Deflector

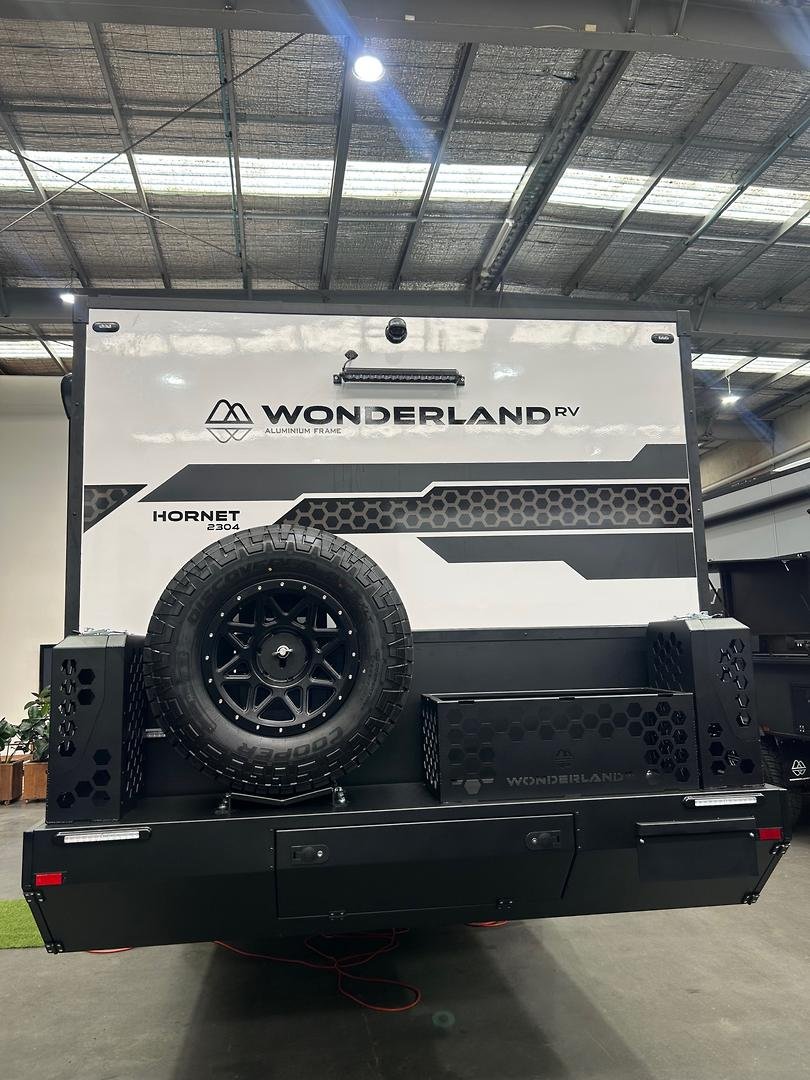

4-Arm Bumper Bar with Taillights

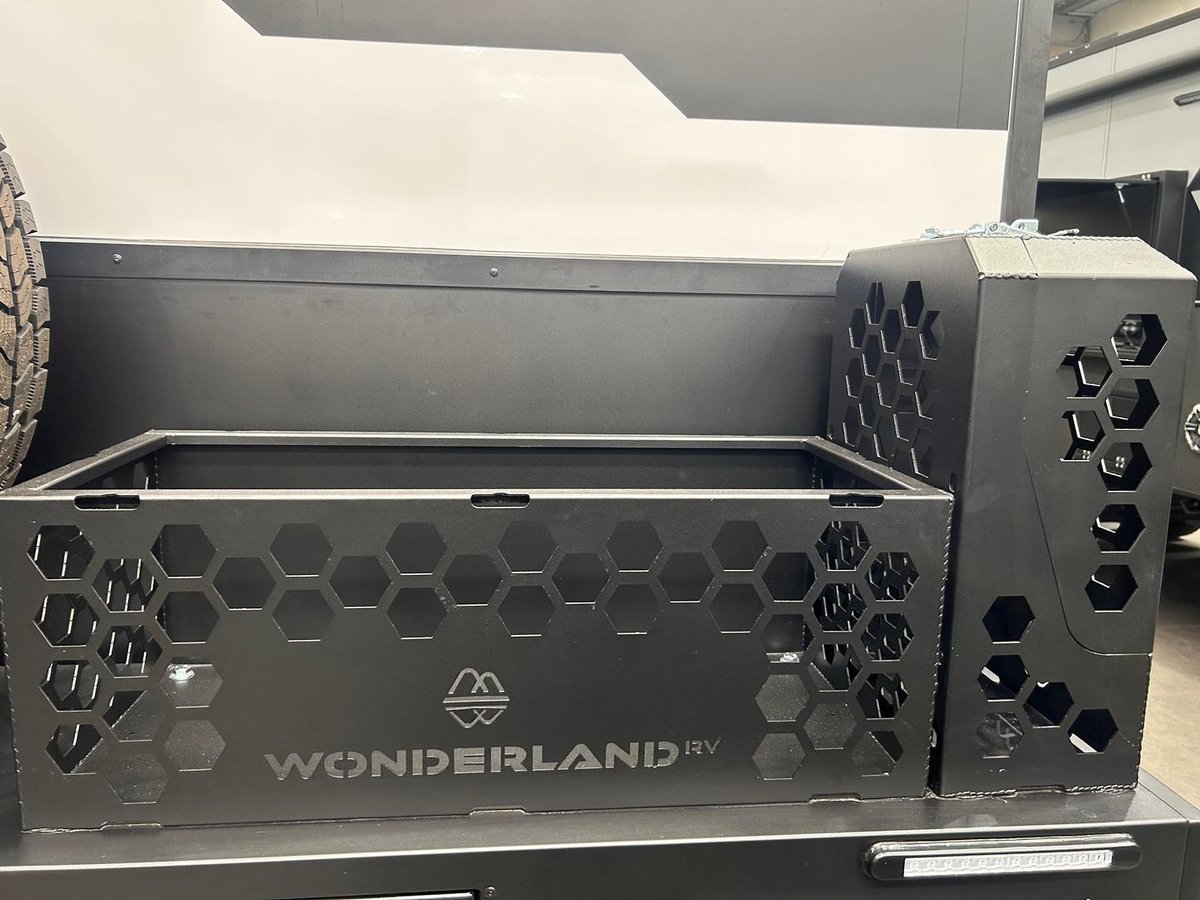

2 x Jerry Can Holder on Rear Bar

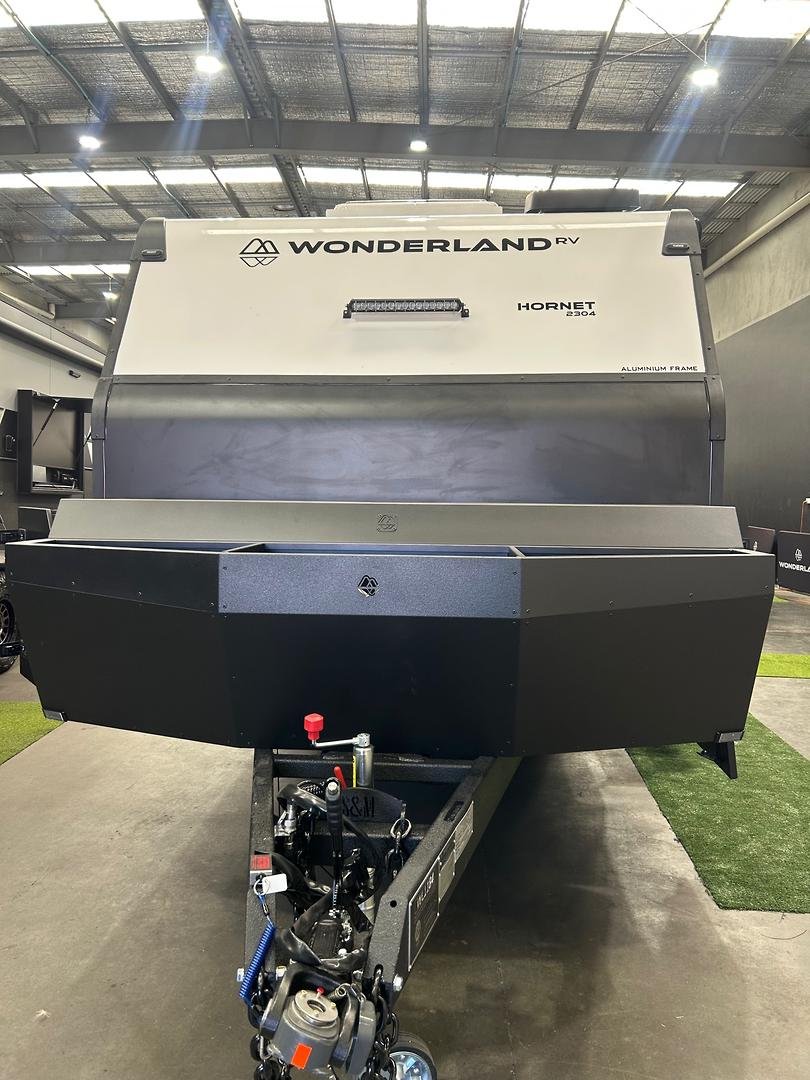

TB98 Toolbox with Large Dual Slides & 12v Anderson Plug

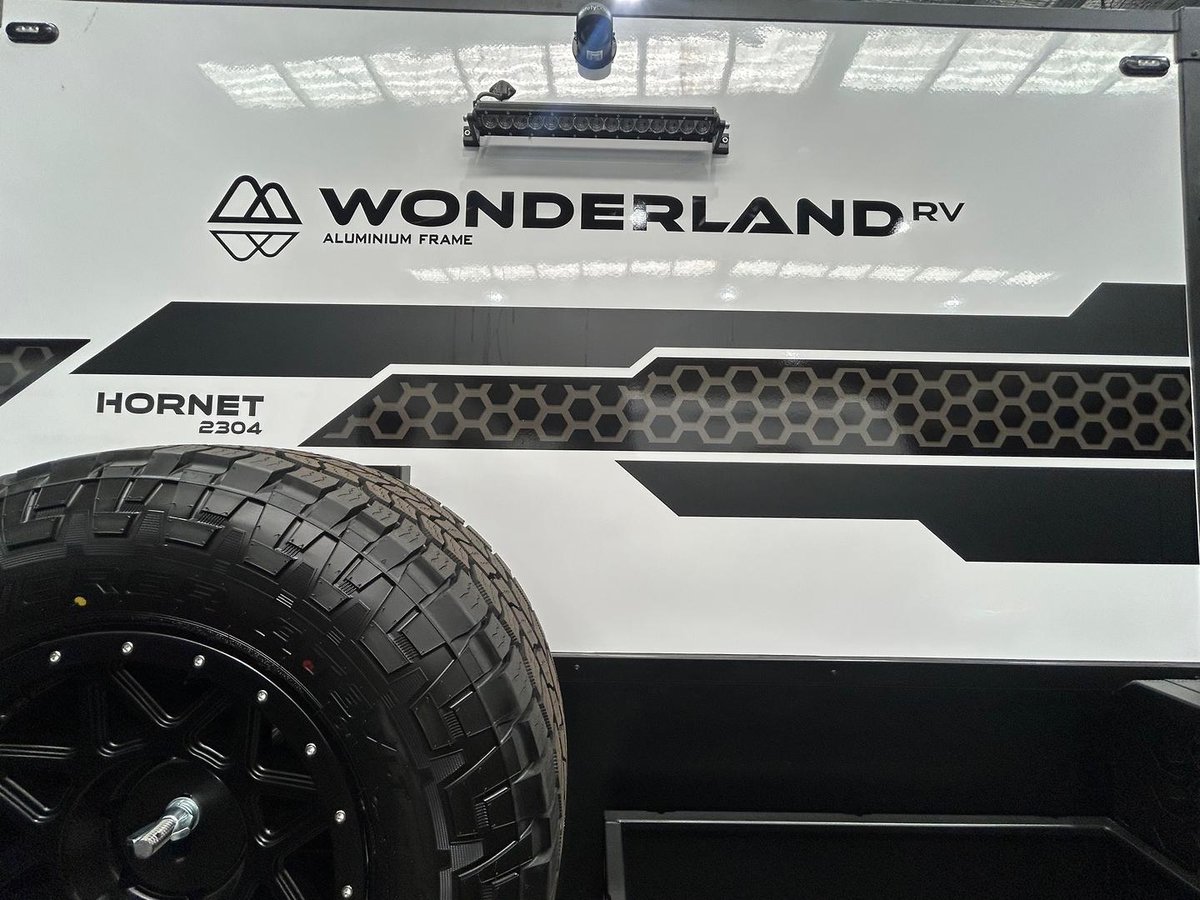

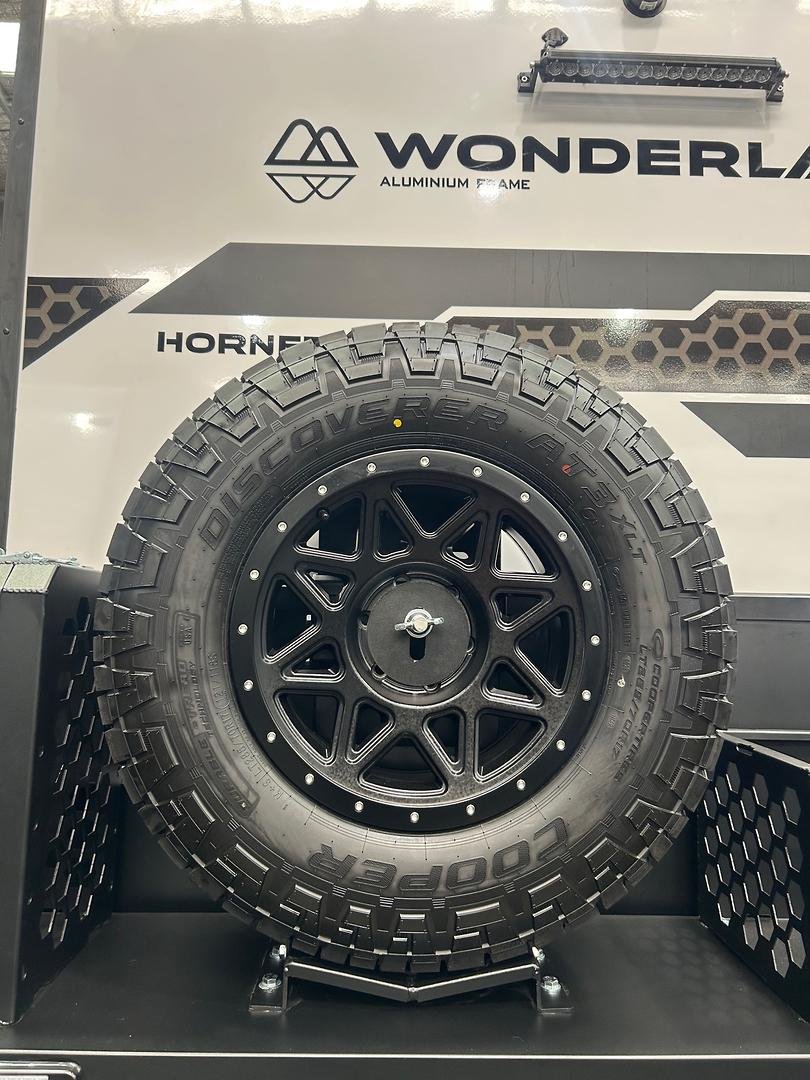

ROH Black 17" 265/70R17 Yokohama AT-X
Caravan Jack and Brace
Alko 8" Wide Large Clamp
BOS Corner Stabilisers

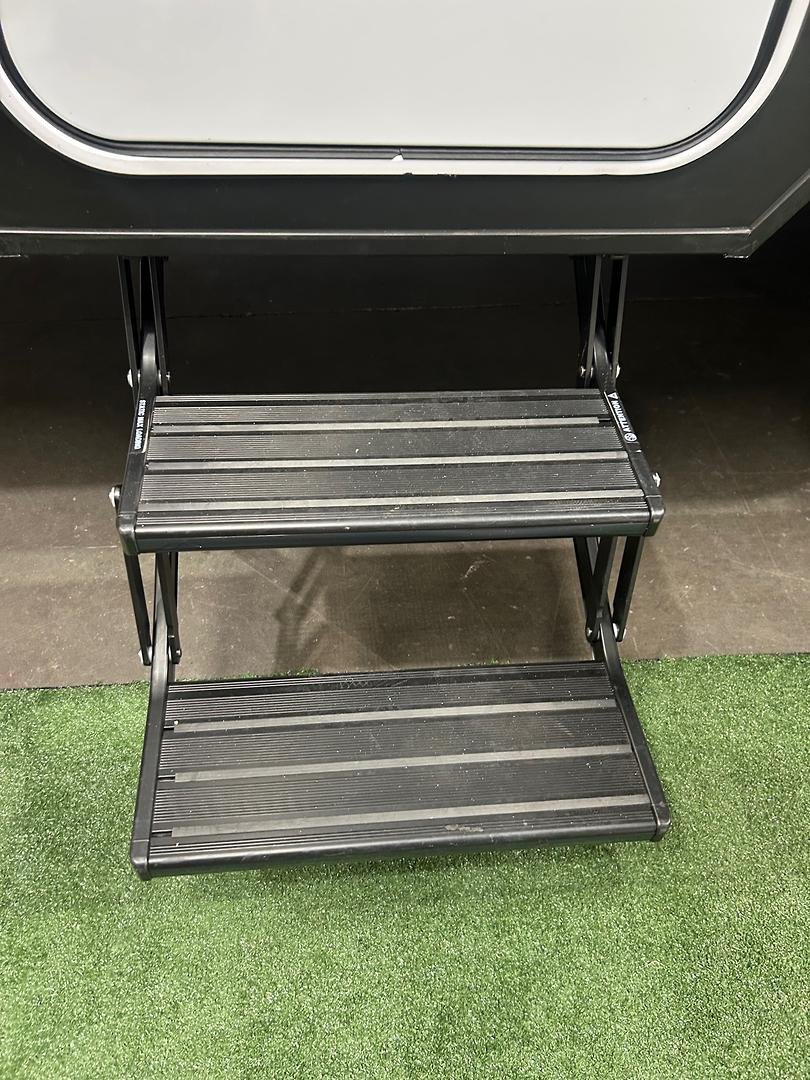

Double Aluminium Step
Rear Recovery Points & Skid Plates

ELECTRICAL

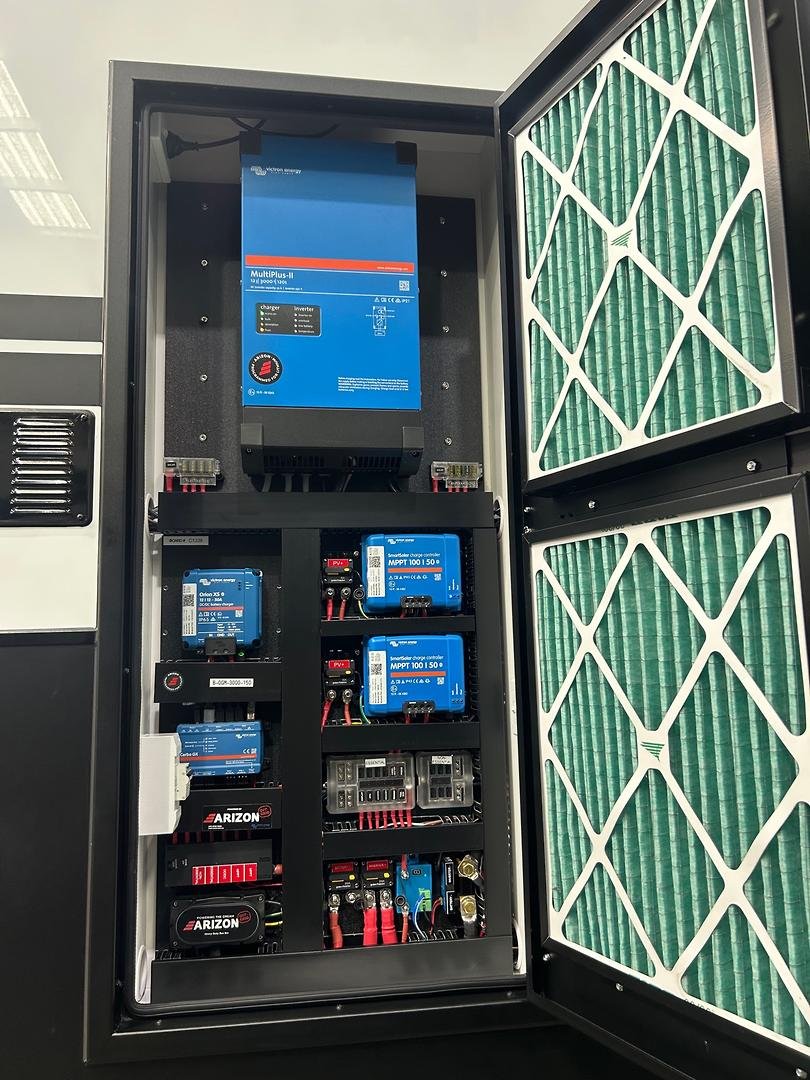

Behind Fridge Electrical Installation
Victron Off-Grid Touch 70 Battery Management
600Ah Of Lithium Battery
5 x 200W Solar
3000V Inverter
1 x Grey Anderson Plug & 1 x Portable Solar Plug
CS Pressure - 12v Powered Dust Reduction
Fusion Premium Entertainment Pack Indoor & Outdoor Speakers
Dometic Fresh Jet 3.4kw Air Conditioner
5 x Sirocco Fans
Camec 3 In 1 Multicooker
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Monitor
24" Smart TV (No TV Antenna)
Starlink Provision
Multiple USB/USBC Outlets
Multiple TV Points 1 x External TV Bracket & 1 x Internal TV Bracket
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

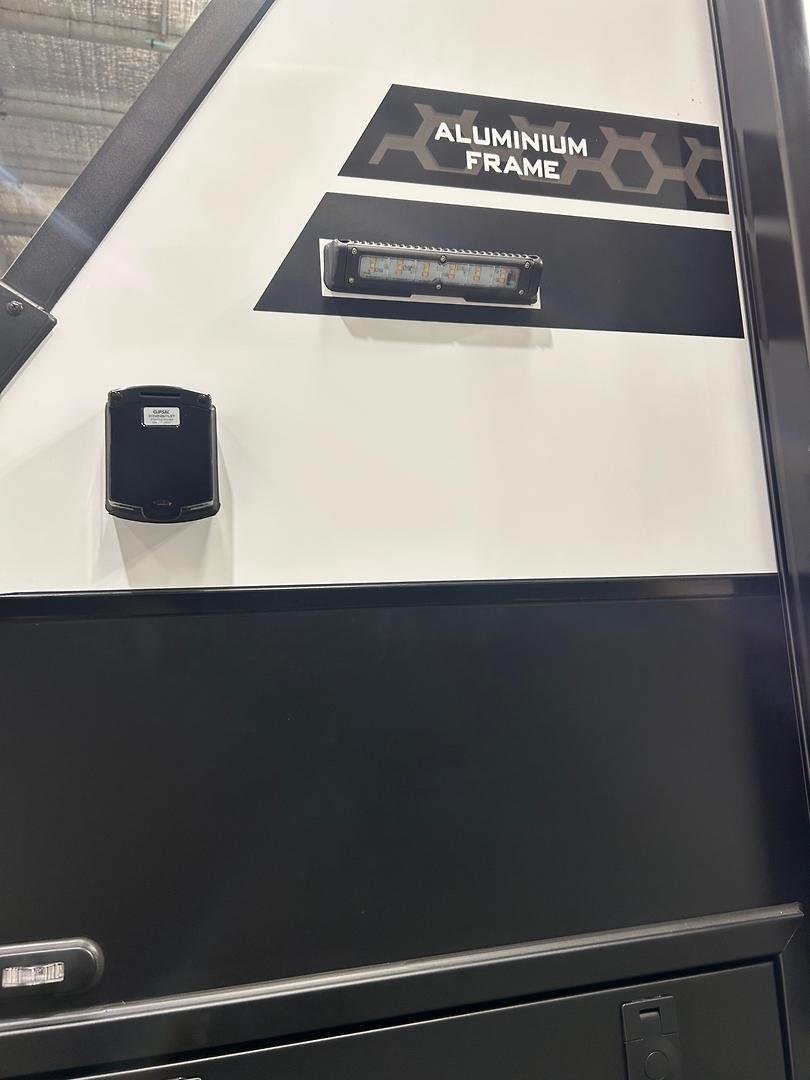

6 External Lights: 17" Lightbar Front & Rear, 3 x Insect Repellent 2 Stage LED Lights Doorside Inc Over BBQ & 1 Roadside
LED 3" Downlights & Reading Lights
LED Taillights
12 Pin Tow Plug

PLUMBING

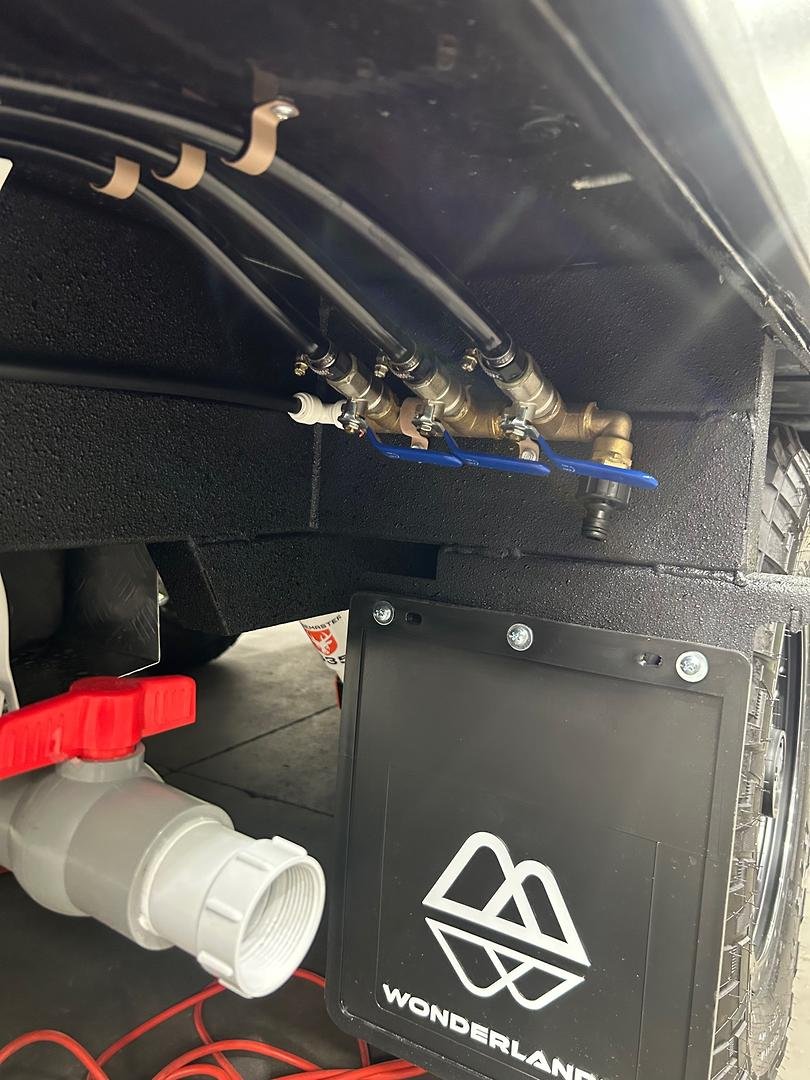

Roto Molded Poly Water Tanks with Brass Fittings
2 x 100L Fresh Water Tanks
1x 70L Isolated Dedicated Drinking Water Tank
1 x 100L Grey Water Tank with Bypass

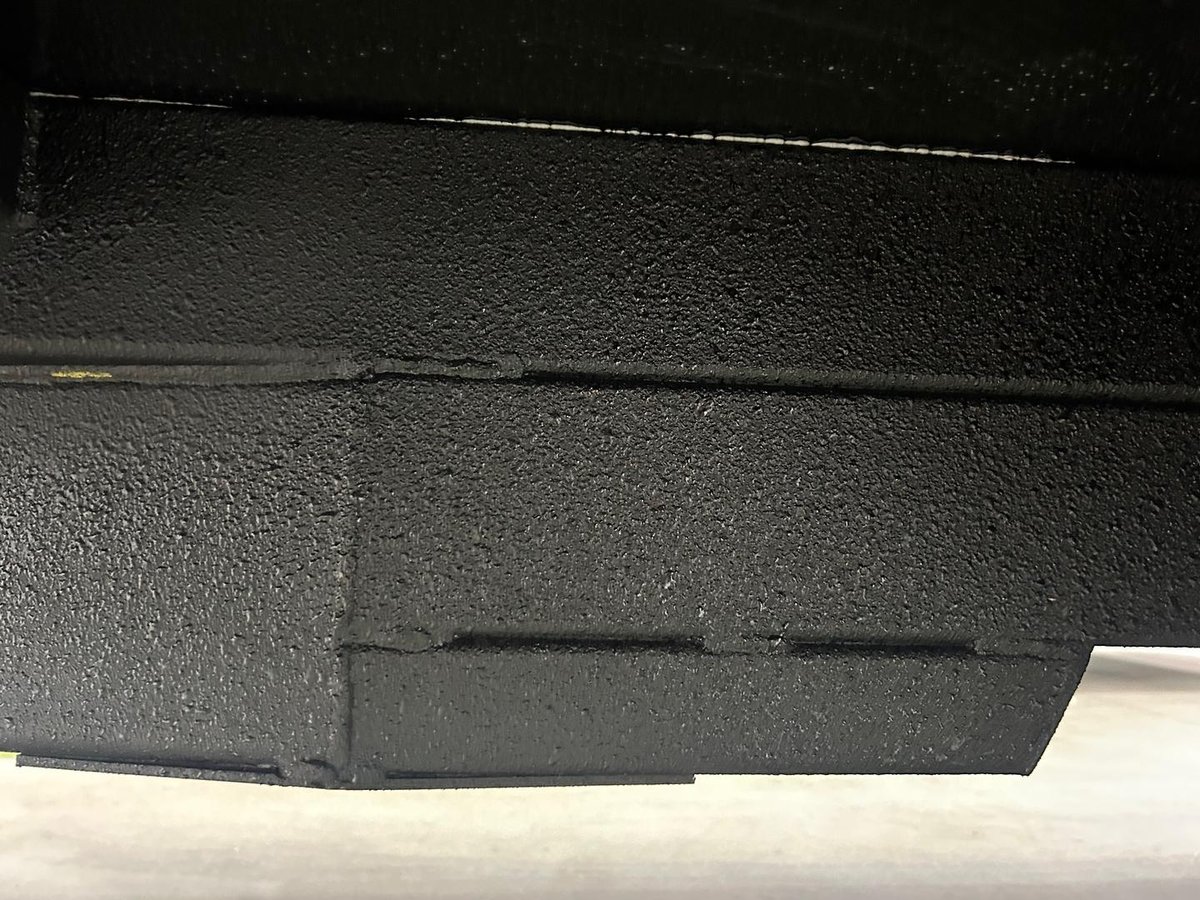

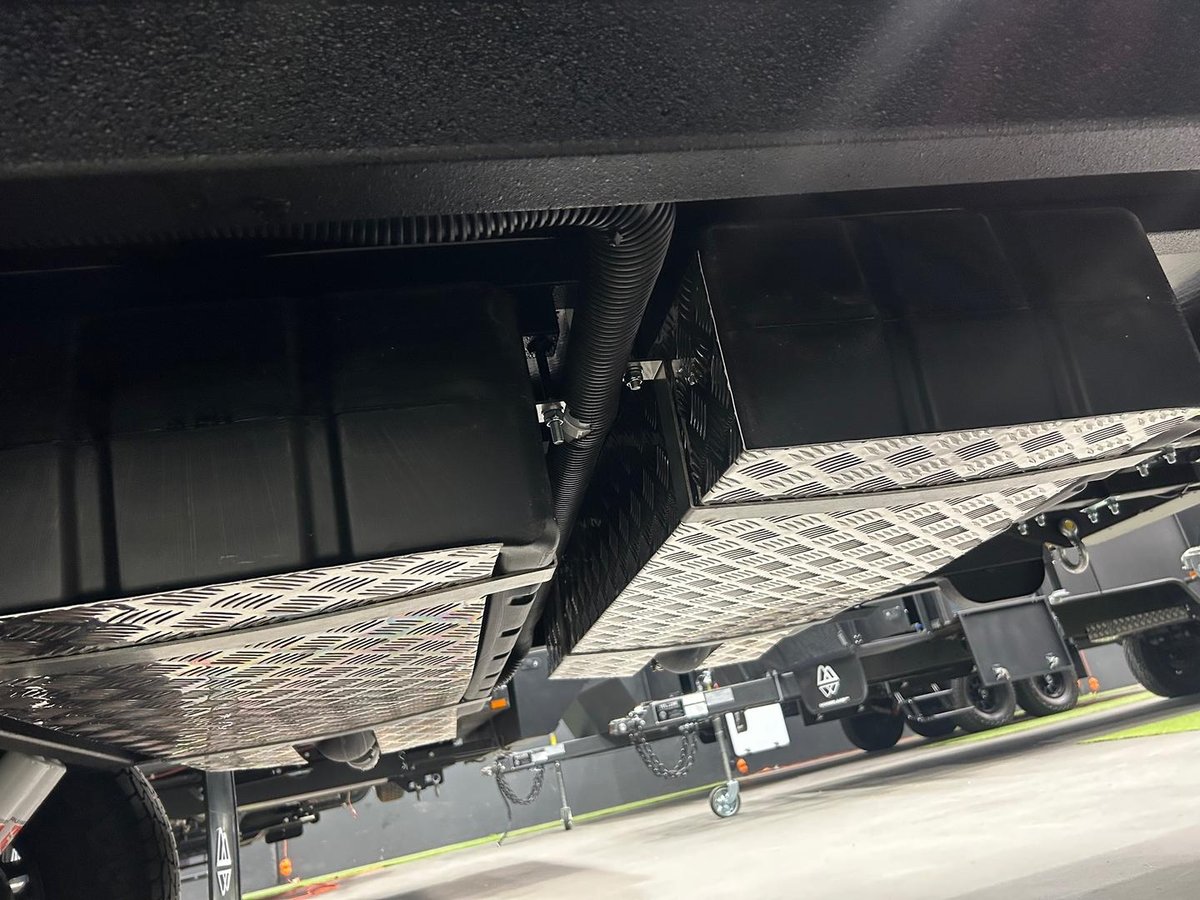

Gal Sheet Water Tanks & Plumbing Protection
Portable Induction Cooktop
224L Dometic Compressor Fridge
External Hot & Cold Shower
1 x Gas Bayonet

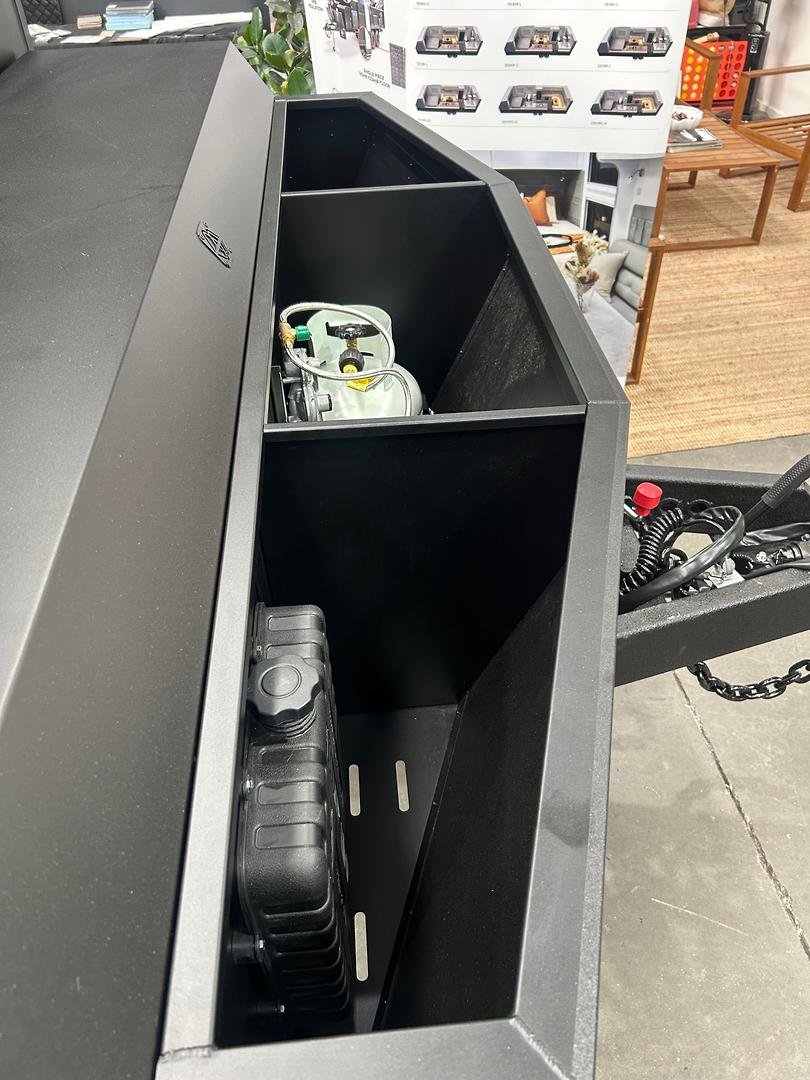

2 x 4kg Gas Bottles
Hydronic Diesel Heater & HWS
1 x Cold Tap On A Frame

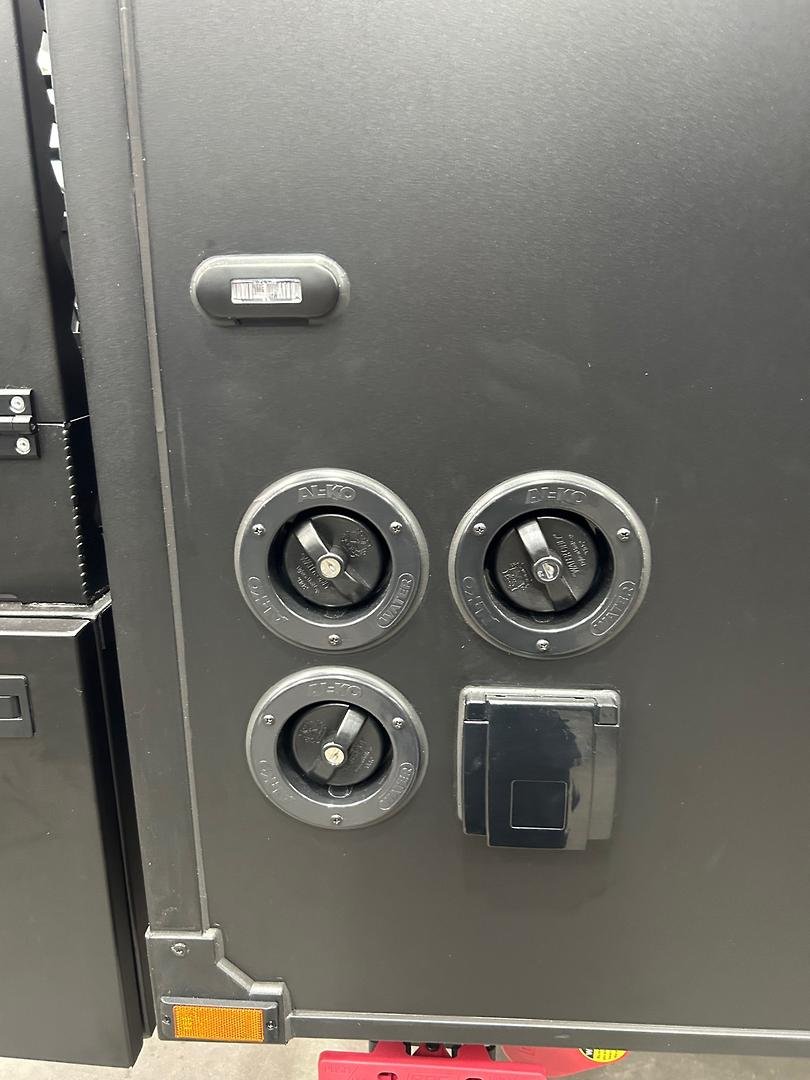

Quick Fill & Mains Connection & 1 Separate Filler & Cap

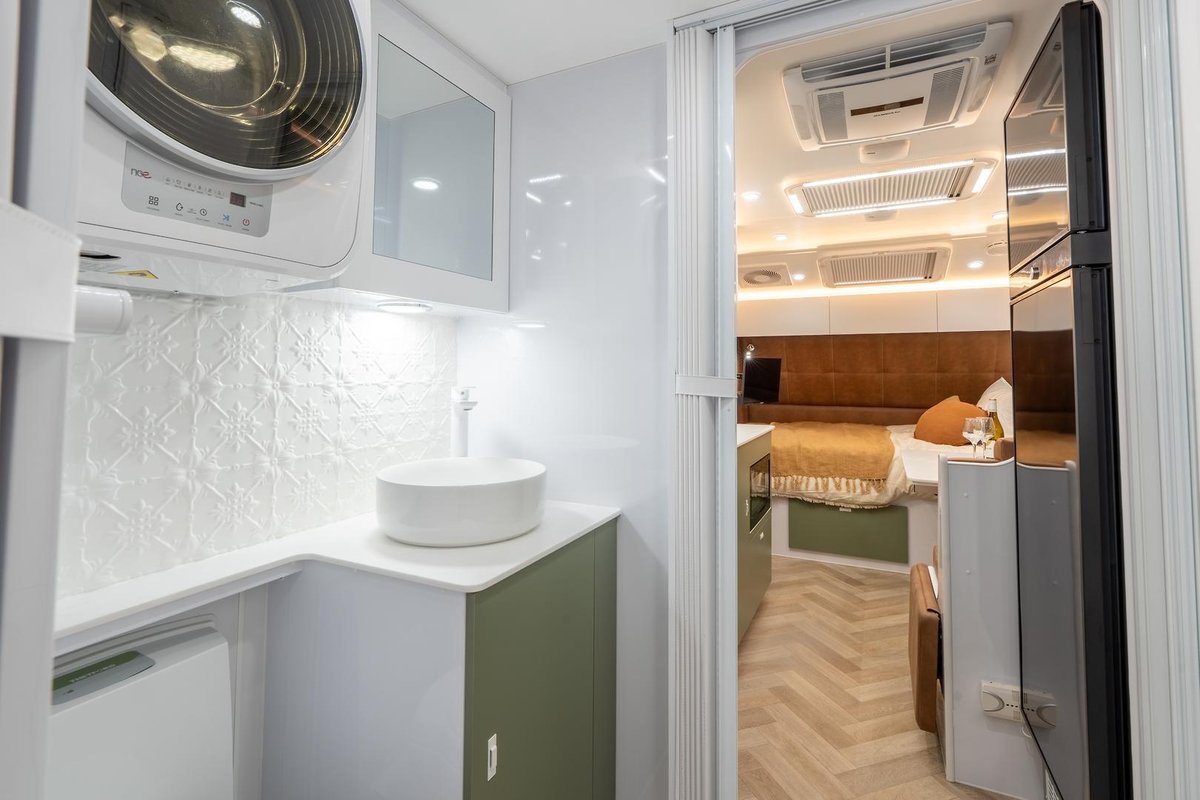

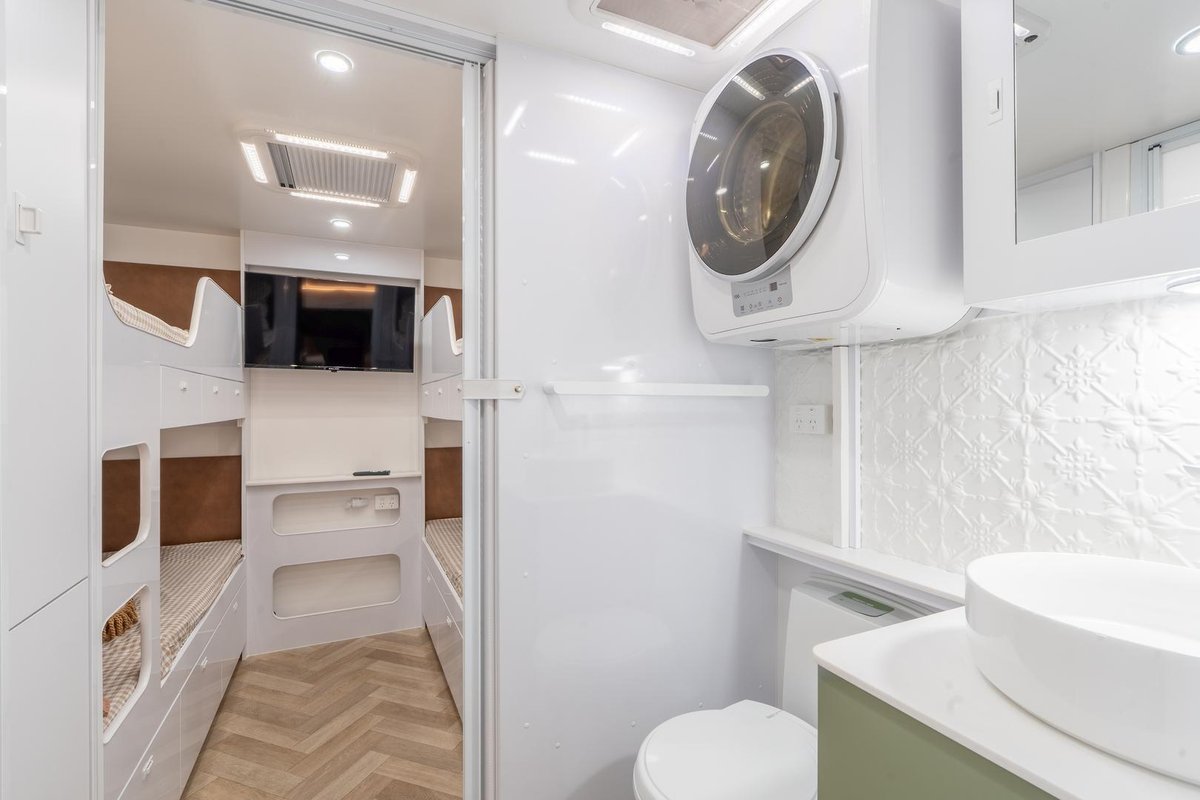

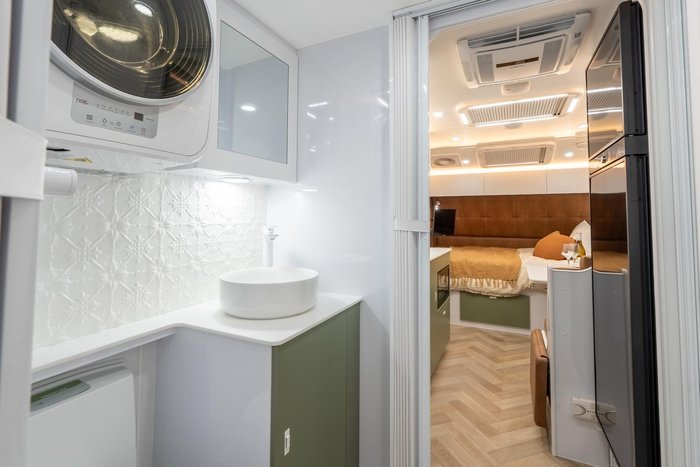

3kg Wall Mounted Washing Machine
3 Way Tall White Gooseneck Kitchen Tap with Filter

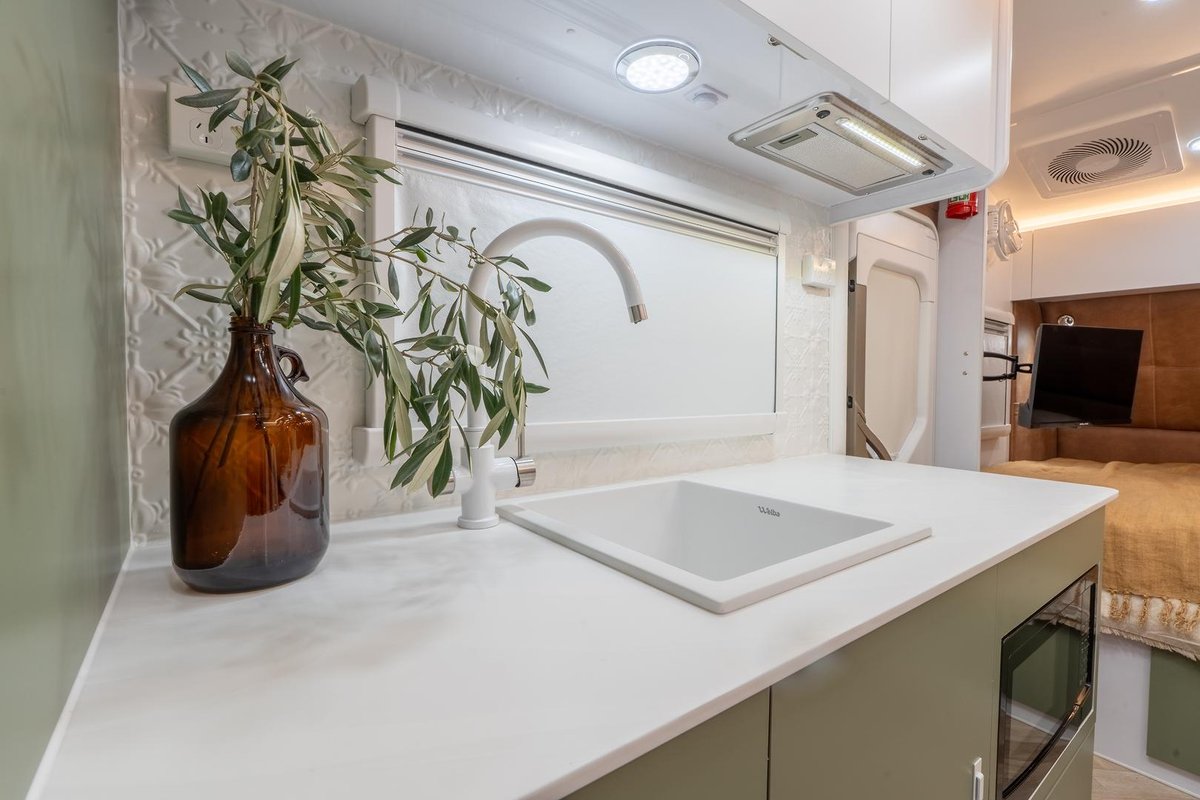

White Granite Sink

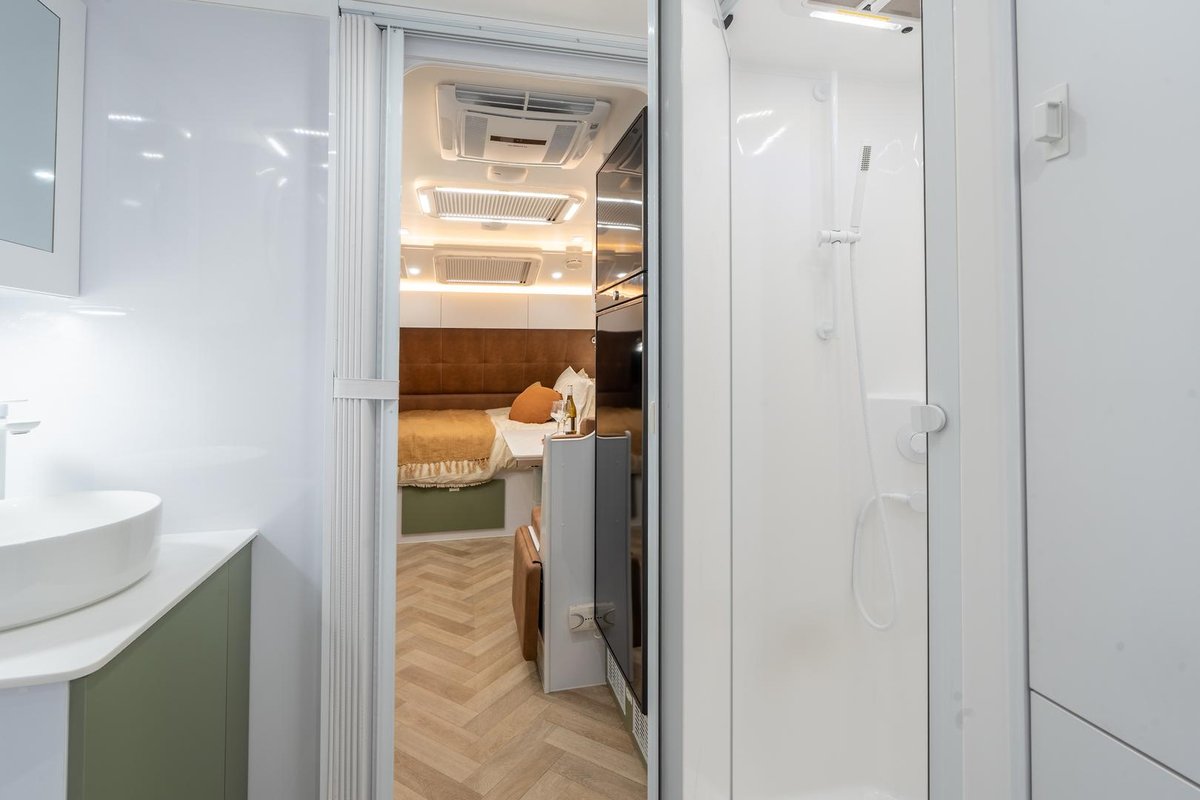

1 Piece Fibreglass Shower
Thetford Ceramic Separation Toilet

EXTERNAL
Dibond Marine Grade German Composite Panel
850mm Protection Plate

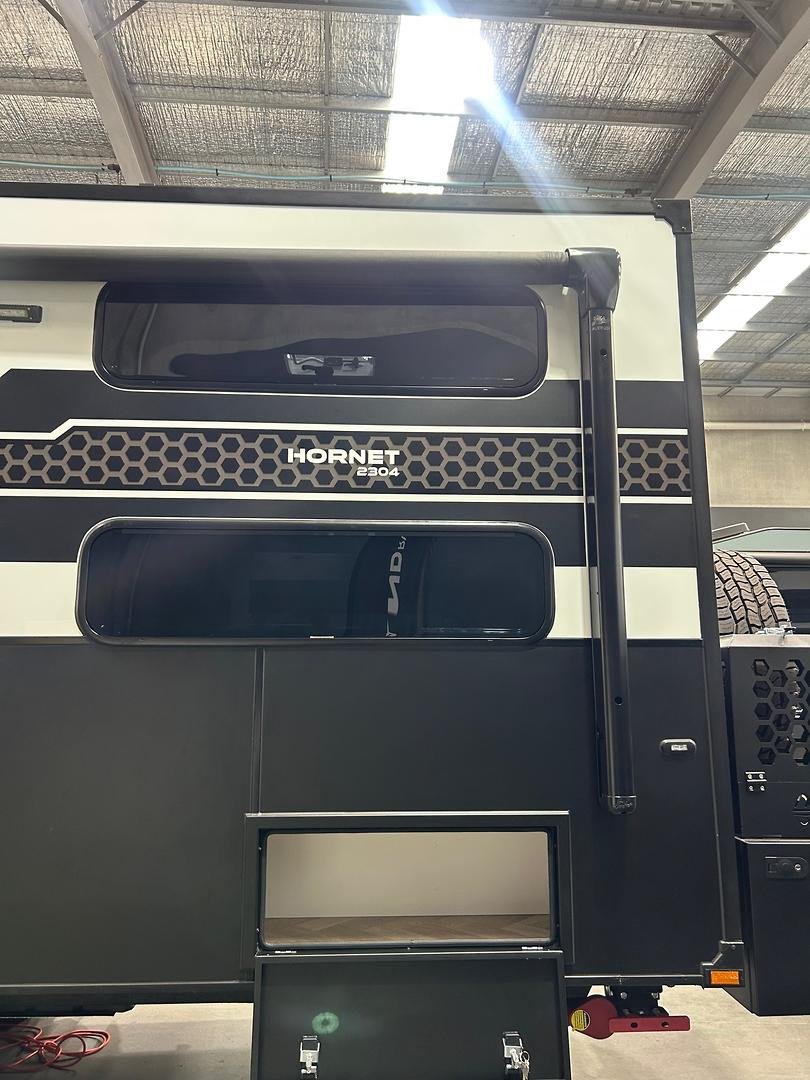

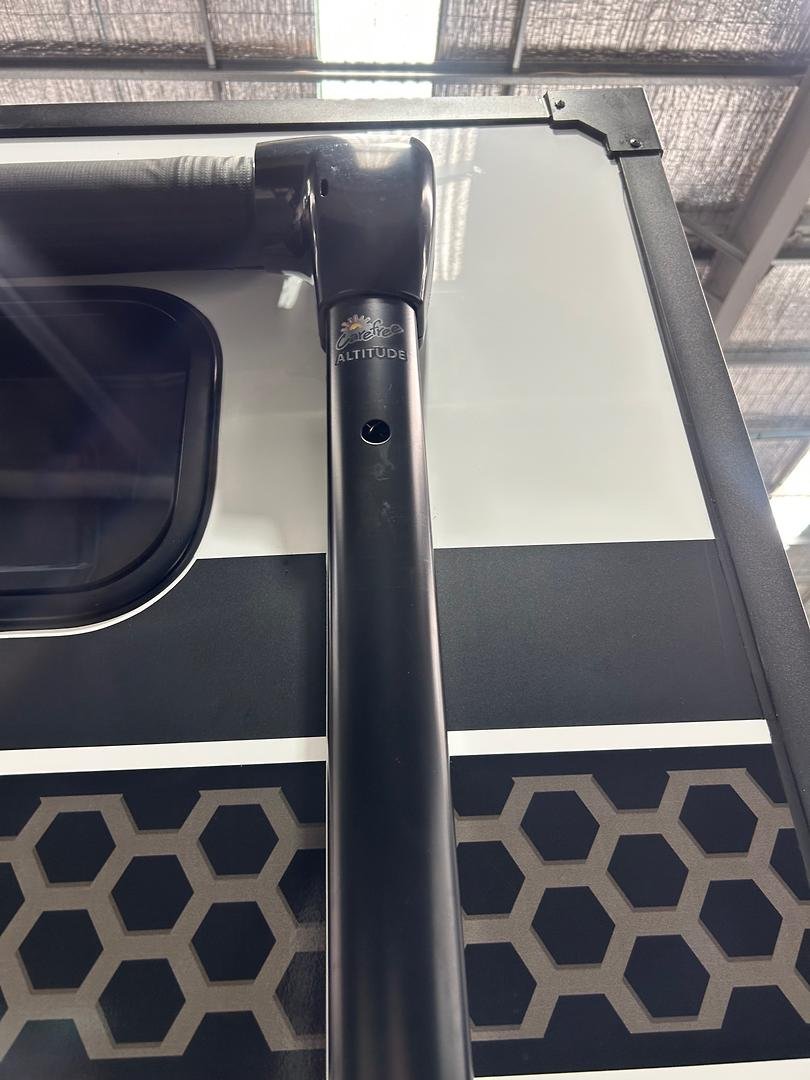

Freedom Carefree Electric Awning with BT & Wind Sensor

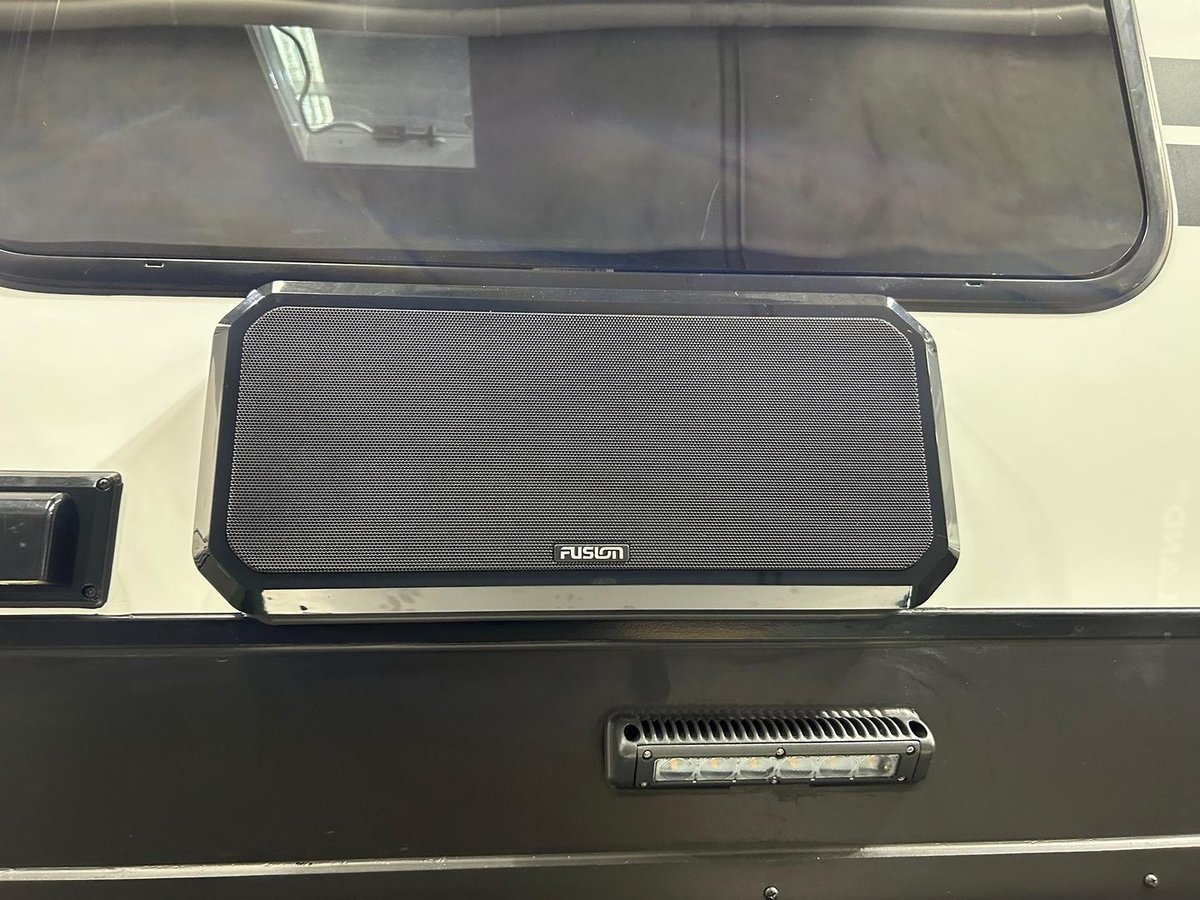

External Entertainment Points & Speakers

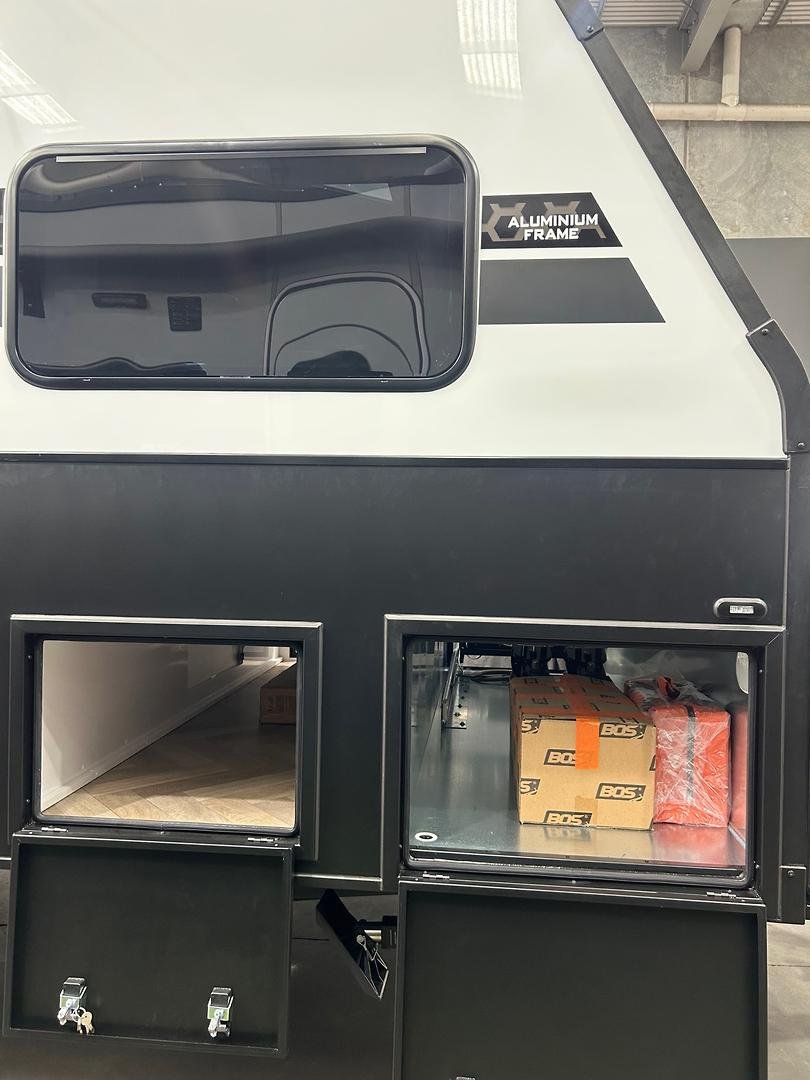

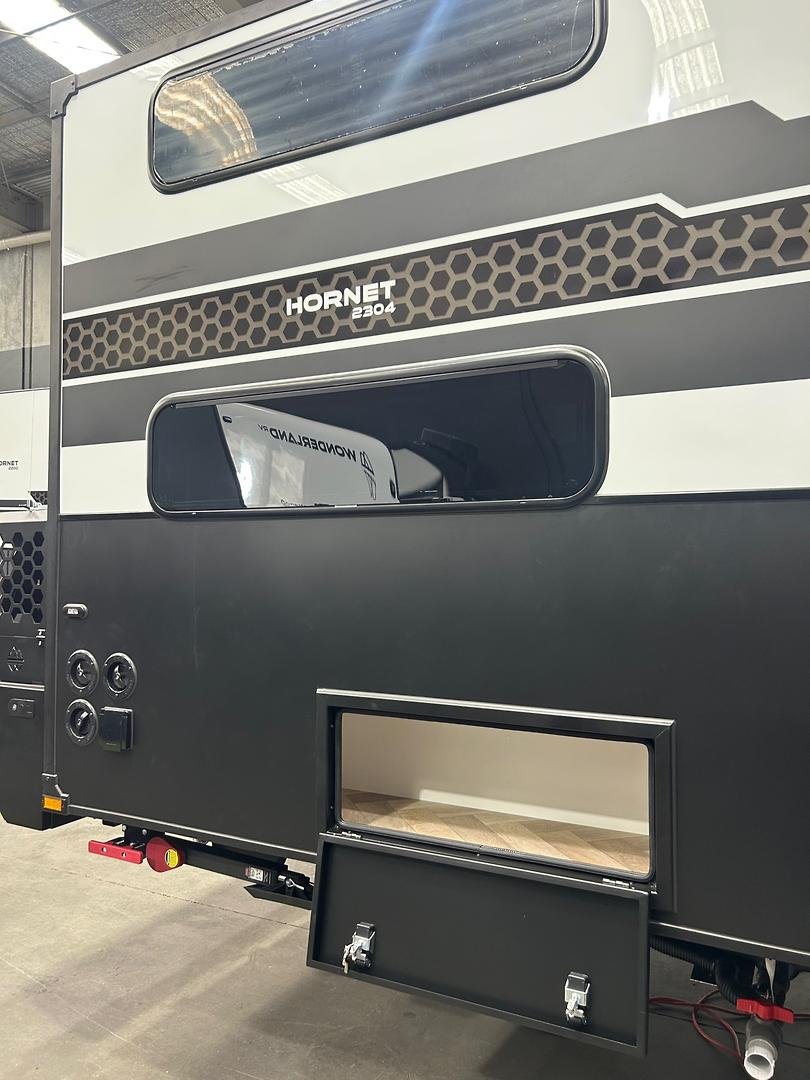

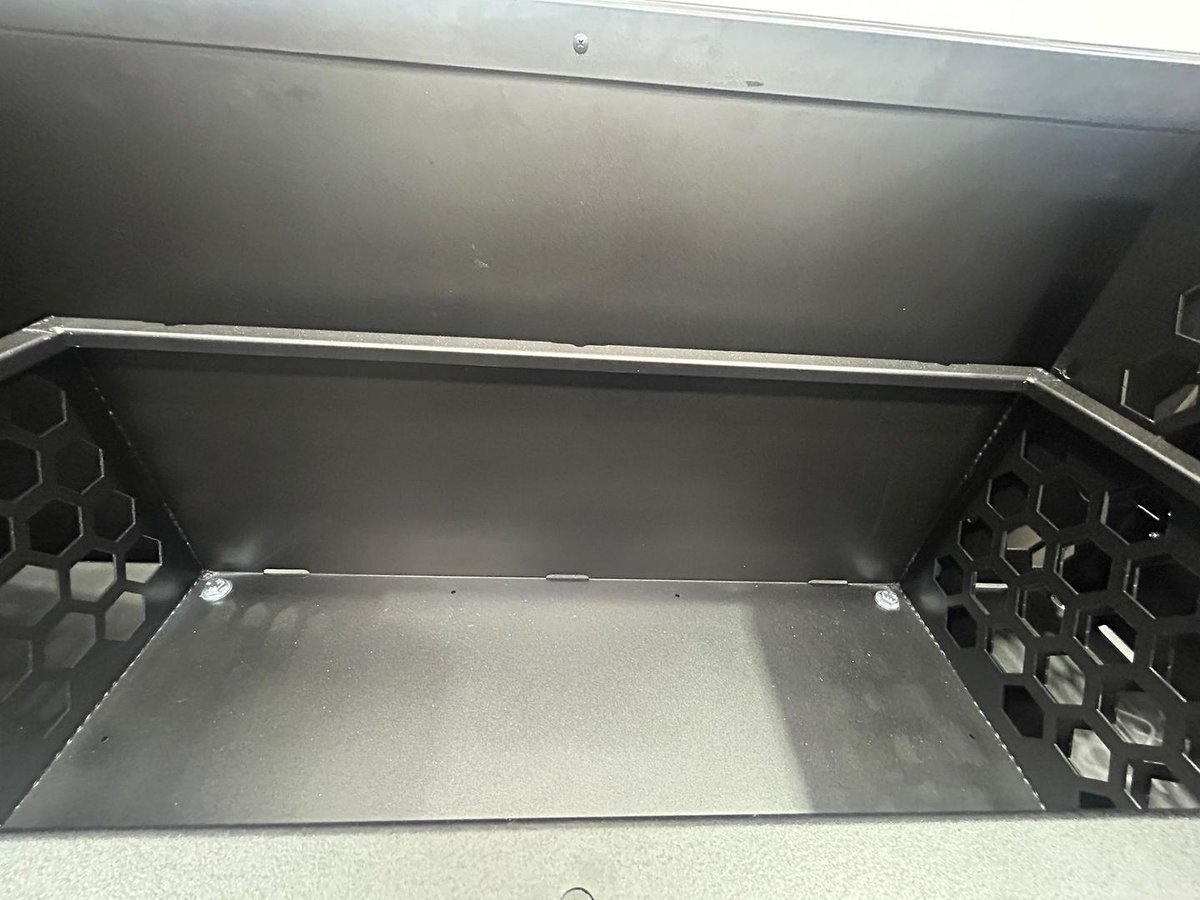

Fully Lined Gal Sheet Tunnel Boot
High Access Tunnel Boot Doors

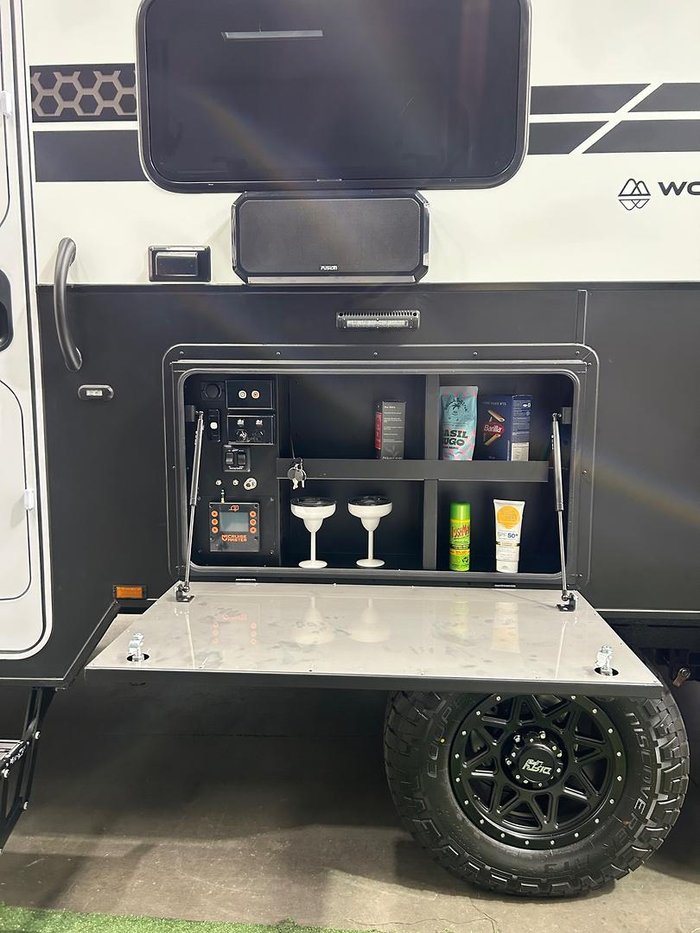

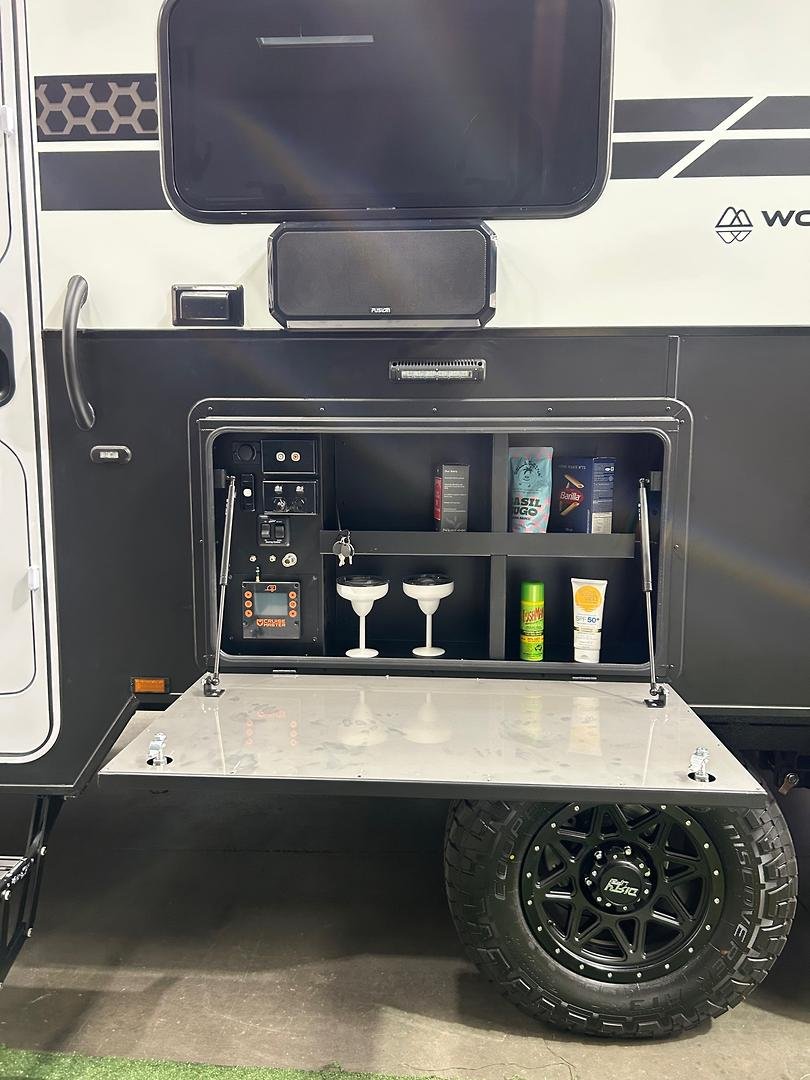

External Pantry with Light, GPO & USB
Additional Black Picnic Table

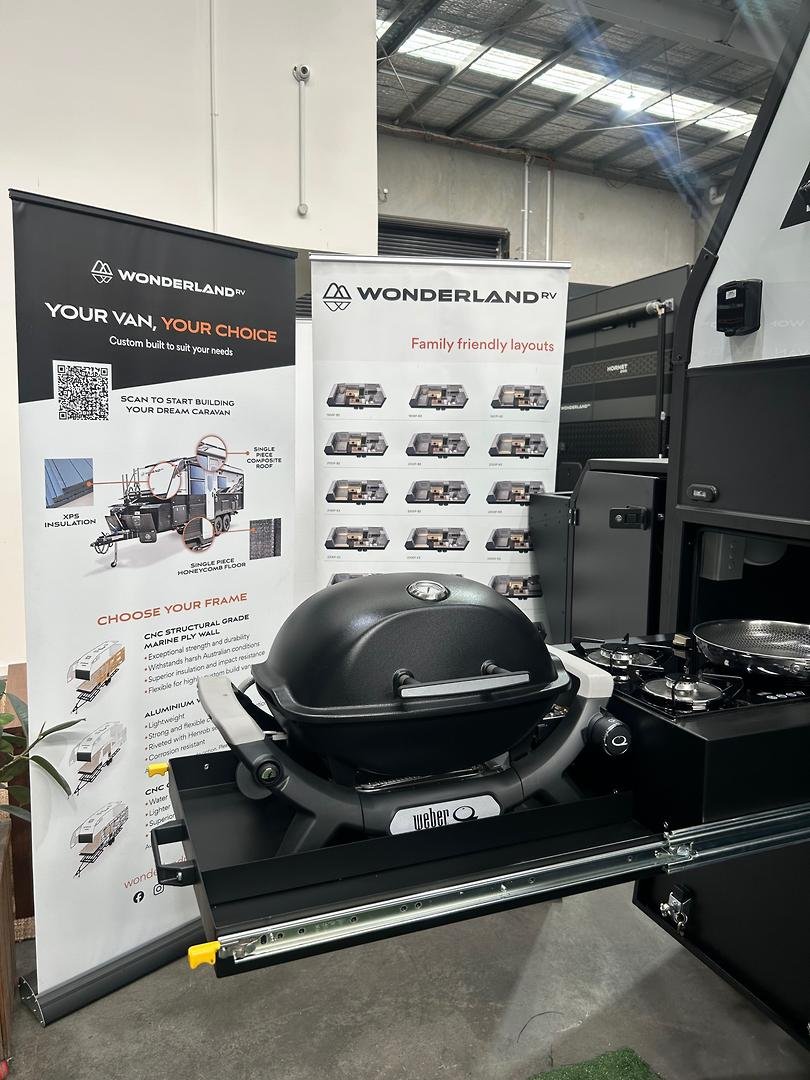

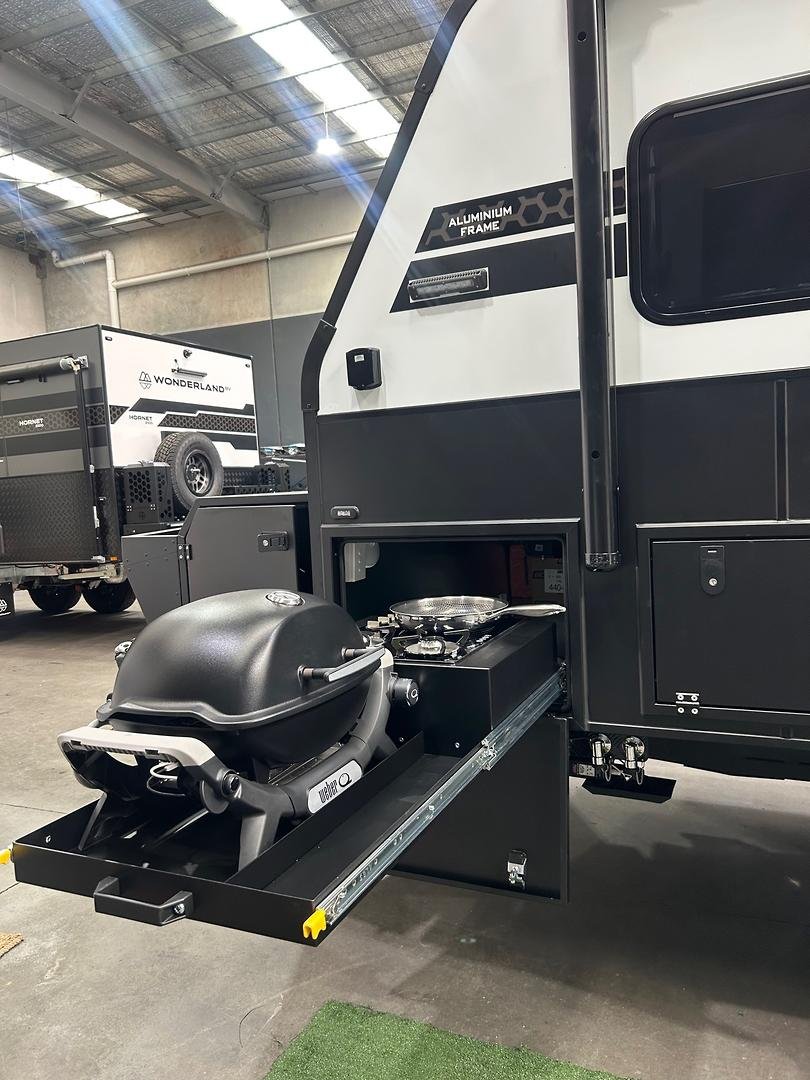

K6-Plus External Slide Out Kitchen with Induction Cooktop, 2 x Gas Hob & BBQ Provision

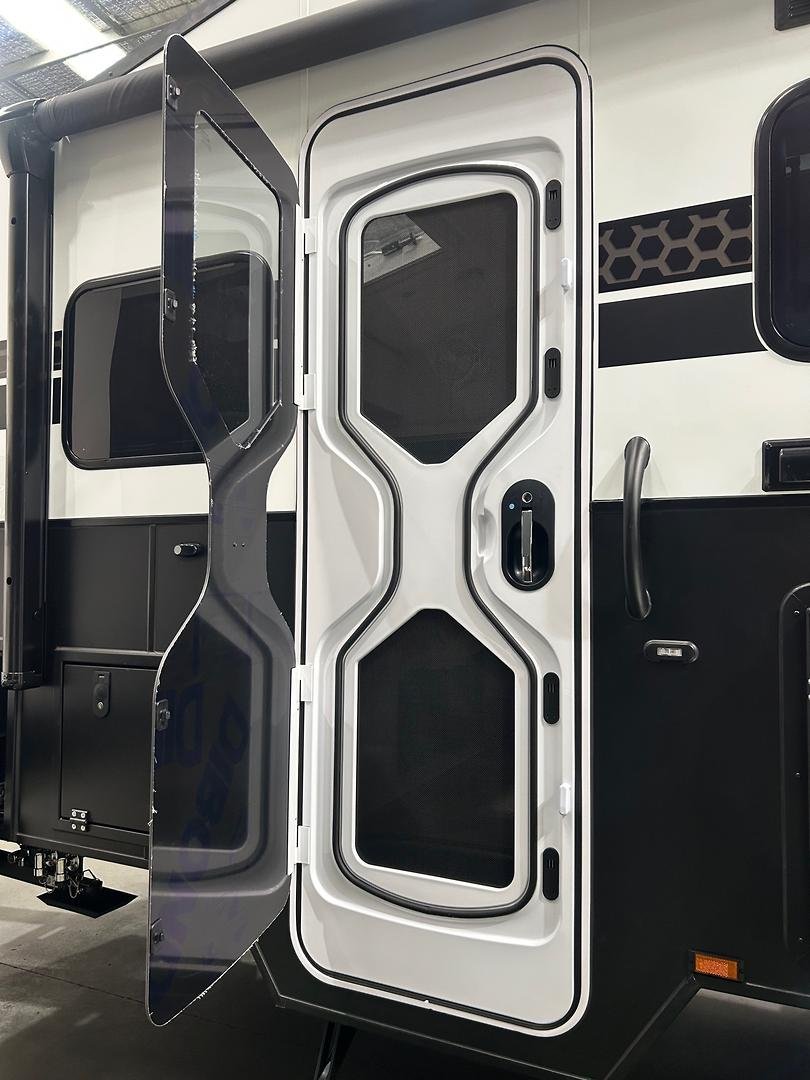

Cara Door 1850x622 Entry Door
Large Double Glazed Windows with Dark Tint
Windows with Non Concertina Fly Screen & Block Out

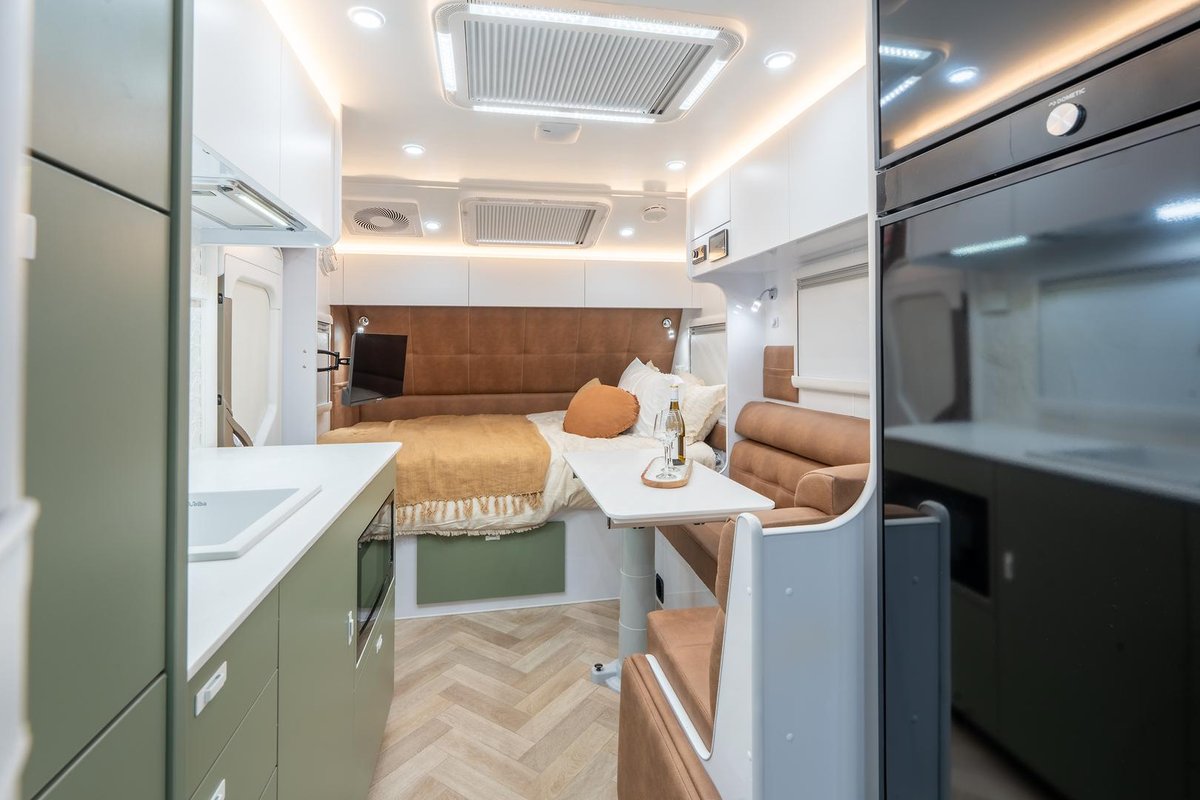

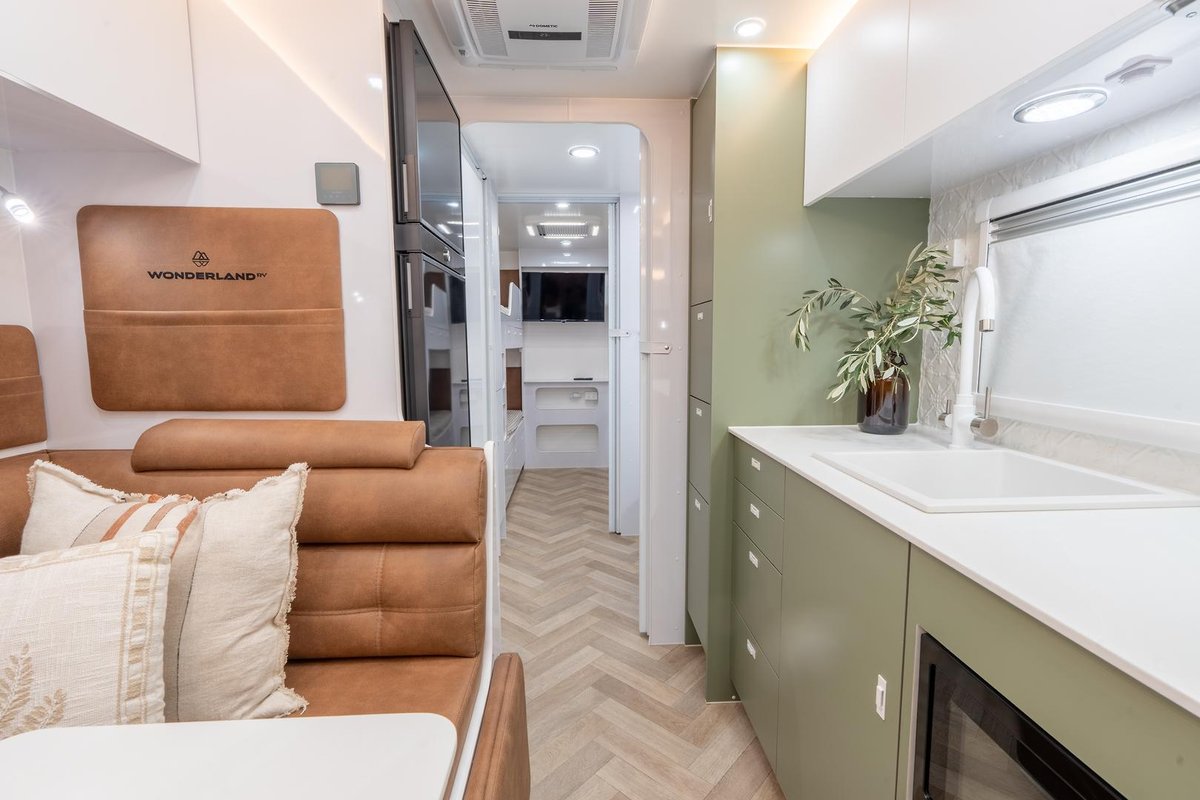

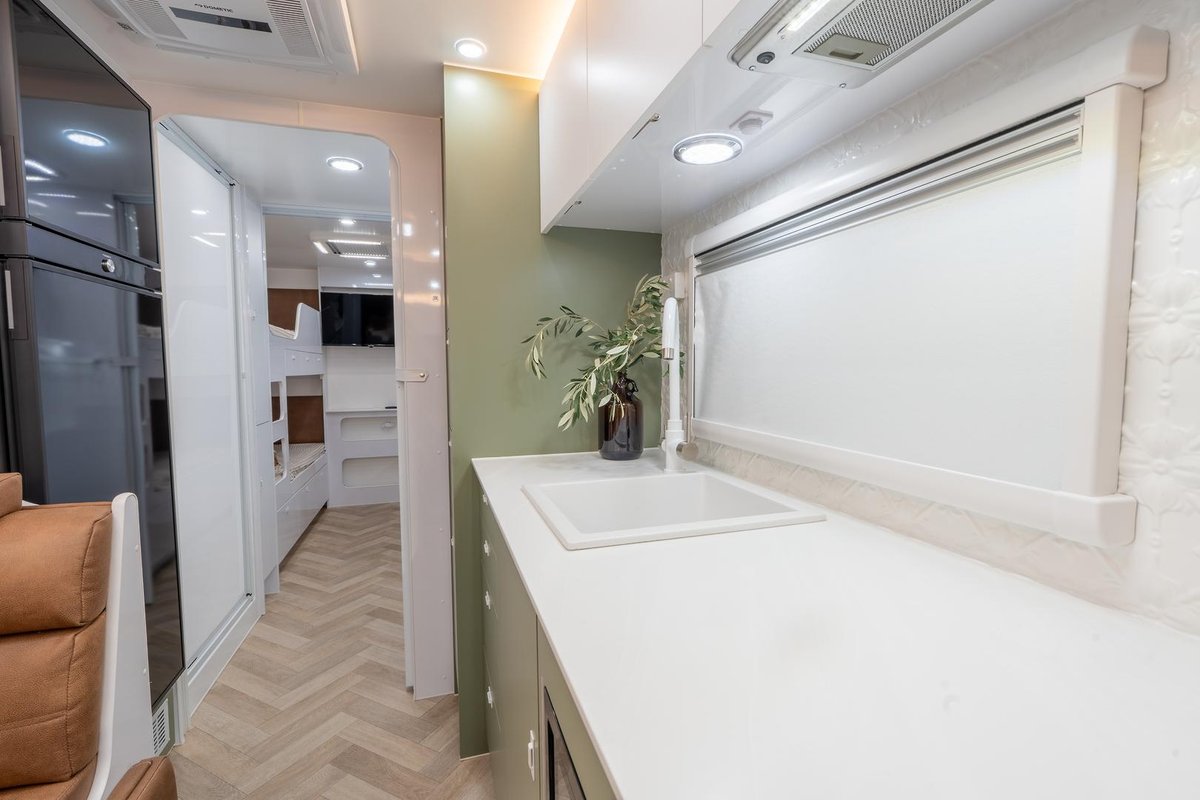

INTERNAL
CNC Lightweight Ply Furniture- precision cut with no gaps
Lightweight European Plywood Laminate Benchtops & Doors
Full Height Pantry with Soft Close Drawers & Dual Pull Out Bins
Large Metal Sided Drawers Pot Drawer

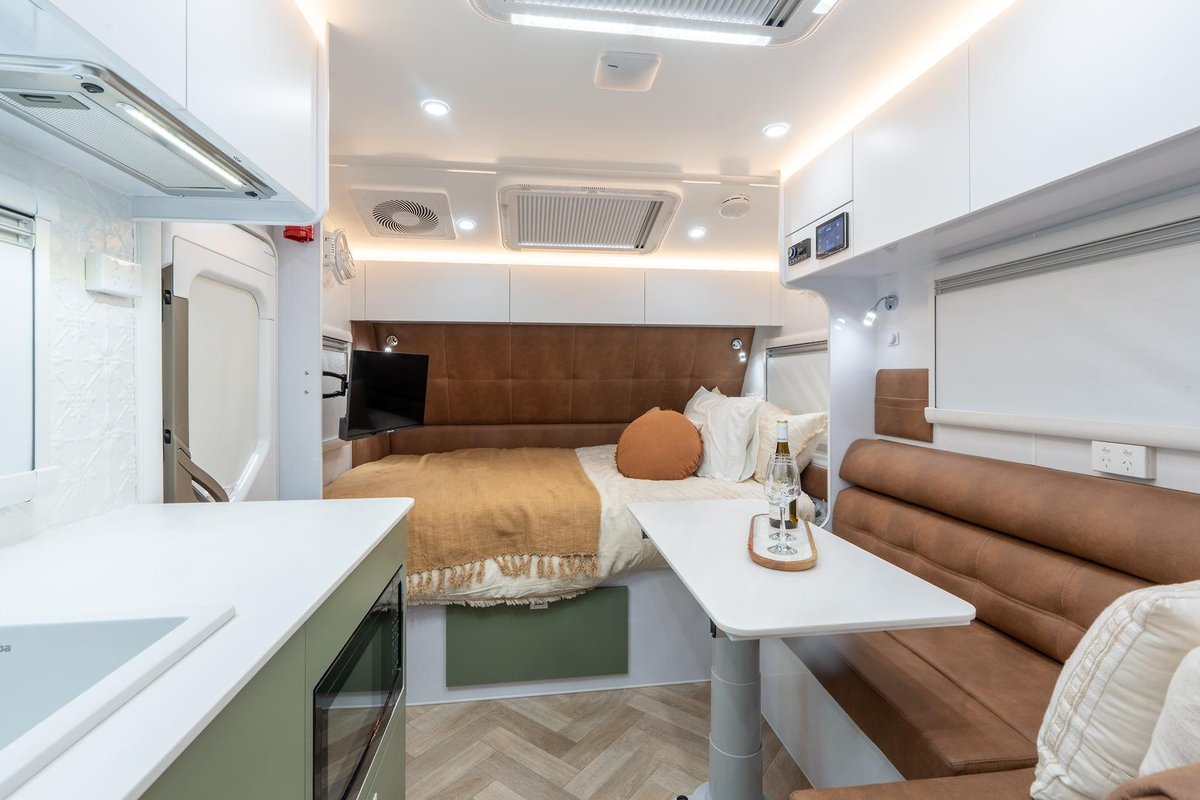

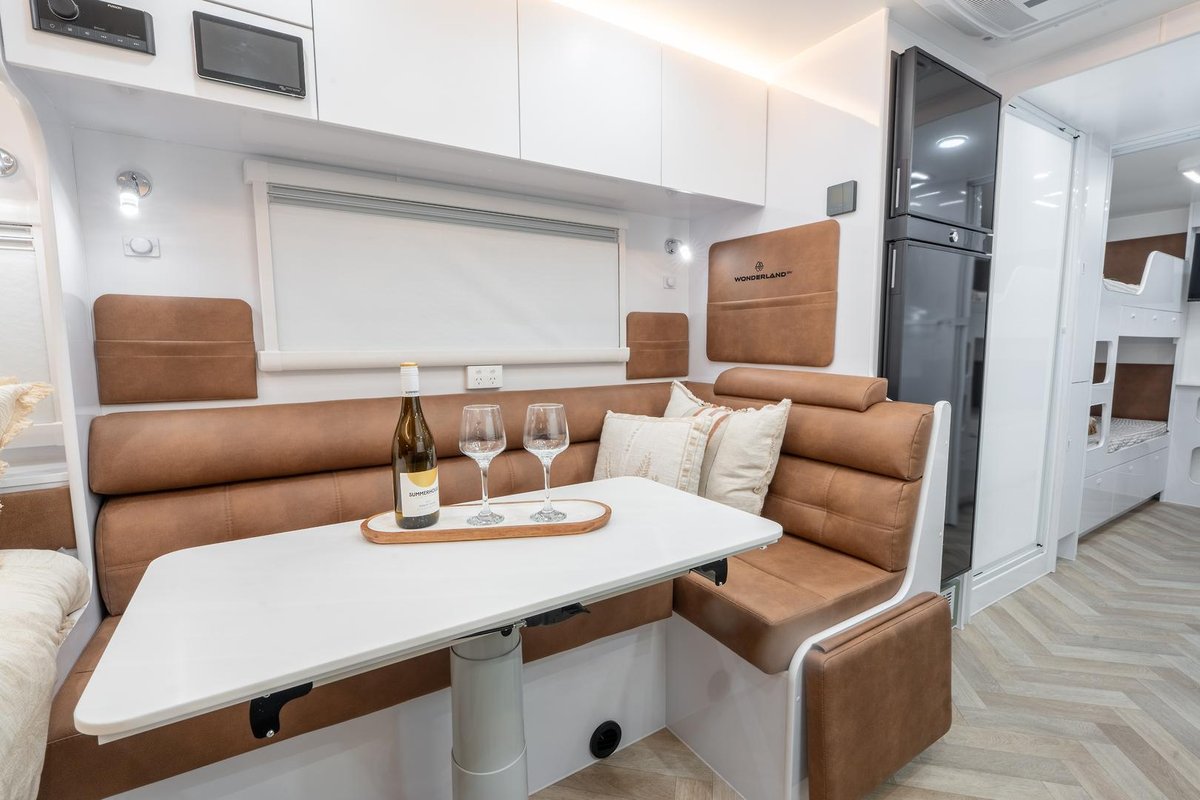

Firm Back Lounge Seating with Support & Footrest
Telescopic Table Leg
6’8" E-W Pillowtop Mattress
Bedhead & Magazine pockets
LED Hatches with Fans in Bathroom
2 x 700x500 Large Roof Hatches
Roller Blind on Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

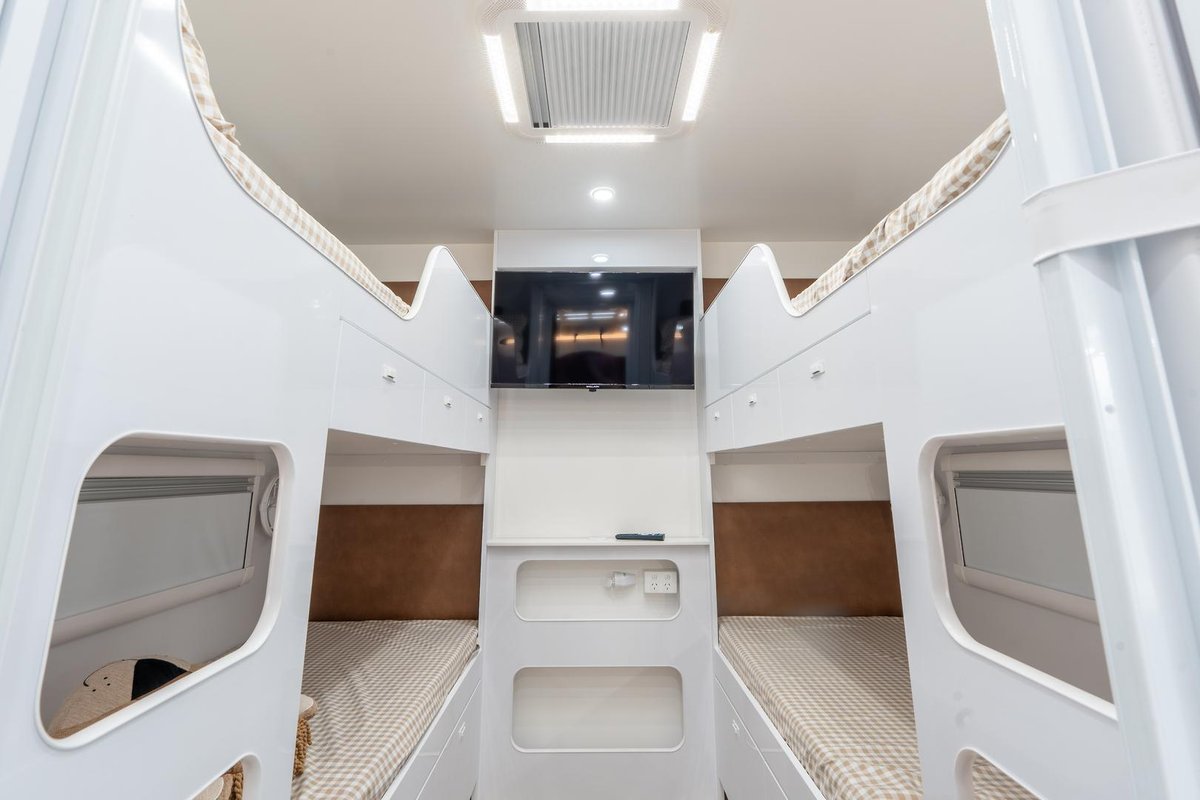

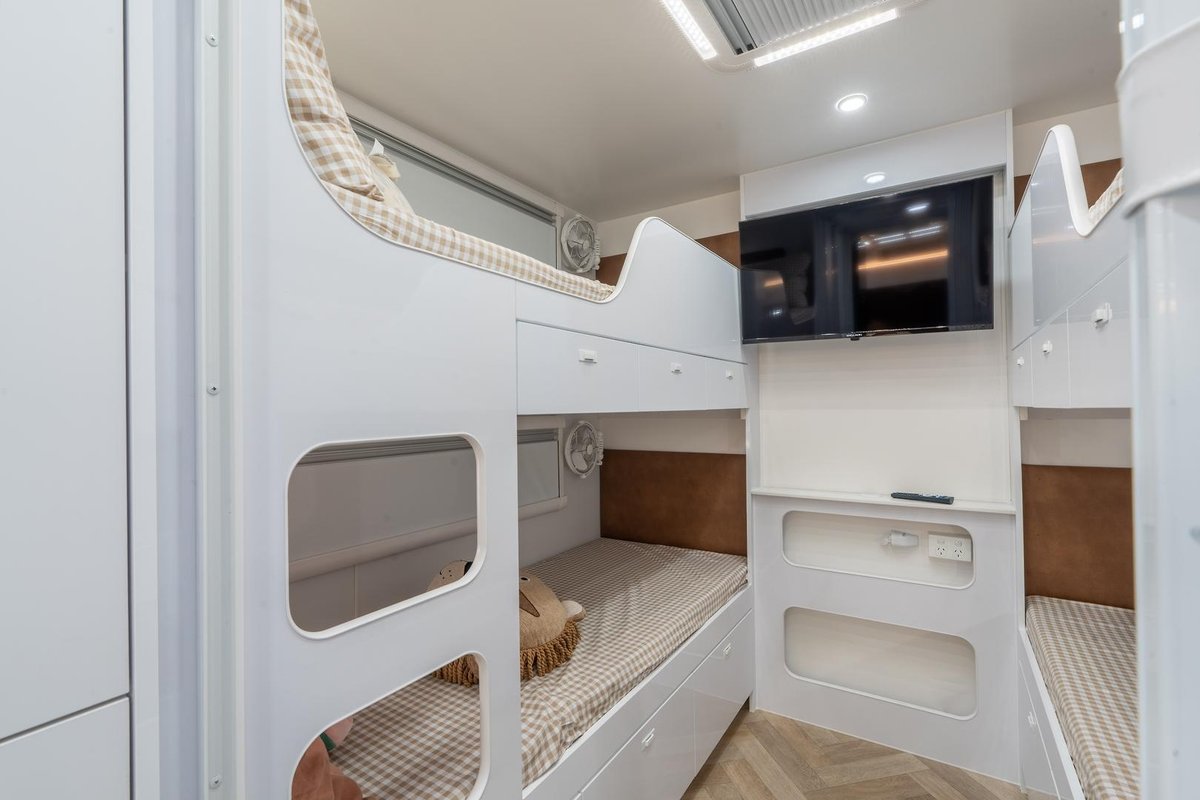

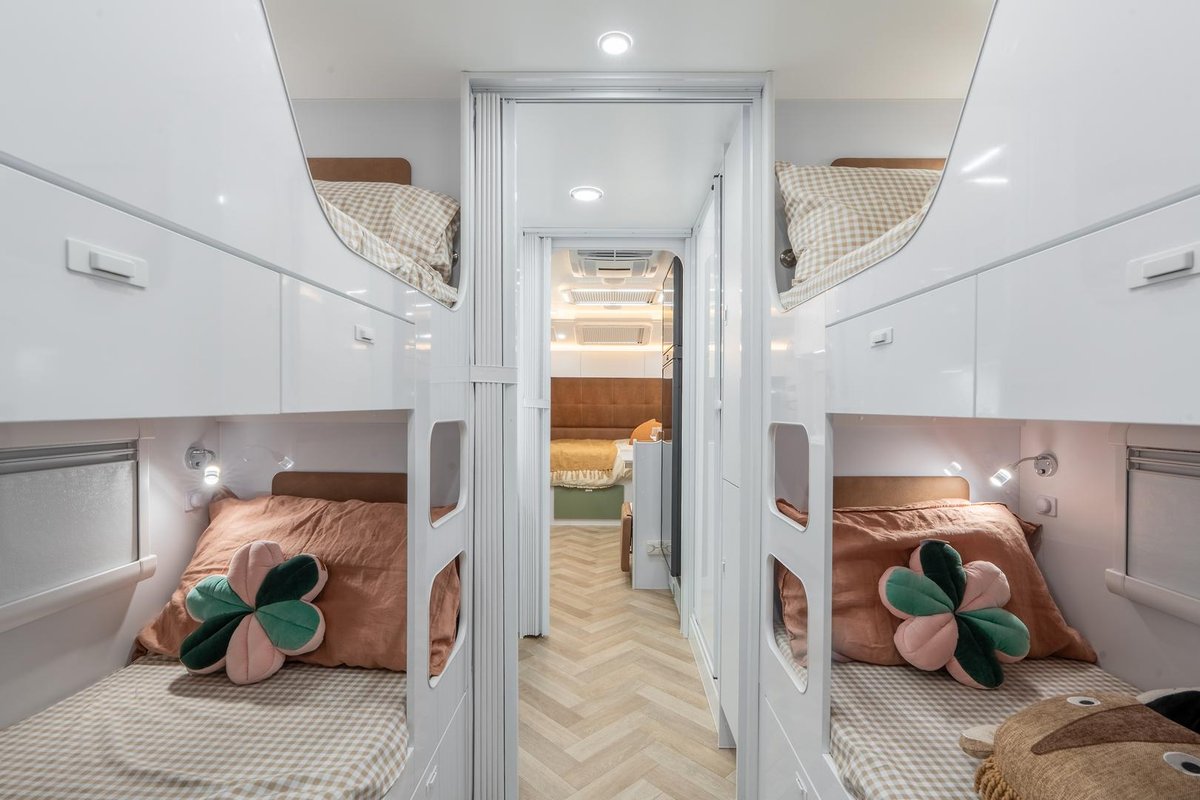

BUNK LAYOUTS
190cm Long x 75cm Wide Bunks 120 kg bunk loading capacity
Come with Upholstered Bed Head, Reading Light, USB
Built-in Ladder with Grab Handle
Concertina Door

CONSTRUCTION

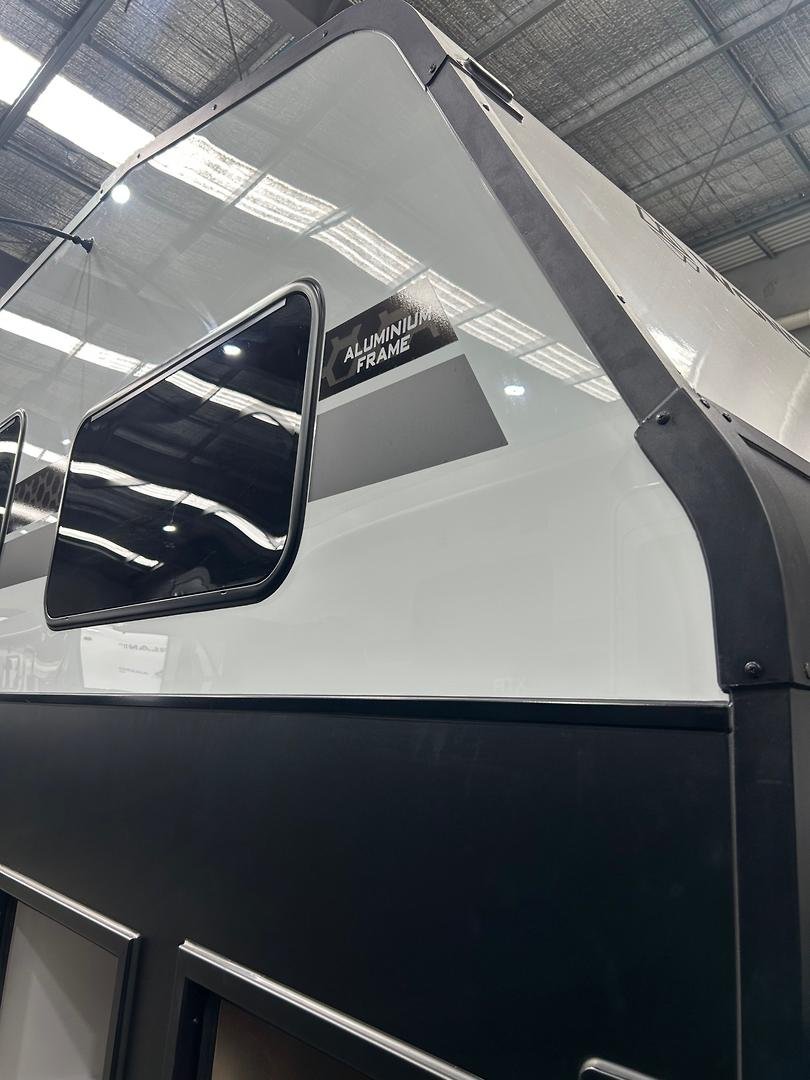

Aluminium riveted 25mm C-Section Interlocking Aluminium, Henrob Riveted
One piece 35mm Sandwich Pannel Composite Roof which wraps around the Front & Back- NO JOINS
XPS Insulation
Honeycomb Floor – lightweight, waterproof & one piece

WEIGHTS
ATM: up to 4500kg
Ball Weight: 260kg
TARE Weight: 3300kg
Travel height:3.2m
Travel Length:9.4m
