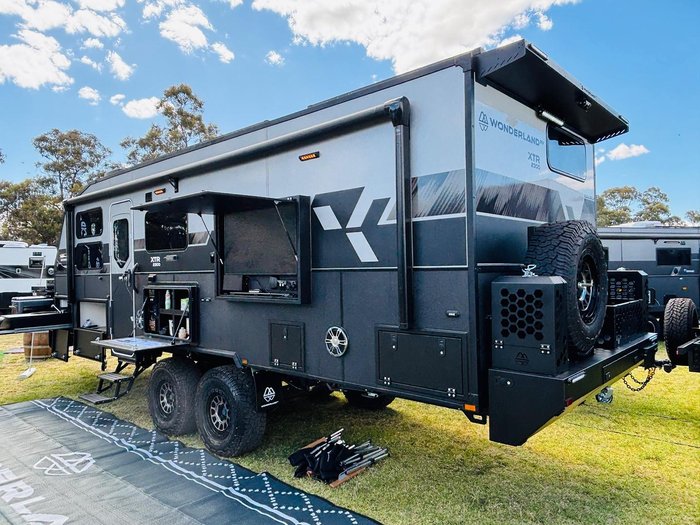

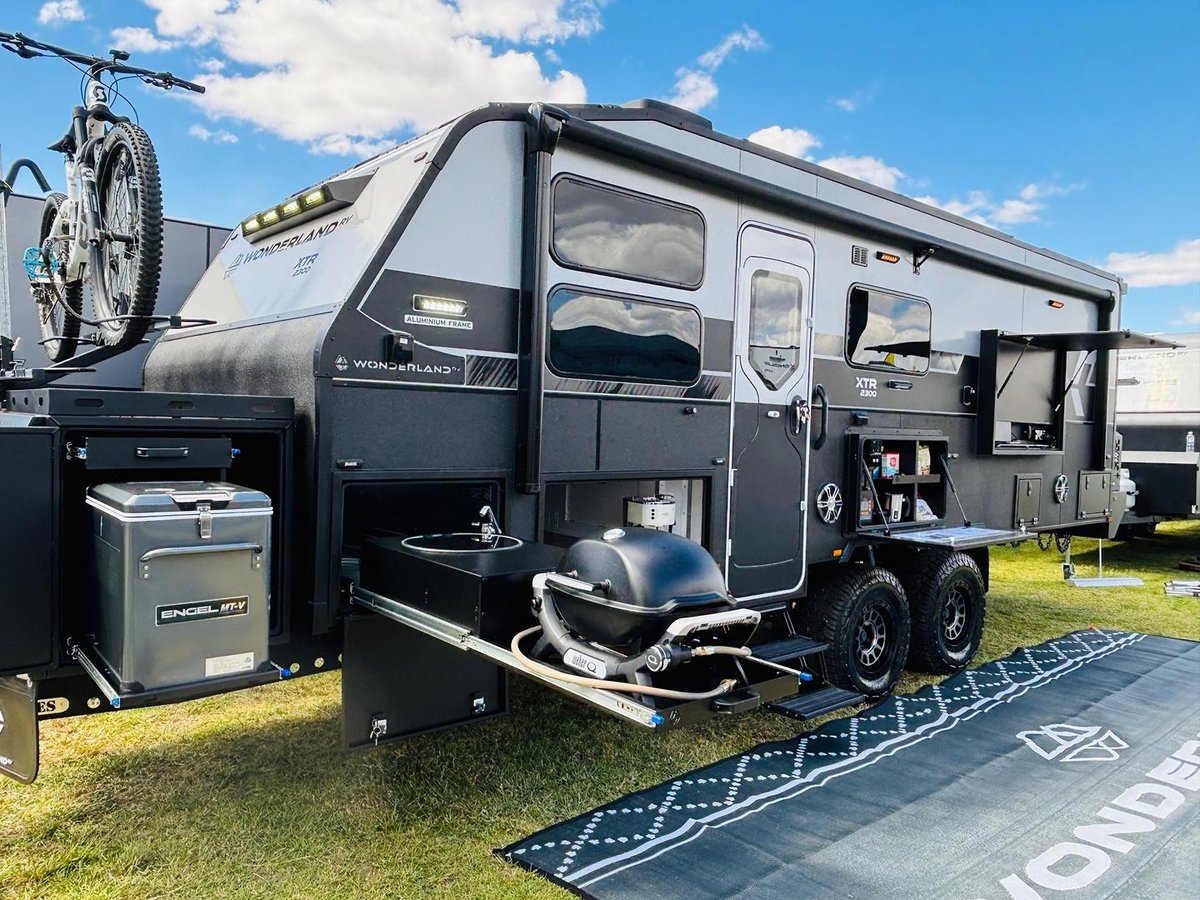

2025 Wonderland RV XTR 2 Bunk

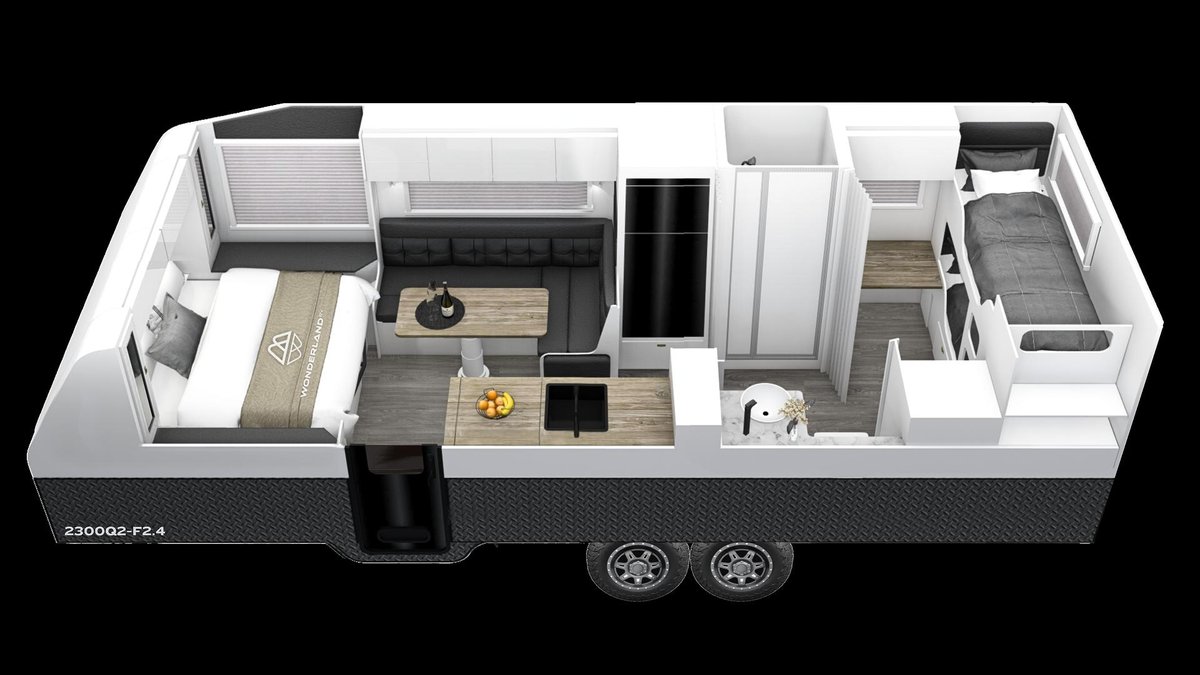

A custom build one off featuring the last of the original CRZR Chassis. Innovative layout.


CHASSIS
Heavy-Duty Off-Road Chassis – Australian Made RHS Steel
CRZR Industries Chassis
A-Frame 2100mm
Flat Floor Chassis
Skid Plates & Recovery Points

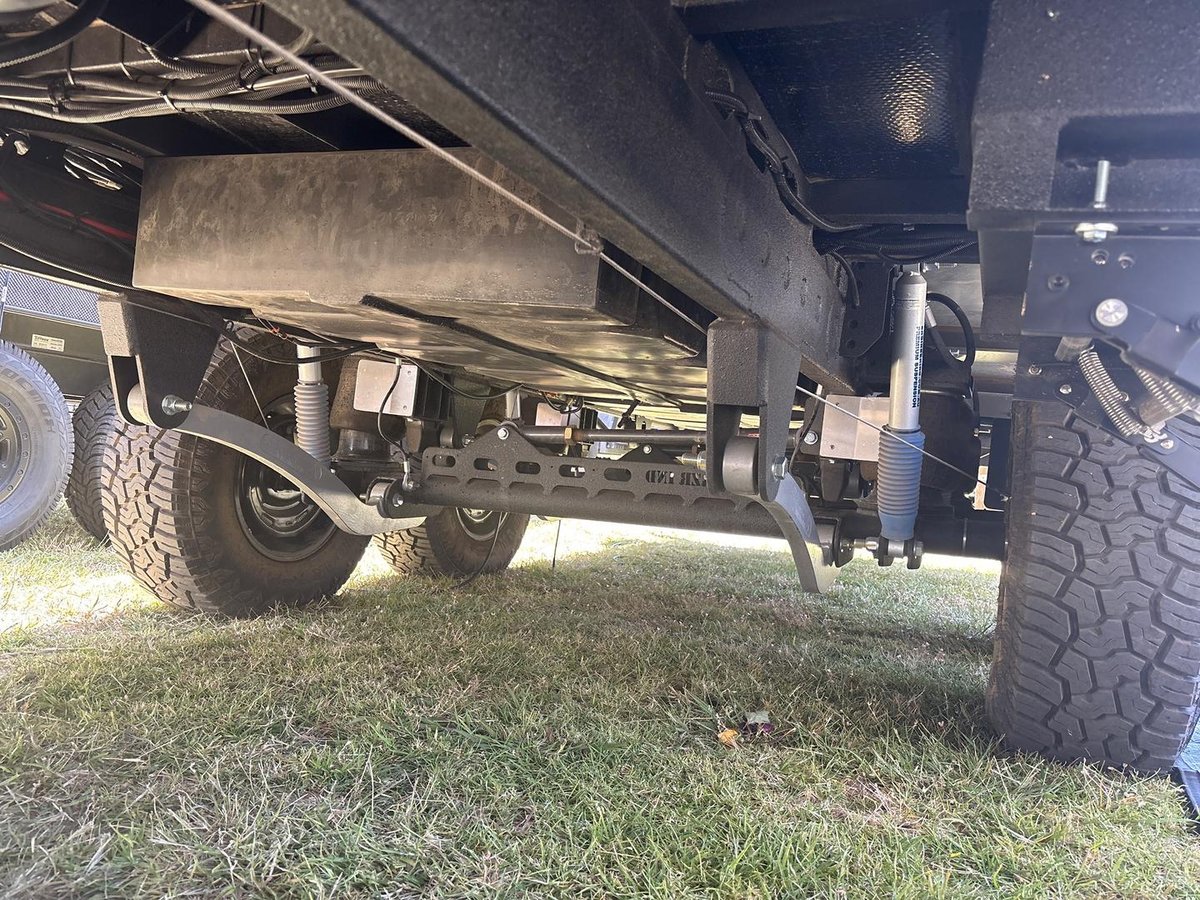

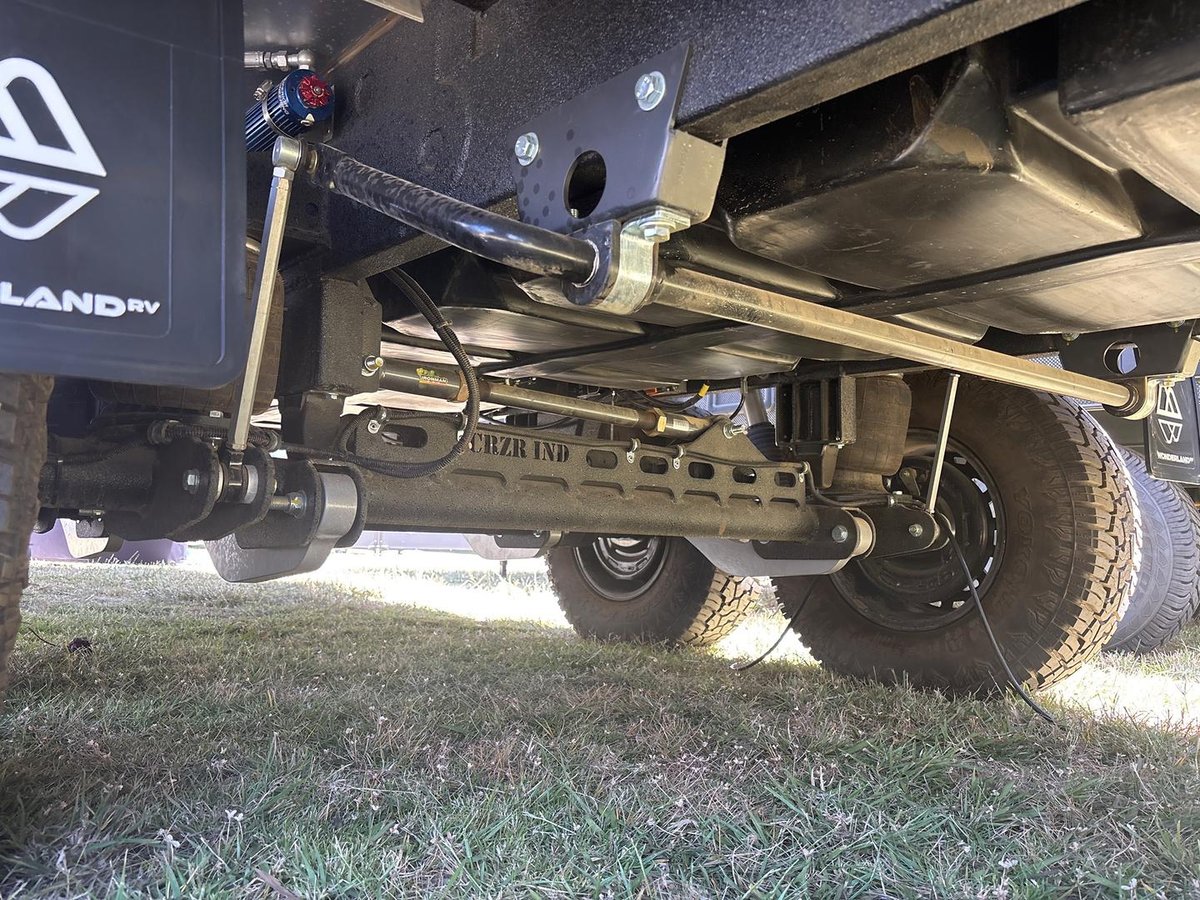

4.5T Cruisemaster ATX L5 BCS
12" Drum Brakes with Dexter Sway Control
Cruisemaster DO45 Hitch & 4.5T Chains
ROH Hammar 17" 265/75R17 Yokohama AT-X 6x139
X-Guard Rubbercoat Chassis Finish
Mammoth Box Toolbox
ISI Custom Quad Bike Rack
BOS 3 Rib Jockey Plate
Caravan Jack & Brace
Stone Deflector

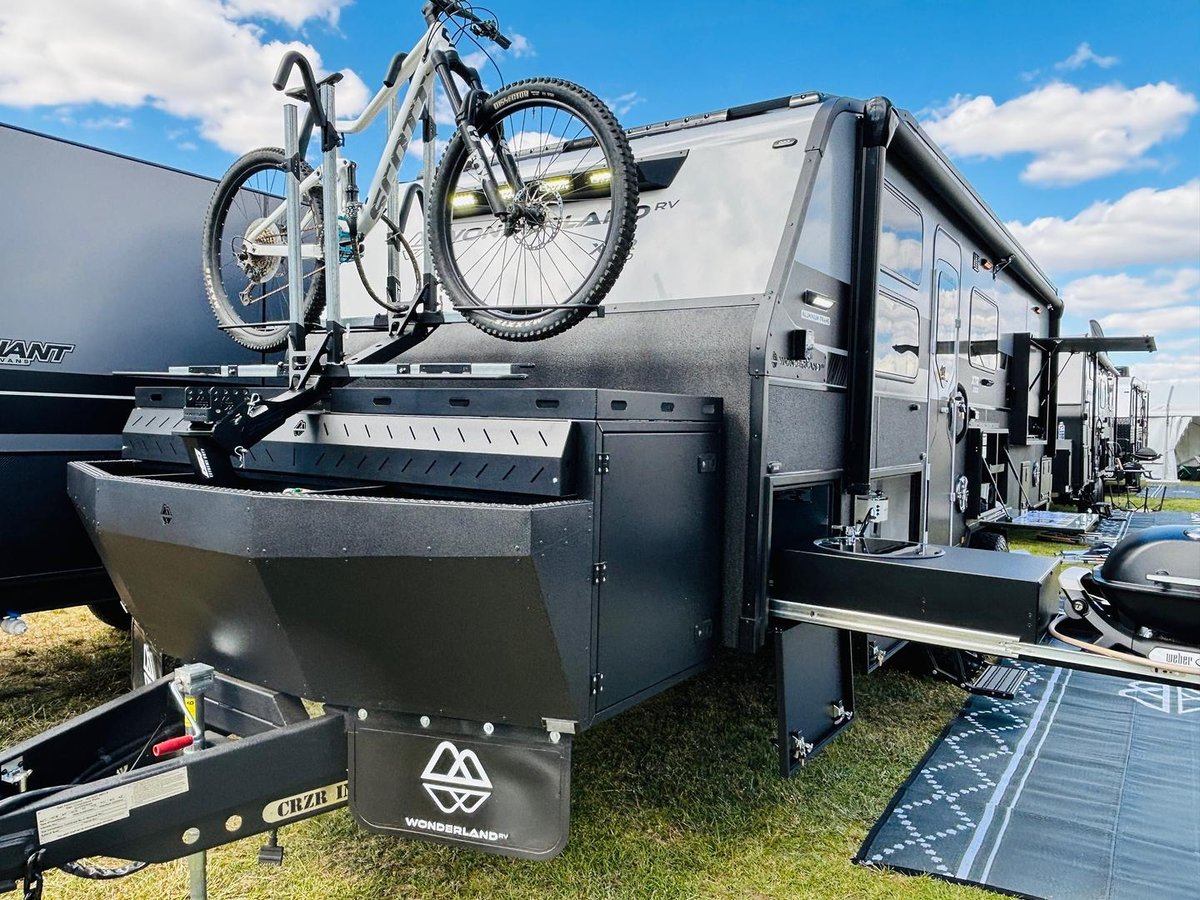

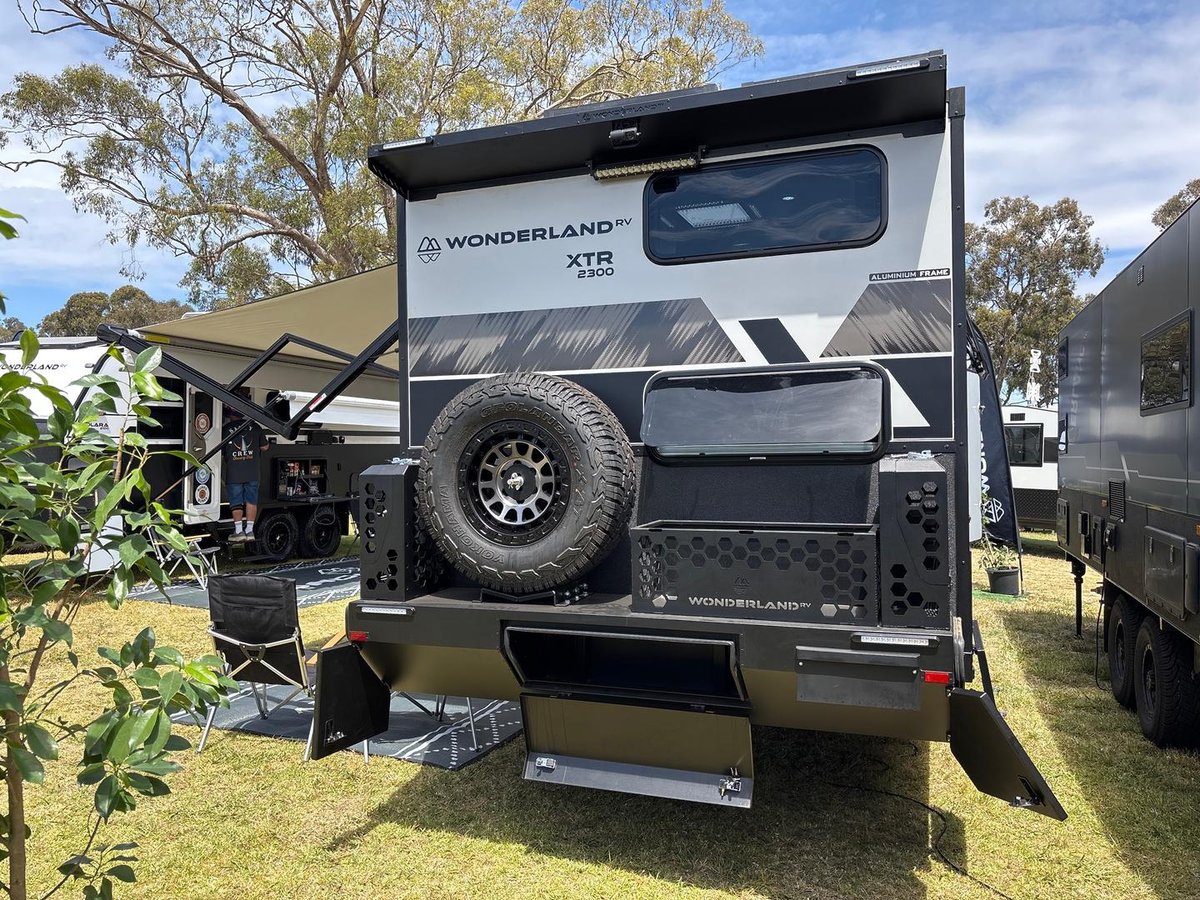

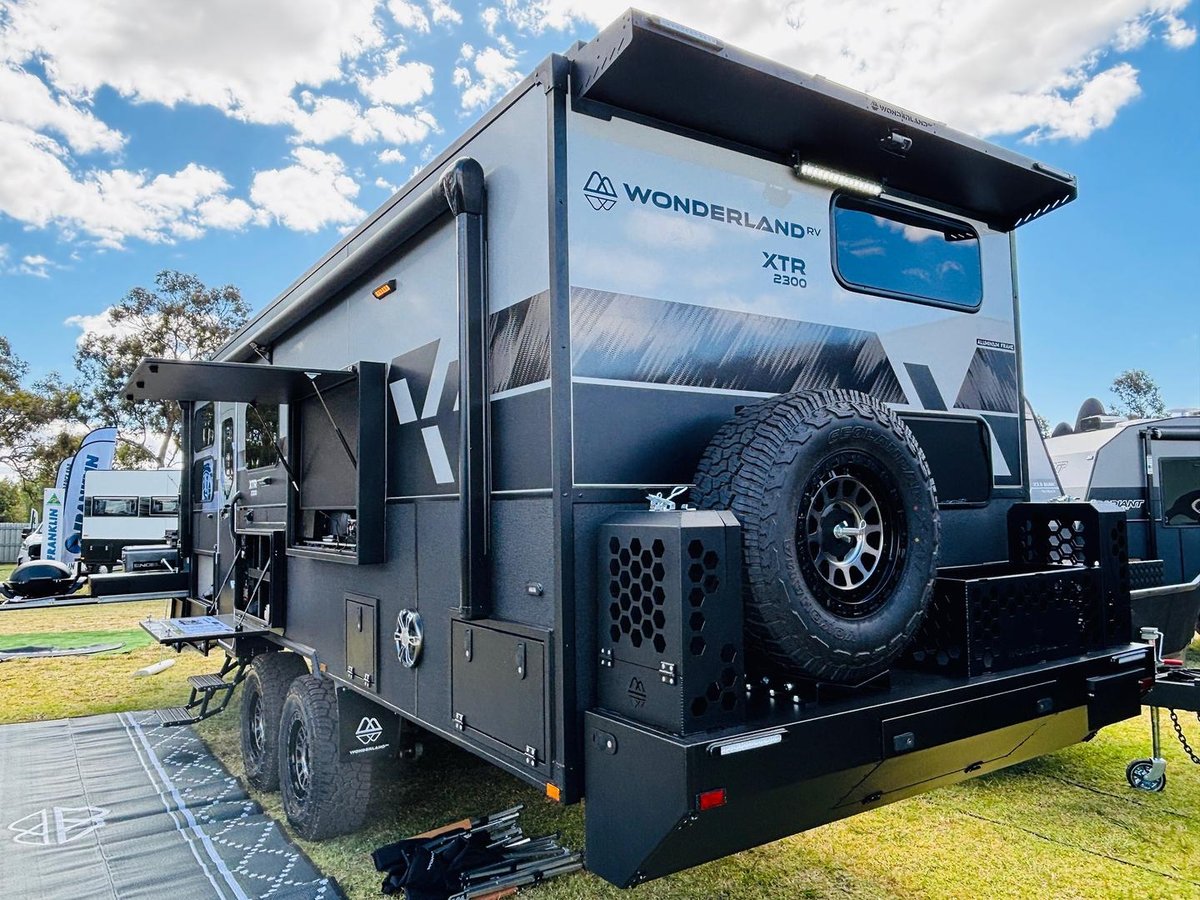

Rear Bumper with Storage Boxes & Drawer
2 x Jerry Can Holders
Woodbox
Double Step

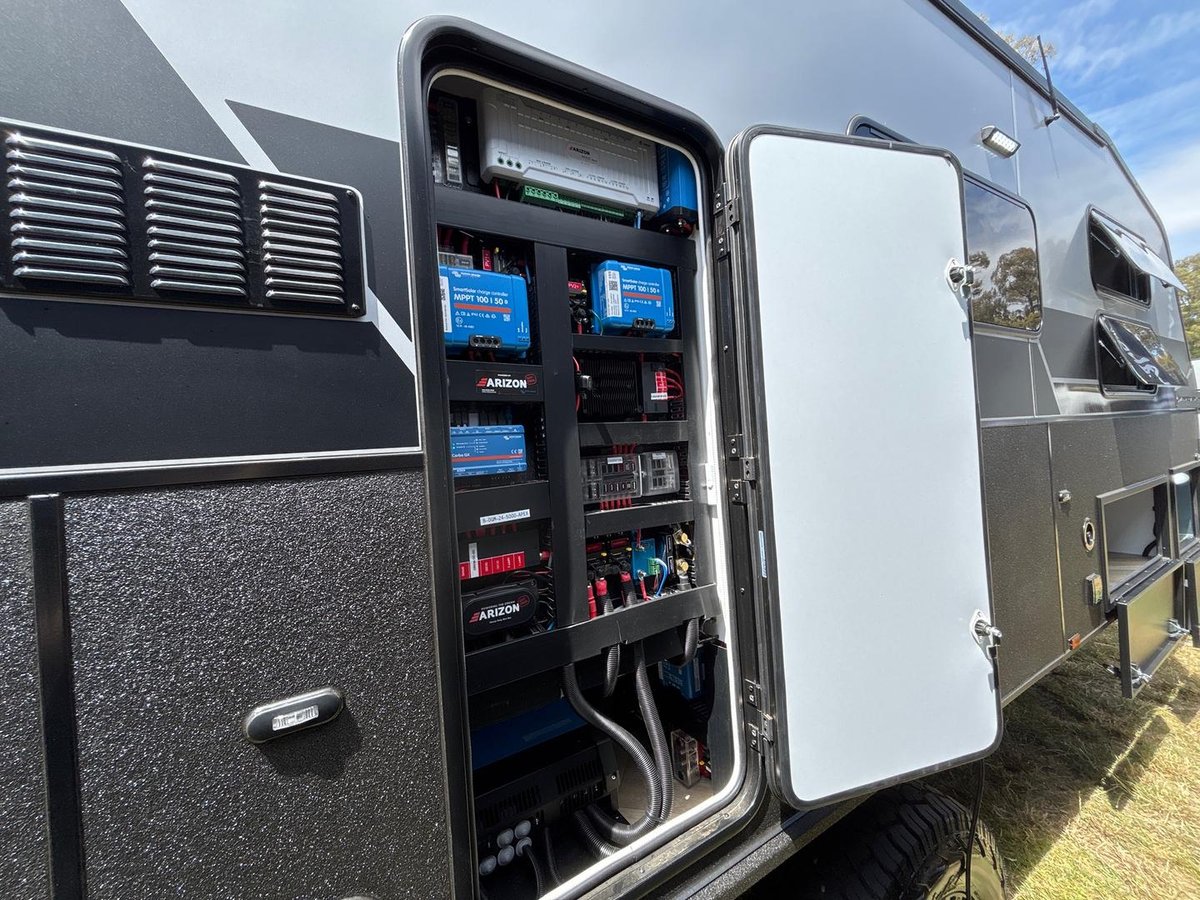

ELECTRICAL
Behind Fridge Installation with Built In Tank Display

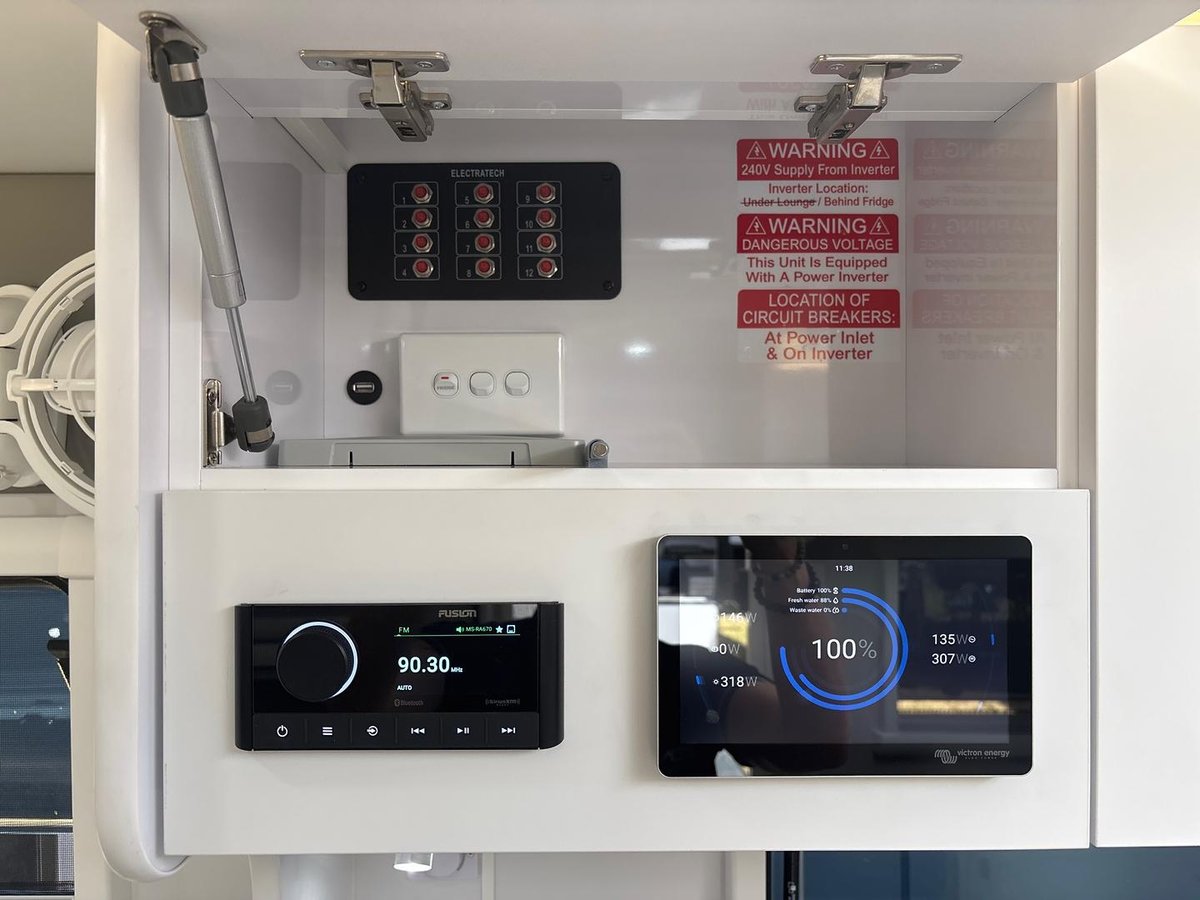

Victron 24V Off-Grid Touch50
50A-24V Solar Regulator
120A AC-charger
5000VA inverter allowing you to use multiple 240V appliances at once
1800W-24V Solar
7.2kWh / 1380Ah at 12V Lithium Battery Capacity

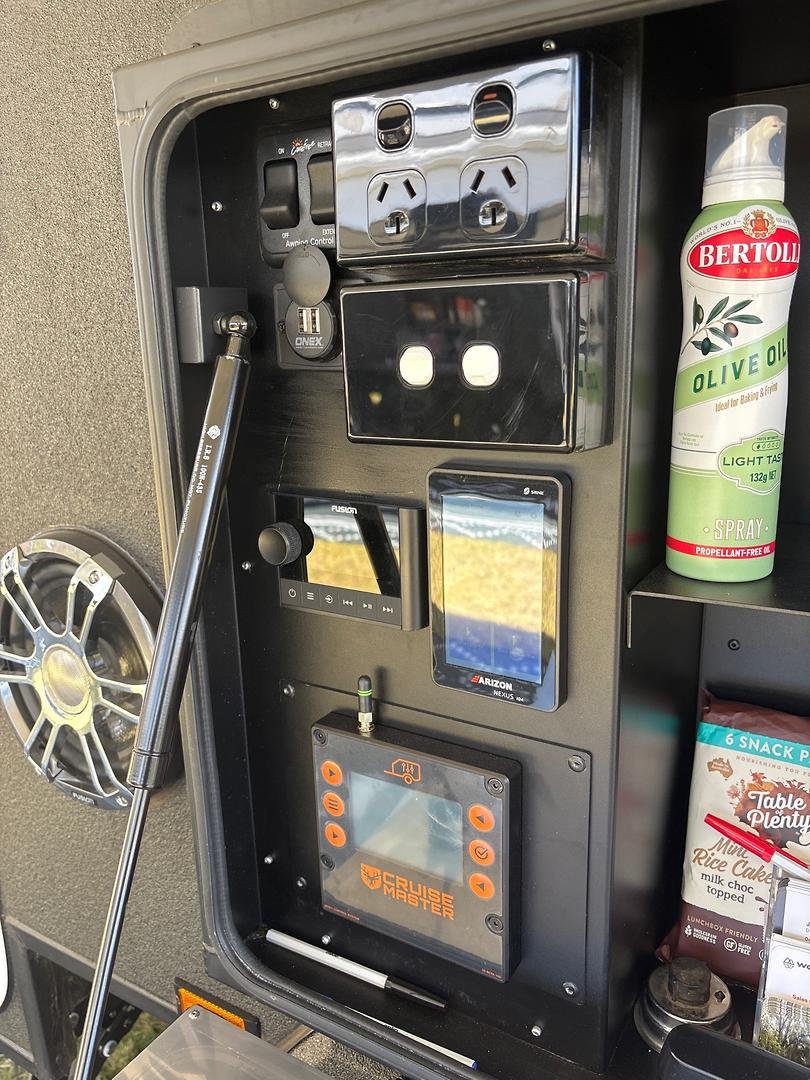

Integrated Gauges
1 x Grey Anderson Input 1 x Yellow Portable Solar Input
12v Powered Dust Reduction Unit
Multiple USB Outlets At Seating, Bedroom, External.

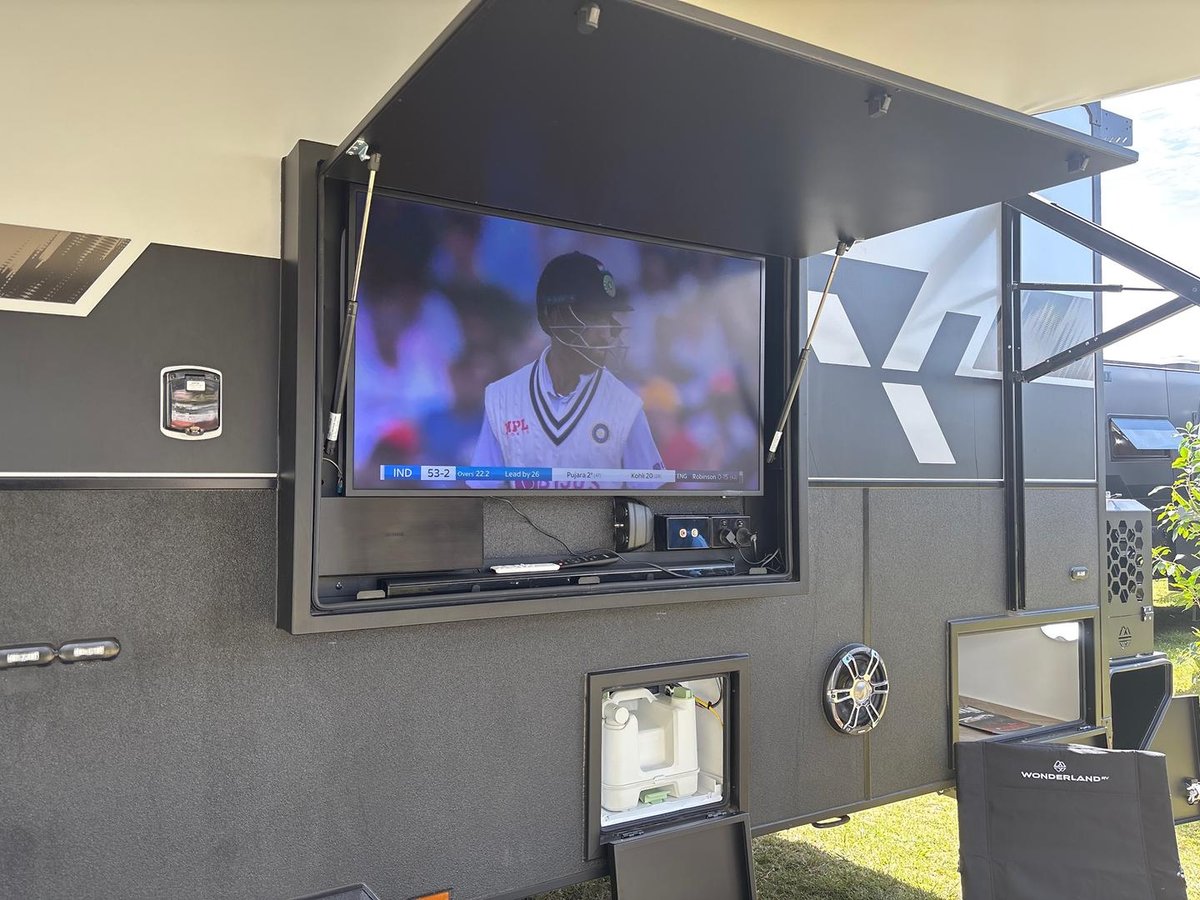

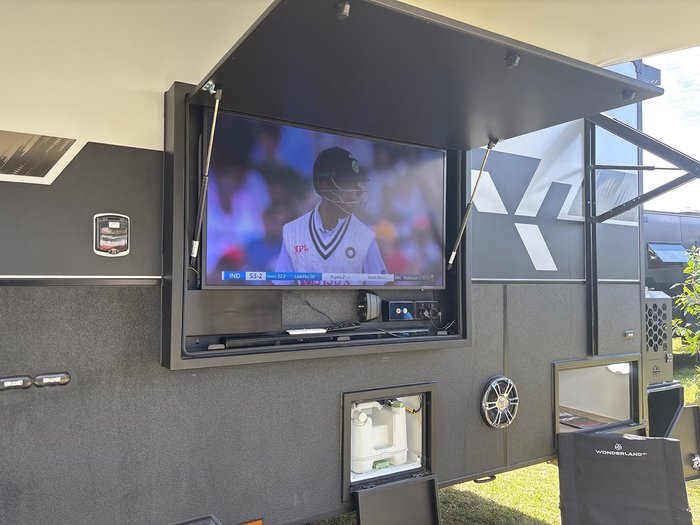

External Entertainment Pack with Hatch
Plenty of LED Lighting Internally & Externally
6 x External Lights & 3 x Anti Bug External Lighting
Internal LED downlights
Fusion Sound System & Speakers
Cowfish TV antenna
Starlink Provision
Cowfish 5G Wifi
32" Smart TV with Internal & External Points
Dometic Fresh Jet 3.4kw Air Conditioner
4 x Sirocco Fans

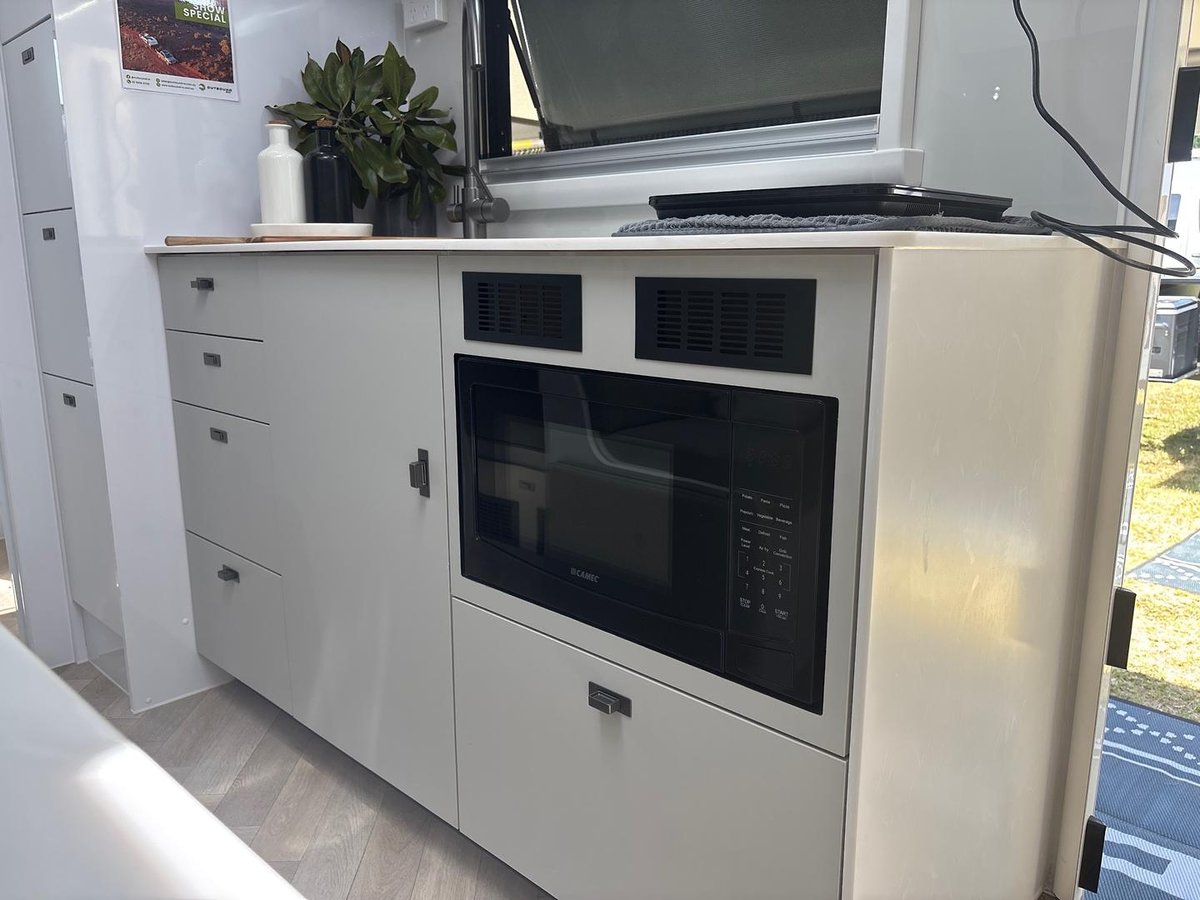

23L Mirrored microwave
Amber Ambient Mood LED Lighting
Portable Induction Cooktop
Swift Recessed Rangehood
Safety Dave Reverse Camera & Car Monitor

PLUMBING
1 x 200L Fresh Water Tank
1x 200lt Dedicated Drinking Water Tank
1x 60L Grey Water Tank with Grey Water Bypass
Quick Fills & Mains Water Connection
Hydronic Diesel Hot Water Service & Heater (Gasless)

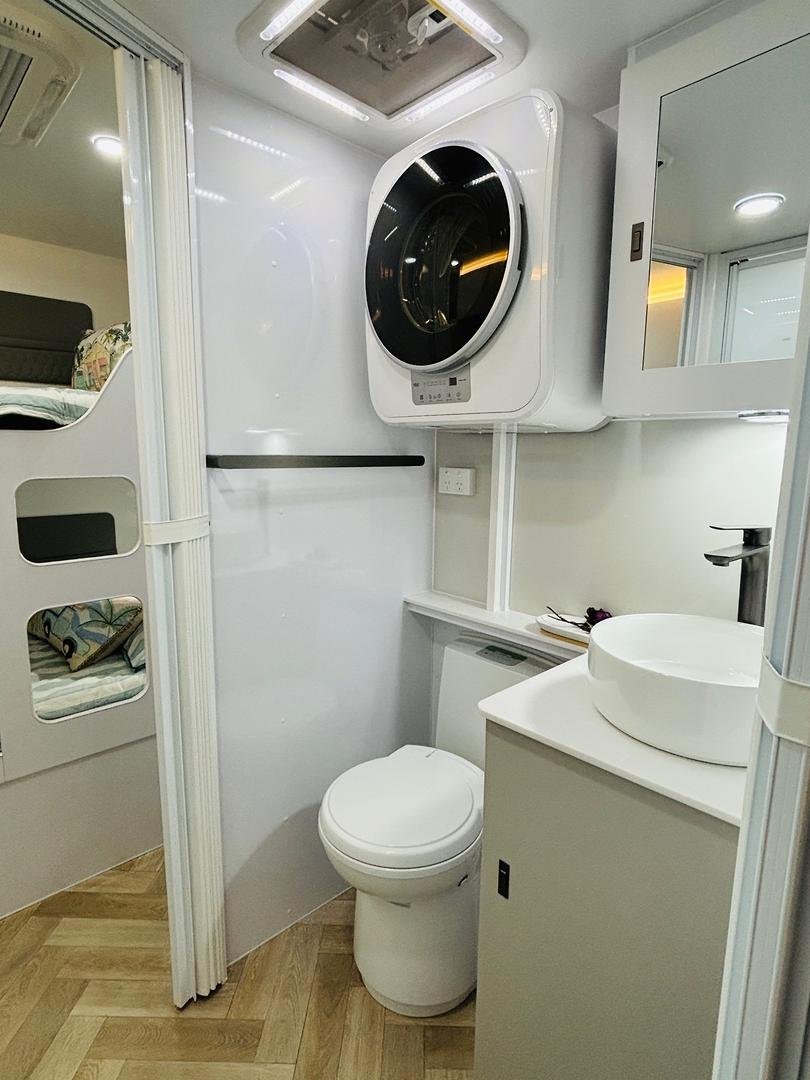

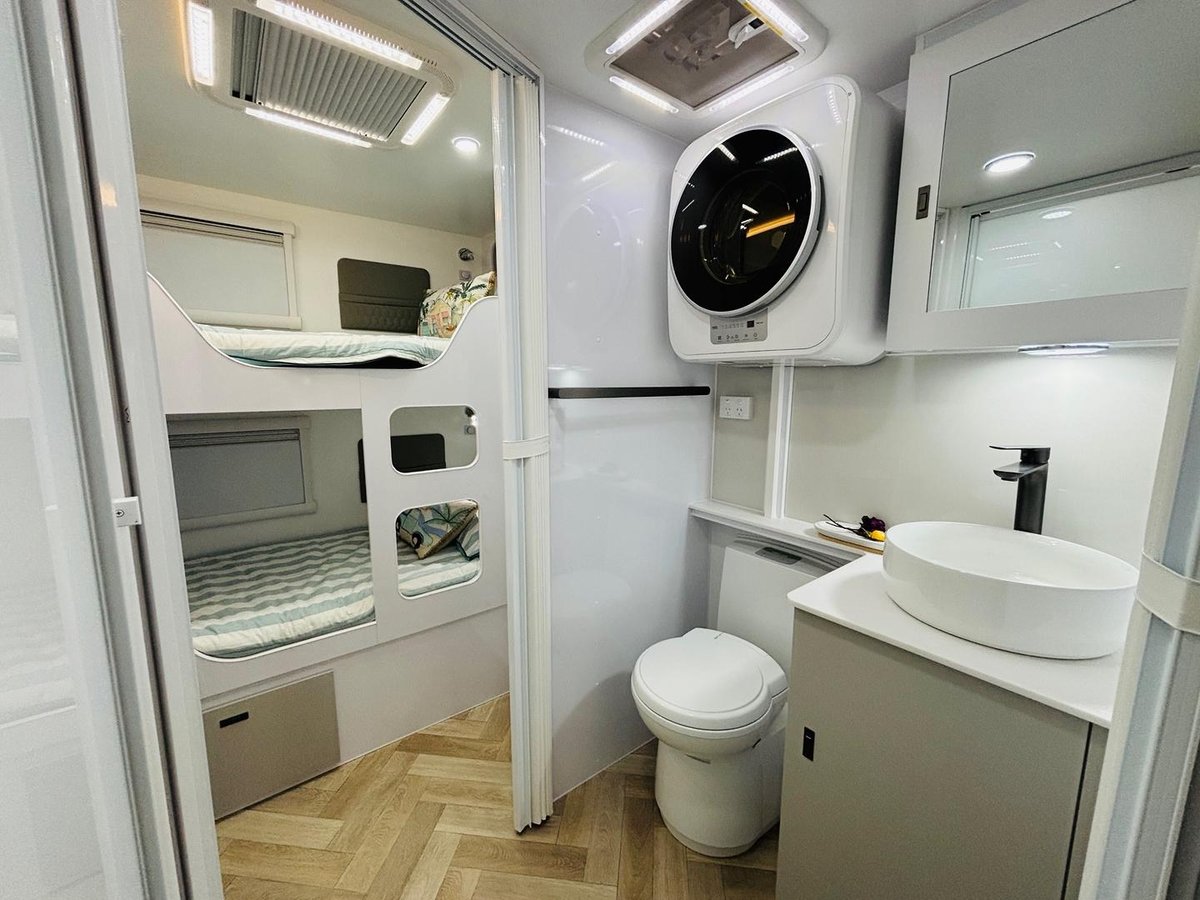

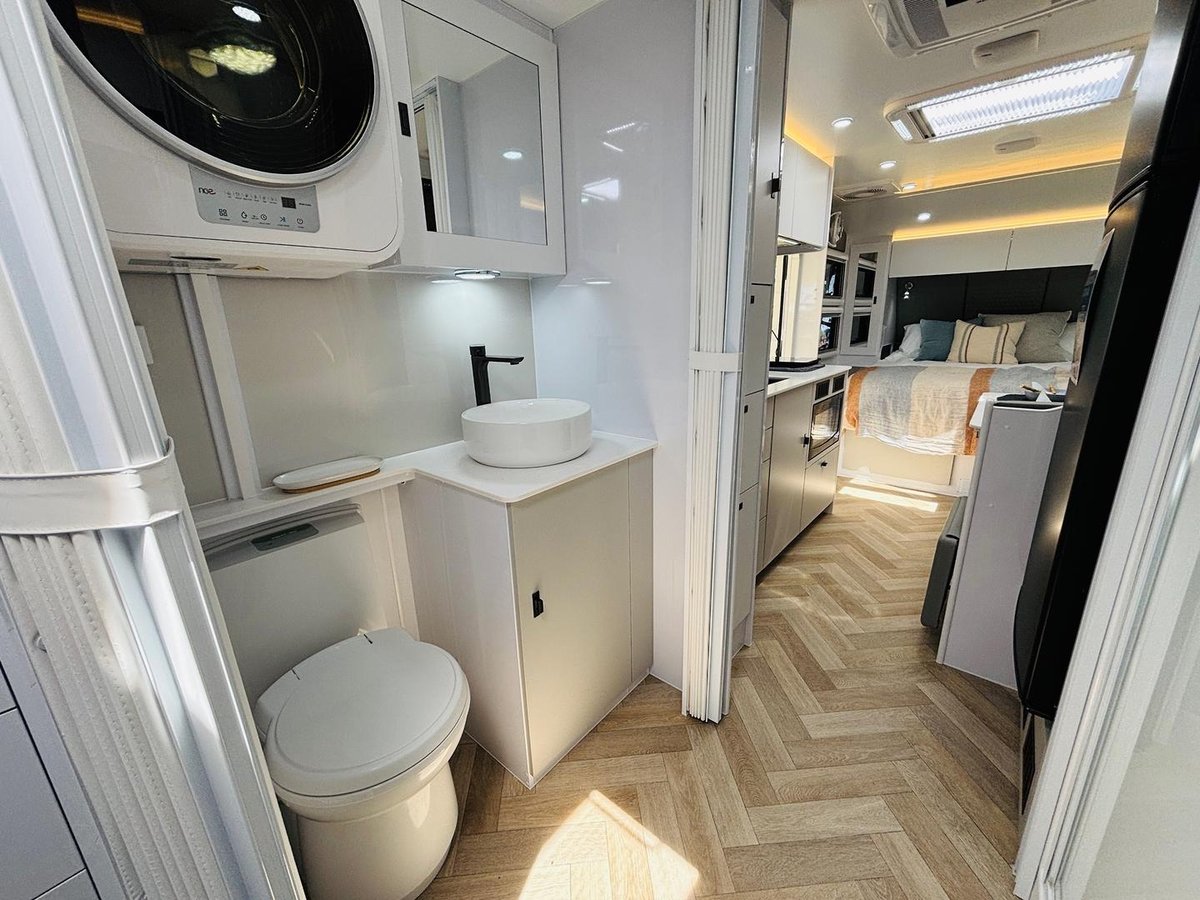

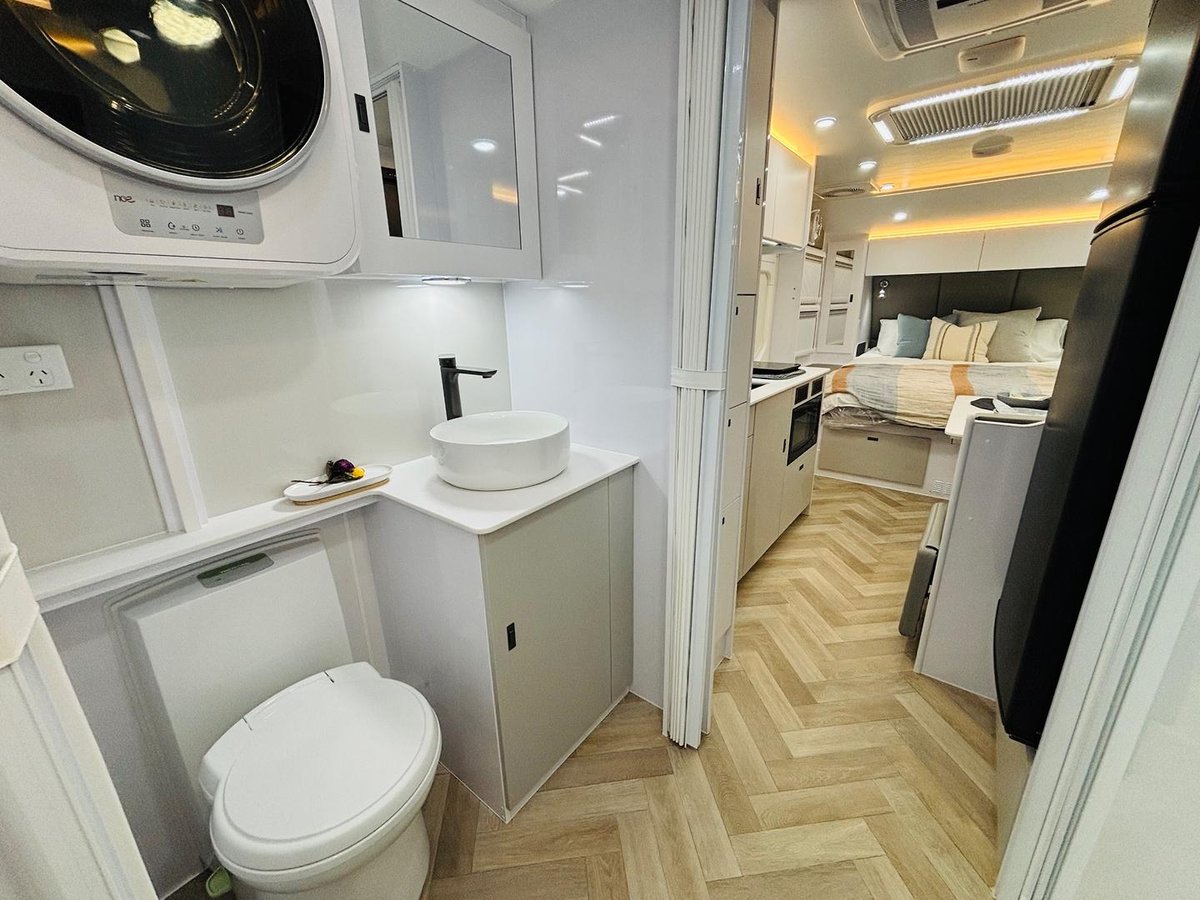

Thetford Separating Toilet
Hot & Cold External Shower
3kg Wall Mounted Washing Machine
1 x BBQ Gas Bayonet
1 x Cold Tap to A Frame
Thetford 274lt Compressor Fridge & Freezer
2 x 4kg Gas Bottles
3 Way Tall Gunmetal Gooseneck Kitchen Tap with Filter

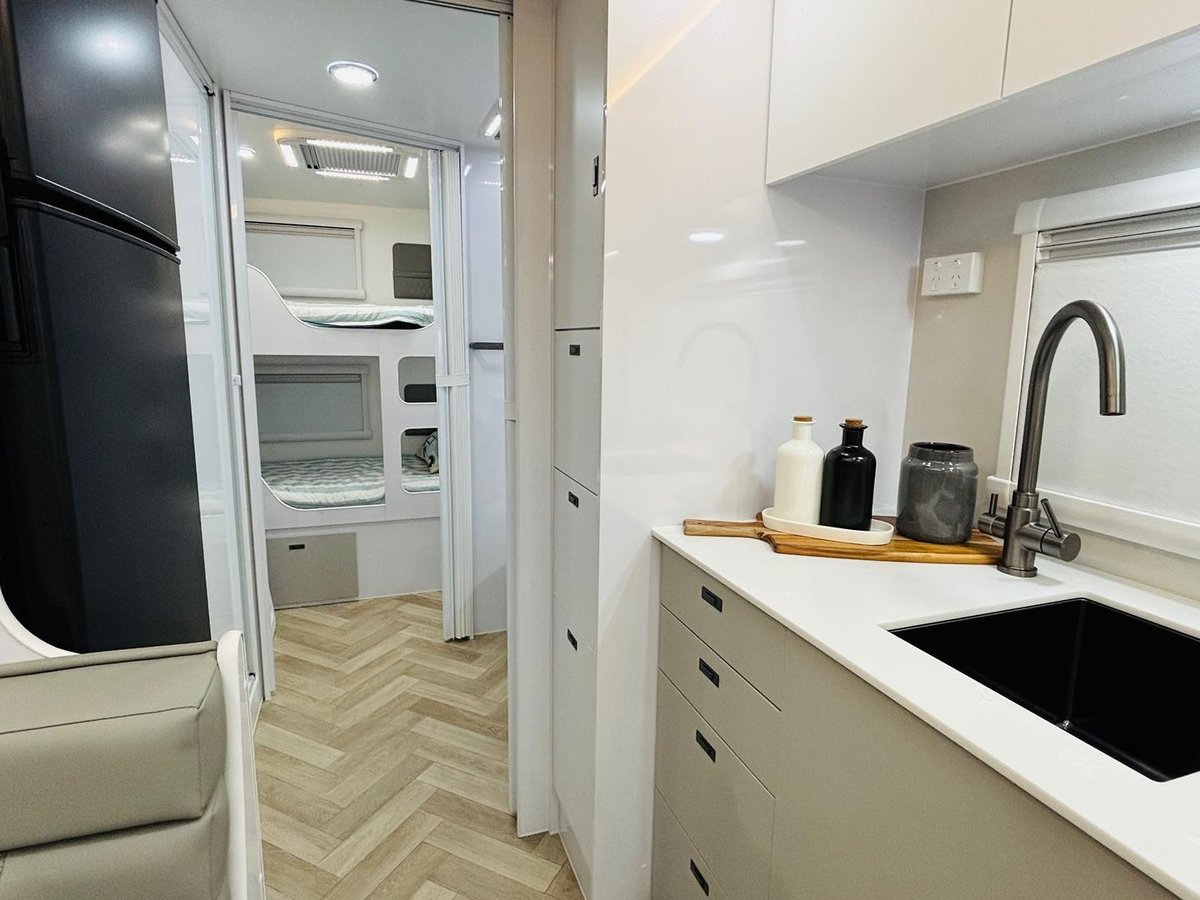

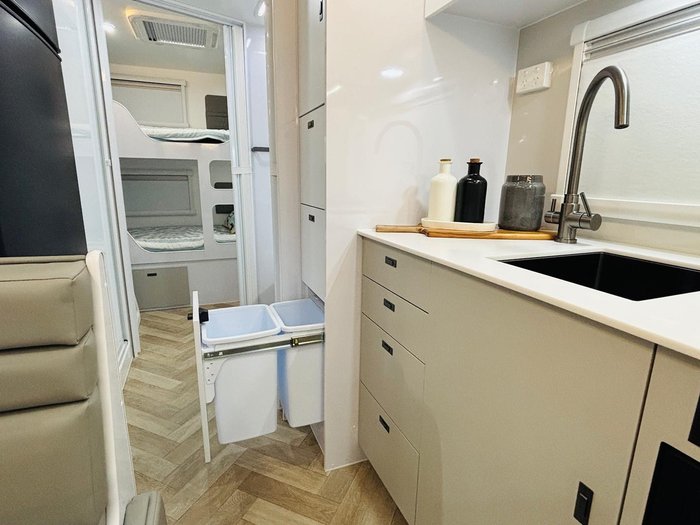

Gunmetal Undermounted Kitchen Sink

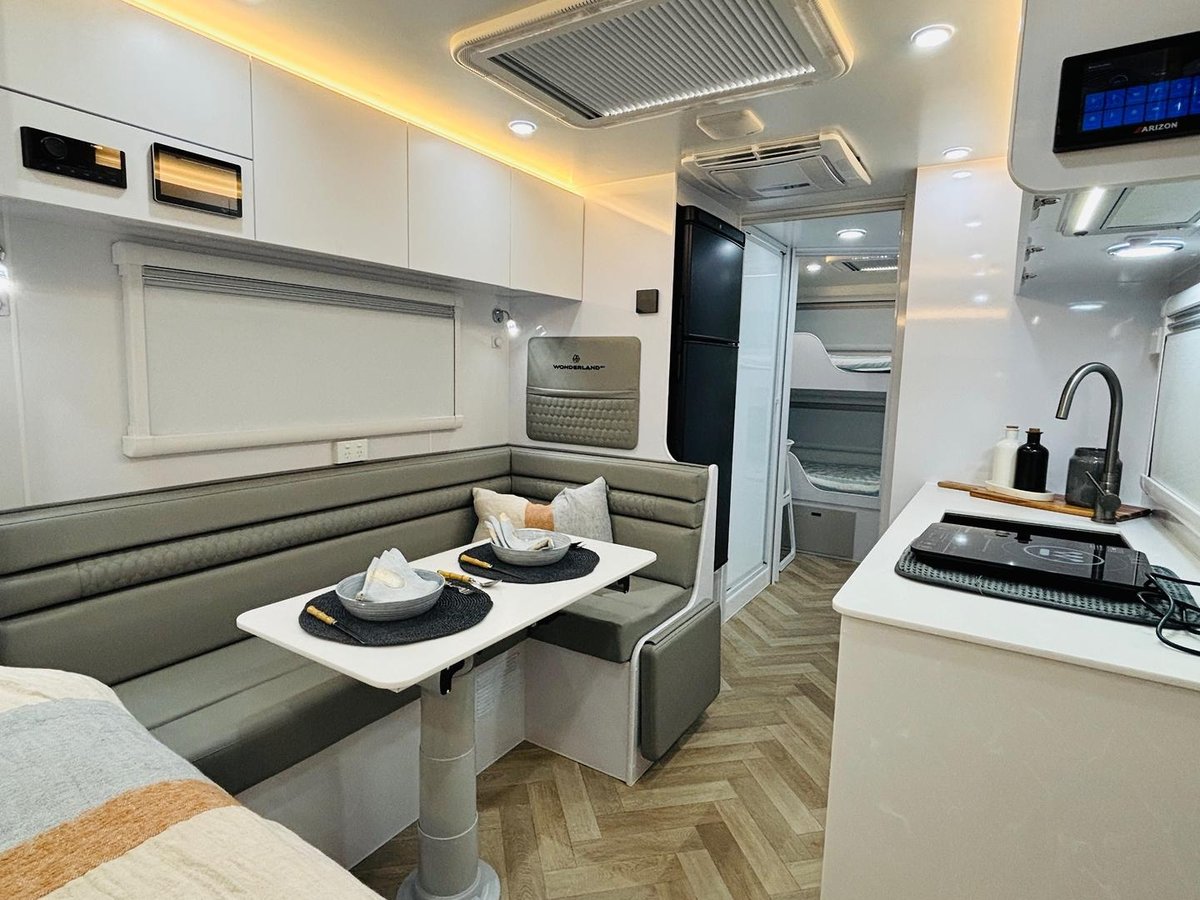

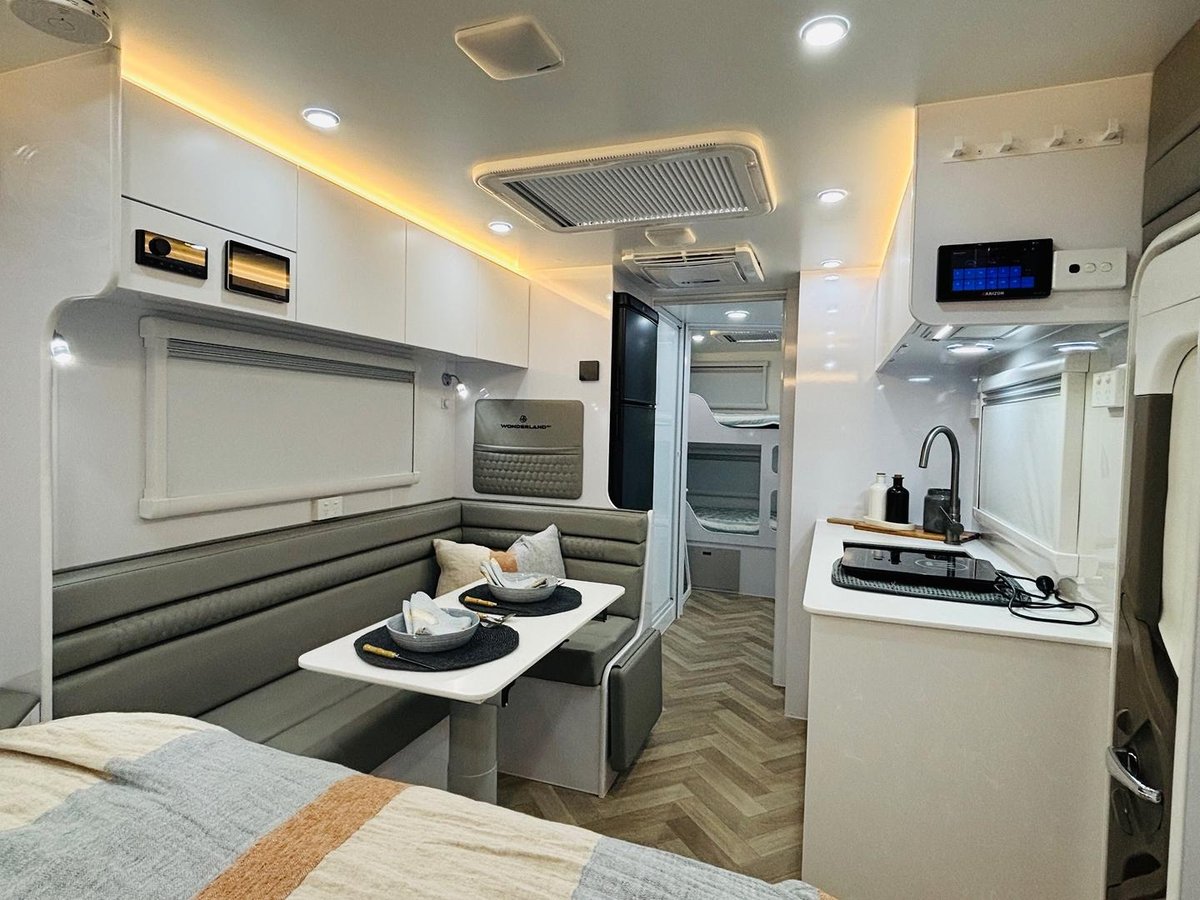

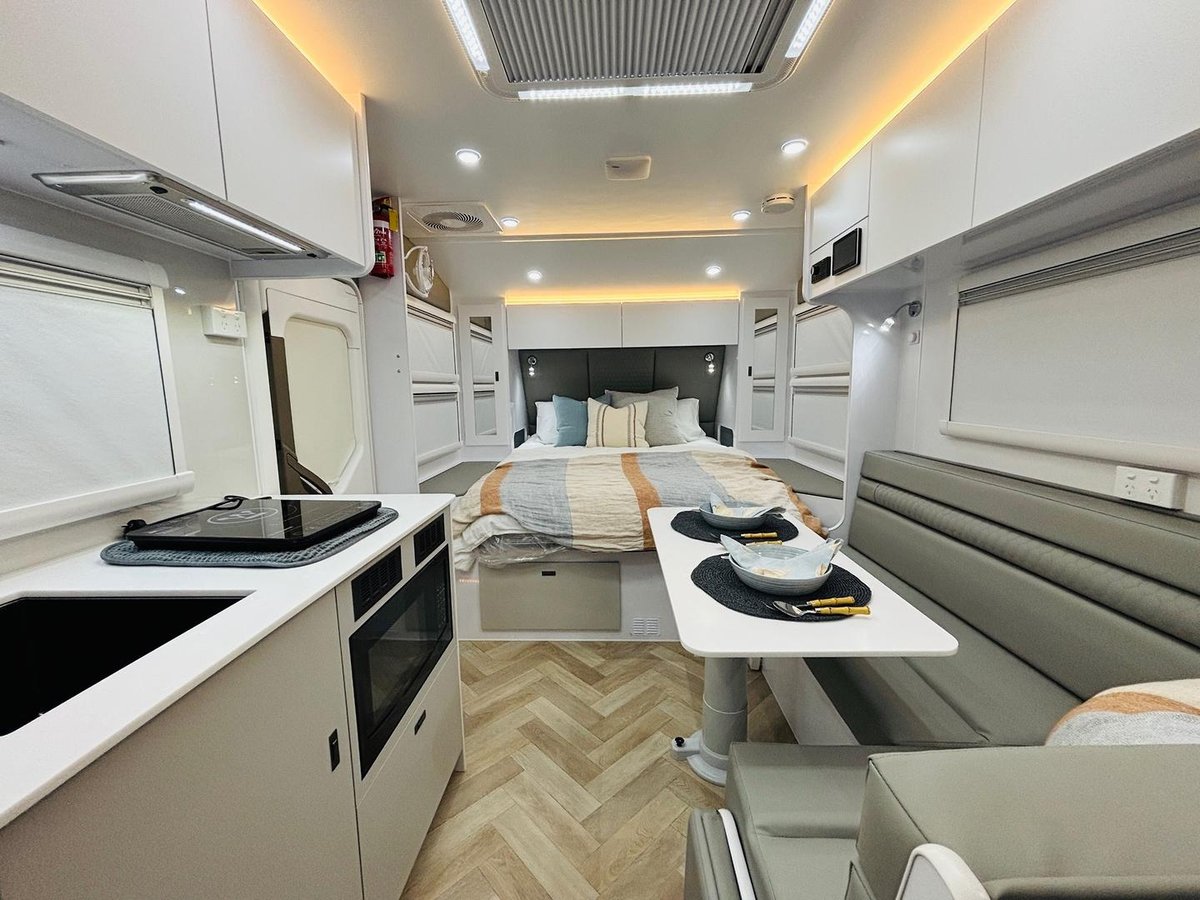

INTERNAL
CNC Lightweight Ply Furniture- precision cut with no gaps
Lightweight European Plywood Laminate Benchtops & Doors
Waterfall Benchtop
Full Height Pantry with Soft Close Drawers
Soft Close Drawers Throughout The Van

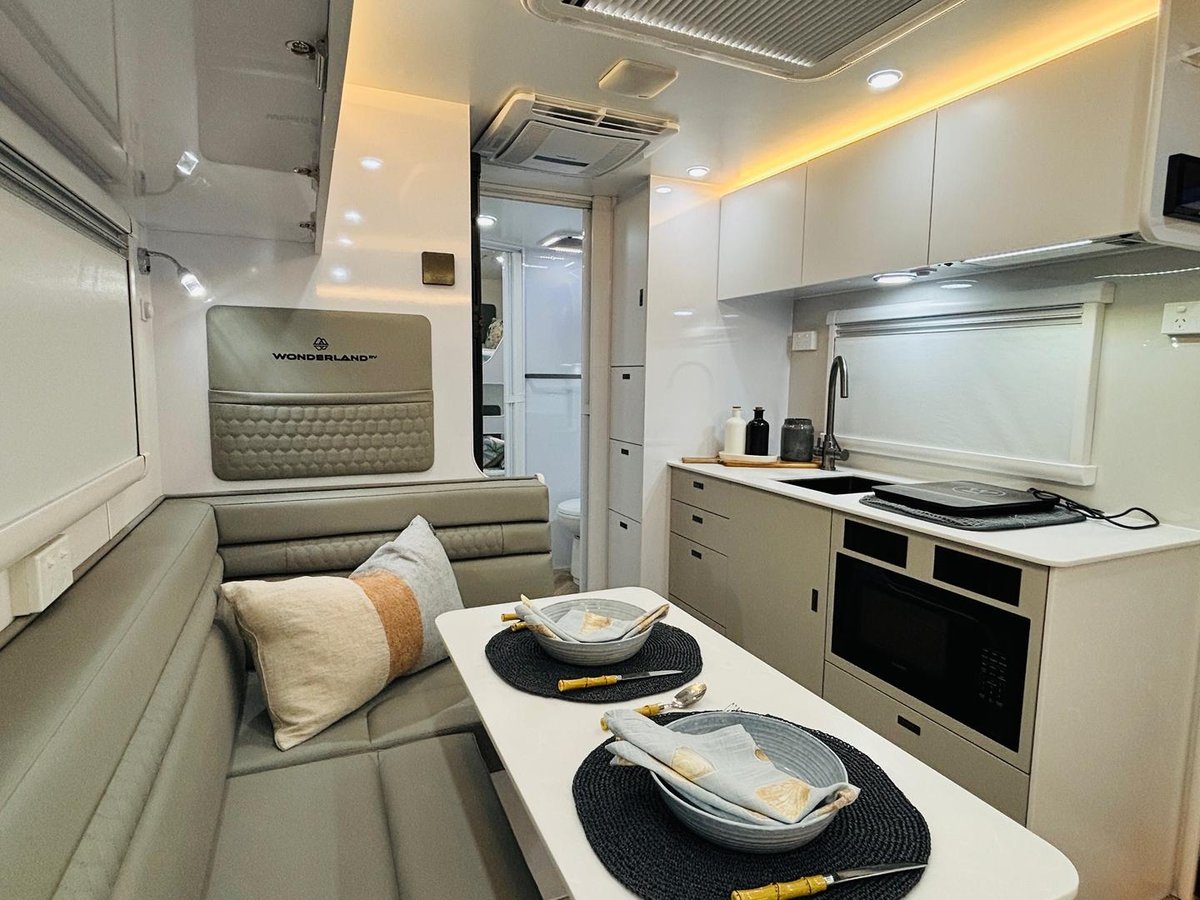

Firm back Lounge Seating with Support & Footrest
Telescopic Table Leg

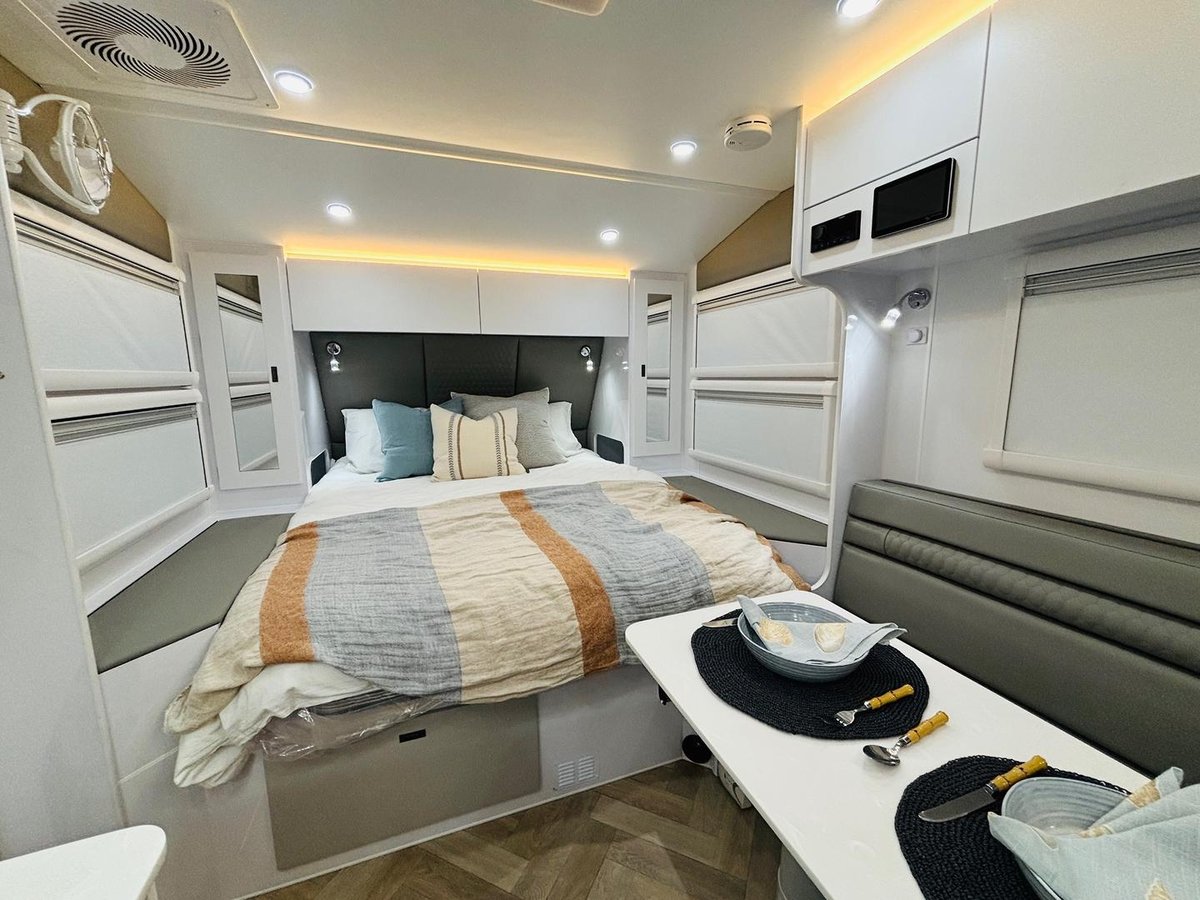

Pillowtop Mattress Queen 6’3"
Bedhead & Magazine Pockets
LED Hatches with Fans In Bathroom
Large Roof Hatch
Roller Blind On Entry Door
Breakaway; Smoke Detector; LPG Detector; Fire Blanket & Fire Extinguisher

EXTERNAL

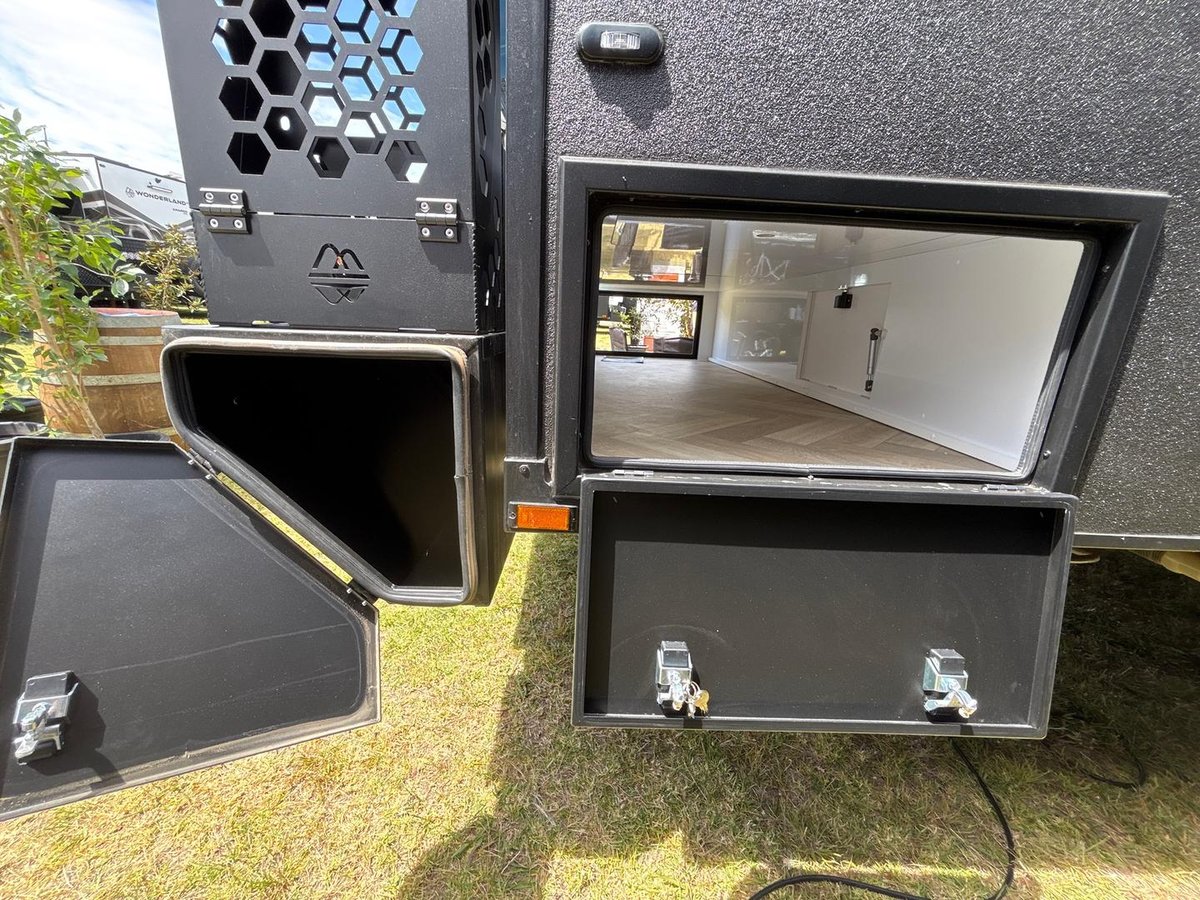

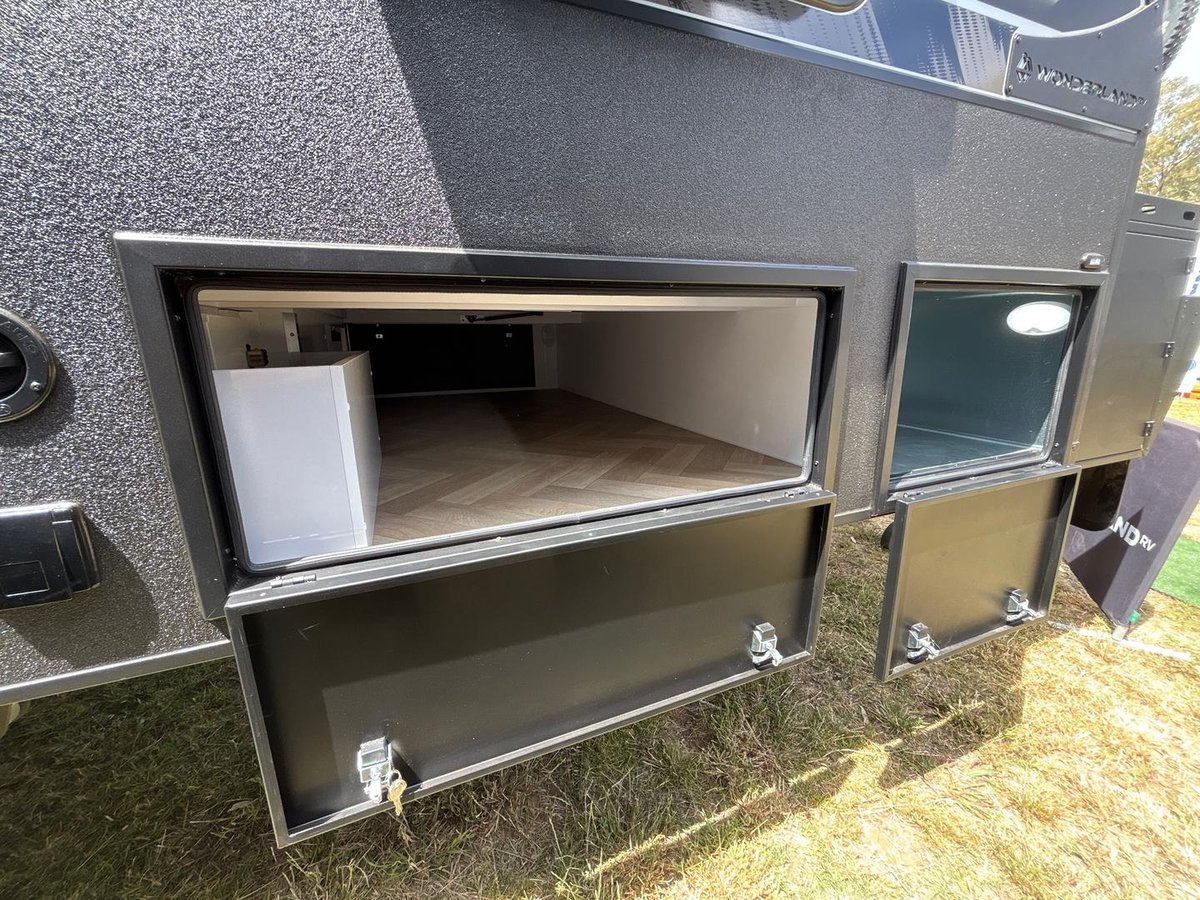

Fully Lined Galvanised Tunnel Boot

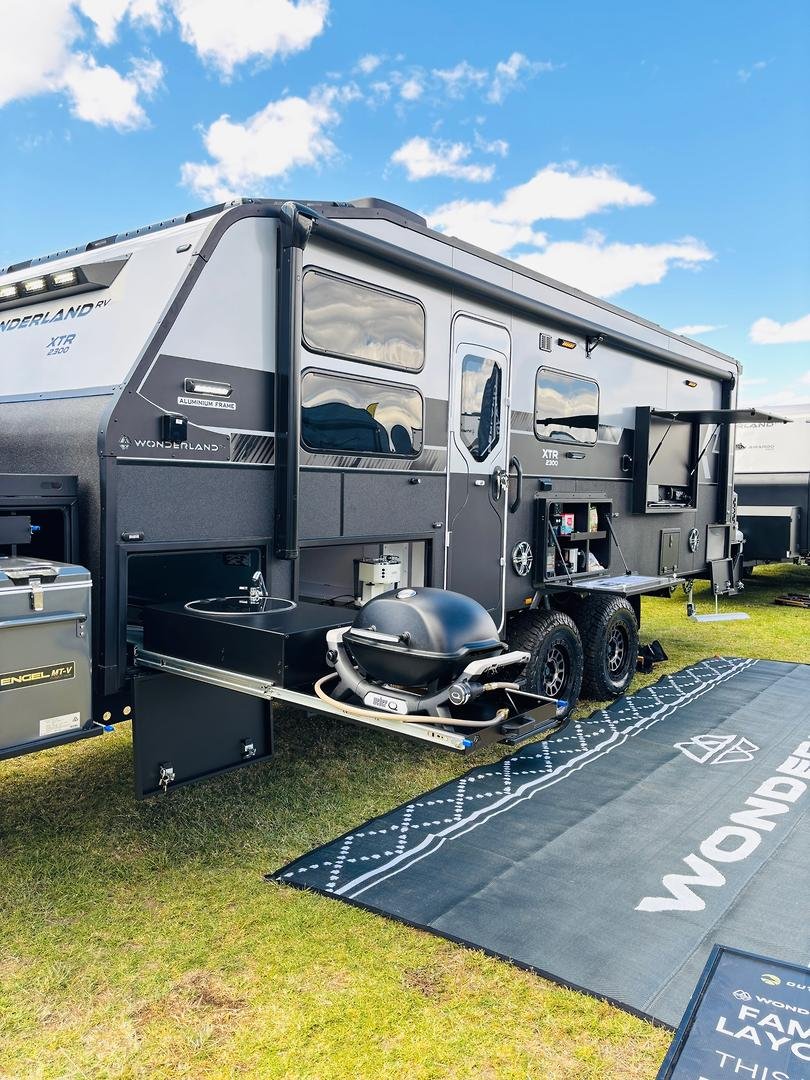

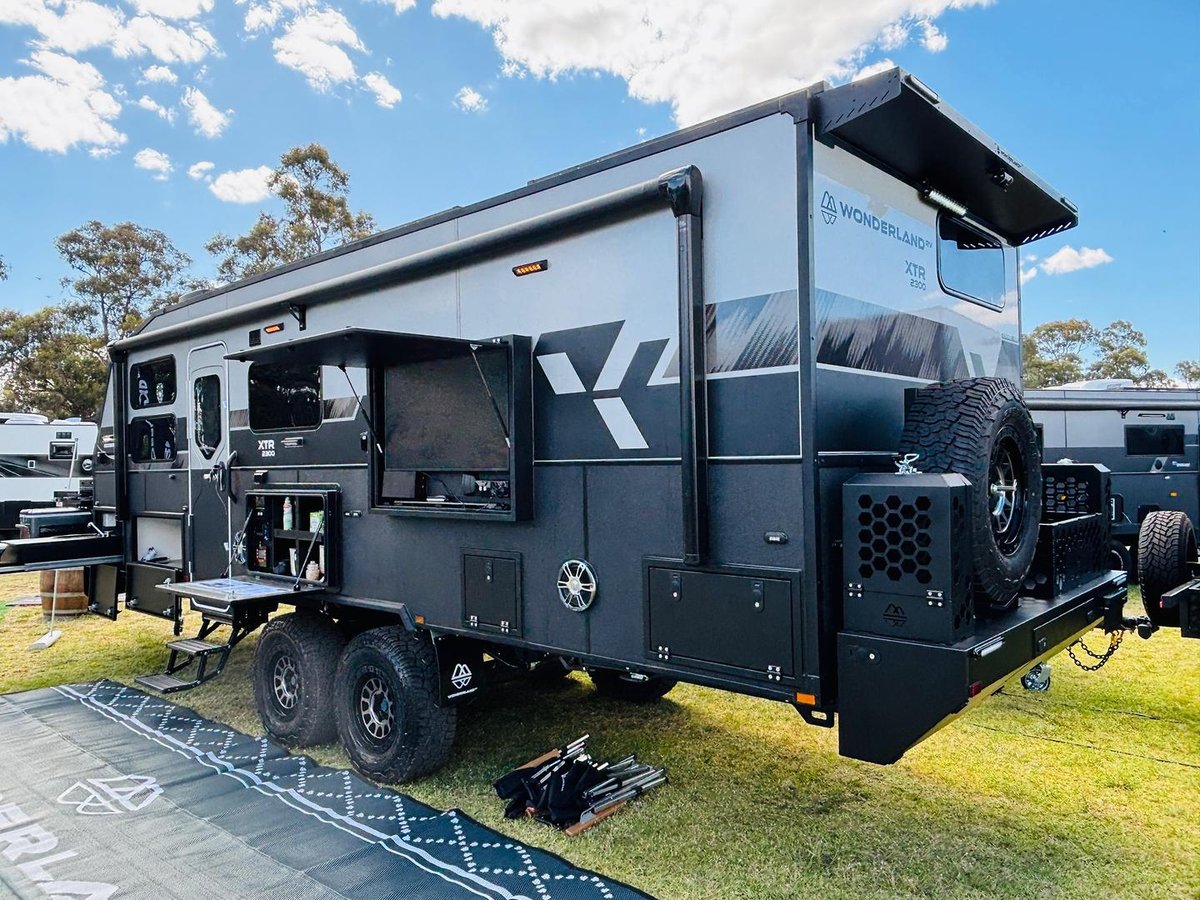

External Slide-Out Kitchen - K5i Weber BBQ provision, sink & portable induction

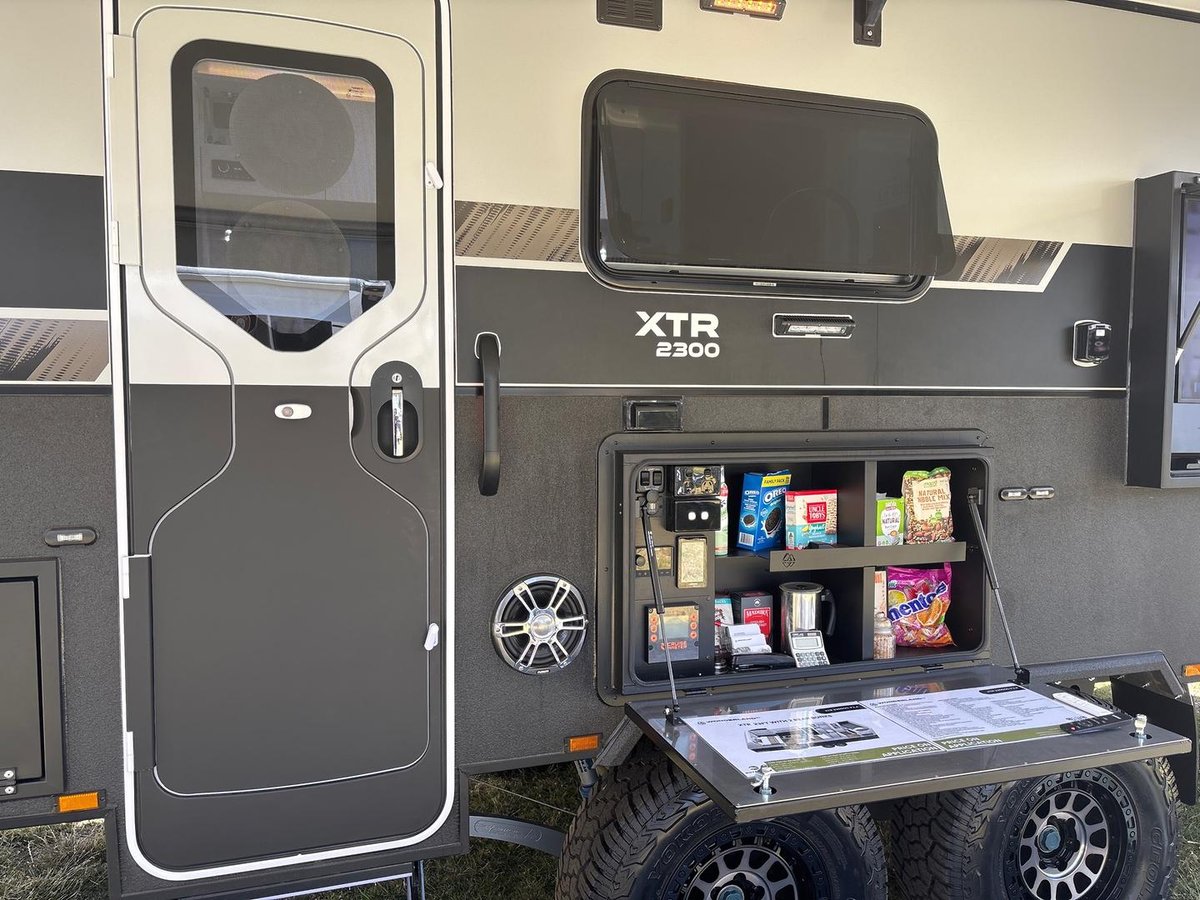

External Kitchen/ pantry & Picnic Table with GPO & USB
DiBond Marine Grade Composite Panel & 850mm Protection Plate
Freedom Carefree Electric Awning with BT & Motion Sensor
External Entertainment Points & Speakers
Aluminium High Access Tunnel Boot Doors
Black Picnic Table
Dometic CaraDoor 1850x622 Entry Door with Insect Screen
Large Double Glazed Windows with Dark Tint
Windows with flat non-concertina fly screen & block out

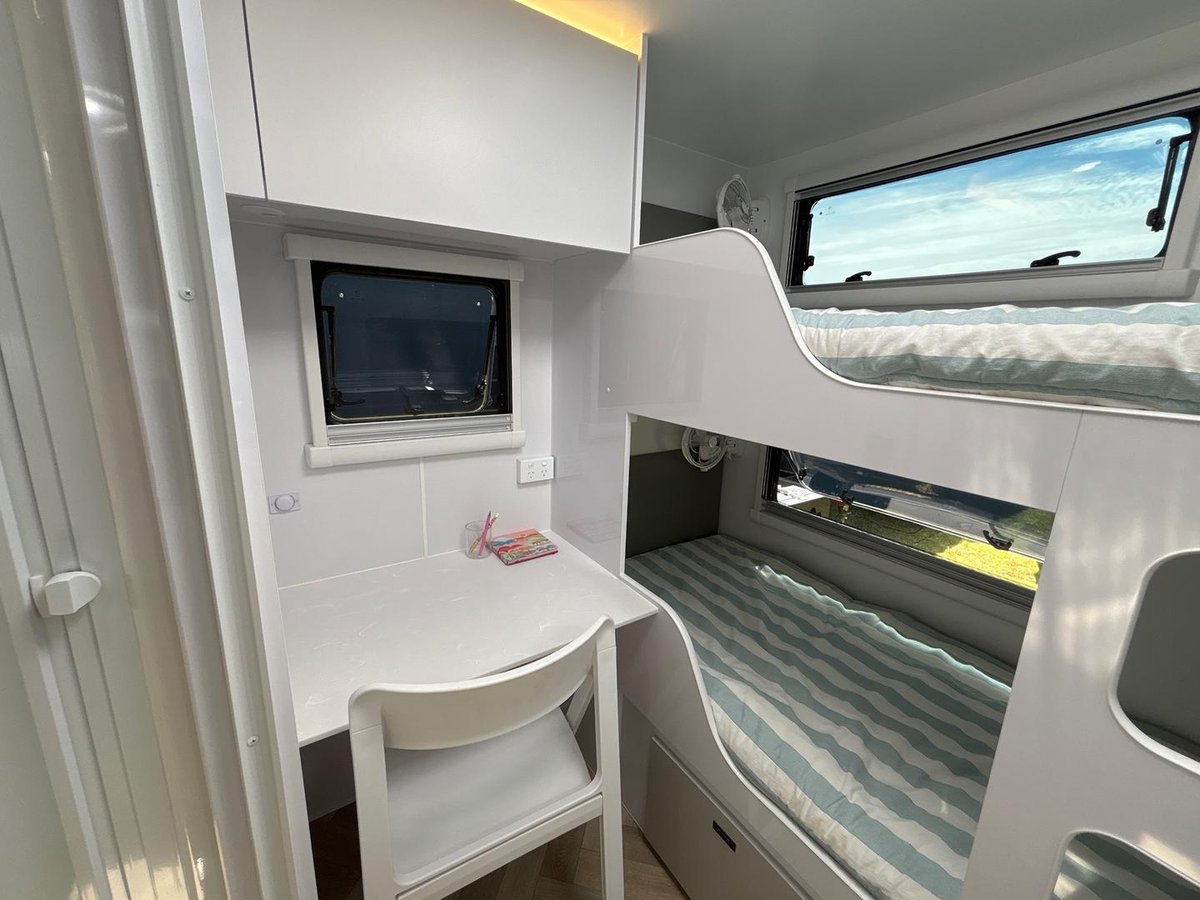

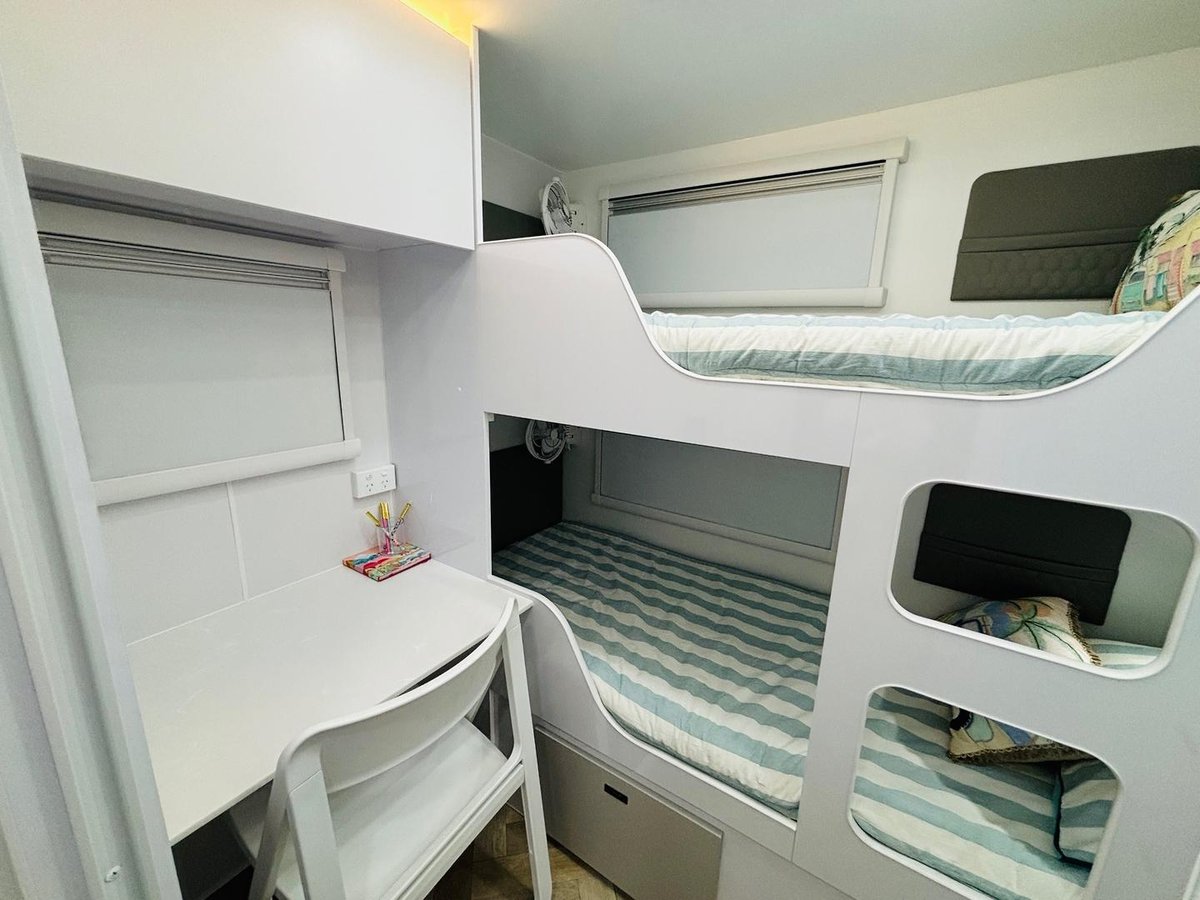

BUNK LAYOUTS
2m Long Bunks
120kg Bunk Loading Capacity
Bunks Come with Upholstered Bed Head, Reading Light, USB Charging Points
Built In Ladder with Grab Handle

CONSTRUCTION
Aluminium riveted 25mm C-Section Interlocking Aluminium, Henrob Riveted
One piece 35mm Sandwich Panel Composite Roof which wraps around the Front & Back- NO JOINS
Honeycomb Floor – lightweight, waterproof & one piece
XPS Insulation

WEIGHTS
ATM: 4500kg
TARE Weight 3800kgall
Ball Weight: 260kg
Travel Height: 3220mm
Travel Length: 9465mm
